All-in-Ones

Square D brand All-in-Ones are a single phase power distribution panels ideal for residential use. They provide a meter socket that supports a standard utility meter, a main disconnect, and load center distribution with spaces for up to forty-two circuits.

This single compact solution provides a time and space saving solution for contractors and installers. Square D All-in-One products meet a wide range of applications in use today. Consult the local utility for a specific list of approved devices.

Features

Ring or ringless styles available
Available in two styles for either QO or Homeline circuit breaker formats
Rating Max: 100–400 A
Available in ten to forty-two branch circuit space configurations semi-flush
Available plug-on neutral option
Dedicated surface and semi-flush mounting styles
Multiple disconnect units can be converted to semi-flush with addition of flange kit
Generator kits available to provide switching method between main utility service and backup power source
NEC 2020 for most models
Solar ready available option
Some models are Wiser Energy compatible

The Plug–on Neutral advantage:

Faster installation – fewer connections
Saves wire – fully distributed split neutral bar
Frees gutter space – no pigtails

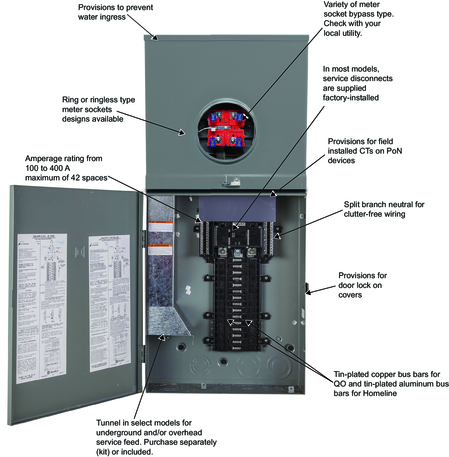

All-in-One Product Description

Designed specifically for areas where local codes allow main breaker load centers to be mounted outdoors.

All-in-One devices provide installation labor savings and have been designed specifically for areas where local codes allow main breaker load centers to be mounted outdoors. Simplify adding solar, EV charging, batteries, and generators to the home with the award-winning Schneider Pulse.

Other Features

Circuit breaker compatibility –QO 3/4-inch format and Homeline one-inch format. Some interiors (solar ready) accept plug-on neutral (PoN) and pigtail style branch circuit breakers.
Backed out neutral screws –save labor and installation time.
Standard 22 kA / 10 kA AIR SCCR –standard short-circuit series rating for most CSEDs provides increased application capability. (Some CSEDs have a different SCCR, see product Technical Information to confirm.)
Neutrals and ground –supplied with 100% branch neutrals; all unused terminals may be used for equipment grounding wires.
Twistouts –twistouts are factory removed in some models for easier installation of circuit breakers.
Screws –combination slot/square-drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square-head drivers.
UL Listed –suitable only for use as service equipment.

Catalog Number Description

All–in–One Catalog Number Description

Circuit Breaker Catalog Number Guide

General Information and Application Data

SC3042M225PF

SU3040D300FB

Type

Combination service entrance devices (CSED) for use on electrical systems are UL Listed under File E-6294 (panelboards) and meet Federal Specifications W-P-115c, Type 1, Class 2 for use in government housing.

Ratings

Single-Phase, Rating Max: 100–400 A

Neutral Assemblies

Branch neutral terminals are suitable for one #14–#4 AWG copper or one #12–#4 AWG aluminum wire.

Suitable lugs are provided on the neutrals for termination of the grounding conductor.

All unused neutral terminals may be used to terminate bare or green equipment grounding conductors:

one #14–#4 AWG copper
one #12–#4 AWG aluminum
two or three #14–#10 AWG copper
two or three #12–#10 AWG aluminum

Phasing

CSEDs have distributed phase bussing.

Most branch circuit breakers can be mounted in any position.

UL Listed

File E-6294 (panelboards) UL67 standard enhances safety in electrical distribution panels. Suitable for use as service equipment. Suitable for use with 75°C copper or aluminum main conductors.

RC3040M200SL

Class CTL

UL Listed Class CTL load centers meets the 2020 National Electrical Code (NEC) article for Lighting and Appliance Branch Circuit Panelboards.

NOTE: Only applicable on non-plug on neutral load centers.

Service

120 / 240 Vac, 1φ3W

208Y / 120 Vac, 1φ3W

Line Lugs

All lugs suitable for 75°C copper or aluminum wires.

CSEDs have wire binding screw torque values on the wiring diagrams and circuit breaker labels.

QO and Homeline All-In-Ones

Homeline All–in–One

QO All–in–One

NEMA Type 3R – Rainproof

QO and Homeline All-In-Ones

NEMA 3R enclosures are typically used in outdoor applications for wiring and junction boxes. This style of enclosure provides protection against falling rain, sleet, snow, and external ice formation. This style of enclosure does not have a gasketed sealing surface. Some models have hasps for padlocking.

Square D by Schneider Electric CSEDs are suitable for use as service equipment only in residential applications where local codes require service disconnects to be located outside the dwelling.

QO and Homeline all-in-ones have different physical qualities, yet they both fulfill the same function. Contact the local utility to know which metering enclosure to use in your area.

Circuit breaker format - QO: ¾ inch per 1 pole space/ Homeline: 1 inch per 1 pole space.

Meter socket type - QO: Ring type and ringless/ Homeline: Ring type and ringless

Backed-out neutral terminal screws - QO: Top and split neutral/ Homeline: Fully distributed split neutral

Bus bars - QO: Shielded, tin-plated copper/ Homeline: Not shielded, tin and copper plated aluminum

Rainproof Enclosures

	QO and Homeline Plug-on Neutral (PoN) Plug-on Neutral CSEDs are an available option that offer time-savings for Plug-on Neutral Combination Arc Fault (CAFI) and dual function circuit breaker installation. Our innovative, split neutrals are designed to save time and wire, allowing plug-on neutral circuit breakers to connect directly to the neutral bar without the pigtail.
	Material and finish Galvanized steel enclosure includes interior trim and door with a gray powder coating. QO interiors have tin plated copper bus bars and Homeline interiors have tin and copper plated aluminum bus bars.
	Stainless steel latch A stainless steel door latch on the enclosure provides closure and maximum durability.
	Wiring access without door removal CSEDs are side-hinge or top-hinge door devices, providing full wiring access without door removal.
	Hubs Square D type rain-tight hubs provide fast and convenient top or bottom feed conduit connection. Hubs are suitable for use with conduit having ANSI standard taper pipe thread. Closing plates available for A, A-L and B hub openings.
	Filler plates Snap-in style filler plates are accessories purchased separately available to cover unused spaces. HOMFP and QOFP filler plates available for branch circuit breaker spaces in all of our covers.
	Different meter socket types Ring or ringless type meter socket designs available. After all work has been done and the meter has been fastened, a sealing or locking mechanism is placed in either form. Check with your local utility the sort of meter mounting to be utilized in a given location.

All-in-One Technical Information

100–200 A Standard All-in-Ones

QC2442M200C

QC3040M200S

QC3040M200SH

QO Rainproof All-In-Ones (1Ø3W—120/240 Vac Rainproof—UL Listed)

Cat. No.	Ampere Rating	Bypass Type	Service (Type of Feed)	SCCR (kA)	Service Disconnect(s)			Load Center and Branch Circuit Breakers *				Hub Type *	Line side Main Lugs AWG/kcmil (Al/Cu)	Service Ground Lug AWG/kcmil (Al/Cu)
					2P Circuits (Max.)	Type (Factory installed)	Ampere Rating Max.	Max. Quantity			Ampere Rating Max.
								Spaces	1P
								Spaces	Circuits	Tandems
Ringless Type
Surface Mount Only
QC2442M200C *	200	None	OH/UG *	22	1	QOM2200VH	200	24	42	18	200	A	6–350	8–2/0
QC2442M200SH *		Horn
QC2442M200CH * Fifth jaw factory-installed.*		Horn
QC3040M200S		None						30	40	10
QC3040M200SH		Horn						30	40	10

SC1624M100F

RC2040M200C

RC3040M200SL

Homeline Rainproof All-In-Ones (1Ø3W—120/240 Vac Rainproof—UL Listed)

Cat. No.	Ampere Rating	Bypass Type	Service (Type of Feed)	SCCR (kA)	Service Disconnect(s)			Load Center and Branch Circuit Breakers *				Hub Type *	Line side Main Lugs AWG/kcmil (Al/Cu)	Service Ground Lug AWG/kcmil (Al/Cu)
					2P Circuits (Max.)	Type (Factory installed)	Ampere Rating Max.	Max. Quantity			Ampere Rating Max.
								Spaces	1P
								Spaces	Circuits	Tandems
Ring Type
Surface Mount Only
SC1624M100S	100	None	OH/UG	10	1	HOM2100	100	16	24	8	100	A	6–2/0	6–2/0
SO1020M100S	100	None	OH/UG	10	1	HOM2100	100	10	20	10	80	A	6–1	8–4
SC1624M125S	125	None	OH/UG	10	1	HOM2125	125	16	24	8	125*	A	6–2/0	6–2/0
SC2040M200C *	200	None	OH/UG	10	1	HOM2200	200	20	40	20	100	A or	6–300	8–1/0
SO2040M200S	200	None	OH *	22	1	QOM2200VH	200	20	40	20	200	A-L A	6–350	8–2/0
Semiflush Mount Only
SC1624M100F	100	None	OH/UG	10	1	HOM2100	100	16	24	8	100	A or B300	6–2/0	6–2/0
SC1624M125F	125	None	OH/UG	10	1	HOM2125	125	16	24	8	110	A or B300	6–2/0	6–2/0
Ringless Type
Surface Mount Only
RC1624M100S	100	None	OH/UG *	10	1	HOM2100	100	16	24	8	100	A	6–2/0	6–2/0
RC2040M125CH * Fifth jaw factory-installed.*	125	Horn	OH/UG *	22	1	QOM2125VH	125	20	40	20	125	A	6–350	6–2/0
RC2040M150SH *	150	Horn	OH/UG *	22	1	QOM2150VH	150	20	40	20	150	A	6–350	6–2/0
RC2040M150CH * Fifth jaw factory-installed.*		Horn				QOM2150VH	150	20		20
RC3040M150SL *		Lever				QOM2150VH *	200	30		10
RC2040M200S *	200	None	OH/UG *	22	1	QOM2200VH	200	20	40	20	200	A	6–350	6–2/0
RC2040M200C *		None				QOM2200VH
RC2040M200CH *		Horn				QOM2200VH
RC3040M200SL *		Lever				QOM2200VH *		30		10
RC2040M200CGP		None				QOM2200VH		20		20

300–400 A All-in-Ones

SU3040D300FB

SU3040D400CB

RU3040D400CL

Homeline Rainproof All-In-Ones (1Ø3W—120/240 Vac Rainproof—UL Listed)

Cat. No.	Rating (A)	Bypass Type	Service (Type of Feed)	SCCR (kA)	Service Disconnect(s) *			Load Center and Branch Circuit Breakers *				Hub Type *	Line side Main Lugs AWG/kcmil (Al/Cu)	Service Ground Lug AWG/kcmil (Al/Cu)
					2P Circuits (Max.)	Type *	Rating (A) Max.	Max. Quantity			Rating (A) Max.
								Spaces	1P
								Spaces	Circuits	Tandems
Ring Type
SU3040D300CB * *	300	Class 320 Manual	UG	25	1	QDL22200 *	200	30	40	10	200	A–L	(2) Studs	4–250
SU3040D300CB * *	300	Class 320 Manual	UG	25	1	QDL, QGL, QJL *	100	30	40	10	200	A–L	(2) Studs	4–250
SU3040D300FB * *	300	Class 320 Manual	UG	25	1	QDL22200 *	200	30	40	10	200	A–L	(2) Studs	4–250
SU3040D300FB * *	300	Class 320 Manual	UG	25	1	QDL, QGL, QJL *	100	30	40	10	200	A–L	(2) Studs	4–250
SU3040D400CN *	400	None	UG	25	1	QDL22200 *	200	30	40	10	200	A–L	(2) Studs	4–250
SU3040D400CN *	400	None	UG	25	1	QDL, QGL, QJL *	200	30	40	10	200	A–L	(2) Studs	4–250
SU3040D400FN *	400	None	UG	25	1	QDL22200 *	200	30	40	10	200	A–L	(2) Studs	4–250
SU3040D400FN *	400	None	UG	25	1	QDL, QGL, QJL *	200	30	40	10	200	A–L	(2) Studs	4–250
SU3040D400CB * *	400	Class 320 Manual	UG	25	1	QDL22200 *	200	30	40	10	200	A–L	(2) Studs	4–250
SU3040D400CB * *	400	Class 320 Manual	UG	25	1	QDL, QGL, QJL *	200	30	40	10	200	A–L	(2) Studs	4–250
SU3040D400FB * *	400	Class 320 Manual	UG	25	1	QDL22200 *	200	30	40	10	200	A–L	(2) Studs	4–250
SU3040D400FB * *	400	Class 320 Manual	UG	25	1	QDL, QGL, QJL *	200	30	40	10	200	A–L	(2) Studs	4–250
Ringless Type
RU3040D400CL Fifth jaw factory-installed.* *	400	Class 320 Lever	UG	25	1	QDL22200 *	200	30	40	10	200	A–L	(2) Studs	4–250
RU3040D400CL Fifth jaw factory-installed.* *	400	Class 320 Lever	UG	25	1	QDL, QGL, QJL *	200	30	40	10	200	A–L	(2) Studs	4–250
RU3040D400CK *	400	K–4 Bolt–on	UG	25	1	QDL22200 *	200	30	40	10	200	A–L	(2) Studs	4–250
RU3040D400CK *	400	K–4 Bolt–on	UG	25	1	QDL, QGL, QJL *	200	30	40	10	200	A–L	(2) Studs	4–250

125–225 A Solar Ready Plug-on Neutral All-in-Ones

SC2040M200PS

SC3042M200PS

SC3042M225PF

Homeline Solar Ready PoN All-In-Ones (1Ø3W—120/240 Vac Rainproof—UL Listed)

Cat. No.	Rating (A)	Bus Bar Rating (A)	Bypass Type	Service (Type of Feed)	SCCR (kA)	Service Disconnect(s)		Load Center and Branch Circuit Breakers Order separately.*				Hub Type Order separately.*	Line side Main Lugs AWG/kcmil (Al/Cu)	Service Ground Lug AWG/kcmil (Al/Cu)
Cat. No.	Rating (A)	Bus Bar Rating (A)	Bypass Type	Service (Type of Feed)	SCCR (kA)	2P Circuits	Type (Factory installed except where noted)	Spaces	Circuits	Tandems	Rating (A) Max.	Hub Type Order separately.*	Line side Main Lugs AWG/kcmil (Al/Cu)	Service Ground Lug AWG/kcmil (Al/Cu)
Ring Type, Homeline
Surface Mount Only
SC2040M200PS Meets EUSERC requirements.*	200	225	None	OH/UG	22	1	QOM2200VH	20	40	20	200	A-L	4–250	8–2/0
SC3042M200PS Meets EUSERC requirements.*							QOM2200VH	30	42	12
SC42M200PS Meets EUSERC requirements.*							QOM2200VH	42	42	0
Semiflush Mount Only
SC2040M125PF Meets EUSERC requirements.*	125	225	None	OH * /UG	22	1	QOM2125VH	20	40	20	110	A-L	4–250	8–2/0
SC2040M200PF Meets EUSERC requirements.*	200	225	None	OH * /UG	22	1	QOM2200VH	20	40	20	200	A-L	4–250	8–2/0
SC3042M200PF Meets EUSERC requirements.*	200	225	None	OH * /UG	22	1	QOM2200VH	30	42	12	200	A-L	4–250	8–2/0
SC3042M225PF Meets EUSERC requirements.*	225	225	None	OH * /UG	22	1	QOM2225VH	30	42	12	200	A-L	4–250	8–2/0
