Overview
The section provides you information on viewing various
parameter pages in the meter.

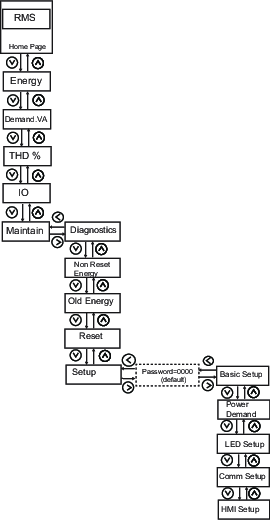

The meter navigation for PM1225H / PM1230H:
NOTE: IO is applicable for PM1230H meter.

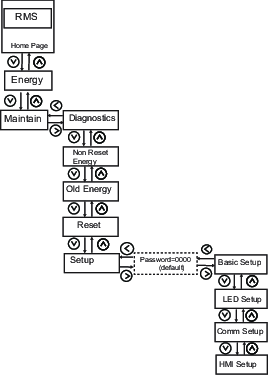

The meter navigation for DM6200H:
The meter navigation for EM1250H / EM1220H:
Information icons
Icons in the information area if the LCD display provides information
such as what menu is selected.
|
Icon |
Description |
|---|---|
|
|
RMS |
|
|
Energy and Non Reset Energy |
|
|
IO |
|
|
Diagnostics |
|
|
Old Energy |
|
|
Reset |
|
|
Setup |
Information icons
Icons in the information area if the LCD display provides information
such as what menu is selected.
|
Icon |
Description |
|---|---|
|
|
RMS |
|
|
Energy and Non Reset Energy |
|
|
Diagnostics |
|
|
Old Energy |
|
|
Reset |
|
|
Setup |
