Combination Starter Components

UL 98 Manual Disconnect Switches

TeSys™ GS Disconnect Switches

TeSys GS Disconnect Switch — GS2GU3N

TeSys™ GS Fusible Disconnect Switches

Catalog Number	Rating (A)	Poles	Maximum Rating (HP)				Short-Circuit Current Rating, 600 Vac Max.
Catalog Number	Rating (A)	Poles	240 V	480 V	600 V	250 Vdc	Fuse Type	SCCR (kA)
GS1DDU3	30	3	7.5	15	20	5	CC	100
GS1DU3	30	3	7.5	15	20	5	J	100
GS2EEU3	30	3	7.5	15	20	5	CC	100
GS2EU3N	30	3	7.5	15	20	5	J	100
GS2GU3N	60	3	15	30	50	10	J	100
GS2JU3N	100	3	30	60	75	20	J	200
GS2MU3N	200	3	60	125	150	40	J	200
GS2QU3N	400	3	125	250	350	50	J	200
GS2SU3	600	3	200	400	500	—	J	200
GS2TU3	800	3	200	500	500	—	L	200

TeSys™VLS Disconnect Switches

TeSys VLS Non-Fusible Disconnect Switches — VLS3P063R2

TeSys VLS Non-Fusible Disconnect Switches

Catalog Number	Mount Type	General Use @ 600 V (Amperes)	Max. Component SCCR (kA)
			Circuit Breaker @ 480 V			Fuses @ 480 V			Fuses @ 600 V
			Type	Max. Size (A)	Max. SCCR (kA)	Type	Max. Size (A)	Max. SCCR (kA)	Type	Max. Size (A)	Max. SCCR (kA)
VLS3P030R2	Rear	30	H-Frame	100	100	CC, J, or T	100	100	CC, J, or T	60	50
VLS3P063R2	Rear	60	H- or J-Frame	150	100	CC, J, or T	200	100	CC, J, or T	60	50
VLS3P080R2	Rear	100	J-Frame*	200	100	CC, J, or T	200	100	CC, J, or T	100	50
VLS3P100R2	Rear	100	J-Frame*	250	100	CC, J, or T	200	100	CC, J, or T	100	50
VLS3P125R2	Rear	100	J-Frame*	250	100	CC, J, or T	200	100	CC, J, or T	100	50
VLS3P030D2	Door	30	H-Frame	100	100	CC, J, or T	100	100	CC, J, or T	60	50
VLS3P063D2	Door	60	H- or J-Frame	150	100	CC, J, or T	200	100	CC, J, or T	60	50
VLS3P080D2	Door	100	J-Frame*	200	100	CC, J, or T	200	100	CC, J, or T	100	50
VLS3P100D2	Door	100	J-Frame*	250	100	CC, J, or T	200	100	CC, J, or T	100	50
VLS3P125D2	Door	100	J-Frame*	250	100	CC, J, or T	200	100	CC, J, or T	100	50

TeSys™ LK Disconnect Switches

TeSys LK Disconnect Switch — LK4SU3N

TeSys LK Non-Fusible Disconnect Switches

Catalog Number	Rating (A)	Poles	Maximum Rating (HP)				Short-Circuit Current Rating, 600 Vac Max.
Catalog Number	Rating (A)	Poles	240 V	480 V	600 V	250 Vdc	Fuse Type	SCCR (kA)
LK4DU3CN	30	3	10	20	30	—	J	100
LK4GU3CN	60	3	20	40	50	—	J	100
LK4JU3CN	100	3	20	50	50	—	J	100
LK4JU3N	100	3	30	75	100	15	J	200
LK4MU3N	200	3	75	150	200	15	J	200
LK4QU3N	400	3	125	250	350	50	J	200
LK4SU3N	600	3	200	400	350	50	J	200
LK4TU3N	800	3	200	500	500	—	L	100
LK4UU3N	1000	3	200	500	500	—	L	100
LK4WU3N	1200	3	200	500	500	—	L	100

Class 9422 Disconnect Switches

Flange Mounted, Variable Depth Disconnect Switch — 9422TF1

Class 9422 Flange Mounted, Variable Depth Fusible and Non-Fusible Disconnect Switches

Disconnect Switch Size (A)	Variable Depth Min.–Max. (in.)	Max. Horsepower Ratings						Fuse Type	Fuse Clip Rating Non-Interchangeable Type for Class H, J, K or R Fuses (A)		Catalog Number*
		AC System Volts (Motor Volts)				Vdc
		208 (200)	240 (230)	480 (460)	600 (575)	250	600		250 V	600 V
30	6.625–18	7.5	7.5	15	20	5	15	None	—	—	9422TCN30
30	6.625–18	7.5	7.5	15	20	5	15	H, J, K, R	30 60	— 30	9422TCF30 9422TCF33
60	6.625–18	—	15	30	50	10	30	None	—	—	9422TDN60
60	6.625–18	—	15	30	50	10	30	H, J, K, R	60 —	30 60	9422TDF60 9422TDF63
100	6.625–18	25	30	60	75	20	50	None	—	—	9422TEN10
100	6.625–18	25	30	60	75	20	50	H, J, K, R	100	100	9422TEF10
200	9.12–19.25*	40	60	125	150	40	50	None	—	—	9422TF1
200	9.12–19.25*	40	60	125	150	40	50	H, J, K, R	200 —	200 400	9422TF2 9422TF3*
400 Fixed Depth*	11.38 (A5 or A6 Handle)	75	125	250	350	50	50	None	—	—	9422TG1^,
400 Variable Depth*	15.87–19 (A7 or A8 Handle)*	75	125	250	350	50	50	H, J, K, R	400	400	9422TG2^,

UL 248 Switches

TeSys™ DF Fuse Holders

TeSys DF Fuse Holders — DFCC3

TeSys DF Fuse Holders

Fuse Holder	Standards	Maximum Voltage	Current	Short-Circuit Current Rating
DFCC	IEC, UL (UL Listed)	600 Vac	30 A	200 kA
DF10	IEC, UL (UL Recognized)	690 Vac	33 A	200 kA
DF14	IEC, UL (UL Recognized)	690 Vac	50 A	200 kA
DF22	IEC, UL (UL Recognized)	690 Vac	125 A	200 kA

TeSys™ FB Fuse Holders

Type FB Fuse Holder — 9080FB3611J

Type FB 600 V Fuse Holders

Rating (A)	No. of Poles	Catalog Number		Short-Circuit Current Rating
Rating (A)	No. of Poles	Class J	Class R*	Short-Circuit Current Rating
30	2	9080FB2611J	9080FB2611R	200 kA
30	3	9080FB3611J	9080FB3611R
60	1	—	9080FB1621R
	2	9080FB2621J	—
	3	9080FB3621J	9080FB3621R
100	3	—	9080FB3631R

UL 489 Molded-Case Circuit Breakers

PowerPacT™ Circuit Breakers and Motor Circuit Protectors

PowerPacT B Circuit Breaker — BJL36125

PowerPacT™ Catalog Numbering System

Frame	Rating		Termination	Poles	Voltage	Amperage	Suffix Code		Suffix Code
B	J		L	3	6	125	AB		SA




Frame Designation		Interrupting Rating		Termination		Poles		Voltage
B 125 A Frame		See Table 11		A I-Line		1 1-Pole		4 480 V
H 150 A Frame				D Drawout		2 2-Pole		6 600 V
J 250 A Frame				F Bus Bar (No Lugs)		3 3-Pole
Q 250 A Frame				L Lugs on Both Ends		4 4-Pole
L 600 A Frame				M Lugs Line Side Only
M 800 A Frame				N Plug-in
P 1200 A Frame				P Lugs Load Side Only
R 3000 A Frame				S Rear Connected Studs

PowerPact Interrupting Ratings System

Voltage	Interrupting Rating
Voltage	B	D	G	J	K	L	R
240 Vac	10 kA	25 kA	65 kA	100 kA	65 kA	125 kA	200 kA
480 Vac		18 kA	35 kA	65 kA	65 kA	100 kA	200 kA
600 Vac		14 kA	18 kA	25 kA	65 kA	50 kA	100 kA
Frame (X = available)
B-Frame (15–125 A)*		X	X	X	X*
H-Frame (15–150 A)		X	X	X		X	X
J-Frame (150–250 A)		X	X	X		X	X
Q-Frame (70–250 A)	X	X	X	X
L-Frame (200–600 A)		X	X	X		X	X
M-Frame (300–800 A)			X	X
P-Frame (250–1200 A)			X	X	X*	X *
R-Frame (600–3000 A)			X	X	X	X

BV4 Motor Circuit Protector (MCP) Selection*

Frame	Motor Circuit Protector Ampacity (In)	Adjustable Instantaneous Trip (li)	Catalog Numbers
Frame	Motor Circuit Protector Ampacity (In)	Adjustable Instantaneous Trip (li)	Standard Protection	High Protection
TeSys BV4	2	12–28	BV4T002D	BV4T002J
	3.5	21–49	BV4T003D	BV4T003J
	7	42–98	BV4T007D	BV4T007J
	13	53–195	BV4T013D	BV4T013J
	25	110–360	BV4T025D	BV4T025J
	50	176–650	BV4T050D	BV4T050J
	80	320–1150	BV4T080D	BV4T080J
	115	600–1150	BV4T115D	BV4T115J

PowerPact H- and J-Frame Electronic Motor Circuit Protectors

Frame	Sensor Rating	Full Load Ampere Range	Adjustable Instantaneous Trip Range	Suffix	Catalog Numbers
Frame	Sensor Rating	Full Load Ampere Range	Adjustable Instantaneous Trip Range	Suffix	J-Interrupting Cat. No.	L-Interrupting Cat. No.	R-Interrupting Cat. No.
H-Frame	30 A	1.5–25 A	9–325 A	M71	HJL36030M71	HLL36030M71	HRL36030M71
	50 A	14–42 A	84–546 A	M72	HJL36050M72	HLL36050M72	HRL36050M72
	100 A	30–80 A	180–1040 A	M73	HJL36100M73	HLL36100M73	HRL36100M73
	150 A	58–130 A	348–1690 A	M74	HJL36150M74	HLL36150M74	HRL36150M74
J-Frame	250 A	114–217 A	684–2500 A	M75	JJL36250M75	JLL36250M75	JRL36250M75

UL 489 Miniature Circuit Breakers and UL 1077 Supplementary Protectors

Multi 9™ Circuit Breakers and Supplementary Protectors

Multi 9 UL 489 Circuit Breaker — M9F42110

Multi 9 UL 1077 Supplementary Protector — M9F22110

Multi 9 Catalog Numbering System

Range		Function		Number	Poles		Amperage
M9		F		42	1		10




	Range		Function	Number		Poles		Amperage
	M9 Multi 9		F MCB	Internal code number depending on the standard and electrical characteristics.		1 1-Pole		From 0.5– 63 A
			P DPN			2 2-Pole
			R RCCB			3 3-Pole
			D RCBO			4 4-Pole
			V Vigi C60 Add-on
			Y Vigi N40 Add-on
			C CTRL

Multi 9 UL 489 Breaking Capacity

Number of Poles	Current Rating (A)	Voltage, AC
Number of Poles	Current Rating (A)	120 V	240 V	277 V	480/277 V
1 Pole	1–35	14	14	10	—
1 Pole	40–63	10	10	—	—
2 Pole	1–35	14	14	10	10
2 Pole	40–63	10	10	—	—
3 Pole	1–35	14	14	10	10
3 Pole	40–63	10	10	—	—

Multi 9 UL 1077 Breaking Capacity

Number of Poles	Current Rating (A)	Voltage, AC
Number of Poles	Current Rating (A)	120 V	240 V	277 V	480/277 V
1 Pole	0.5–35	14	14	10	—
1 Pole	40–63	10	10	5	—
2 Pole	1–35	14	14	10	10
2 Pole	40–63	10	10	5	5
3 and 4 Pole	1–35	14	14	10	10
3 and 4 Pole	40–63	10	10	5	5

UL 60947 Contactors

TeSys™ K Contactors

TeSys K Contactor — LC1K09

TeSys K Contactors (Except for Spring Terminal Clamps)

Catalog Number	Standard Motor Ratings @ 50/60 Hz (HP)						Cont. Current Ratings	Max. Component SCCR (kA)*
	Single-Phase		Three-Phase					Circuit Breakers @ 480 V		Circuit Breakers @ 600 V		Fuses @ 600 V
	120 V	240 V	208 V	240 V	480 V	600 V		Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
LC1K06	1/2	1	1.5	1.5	3	3	10	20	65	20	25	25	100
LC1K09	1/2	1.5	2	3	5	5	20	20	65	20	25	30	100
LC1K12	1	2	3	3	7.5	10	20	20	65	20	25	30	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 65 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

TeSys™ Deca Contactors

TeSys Deca Contactor — LC1D12

TeSys Deca 3-Pole Contactors

Catalog Number	Standard Motor Ratings @ 50/60 Hz (HP)						Cont. Current Rating (A)	Max. Component SCCR (kA)*
	Single-Phase		Three-Phase					Circuit Breakers @ 480 V		Circuit Breakers @ 600 V		Fuses @ 600 V
	120 V	240 V	208 V	240 V	480 V	600 V		Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
LC1D09	1/3	1	2	2	5	7.5	25	35	85	35	50	25	100
LC1D12	1/2	2	3	3	7.5	10	25	35	85	35	50	30	100
LC1D18	1	3	5	5	10	15	32	60	85	35	50	40	100
LC1D25	2	3	7.5	7.5	15	20	40	60	85	60	50	60	100
LC1D32	2	5	10	10	20	25	50	60	85	60	50	80	100
LC1D38	2	5	10	10	20	25	50	60	85	60	50	80	100
LC1D40A	3	5	10	10	30	30	60	110	100	110	50	90	100
LC1D50A	3	7.5	15	15	40	40	70	110	100	110	50	110	100
LC1D65A	5	10	20	20	40	50	80	110	100	110	50	125	100
LC1D80	7.5	15	25	30	60	60	110	150	100	150	50	175	100
LC1D95	7.5	15	25	30	60	60	110	—	—	—	—	—	—
LC1D115A	—	—	30	40	75	100	160	250	100	250	50	300	100
LC1D150A	—	—	40	50	100	125	160	300	100	300	50	350	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

TeSys Deca 4-Pole Contactors

Catalog Number	Continuous Current Rating (A)	No. of Poles		Max. Component SCCR (kA)*
		No. of Poles		Circuit Breakers @ 480 V		Circuit Breakers @ 600 V		Fuses @ 600 V
		N.O.	N.C.	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
LC1DT20	25	4	0	35	85	35	50	25	100
LC1D098	25	2	2	35	85	35	50	25	100
LC1DT25	25	4	0	35	85	35	50	30	100
LC1D128	25	2	2	35	85	35	50	30	100
LC1DT32	32	4	0	60	85	35	50	40	100
LC1D188	32	2	2	60	85	35	50	40	100
LC1DT40	40	4	0	60	85	60	50	60	100
LC1D258	40	2	2	60	85	60	50	60	100
LC1DT60A	60	4	0	110	100	110	50	TBD	100
LC1DT80A	80	4	0	110	100	110	50	TBD	100
LC1D80004	110	4	0	150	100	175	50	175	100
LC1D80008	110	2	2	150	100	175	50	175	100
LC1DT200A	160	4	0	250	100	250	50	300	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

TeSys Deca LC2D Contactors

Catalog Number	Max. Component SCCR (kA)
	Circuit Breaker @ 480 V		Circuit Breaker @ 600 V		Fuses @ 600 V
	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
LC2D40A	110	100	110	50	90	100
LC2D50A	110	100	110	50	110	100
LC2D65A	110	100	110	50	125	100

Additional TeSys™ Deca Contactor Ratings

UL/CSA Lighting Ratings (HP)

Catalog Number	Ballast	Tungsten
Catalog Number	600 V	480 Y / 277 V	480 V	600 V
LC1D09 AC coil only., LC1DT20 AC coil only.	20	20	—	—
LC1D12 AC coil only., LC1DT25 AC coil only.	25	—	—	—
LC1D18 AC coil only., LC1DT32 AC coil only.	32	25	—	—
LC1D25 AC coil only., LC1DT40 AC coil only.	40	40	—	—
LC1D32 AC coil only.*	50	50	—	—
LC1D40A	60	—	—	60
LC1D50A	70	—	—	70
LC1D65A	80	—	—	70
LC1D80, LC1D80004	100	—	100	—

Elevator Duty Ratings (HP)

Catalog Number	Single-Phase	Three-Phase
Catalog Number	240 V	208 V	240 V	480 V	600 V
LC1D12	1.5	2	3	7.5	7.5
LC1D18 AC coil only.*	3	5	5	—	—
LC1D25	3	5	7.5	15	20
LC1D32	5	10	7.5	—	—
LC1D40A AC coil only.*	5	10	10	—	—
LC1D50A AC coil only.*	7.5	15	15	—	—
LC1D50 AC coil only.*	7.5	10	15	25	30
LC1D65 AC coil only.*	10	15	20	40	50
LC1D80	15	20	25	50	50

Definite Purpose Ratings, 3-Phase, Breaking All Lines (Hermetic Refrigeration Compressor, AC-8a)

Catalog Number	FLA	Locked Rotor Amperes (LRA)			FLA Cycles
Catalog Number	FLA	240 V	480 V	600 V	FLA Cycles
LC1D09	9	54	45	36	100,000
LC1D12	12	72	60	48	100,000
LC1D18	18	108	90	72	100,000
LC1D25	25	150	125	100	100,000
LC1D32	32	192	160	128	100,000
LC1D40A	40	240	200	160	100,000
LC1D50A	50	300	250	200	100,000
LC1D65A	65	390	325	260	100,000
LC1D80 (AC)	80	480	400	320	100,000
LC1D80 (DC)	75	450	375	300	100,000

Definite Purpose Ratings, 3-Phase, Breaking All Lines (Hermetic Refrigeration Compressor, AC-8a)

Catalog Number	AC-8a Rating	FLA Cycles
Catalog Number	AC-8a Rating	FLA Cycles
LC1D115A	115	100,000
LC1D150A	150	100,000

TeSys™ Giga Contactors

TeSys Giga Contactor — LC1G265

TeSys Giga Contactors

Catalog No.	Standard Motor Ratings @ 50/60 Hz (HP)				Cont. Current Rating (A)	Standard Fault SCCR (kA)						High Fault SCCR (kA)
	Three-Phase					Circuit Breakers @ 480 V		Circuit Breakers @ 600 V		Fuses @ 600 V		Circuit Breakers @ 480 V		Circuit Breakers @ 600 V		Fuses @ 600 V
	208 V	240 V	480 V	600 V		Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
LC1G115	30	40	75	100	210	—	—	300	10	225	10	300	100	300	50	300	100
LC1G150	40	50	100	125	230	—	—	300	10	250	10	300	100	300	50	300	100
LC1G185	50	60	125	150	250	—	—	300	10	350	10	300	100	300	50	300	100
LC1G225	60	75	150	150	290	—	—	400	10	350	10	400	100	400	50	400	100
LC1G265	75	100	200	200	340	—	—	500	10	500	10	500	100	500	50	450	100
LC1G330	100	125	250	300	390	—	—	600	18	700	18	600	100	600	50	700	100
LC1G400	125	150	300	400	490	700	18	600	18	800	18	700	65	600	50	700	100
LC1G500	150	200	400	450	600	800	30	600	30	1000	30	600	65	600	50	700	100
LC1G630	250	300	600	700	850	1000	42	—	—	1400	42	1000	100	—	—	1000	100
LC1G800	300	350	700 (*)	800 (**)	900	1200	42	—	—	1600	42	1200	100	—	—	1200	100
LC1G1154	—	—	—	—	210	—	—	300	10	225	10	300	100	300	50	300	100
LC1G1504	—	—	—	—	230	—	—	300	10	250	10	300	100	300	50	300	100
LC1G1854	—	—	—	—	250	—	—	300	10	350	10	300	100	300	50	300	100
LC1G2254	—	—	—	—	290	—	—	400	10	350	10	400	100	400	50	400	100
LC1G2654	—	—	—	—	340	—	—	500	10	500	10	500	100	500	50	450	100
LC1G3304	—	—	—	—	390	—	—	600	18	700	18	600	100	600	50	700	100
LC1G4004	—	—	—	—	490	700	18	600	18	800	18	700	65	600	50	700	100
LC1G5004	—	—	—	—	600	800	30	600	30	1000	30	600	65	600	50	700	100
LC1G6304	—	—	—	—	850	1000	42	—	—	1400	42	1000	100	—	—	1000	100
LC1G8004	—	—	—	—	900	1200	42	—	—	1600	42	1200	100	—	—	1200	100
() 828 FLA. (*) 754 FLA.
Note: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker. Ratings apply to circuits with voltages no greater than those listed.

Additional TeSys™ Giga Contactor Ratings

AC-8a Ratings, 3-Phase, Breaking All Lines (Hermetic Refrigeration Compressor)

Catalog Number	AC-8a Rating up to 600 V	AC-8a Make and Break Test Levels	Endurance Test Cycles
LC1G115	210 A	1740	100 K
LC1G150	230 A	1740	100 K
LC1G185	250 A	1740	100 K
LC1G225	290 A	1740	100 K
LC1G265	340 A	2340	100 K
LC1G330	390 A	2340	100 K
LC1G400	490 A	3780	100 K
LC1G500	630 A	3780	100 K

TeSys™ N Contactors

TeSys N Contactor — T02CN13

TeSys N Contactors

Catalog Number*	Standard Motor Ratings @ 50/60 Hz (HP)				Cont. Current Rating (A)	NEMA Size	Max. Component SCCR (kA)*
	Three-Phase						Circuit Breakers @ 480 V		Circuit Breakers @ 600 V		Fuses @ 600 V
	200 V	230 V	460 V	575 V			Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
T02AN13	1.5	1.5	2	2	9	00	60	85	60	50	60	100
T02BN13	3	3	5	5	18	0	60	85	60	50	60	100
T02CN13	7.5	7.5	10	10	27	1	60	85	60	50	80	100
T02DN13	10	15	25	25	45	2	110	100	110	50	125	100
T02EN13	25	30	50	50	90	3	200	65	—	—	200 Class J fuse*	100
T02FN13	40	50	100	100	135	4	250	65	—	—	200 Class J fuse*	100
T02GN13	75	100	200	200	270	5	—	—	—	—	600 Class J fuse*	100
T02HN13	150	200	400	400	540	6	—	—	—	—	—	—
T02JN13	—	300	600	600	810	7	—	—	—	—	—	—
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating for the circuit breaker.

Type S Contactors

Type S Contactor — 8502SAO11

Type S Contactors*

Catalog Number	Standard Motor Ratings @ 50/60 Hz (HP)				Max. Resistive AC1 Current (A)	NEMA Size	Max. Component SCCR (kA)*
	Three-Phase						Circuit Breakers @ 480 V*	Fuses @ 600 V
	200 V	230 V	460 V	575 V			Circuit Breakers @ 480 V*	Fuses @ 600 V
8502SAO12	1.5	1.5	2	2	9	00	100	100*
8502SBO2	3	3	5	5	18	0	100	100*
8502SCO2	7.5	7.5	10	10	27	1	100	100*
8502SDO2	10	15	25	25	45	2	100	100*
8502SEO2	25	30	50	50	90	3	100	100*
8502SFO2	40	50	100	100	135	4	100	100*
8502SGO2	75	100	200	200	270	5	100	100*
8502SHO2	150	200	400	400	540	6	65	100*
8502SJO2	—	300	600	600	810	7	30	30

Type S Contactor Maximum Component SCCR*

Catalog Number	Circuit Breakers @ 480 V*		Fuses @ 600 V
Catalog Number	Max. Size (A)	Max. SCCR (kA)*	Max. Size (A)	Max. SCCR (kA)*
8502SAO12	70	100	60*	100
8502SBO2	70	100	60*	100
8502SCO2	70	100	60*	100
8502SDO2	100	100	100*	100
8502SEO2	150	100	200*	100
8502SFO2	225	100	200*	100
8502SGO2	400	100	400*	100
8502SHO2	800	65	600*	100
8502SJO2	2000	30	1500	30

Definite Purpose Contactors

DP Compact Contactors

Definite Purpose Type DP Compact Contactor — 8910DP22V09

Definite Purpose Type DP Compact Contactors

Catalog Number	Max. Inductive AC3 Current (A)	Locked Rotor Amperes			Max. Resistive AC1 Current (A)	Max. Component SCCR (kA)*
		Locked Rotor Amperes				Circuit Breakers @ 480 V *	Fuses @ 600 V*
		277 V	460 V	575 V		Circuit Breakers @ 480 V *	Fuses @ 600 V*
1-Pole Contactors
8910DP11	20	120	100	80	30	100	100
8910DP21	25	150	125	100	35	100	100
8910DP31	30	150	125	100	40	100	100
8910DP41	40	240	200	160	50*	100	100
2-Pole Contactors*
8910DP12	20	120	100	80	30	100	100
8910DP22	25	150	125	100	35	100	100
8910DP32	30	150	125	100	40	100	100
8910DP42	40	240	200	160	50	100	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

Definite Purpose Type DP Compact Contactor Maximum Component SCCR

Catalog Number*	Circuit Breaker @ 480 V*		Fuse @ 600 V*
Catalog Number*	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA*)
8910DP1*	80	100	60	100
8910DP2*	80	100	60	100
8910DP3*	80	100	60	100
8910DP4*	100	100	100	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

DPA Contactors

Definite Purpose Type DPA Contactor — 8910DPA32

Definite Purpose Type DPA Contactors*

Catalog Number	Max. Inductive AC3 Current (A)	Locked Rotor Amperes			Max. Resistive AC1 Current (A)	Horsepower Ratings					Number of Poles	Max. Component SCCR (kA)*
		Locked Rotor Amperes				Single-Phase		Three-Phase				Circuit Breakers @ 480 V*	Fuses @ 600 V*
		230 V	460 V	575 V		115 V	230 V	230 V	460 V	575 V		Circuit Breakers @ 480 V*	Fuses @ 600 V*
8910DPA12	20	120	100	80	30	1.5	3	7.5	7.5	7.5	2	100	100
8910DPA13											3
8910DPA14											4
8910DPA22	25	150	125	100	35	2	5	10	15	20	2	100	100
8910DPA23											3
8910DPA24											4
8910DPA32	30	180	150	120	40	2	5	10	15	20	2	100	100
8910DPA33											3
8910DPA34											4
8910DPA42	40	240	200	160	50	3	7.5	10	20	25	2	100	100
8910DPA43											3
8910DPA44											4
8910DPA52	50	300	250	200	65	3	10	15	30	30	2	100	100
8910DPA53	50	300	250	200	65	3	10	15	30	30	3	100	100
8910DPA62	60	360	300	240	75	5	10	25	30	30	2	100	100
8910DPA63	60	360	300	240	75	5	10	25	30	30	3	100	100
8910DPA72R	75	450	375	300	94	5	15	25	40	40	2	100	100
8910DPA73R	75	450	375	300	94	5	15	25	40	40	3	100	100
8910DPA92	90	540	450	360	120	7.5	20	30	50	50	2	100	100
8910DPA93	90	540	450	360	120	7.5	20	30	50	50	3	100	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

Definite Purpose Type DPA Contactor Maximum Component SCCR*

Catalog Number*	Circuit Breaker @ 480 V		Fuse @ 600 V*
Catalog Number*	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
8910DPA1*	80	100	60	100
8910DPA2*	80	100	60	100
8910DPA3*	80	100	60	100
8910DPA4*	100	100	100	100
8910DPA5*	150	100	200	100
8910DPA6*	150	100	200	100
8910DPA7*	225	100	200	100
8910DPA9*	225	100	200	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

Type S Lighting Contactors

Type S Lighting Contactor — 8903SPO3V02

Type S Lighting Contactors

Contact Ampere Ratings	No. of Poles	Catalog Number, Open Type		Max. Component SCCR (kA)*
Contact Ampere Ratings	No. of Poles	Electrically Held	Mechanically Held	Circuit Breakers @ 480 V*	Fuses @ 600 V
30	2	8903SMO1	8903SMO10	100	100*
	3	8903SMO2	8903SMO11
	4	8903SMO3	8903SMO12
	5	8903SMO4	8903SMO13
60	2	8903SPO1	8903SPO10	100	100*
	3	8903SPO2	8903SPO11
	4	8903SPO3	8903SPO12
	5	8903SPO4	8903SPO13
100	2	8903SQO1	8903SQO10	100	100*
	3	8903SQO2	8903SQO11
	4	8903SQO3	8903SQO12
	5	8903SQO4	8903SQO13
200	2	8903SVO1	8903SVO10	100	100*
	3	8903SVO2	8903SVO11
	4	8903SVO3	8903SVO12
	5	8903SVO4	—
300	2	8903SXO1	8903SXO13	100	100*
300	3	8903SXO2	8903SXO14	100	100*
400	2	8903SYO1	8903SYO16	65	100*
400	3	8903SYO2	8903SYO17	65	100*
600	2	8903SZO1	8903SZO18	65	100*
600	3	8903SZO2	8903SZO19	65	100*
800	2	8903SJO1	—	30	30
800	3	8903SJO2	—	30	30
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

Type S Lighting Contactor Maximum Component SCCR*

Catalog Number	Circuit Breaker @ 480 V		Fuse @ 600 V
Catalog Number	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
8903SMO	70	100	60*	100
8903SPO	100	100	100*	100
8903SQO	150	100	200*	100
8903SVO	225	100	200*	100
8903SXO	400	100	400*	100
8903SYO	800	65	600*	100
8903SZO	800	65	600*	100
8903SJO	2000	30	1500	30
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

Type L/LX Lighting Contactors

Type L Lighting Contactor — 8903LO1200

Type LX Lighting Contactor — 8903LXO1200

Type L/LX Lighting Contactors

Contact Ampere Ratings	No. of Poles	Catalog Number, Open Type		Max. Component SCCR (kA)*
Contact Ampere Ratings	No. of Poles	Electrically Held	Mechanically Held	Circuit Breakers @ 480 V*	Fuses @ 600 V*
30	2	8903LO20	8903LXO20	100	100*
	3	8903LO30	8903LXO30
	4	8903LO40	8903LXO40
	6	8903LO60	8903LXO60
	8	8903LO80	8903LXO80
	10	8903LO1000	8903LXO1000
	12	8903LO1200	8903LXO1200

Type L/LX Lighting Contactor Maximum Component SCCR*

Catalog Number	Circuit Breakers @ 480 V*		Fuses @ 600 V*
Catalog Number	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
8903LO	Per NEC Table 430.52	100	Per NEC Table 430.52	100*
8903LXO	Per NEC Table 430.52	100	Per NEC Table 430.52	100*
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

TeSys™ NEMA® Lighting Contactors

TeSys National Electrical Manufacturers Association (NEMA) Lighting Contactor — LC1D25MEQ4096

TeSys NEMA Lighting Contactors

Contact Ampere Ratings	No. of Poles	Catalog Number	Max. Component SCCR (kA)*
Contact Ampere Ratings	No. of Poles	Electrically Held	Circuit Breakers @ 480 V*	Circuit Breakers @ 600 V*	Fuses @ 600 V*
30	3	LC1D25MEQ4096	85	50	100
60	3	LC1D40AMEQ4096	100	50	100
100	3	LC1D80MEQ4096	100	50	100
150	3	LC1D150MEQ4096	100	50	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

TeSys NEMA Lighting Contactor Maximum Component SCCR*

Catalog Number	Circuit Breakers @ 480 V*		Circuit Breakers @ 600 V*		Fuses @ 600 V*
Catalog Number	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
LC1D25MEQ4096	60	85	60	50	60	100
LC1D40AMEQ4096	110	100	110	50	90	100
LC1D80MEQ4096	150	100	150	50	175	100
LC1D150MEQ4096	250	100	250	50	300	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

UL 60947 Overload Relays

TeSys™ K Bimetallic Overload Relays

TeSys K Overload Relay — LR2K0304

TeSys LR2K Bimetallic Overload Relays

Current Setting Range (A)	Class 10 with Single Phase Sensitivity	Max. Component SCCR (kA)*
		Circuit Breakers @ 480 V*		Circuit Breakers @ 600 V		Fuses @ 600 V*
		Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
0.1–0.16	LR2K0301	15	65	15	25	10	100
0.16–0.23	LR2K0302	15	65	15	25	10	100
0.23–0.36	LR2K0303	15	65	15	25	10	100
0.35–0.54	LR2K0304	15	65	15	25	10	100
0.54–0.8	LR2K0305	15	65	15	25	10	100
0.8–1.2	LR2K0306	15	65	15	25	10	100
1.2–1.8	LR2K0307	15	65	15	25	10	100
1.8–2.6	LR2K0308	15	65	15	25	10	100
2.6–3.7	LR2K0310	15	65	15	25	10	100
3.8–5.5	LR2K0312	15	65	15	25	20	100
5.5–8	LR2K0314	25	65	25	25	30	100
8–11.5	LR2K0316	25	65	25	25	30	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 65 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

TeSys™ Deca Bimetallic Overload Relays

TeSys Deca Overload Relay

TeSys LRD Bimetallic Overload Relays

Current Setting Range (A)	For Direct Mounting to LC1	Class 10 with Single Phase Sensitivity	Class 10 without Single Phase Sensitivity	Class 20 with Single Phase Sensitivity	Class 20 without Single Phase Sensitivity	Max. Component SCCR (kA)*
						Circuit Breakers @ 480 V		Circuit Breakers @ 600 V		Fuses @ 600 V*
						Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
0.10–0.16	D09–D38	LRD01	LR3D01	—	—	15	65	15	50	10	100
0.16–0.25		LRD02	LR3D02	—	—	15	65	15	50	10	100
0.25–0.40		LRD03	LR3D03	—	—	15	65	15	50	10	100
0.40–0.63		LRD04	LR3D04	LRD04L	LR3D04L	15	65	15	50	10	100
0.63–1		LRD05	LR3D05	LRD05L	LR3D05L	15	65	15	50	10	100
1–1.6		LRD06	LR3D06	LRD06L	LR3D06L	15	65	15	50	10	100
1.6–2.5		LRD07	LR3D07	LRD07L	LR3D07L	15	65	15	50	10	100
2.5–4		LRD08	LR3D08	LRD08L	LR3D08L	15	65	15	50	15	100
4–6		LRD10	LR3D10	LRD10L	LR3D10L	15	65	15	50	20	100
5.5–8		LRD12	LR3D12	LRD12L	LR3D12L	15	65	15	50	30	100
7–10		LRD14	LR3D14	LRD14L	LR3D14L	20	65	20	50	40	100
9–13	D12–D38	LRD16	LR3D16	LRD16L	LR3D16L	25	65	25	50	50	100
12–18	D18–D38	LRD21	LR3D21	LRD21L	LR3D21L	35	65	35	50	60	100
16–24	D25–D38	LRD22	LR3D22	—	—	45	65	45	50	60	100
17–24		—	—	LRD22L	LR3D22L	45	65	45	50	60	100
23–32		LRD32	LR3D32	LRD32L	LR3D32L	60	65	60	50	80	100
30–38	D32–D38	LRD35	LR3D35	—	—	70	65	70	50	100	100
9–13	D40A–D65A*	LRD313	LR3D313	LRD313L	—	25	100	25	50	30	100
12–18		LRD318	LR3D318	LRD318L	—	35	100	35	50	45	100
16–25		LRD325	LR3D325	LRD325L	—	45	100	45	50	60	100
23–32		LRD332	LR3D332	LRD332L	—	60	100	60	50	80	100
30–40		LRD340	LR3D340	LRD340L	—	70	100	70	50	100	100
37–50		LRD350	LR3D350	LRD350L	—	90	100	90	50	125	100
48–65	D50A–D65A*	LRD365	LR3D365	LRD365L	—	125	100	125	50	200	100
17–25	D40–D95*	LRD3322	LR3D3322	LR2D3522	LR3D3522	45	100	45	50	60	100
23–32		LRD3353	LR3D3353	LR2D3553	LR3D3553	60	100	60	50	80	100
30–40		LRD3355	LR3D3355	LR2D3555	LR3D3555	70	100	70	50	90	100
37–50	D50–D95*	LRD3357	LR3D3357	LR2D3557	LR3D3557	90	100	90	50	125	100
48–65	D50–D95*	LRD3359	LR3D3359	LR2D3559	LR3D3559	125	100	125	50	150	100
55–70	D65–D95*	LRD3361	LR3D3361	LR2D3561	LR3D3561	125	100	125	50	175	100
63–80	D65–D95*	LRD3363	LR3D3363	LR2D3563	LR3D3563	150	100	150	50	200	100
80–104	D80–D95	LRD3365	—	—	—	200	100	200	50	250	100
80–104	D115–D150	LRD4365	—	—	—	200	100	200	50	250	100
95–120	D115–D150	LRD4367	—	—	—	250	100	250	50	400	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

TeSys™ Giga Overload Relays

TeSys Giga Overload Relays — LR9G225

TeSys Giga Overload Relays

Current Setting Range	For Direct Mounting to LC1G	Overload Relay	Standard Fault SCCR (kA)						High Fault SCCR (kA)
			Circuit Breakers @ 480 V		Circuit Breakers @ 600 V		Fuses @ 600 V		Circuit Breakers @ 480 V		Circuit Breakers @ 600 V		Fuses @ 600 V
			Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
28-115	115-225	LR9G115	—	—	225	10	450	10	—	—	225	100	225	100
57-225	115-225	LR9G225	—	—	400	18	900	18	—	—	400	100	400	100
125-500	265-500	LR9G500	—	—	600	30	2000	30	—	—	600	100	600	100
160-630	630-800	LR9G630	1000	42	—	—	2500	42	1000	100	—	—	1400	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker. Ratings apply to circuits with voltages no greater than those listed.

TeSys™ LR9D Electronic Overload Relays

TeSys LR9D Overload Relay — LR9D32

TeSys Deca Overload Relay — LR9D5369

TeSys LR9D Electronic Overload Relays

Current Setting Range (A)	For Direct Mounting to LC1	Class 10	Class 20	Class 10 or 20 Selectable	Class 5/10/20/30 Selectable	Max. Component SCCR (kA)*
						Circuit Breakers @ 480 V		Circuit Breakers @ 600 V		Fuses @ 600 V*
						Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
0.1-0.5	D09–D38	—	—	—	LR9D01	—	—	—	—	1	100
0.4-2	D09–D38	—	—	—	LR9D02	—	—	—	—	6	100
1.6-8	D09–D38	—	—	—	LR9D08	—	—	—	—	30	100
6.4-32	D09–D38	—	—	—	LR9D32	70	65	—	—	125	100
22-110	N/A (Separate Mount Only)	—	—	—	LR9D110S	250	65	—	—	225	100
60-100	D115A–D150A	LR9D5367	LR9D5567	LR9D67	—	175	100	175	50	225	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 65 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

TeSys™ T Motor Management System

TeSys T Motor Management System — LTMR08MFM

TeSys T Motor Management System

Current Range (A)	Catalog Number*		Max. Component SCCR (kA)*
	Catalog Number*		Circuit Breakers (kA)*	Fuses (kA)
	24 Vdc Control Voltage	100–240 Vac Control Voltage	Circuit Breakers (kA)*	Fuses (kA)
0.4–8	LTMR08•BD	LTMR08•FM	100	100
1.35–27	LTMR27•BD	LTMR27•FM	100	100
5–100	LTMR100•BD	LTMR100•FM	100	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

Motor Logic™ Solid-State Overload Relays

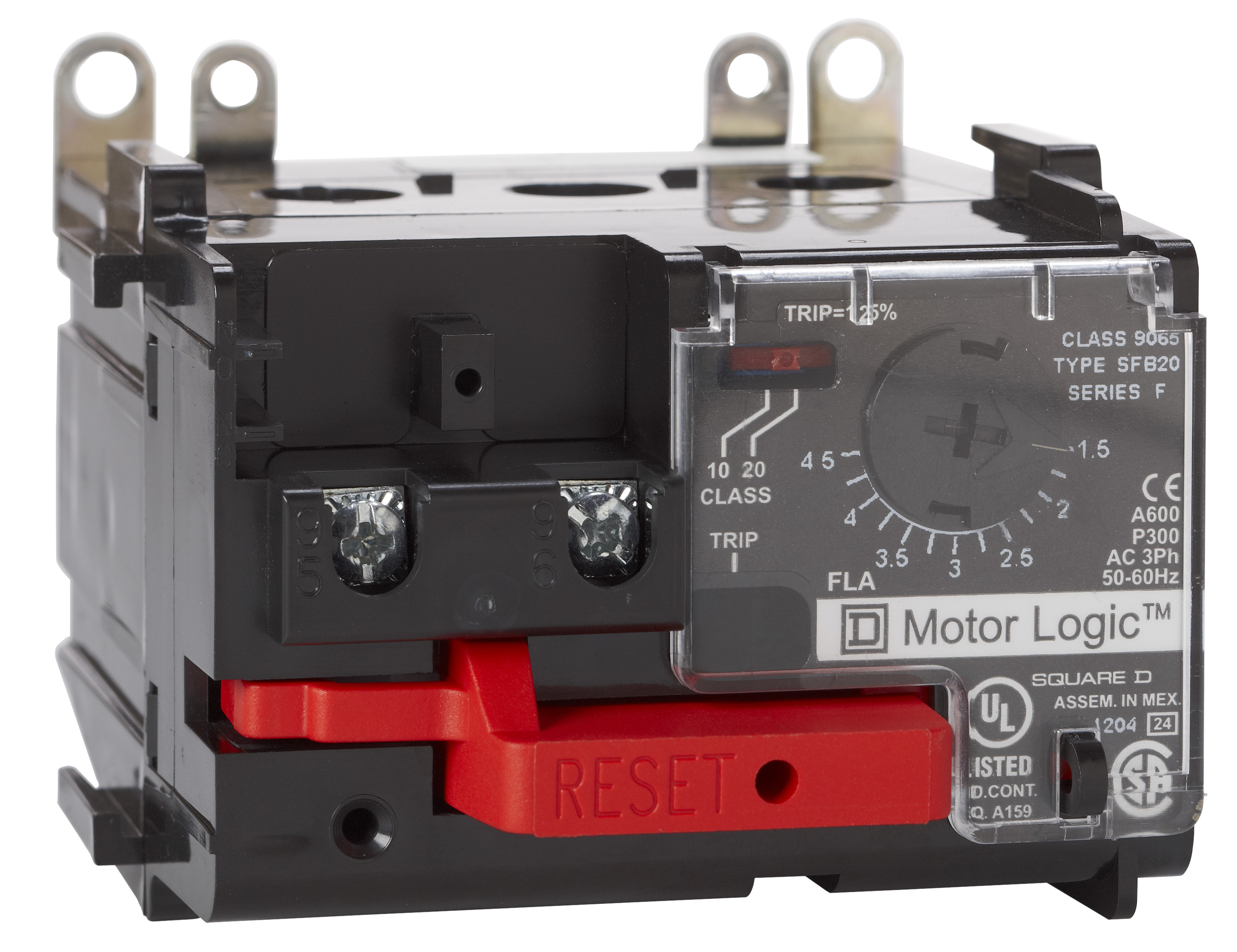

Motor Logic Solid-State Overload Relay — 9065SFB20

Motor Logic Solid-State Overload Relays

NEMA Size	Current Setting Range (A)	Class 10/20 Selectable Catalog Number	Max. Component SCCR (kA)*
NEMA Size	Current Setting Range (A)	Class 10/20 Selectable Catalog Number	Circuit Breakers @ 480 V	Fuses @ 600 V
00	1.5–4.5	9065SFB20	100	100
00	3–9	9065SFC20	100	100
0	6–18	9065SF020	100	100
1	9–27	9065SF120	100	100
2	15–45	9065SF220	100	100
3	30–90	9065SF320	100	100
4	45–135	9065SF420	100	100
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

UL 60947 Starters

TeSys™ N Starters

TeSys N Starter with Motor Logic™ — T36EN13BD

TeSys N Starters with Motor Logic Overload Relays

Catalog Number	Standard Motor Ratings @ 50/60 Hz (HP)				Continuous Current Rating (A)	NEMA Size	Max. Component SCCR (kA)*
	Three-Phase						Circuit Breakers @ 480 V		Fuses @ 600 V
	208 V	240 V	480 V	600 V			Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
T36AN13	1.5	1.5	2	2	9	00	60	85	60*	100
T36BN13	3	3	5	5	18	0	60	85	60*	100
T36CN13	7.5	7.5	10	10	27	1	60	85	80*	100
T36DN13	10	15	25	25	45	2	110	100	125*	100
T36EN13	25	30	50	50	90	3	200	65	60*	100
T36FN13	40	50	100	100	135	4	250	65	125*	100
T36GN13	75	100	200	200	270	5	–	18	600*	100
T36HN13	150	200	400	400	540	6	–	30	1000	30
T36JN13	—	300	600	600	810	7	–	42	1200	42
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

Type S Starters

Type S Starter with Motor Logic™ Overload Relay — 8536SBO2

Type S Starters with Motor Logic Overload Relay or TeSys™ T Overload Relays

Catalog Number	Standard Motor Ratings @ 50/60 Hz (HP)				Continuous Current Rating (A)	NEMA Size	Max. Component SCCR (kA)*
	Three-Phase						Circuit Breakers @ 480 V*	Fuses @ 600 V
	208 V	240 V	480 V	600 V			Circuit Breakers @ 480 V*	Fuses @ 600 V
8536SAO12	1.5	1.5	2	2	9	00	100	100*
8536SBO2	3	3	5	5	18	0	100	100*
8536SCO2	7.5	7.5	10	10	27	1	100	100*
8536SDO1	10	15	25	25	45	2	100	100*
8536SEO1	25	30	50	50	90	3	100	100*
8536SFO1	40	50	100	100	135	4	100	100*
8536SGO1	75	100	200	200	270	5	100	100*
8536SHO2	150	200	400	400	540	6	65	100*
8536SJO2	—	300	600	600	810	7	30	30
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

TeSys™ BV4 Motor Circuit Protector

Type S NEMA Starter

For a complete list of Type D combinations, see www.UL.com/SCCR.

TeSys™ BV4 Type D Combination with NEMA Type S Non-Reversing Starters

ID The ID number is issued by Underwriters Laboratories and is shown on its website for UL 508A Listed combinations. For ID number definitions, see “ Short Circuit Current Ratings for Combination Motor Controller Components” on the UL web site. *	Component Description*		Combination Motor Controller Ratings*			Enclosure Volume, Cubic Inches*	Wire Code*
	Component Type	Catalog Number*	480 V 3-Phase HP Rating	FLA	480 V 3-Phase SCCR, kA	Enclosure Volume, Cubic Inches*	Wire Code*
SE191167	ICB*	BV4T002J	0.5	1.1	100	2747	7a
SE191167	STR*	8736SCO***H308	0.5	1.1	100	2747	7a
SE191168	ICB	BV4T002J	0.75	1.6	100	2747	7a
SE191168	STR	8736SCO***H308	0.75	1.6	100	2747	7a
SE191169	ICB	BV4T003J	1	2.1	100	2747	7a
SE191169	STR	8736SCO***H308	1	2.1	100	2747	7a
SE191170	ICB	BV4T007J	1.5	3	100	2747	7a
SE191170	STR	8736SCO***H308	1.5	3	100	2747	7a
SE191171	ICB	BV4T007J	2	3.4	100	2747	7a
SE191171	STR	8736SCO***H308	2	3.4	100	2747	7a
SE191172	ICB	BV4T007J	3	4.8	100	2747	7a
SE191172	STR	8736SCO***H309	3	4.8	100	2747	7a
SE191173	ICB	BV4T013J	5	7.6	100	2747	7a
SE191173	STR	8736SCO***H300	5	7.6	100	2747	7a
SE191174	ICB	BV4T013J	7.5	11	100	2747	7a
SE191174	STR	8736SCO***H30	7.5	11	100	2747	7a
SE191175	ICB	BV4T025J	10	14	100	2747	7a
SE191175	STR	8736SCO***H30	10	14	100	2747	7a
SE191176	ICB	BV4T025J	15	21	100	2747	7b
SE191176	STR	8736SDO***H30	15	21	100	2747	7b
SE191177	ICB	BV4T050J	20	27	100	2747	7b
SE191177	STR	8736SDO***H30	20	27	100	2747	7b
SE191178	ICB	BV4T050J	25	34	100	2747	7b
SE191178	STR	8736SDO***H30	25	34	100	2747	7b
SE191179	ICB	BV4T050J	30	40	100	4120	7c
SE191179	STR	8736SEO***H30	30	40	100	4120	7c
SE191180	ICB	BV4T080J	40	52	100	4120	7c
SE191180	STR	8736SEO***H30	40	52	100	4120	7c
SE191181	ICB	BV4T080J	50	65	100	4120	7c
SE191181	STR	8736SEO***H30	50	65	100	4120	7c
SE191182	ICB	BV4T115J	60	77	100	5036	7d
SE191182	STR	8736SFO***H30	60	77	100	5036	7d
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

Type S Starters with Motor Logic or TeSys T Overload Relays Max. Component SCCR*

Catalog Number	Circuit Breakers @ 480 V*		Fuses @ 600 V
Catalog Number	Max. Size (A)	Max. SCCR (kA)	Max. Size (A)	Max. SCCR (kA)
8536SAO12	70	100	60*	100
8536SBO2	70	100	60*	100
8536SCO2	70	100	60*	100
8536SDO1	100	100	100*	100
8536SEO1	150	100	200*	100
8536SFO1	225	100	200*	100
8536SGO1	400	100	400*	100
8536SHO2	800	65	600*	100
8536SJO2	2000	30	1500	30
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

Type S Adapted Bimetallic Starter — 8536SAO12E4050

Type S Starters with Adapted Bimetallic Overload Relays

Catalog Number	Standard Motor Ratings @ 50/60 Hz (HP)				Continuous Current Rating (A)	NEMA Size	Max. Component SCCR (kA)*
	Three-Phase						Circuit Breakers @ 480 V*	Fuses @ 600 V*
	208 V	240 V	480 V	600 V			Circuit Breakers @ 480 V*	Fuses @ 600 V*
8536SAO12	1.5	1.5	2	2	9	00	65	65
8536SBO2	3	3	5	5	18	0	65	65
8536SCO2	7.5	7.5	10	10	27	1	65	65
NOTE: This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.

Minimum Internal Power Wiring

Wiring from the load side of the short-circuit protective device to the line side of the starter (all copper stranded with 105 °C insulation).
Wire Code		Wire Size
7a		12 AWG
7b		8 AWG
7c		2 AWG
7d		1 AWG

Definite Purpose Starters

Definite Purpose Starter — 8911DPSO33

Definite Purpose Starters

Catalog Number	Max. Inductive AC3 Current (A)	Horsepower Ratings					No. of Thermal Units
		Single-Phase		Three-Phase
		115 V	230 V	230 V	460 V	575 V
2-Poles
8911DPSO12	20	1.5	3	—	—	—	1
8911DPSO22	25	2	5	—	—	—
8911DPSO32	30	2	5	—	—	—
8911DPSO42	40	3	7.5	—	—	—
8911DPSO52	50	3	10	—	—	—
3-Poles
8911DPSO13	20	1.5	3	7.5	7.5	7.5	3
8911DPSO23	25	2	5	10	15	20
8911DPSO33	30	2	5	10	15	20
8911DPSO43	40	3	7.5	10	20	25
8911DPSO53	50	3	10	15	30	30

UL 60947 Self-Protected Combination Motor Controller (Type E)

TeSys™ Ultra

TeSys Ultra — LU9SP0

TeSys Ultra Self-Protected Combination Motor Starter (UL File E164871)*

Standard Motor Ratings @ 50/60 Hz (HP)						Control Connection	Max. Current (A)	Power Base Part Number	Overload Trip Range (A)	SCCR (kA)
Single-Phase		Three-Phase								480 Y / 277 V	480 V with LUALB1 Limiter	600 V with LUALB1 Limiter
120 V	240 V	200 V	240 V	480 V	600 V					480 Y / 277 V	480 V with LUALB1 Limiter	600 V with LUALB1 Limiter
1.5	2	3	3	7.5	10	With non-removable screw terminations	12	LUB12	0.15–12	65	130	65
2	5	10	10	20	25	With non-removable screw terminations	32	LUB32	0.15–32	65	130	65
NOTE: Type E ratings are only valid at 480 Y / 277 V and lower without using limiter block LUALB1. When limiter block LUALB1 is used, the SCCR applies for the stand-alone starter or, with line spacer GV1G09 and GV2G busbar, for multiple starters.

Select Control Unit

Setting Range (A)	Standard 3-Phase Class 10 Trip	Advanced 3-Phase Class 10 Trip	Advanced Single-Phase Class 10 Trip	Advanced 3-Phase Class 20 Trip
0.15-0.6	LUCAX6●●	LUCBX6●●	LUCCX6●●	LUCDX6●●
0.3-1.4	LUCA1X●●	LUCB1X●●	LUCC1X●●	LUCD1X●●
1.25-5.0	LUCA05●●	LUCB05●●	LUCC05●●	LUCD05●●
3.0-12.0	LUCA12●●	LUCB12●●	LUCC12●●	LUCD12●●
4.5-18.0	LUCA18●●	LUCB18●●	LUCC18●●	LUCD18●●
8.0-32.0	LUCA32●●	LUCB32●●	LUCC32●●	LUCD32●●

TeSys™ Deca

GV Deca Manual Motor Protector

Line spacer GV1G09 or GV2GH7 is required for Type E approval.

TeSys Deca Frame 2 Manual Self-Protected Combination Motor Starter (UL File E164871)

Manual Self-Protected Starter	Overload Trip Range (A)	Maximum Horsepower Ratings						SCCR (kA)
		Single-Phase		Three-Phase				480Y/277 V	600Y/347 V
		120 V	240 V	208 V	240 V	480 V	600 V	480Y/277 V	600Y/347 V
GV2P01	0.10–0.16	—	—	—	—	—	—	100	50
GV2P02	0.16–0.25	—	—	—	—	—	—	100	50
GV2P03	0.25–0.40	—	—	—	—	—	—	100	50
GV2P04	0.40–0.63	—	—	—	—	—	—	100	50
GV2P05	0.63–1	—	—	—	—	—	0.5	100	50
GV2P06	1–1.6	—	1/10	—	—	0.75	0.75	100	50
GV2P07	1.6–2.5	—	1/6	0.5	0.5	1	1.5	100	50
GV2P08	2.5–4	1/8	1/3	0.75	0.75	2	3	100	50
GV2P10	4–6.3	0.25	0.5	1	1.5	3	5	100	50
GV2P14	6–10	0.5	1.5	2	3	5	7.5	100	22
GV2P16	9–14	0.75	2	3	3	10	10	10	—
GV2P20	13–18	1	3	5	5	10	15	10	—
GV2P21	17–23	1.5	3	5	7.5	15	20	10	—
GV2P22	20–25	2	—	7.5	7.5	15	20	10	—

NOTE: Type E ratings are only valid at 600Y/347 V and 480Y/277 V voltages and lower.

Line spacer GV3G66 and short-circuit signaling contact GVAM11 is required for Type E approval.

TeSys Deca Frame 3 Manual Self-Protected Combination Motor Starter (UL File E164871)

Manual Self-Protected Starter	Overload Trip Range (A)	Maximum Horsepower Ratings						SCCR (kA)
		Single-Phase		Three-Phase				480Y/277 V	600Y/347 V
		120 V	240 V	208 V	240 V	480 V	600 V	480Y/277 V	600Y/347 V
GV3P13	9–13	0.5	1.5	3	3	7.5	10	100	25
GV3P18	12–18	0.75	2	3	5	7.5	10	100	25
GV3P25	17–25	1.5	3	5	7.5	15	20	100	25
GV3P32	23–32	2	3	7.5	7.5	20	25	100	25
GV3P40	30–40	3	5	10	10	25	30	65	25
GV3P50	37–50	3	7.5	10	10	30	40	65	25
GV3P65	48–65	3	10	15	15	40	50	65	25

NOTE: Type E ratings are only valid at 600Y/347 V and 480Y/277 V voltages and lower.

Combination Starter Components

UL 98 Manual Disconnect Switches

TeSys™ GS Disconnect Switches

TeSys GS Disconnect Switch — GS2GU3N

TeSys™ GS Fusible Disconnect Switches

TeSys™VLS Disconnect Switches

TeSys VLS Non-Fusible Disconnect Switches — VLS3P063R2

TeSys VLS Non-Fusible Disconnect Switches

TeSys™ LK Disconnect Switches

TeSys LK Disconnect Switch — LK4SU3N

TeSys LK Non-Fusible Disconnect Switches

Class 9422 Disconnect Switches

Flange Mounted, Variable Depth Disconnect Switch — 9422TF1

Class 9422 Flange Mounted, Variable Depth Fusible and Non-Fusible Disconnect Switches

UL 248 Switches

TeSys™ DF Fuse Holders

TeSys DF Fuse Holders — DFCC3

TeSys DF Fuse Holders

TeSys™ FB Fuse Holders

Type FB Fuse Holder — 9080FB3611J

Type FB 600 V Fuse Holders

UL 489 Molded-Case Circuit Breakers

PowerPacT™ Circuit Breakers and Motor Circuit Protectors

PowerPacT B Circuit Breaker — BJL36125

PowerPacT™ Catalog Numbering System

PowerPact Interrupting Ratings System

BV4 Motor Circuit Protector (MCP) SelectionSee UL Listed combination ratings in accordance with UL 60947-4-1 Type D Construction, published on www.UL.com/sccr.*

PowerPact H- and J-Frame Electronic Motor Circuit Protectors

UL 489 Miniature Circuit Breakers and UL 1077 Supplementary Protectors

Multi 9™ Circuit Breakers and Supplementary Protectors

Multi 9 UL 489 Circuit Breaker — M9F42110

Multi 9 UL 1077 Supplementary Protector — M9F22110

Multi 9 Catalog Numbering System

Multi 9 UL 489 Breaking Capacity

Multi 9 UL 1077 Breaking Capacity

UL 60947 Contactors

TeSys™ K Contactors

TeSys K Contactor — LC1K09

TeSys K Contactors (Except for Spring Terminal Clamps)

TeSys™ Deca Contactors

TeSys Deca Contactor — LC1D12

TeSys Deca 3-Pole Contactors

TeSys Deca 4-Pole Contactors

TeSys Deca LC2D Contactors

Additional TeSys™ Deca Contactor Ratings

UL/CSA Lighting Ratings (HP)

Elevator Duty Ratings (HP)

Definite Purpose Ratings, 3-Phase, Breaking All Lines (Hermetic Refrigeration Compressor, AC-8a)

Definite Purpose Ratings, 3-Phase, Breaking All Lines (Hermetic Refrigeration Compressor, AC-8a)

TeSys™ Giga Contactors

TeSys Giga Contactor — LC1G265

TeSys Giga Contactors

Additional TeSys™ Giga Contactor Ratings

AC-8a Ratings, 3-Phase, Breaking All Lines (Hermetic Refrigeration Compressor)

TeSys™ N Contactors

TeSys N Contactor — T02CN13

TeSys N Contactors

Type S Contactors

Type S Contactor — 8502SAO11

Type S Contactors This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.*

Type S Contactor Maximum Component SCCR This table lists the maximum SCCR of the component when protected by any circuit breaker or fuse. If the maximum component SCCR is 100 kA and a 25 kA rated circuit breaker is used, then the system will be 25 kA, the SCCR rating of the circuit breaker.*

Definite Purpose Contactors

DP Compact Contactors

Definite Purpose Type DP Compact Contactor — 8910DP22V09

Definite Purpose Type DP Compact Contactors

Definite Purpose Type DP Compact Contactor Maximum Component SCCR

DPA Contactors

Definite Purpose Type DPA Contactor — 8910DPA32

Definite Purpose Type DPA Contactors Above 240 V, all lines must be switched.*

Definite Purpose Type DPA Contactor Maximum Component SCCR Ratings apply to circuits with voltages no greater than those listed.*

Type S Lighting Contactors

Type S Lighting Contactor — 8903SPO3V02

Type S Lighting Contactors

Type S Lighting Contactor Maximum Component SCCR Ratings apply to circuits with voltages no greater than those listed.*

Type L/LX Lighting Contactors

Type L Lighting Contactor — 8903LO1200

Type LX Lighting Contactor — 8903LXO1200

Type L/LX Lighting Contactors

Type L/LX Lighting Contactor Maximum Component SCCR Ratings apply to circuits with voltages no greater than those listed.*

TeSys™ NEMA® Lighting Contactors

BV4 Motor Circuit Protector (MCP) Selection*

Type S Contactors*

Type S Contactor Maximum Component SCCR*

Definite Purpose Type DPA Contactors*

Definite Purpose Type DPA Contactor Maximum Component SCCR*

Type S Lighting Contactor Maximum Component SCCR*

Type L/LX Lighting Contactor Maximum Component SCCR*

TeSys NEMA Lighting Contactor Maximum Component SCCR*

Type S Starters with Motor Logic or TeSys T Overload Relays Max. Component SCCR*

TeSys Ultra Self-Protected Combination Motor Starter (UL File E164871)*
