Diagnostics page
To view Diagnostics parameters:
- From the Home page, use Up or Down button to navigate to Maintain.
- Press OK.
- Press the Up or Down button to navigate to the Diagnostics page.
- Press OK.
- Press the Up or Down button to navigate to the next Diagnostics parameter.
- Press Left button to exit.

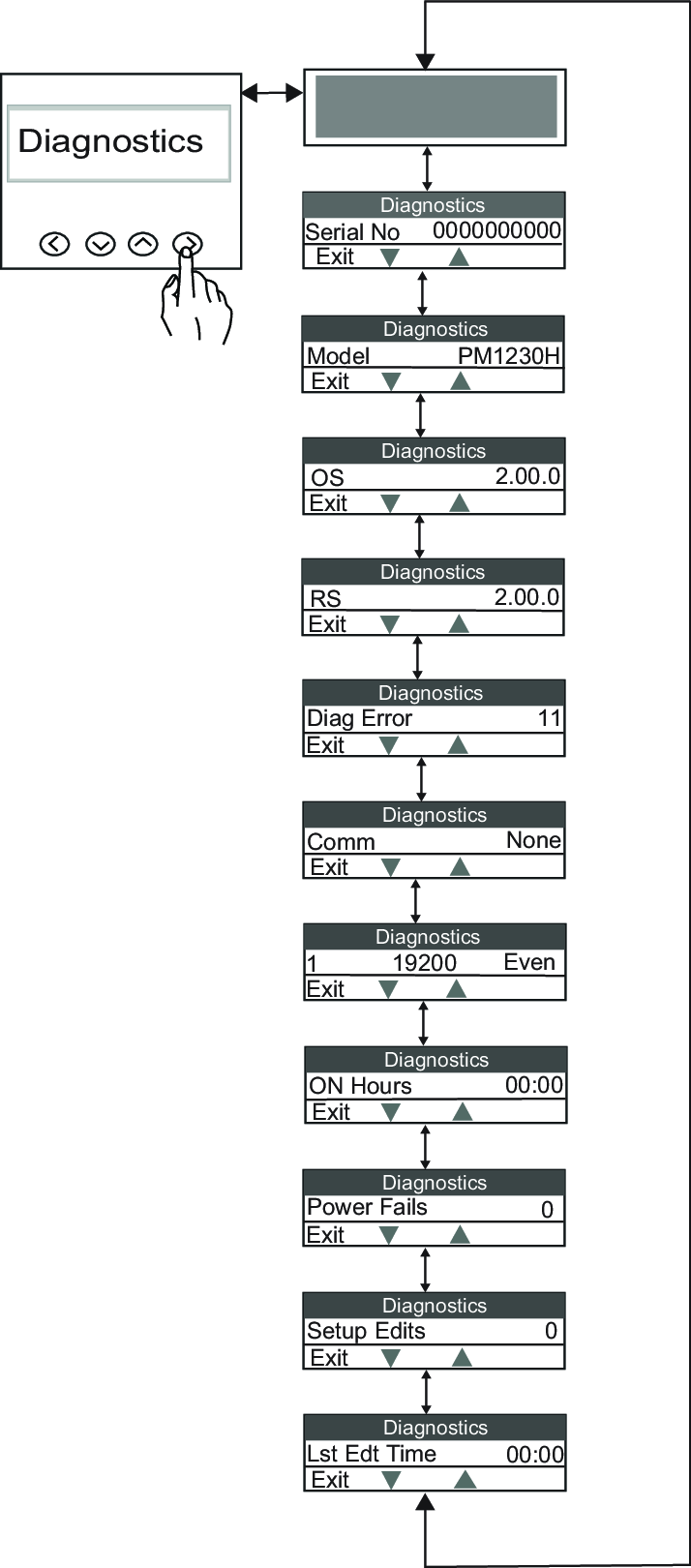

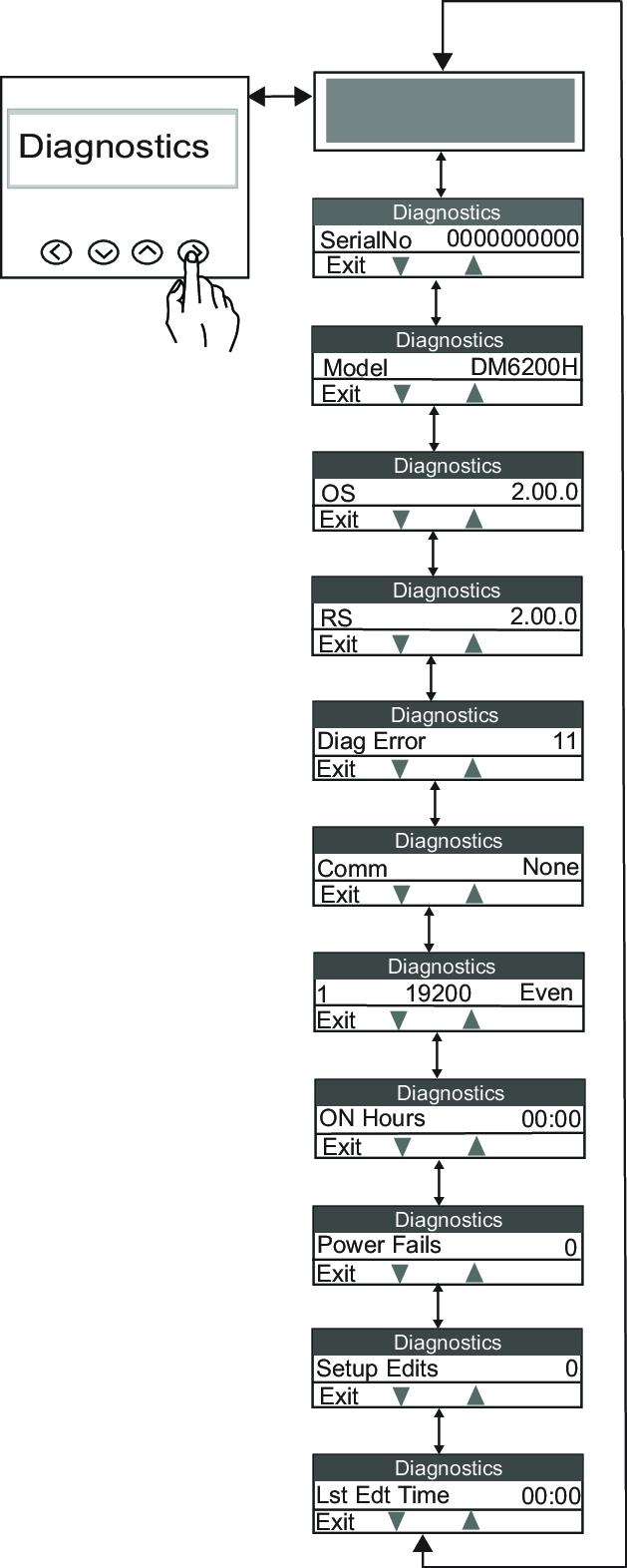

The navigation of Diagnostics:
PM1230H / PM1225H
DM6200H / EM1220H / EM1250H
|
Name on display |
Description |
|---|---|
|
|
Indicates that the display are operating correctly. |
|
Serial number |
Displays the meter serial number, for example .0500005174. |
|
Meter Model |
Displays the meter model number. |
|
OS Version |
Displays the operating system version number, for example OS 1.00.0. |
|
RS Version |
Displays the reset (boot code) version number, for example RS 1.00.0. |
|
Diag Error |
Displays the error codes of the meter for diagnostics. |
|
Comm |
Display the communication error code. |
|
1, 19200, Even |
Displays the ID, Baud, Parity. |
|
On Hours |
Displays the period for which the power meter's auxiliary supply is ON, regardless of the voltage and current inputs. |
|
Power Fails |
Display the number of times control power is interrupted. |
|
System Edits |
Display the count of system edit. |
|
Lst Edt Time |
Display the last edit time. |
