General Duty Safety Switches

General Duty–Up To 100 kA Short Circuit Current Rating

CD223N

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning, and appliances.

General duty safety switches are suitable for use as service equipment when equipped with a factory bonded neutral assembly and ground lug.

240 Volt–Single Throw Fusible Switches

Fusible Single Throw Safety Switches

System	Amperes	Type 1	Type 3R*	Line Side Barrier	Horsepower Ratings
					STD (Fast Acting One-Time Fuses)			MAX. (Dual Element Time-Delay Fuses)
					120 Vac	240 Vac		120 Vac	240 Vac
					1Ø	1Ø	3Ø	1Ø	1Ø	3Ø
Two–Wire (One Blade and Fuseholder, One Neutral)–120 Vac
Use Light Duty Devices or use three-wire devices
Three–Wire (Two Blade and Fuseholder, One Neutral)–120/240 Vac Plug Type Fuses
	30	CD211N*	–	–	1/2	1-1/2	–	2	3	–
Three–Wire (Two Blade and Fuseholder, One Neutral)–120/240 Vac Cart. Type Fuses
	30	CD221N*	–	–	–	1-1/2	3*	–	3	7-1/2*
	60	CD222N	CD222NRB	Factory Included	1-1/2	3	7-1/2*	3	10	15*
	100	CD223N	CD223NRB		–	7-1/2	15*	–	15	30*
	200	CD224N*	CD224NRB*		–	15	25*	–	–	60*
	400	CD225N	CD225NRB	LSBI02	–	–	50	–	–	125
	600*	CD226N	CD226NRB	LSBI02	–	–	75	–	–	150
Four–Wire (Three Blade and Fuseholder, One Neutral)–120/240 Vac Cart. Type Fuses
	30	CD321N*	CD321NRB*	–	–	–	-	–	3	7-1/2
	60	CD322N	CD322NRB	Factory Included	1-1/2	3	7-1/2*	3	10	15*
	100	CD323N	CD323NRB		–	7-1/2	15*	–	15	30*
	200	CD324N*	CD324NRB*		–	15	25*	–	–	60*
	400	CD325N	CD325NRB	LSBI02	–	–	50	–	–	125
	600*	CD326N	CD326NRB	LSBI02	–	–	75	–	–	150

Short Circuit Current Ratings–AC Only

Fuse Class	Short Circuit Rating
Plug	10 kA
H, K	10 kA
R	10 kA *
R with Rejection Fuse Clips	100 kA
J	100 kA
NOTE: Class J fuse provisions: Not available on 30–100 A general duty safety switches. Available on 200–400 A general duty safety switches. Field relocation of the load side fuse base assemblies to the alternate Class J fuse position marked in the switch is required. Available on 600 A general duty safety switches. Field installation on Class J Fuse kit GDJK600 is required.

Accessories and Lug Data

Field-Installed Fuse Puller Kits

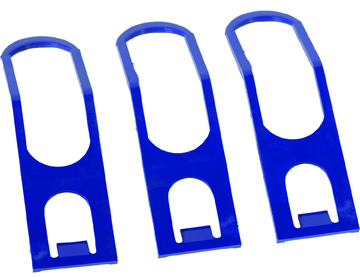

FPK03 Fuse Puller Kit
Series F Fusible Switches Only

Kit consists of three fuse pullers as required for a three-pole, fusible, 60 or 100 A general duty switch. Kits can be installed only in 60 or 100 A Series F fusible switches.

Fuse Puller Kits

Switch Ampere Rating	Series No.	Cat. No.
60	F	FPK03
100	F	FPK0610

Field-Installed Electrical Interlock Kits

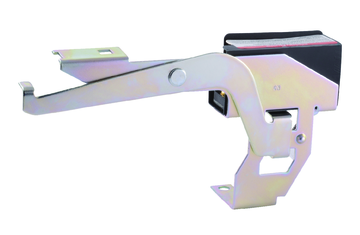

EIK031

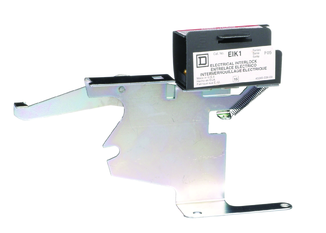

EIK1

Electrical interlocks for Series F 100–200 A general duty safety switches and Series F 60 A fusible general duty safety switches are available in kit form for field installation. Each kit contains instructions for proper field mounting. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Electrical interlock kits are CSA certified.

Electrical Interlock Kit

Switch Amperes Rating	Electrical Interlock Kit Cat. No. *
Series F 60	EIK031 or EIK032
Series F 100–200	EIK1 or EIK2

Electrical Interlock Contact Ratings*

Interlock Type	AC 50 or 60 Hz				DC
Interlock Type	Volts	Make	Break	Cont.	Volts	Make / Break	Cont.
1 N. O. / 1 N. C. Contact (-1 Suffix *)	120	40 A	15 A	15 A	115	0.50 A	15 A
1 N. O. / 1 N. C. Contact (-1 Suffix *)	240	20 A	10 A	15 A	230	0.25 A	15 A
2 N. O. / 2 N. C. Contacts (-2 Suffix -2 Suffix uses a 9007C03 limit switch.*)	120	30 A	3 A	10 A	115	1.00 A	10 A
	240	15 A	1.5 A	10 A	230	0.30 A	10 A

Class R Fuse Kits

CSA Certified rejection kits, to be used with Class R fuses, are available for field installation.

Ampere Rating	Catalog Number
30	DRK30
60 (F-series)	RFK03H
100 (F-series)	RFK10
200	HRK1020
400	DRK40
600	DRK600

Equipment Grounding Kits

PK3GTA1

GTK0610

PKOGTA2

Equipment Grounding Kits

Switch Ampere Rating	Cat. No.	Lug Wire Range (AWG)
30 Light duty switches only.*	Std.	(1) 14–10 Cu or (1) 12–8 Al
30	PK3GTA1	(3) 14–4 Cu or (3) 12–4 Al or (6) 14–12 Cu or (6) 12–10 Al
60 *	GTK03	(2) 14–4 Cu or (2) 12–4 Al (4) 14–12 Cu or (4) 12–10 Al
100	GTK0610	(2) 14–1/0 Cu or (2) 12–1/0 Al (2) 14–6 Cu or (2) 12–6 Al
200	PKOGTA2	(2) 10–2/0 Cu or (2) 6–2/0 Cu Al
400, 600	PKOGTA2 *	(2) 10–2/0 Cu or (2) 6–2/0 Cu Al

NOTE: Canadian general duty safety switches come complete with factory installed grounding kits.

Field-Installed Lug Kit 400–600 A

Switch Ampere Rating	Lug Kit Cat. No.	Wire Range
400 or 600 Series E01, E02, and E03Not suitable for use on 400 A Type 3R.*	GD4060LK	1-1/0-600 kcmil 2-1/0-500 kcmil 4-1/0-250 kcmil

Line Side Barrier Kits

Barrier kits protect against inadvertent contact with line side, uninsulated, ungrounded, or service terminal live parts.

Line Side Barrier Kits for General Duty Safety Switches

Amperes	Voltage	Blades/Fuses	Catalog
60Only for fused applications.*	240	2 or 3	LSBD202
100	240	2 or 3	LSBC02
200	240	2	LSBE202
200	240	3	LSBE203
400 / 600 / 800	240	2 or 3	LSBI02

Terminal Lug Data

Terminal Lug Data *

Amperes	Conductors Per Phase	Lug Wire Range AWG/kcmil
30*	1	12–8 (Al) or 14–8 (Cu)
30		12–6 (Al) or 14–6 (Cu)
60		12–2 (Al) or 14–2 (Cu)
100		12–1/0 (Al) or 14–1/0 (Cu)
200		6–250 (Al/Cu)
400 Type 1	1 or 2	(1) 1/0–750 (Al/Cu) or (2) 1/0–300 (Al/Cu)
400 Type 3R	2	(1) 1–600 (Al/Cu) or (2) 1/0–250 (Al/Cu)
600	2	4–500 (Al/Cu)

Dimensions for General Duty Safety Switches

Approximate Dimensions

Cat. No.	Series	H		W		W/H		D		Std. Pack
Cat. No.	Series	in.	mm	in.	mm	in.	mm	in.	mm	Std. Pack
L111N	E2	7.63	194	5.00	127	6.13	156	4.00	102	1
L211N	E2	7.63	194	5.00	127	6.13	156	4.00	102	1
L221N	E2	7.63	194	5.00	127	6.13	156	4.00	102	1
CD211N	E3	9.25	235	6.75	171	7.25	184	3.63	92	5
CD221N	E3	9.25	235	6.75	171	7.25	184	3.63	92	5
CD221NRB	E3	9.63	245	7.25	184	7.75	197	3.75	95	5
CD222N	F1	14.63	372	6.50	165	7.45	189	4.88	124	1
CD222NRB	F1	14.88	378	6.63	168	7.45	189	4.88	124	1
CD223N	F3	17.50	445	8.50	216	10.50	267	6.50	165	1
CD223NRB	F3	17.50	445	8.50	216	10.50	267	6.50	165	1
CD224N	F1	29.00	737	17.25	438	19.00	483	8.25	210	1
CD224NRB	F1	29.25	743	17.25	438	19.00	483	8.25	210	1
CD225N	E3	45.12	1146	24.00	610	24.88	632	8.88	226	1
CD225NR	E1	30.63	778	21.38	543	22.25	565	10.13	257	1
CD226N	E3	49.13	1248	24.00	610	24.88	632	8.88	226	1
CD226NR	E1	49.13	1248	24.75	629	25.13	638	8.88	226	1
CD321N	E3	9.25	235	6.75	171	7.25	184	3.63	92	5
CD321NRB	E3	9.63	245	7.25	184	7.75	197	3.75	95	5
CD322N	F1	14.63	372	6.50	165	7.45	189	4.88	124	1
CD322NRB	F1	14.88	378	6.63	168	7.45	189	4.88	124	1
CD323N	F3	17.50	445	8.50	216	10.50	267	6.50	165	1
CD323NRB	F3	17.50	445	8.50	216	10.50	267	6.50	165	1
CD324N	F1	29.00	737	17.25	438	19.00	483	8.25	210	1
CD324NRB	F1	29.25	743	17.25	438	19.00	483	8.25	210	1
CD325N	E3	45.12	1146	24.00	610	24.88	632	8.88	226	1
CD325NR	E1	30.63	778	21.38	543	22.25	565	10.13	257	1
CD326N	E3	49.13	1248	24.00	610	24.88	632	8.88	226	1
CD326NR	E1	49.13	1248	24.75	629	25.13	638	8.88	226	1
