Modify the Export to CAD Workflow

The Export to CAD workflow references a workflow called Generate ArcGIS Token. The Export to CAD Workflow requires the location of this workflow be provided.

1. Open the VertiGIS Studio Workflow Designer application and log in to the Portal for ArcGIS where you saved the Export to CAD workflow.

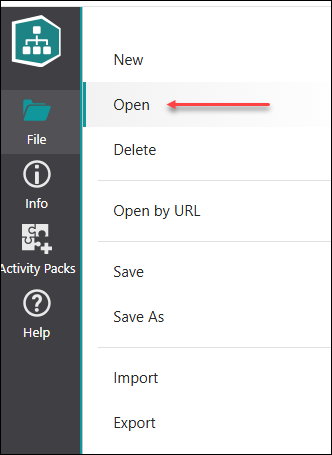

2. Select File > Open.

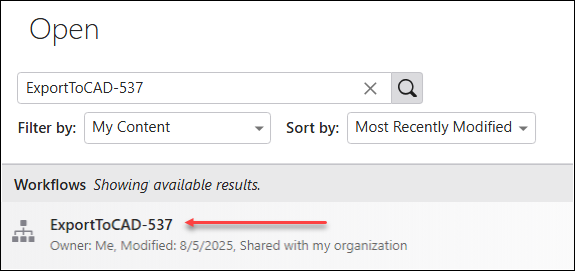

3. Search for the ExportToCAD-537 workflow. Click on the ExportToCAD-537 workflow result.

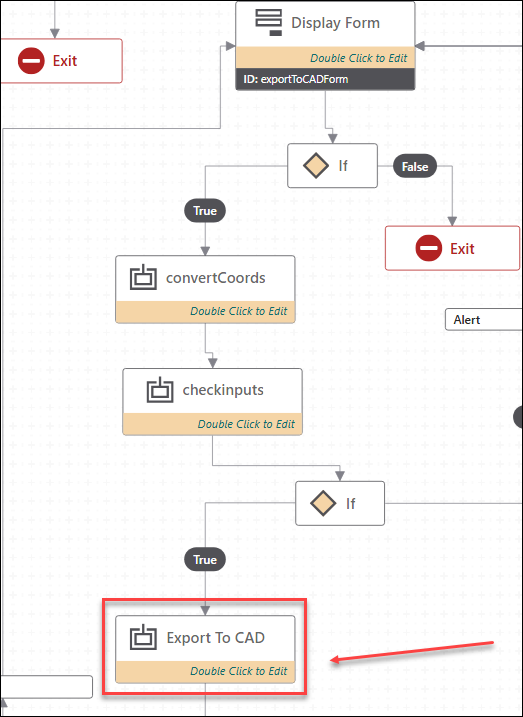

4. In the workflow diagram that opens, double click the Export To CAD workflow to edit its nested workflows.

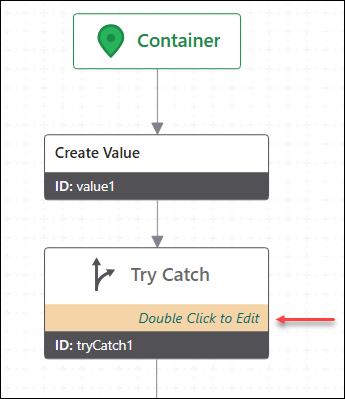

5. Double click the Try Catch workflow, to edit the inputs.

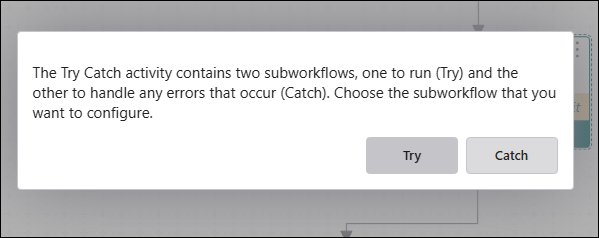

6. The following message appears. Click the Try button.

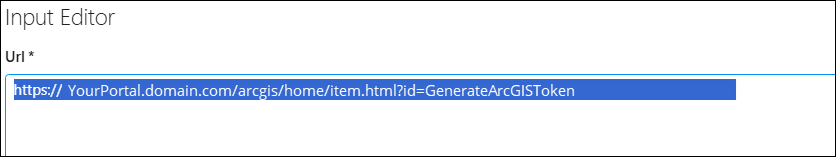

7. In the right side panel, under the Inputs section, click within the Url field. The Input Editor opens. Enter the Portal for ArcGIS location where the Generate ArcGIS Token workflow is located. For example, YourPortal.domain.com/arcgis/home/item.html?id=GenerateArcGISToken or https://Portal.esri.com/arcgis/home/item.html?id=9ed3a6c7eab33d0eb192979b904560f5.





8. Exit the Export To CAD workflow.

9. Select File > Save.
