Print

The Print button provides a printer-friendly view of the current display in Wavepoint.

It works whether you are viewing the map, fiber connections in a splice, or inside a fiber location. It also prints the one-line trace diagram, if present.

Once on the print preview, you can still navigate and reposition the map or display prior to printing.

IMPORTANT: In order to see the Wavepoint graphics on your print (for example, the graphics in a one-line diagram), you must check the option to print the background in your browser settings.

Chrome: Customize and Control Google Chrome Menu > Print > More Settings > check "Background graphics"
Firefox: Open Application Menu > Print > More Settings > check "Print backgrounds"
Edge: Settings and More Menu > Print > More Settings > check "Background graphics"

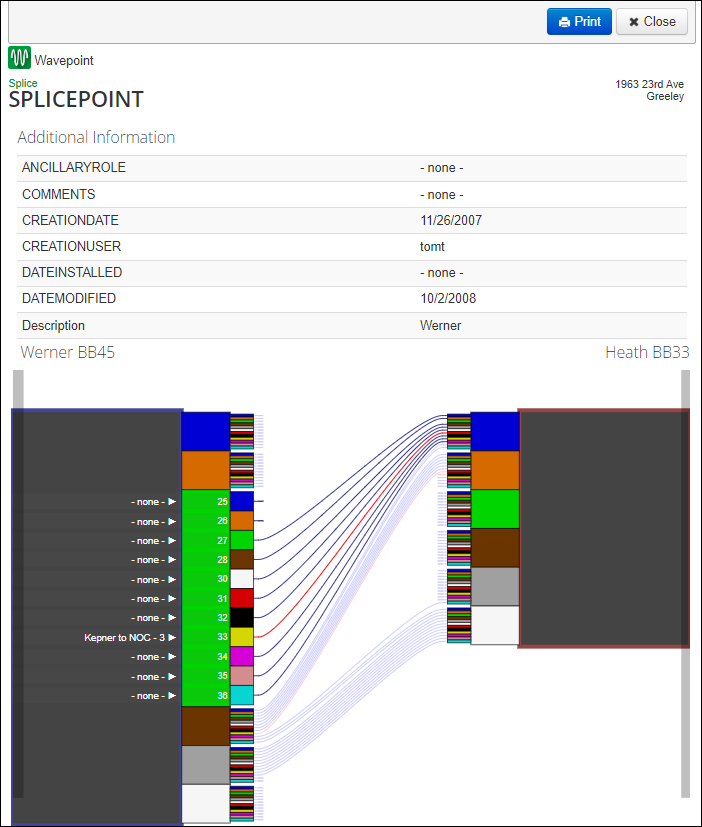

Splice Example

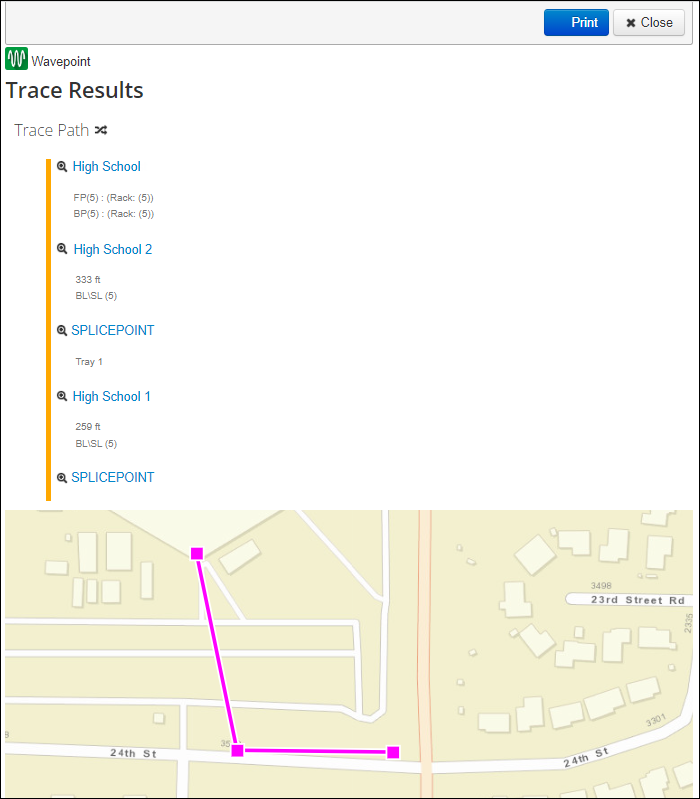

Trace Example

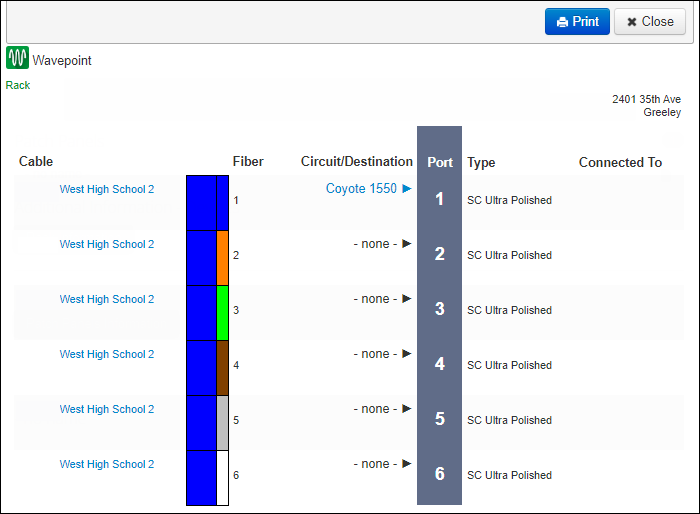

Patch Panel Connection Report Example
