Physical
Shipping Weights and Dimensions
| Commercial reference | Weight kg (lbs) | Height mm (in) | Width mm (in) | Depth mm (in) |
|---|---|---|---|---|
| PMM1000-CUB | 4800 (10582) | 2350 (92.5) | 2360 (92.9) | 1550 (61) |
Weights and Dimensions
| Commercial reference | Weight kg (lbs) | Height mm (in) | Width mm (in) | Depth mm (in) |
|---|---|---|---|---|
| PMM1000-CUB | 4650 (10251) | 2200 (86.6) | 2095 (82.7) | 1295 (51.2) |
Clearance
NOTE: Clearance dimensions are published for airflow and
service access only. Consult with the local safety codes and standards
for additional requirements in your local area.
NOTE: 600 mm
(24 in) rear clearance is required for non-routine transformer service
such as transformer tap changes.
Minimum Required Clearance for Installation and Operation of the PDU |

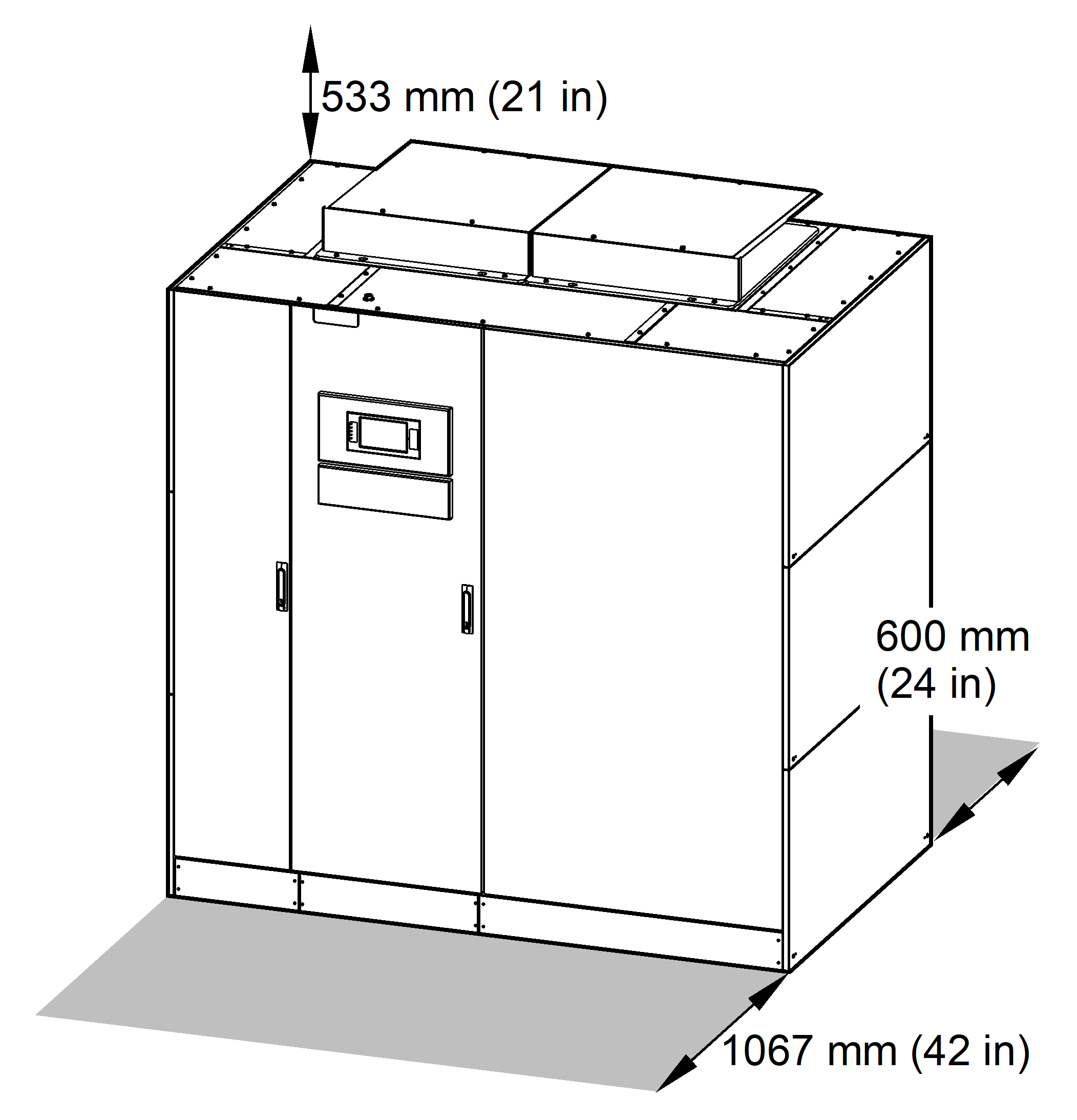

Minimum Recommended Clearance for Service of the PDU |
Environment
| Operating | Storage | |
|---|---|---|
| Temperature | -10 °C to 40 °C (14 °F to 104 °F) | -25 °C to 55 °C (-13 °F to 131 °F) |
| Relative humidity | 10 to 70% non-condensing | 10 to 80% non-condensing |
| Elevation | 0 m to 2011 m (0 feet to 6600 feet) above sea level |
0-10000 m (0-32000 ft) |
| Audible noise one meter (three feet) from unit | As per NEMA ST20 | |
| Protection class | NEMA type 1, external doors with inner dead front panels | |
| Cooling | Front, rear, and roof ventilation | |
| Color |
APC raven black |
|
| Accessibility | Front access for:
|
|
Heat Dissipation
| Heat dissipation in BTU/hr | 44445 |
Compliance
| Safety |
UL 891, SWITCHBOARDS, Edition 12, Issue Date 07/19/2019 CSA C22.2 No. 244, Switchboards, Edition 2, Issue Date 07/2019 UL 62368-1, Audio/Video, Information and Communication Technology Equipment - Part 1: Safety Requirements, Edition 3, Revision Date 10/22/2021 CSA C22.2 No. 62368-1:19, Audio/Video, Information and Communication Technology Equipment - Part 1: Safety Requirements, Edition 3, Revision Date 10/22/2021 |
| Marking | cULus |
| Performance | Transformer DOE2016 |
