Contactors, Class 8910 Types DP and DPA
Definite purpose contactors are ideal for heating, air conditioning, refrigeration, data processing, and food service equipment. Compact 1- and 2-pole contactors are available, as well as full-size devices with 2, 3, or 4 poles.
Features
-
Quick connect terminals and binder head screws allow for easy wiring.
-
Box lugs are standard on contactors 40 A and larger.
-
An exclusive DIN track mounting option may reduce installation costs.
-
Coils can be changed quickly, without a tool, on the Type DPA, 50–90 A contactors.
-
Auxiliary contact modules snap on either side of the Type DPA contactors.
To order, specify the Class, Type, and Voltage Code (where indicated).
Compact 1-Pole Contactors—600 Vac Maximum
|
Full
Load |
Locked Rotor Amperes |
Resistive Load |
N.O. Poles |
Class 8910 |
||
|
277 V |
460 V |
575 V |
||||
|
30 |
150 |
125 |
100 |
40 |
1 |
DP31 |
|
40 |
240 |
200 |
160 |
40 (50 for 277 V) |
1 |
DP41 |
Compact 2-Pole Contactors—600 Vac Maximum (above 240 V, all lines must be switched)
|
Full Load Amperes |
Locked Rotor Amperes |
Resistive Load Amperes |
N.O. Poles |
Class 8910 |
||
|
277 V |
460 V |
575 V |
||||
|
30 |
150 |
125 |
100 |
40 |
2 |
DP32 |
|
40 |
240 |
200 |
160 |
50 |
2 |
DP42 |
Type DP32V09 2 pole |

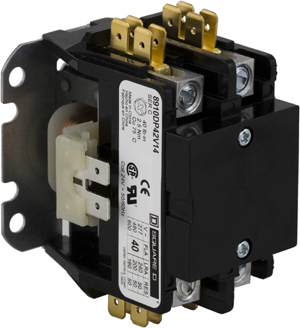

Type DP42V14 2 pole |
Type DPA33V04 3 pole |
2, 3, and 4-Pole Contactors—600 Vac Maximum (above 240 V, all lines must be switched)
|
Full Load |
Locked Rotor Amperes |
Resistance |
Horsepower Ratings |
N.O. |
Class 8910 |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
|
230 V |
460 V |
575 V |
115 V, 1Ø |
230 V, 1Ø |
230 V, 3Ø |
460/575 V, 3Ø |
||||
|
30 |
180 |
150 |
120 |
40 |
2 |
5 |
10 |
15/20 |
2 |
DPA32 |
|
40 |
240 |
200 |
160 |
50 |
3 |
7.5 |
10 |
20/25 |
2 |
DPA42 |
|
50 |
300 |
250 |
200 |
65 |
3 |
10 |
15 |
30 |
2 |
DPA52 |
|
60 |
360 |
300 |
240 |
75 |
5 |
10 |
25 |
30 |
2 |
DPA62 |
|
75 |
450 |
375 |
300 |
94 |
5 |
15 |
25 |
40 |
2 |
DPA72R |
|
90 |
540 |
450 |
360 |
120 |
7.5 |
20 |
30 |
50 |
2 |
DPA92 |
2 N.O. and 2 N.C. 4-Pole Contactors 600 Vac Maximum
(above 240 V, all lines must be switched)
|
Full Load Amperes |
Resistive Load Amperes |
Poles |
Contactors, Class 8910 |
||
|---|---|---|---|---|---|
|
N.O. |
N.C. * |
Type * |
Form * |
||
|
30 |
40 |
2 |
2 |
DPA34 |
Y392 |
Auxiliary Contact Installation, 50–90 A (no tools required)
Auxiliary Contacts
|
For Use with, |
Contact Arrangement |
Auxiliary Contacts |
|---|---|---|
|
DPA |
1 N.O. |
D10 |
|
1 N.C. |
D01 |
|
|
1 N.O. / 1 N.C. |
D11 |
|
|
2 N.O. |
D20 |
NEMA Type 1 General Purpose Enclosures for Type DP and DPA Contactors
|
For Contactors, |
Full Load Amperes |
Poles |
Enclosures, |
|---|---|---|---|
|
DP |
30–40 |
1 and 2 |
DPG1 |
|
DPA |
30–40 |
2 and 3 |
DPG1 |
|
4 |
DPG2 |
||
|
50 |
2 and 3 |
DPG2 |
|
|
60–75 |
2 and 3 |
DPG3 |
|
|
90 |
2 and 3 |
DPG4 |
Coil Voltage Codes
|
Voltage |
Voltage
Code |
|
|---|---|---|
|
60 Hz |
50 Hz |
|
|
24 |
24 |
V14 |
|
120 |
110 |
V02 |
|
208 |
— |
— |
|
208–240 |
220 |
V09 |
|
230–240 |
220 |
— |
|
277 |
— |
V04 |
|
480 |
440 |
V06 |
|
600 |
550 |
V07 (not available for Type DP, 1-pole and 2-pole devices) |
Types DP and DPA Specifications
|
Mechanical Life |
500,000 operations (actual product life will vary based on electrical load, duty cycle, application, and environmental conditions) |
||||
|
Electrical Life |
Type DP |
100,000 operations |
|||
|
Type DPA |
200,000 operations |
||||
|
Duty Cycle |
Continuous |
||||
|
Operating Temperature |
0–65 °C (32–149 °F) |
||||
|
Slip-on Connector Rating |
30 A, 75 °C wire |
||||
|
Approvals |
UL Recognized |
CSA Certified |
|||
Replacement Coils for Class 8910 Type DPA
|
For Types |
Full Load Amperes |
Poles |
Class 9998 |
Volt-Amperes |
|
|---|---|---|---|---|---|
|
Inrush |
Sealed |
||||
|
DP |
50–60 |
2, 3 |
DA2 |
109 |
10 |
|
75–90 |
2, 3 |
DA3 |
214 |
19 |
|
|
DP32 |
Coils are not replaceable. |
33 |
8 |
||
|
DPA32–DPA44 |
Coils are not replaceable. |
60 |
6 |
||
Coil Replacement, 50–60 A (no tools required)
Type DPA Coil Voltage Codes
|
Voltage, 60 Hz |
Voltage, 50 Hz |
Voltage Code |
|---|---|---|
|
24 |
24 |
V14 |
|
120 |
110 |
V02 |
|
208–240 |
220 |
V09 |
|
277 |
— |
V04 |
|
480 |
440 |
V06 |
|
600 |
550 |
V07 (Type DPA contactors only) |
Power Terminals
|
Full Load Amperes |
Power Terminals |
|
|---|---|---|
|
Type of Lug |
Wire Range |
|
|
30 |
binder head |
1.5–10 (16–8) |
|
40 |
box lug |
2.5–25 (14–4) |
|
50–60 |
box lug |
2.5–35 (14–2) |
|
75–90 |
box lug |
2.5–55 (14–1/0) |
Mounting Attachment
|
Description |
Class 9999 Type |
|---|---|
|
DIN mounting bracket attachment |
DMB1 |
