Connect Power Cables
 DANGER |
|---|
|
hazard of electric shock, explosion, or arc flash
Do not drill or cut holes for cables or conduits with
the gland plate installed and do not drill or cut holes in close proximity
to the modular battery cabinet.
Failure to follow these instructions will result in death or serious injury.
|
NOTE: Route the signal cables separately
from the power cables.
-

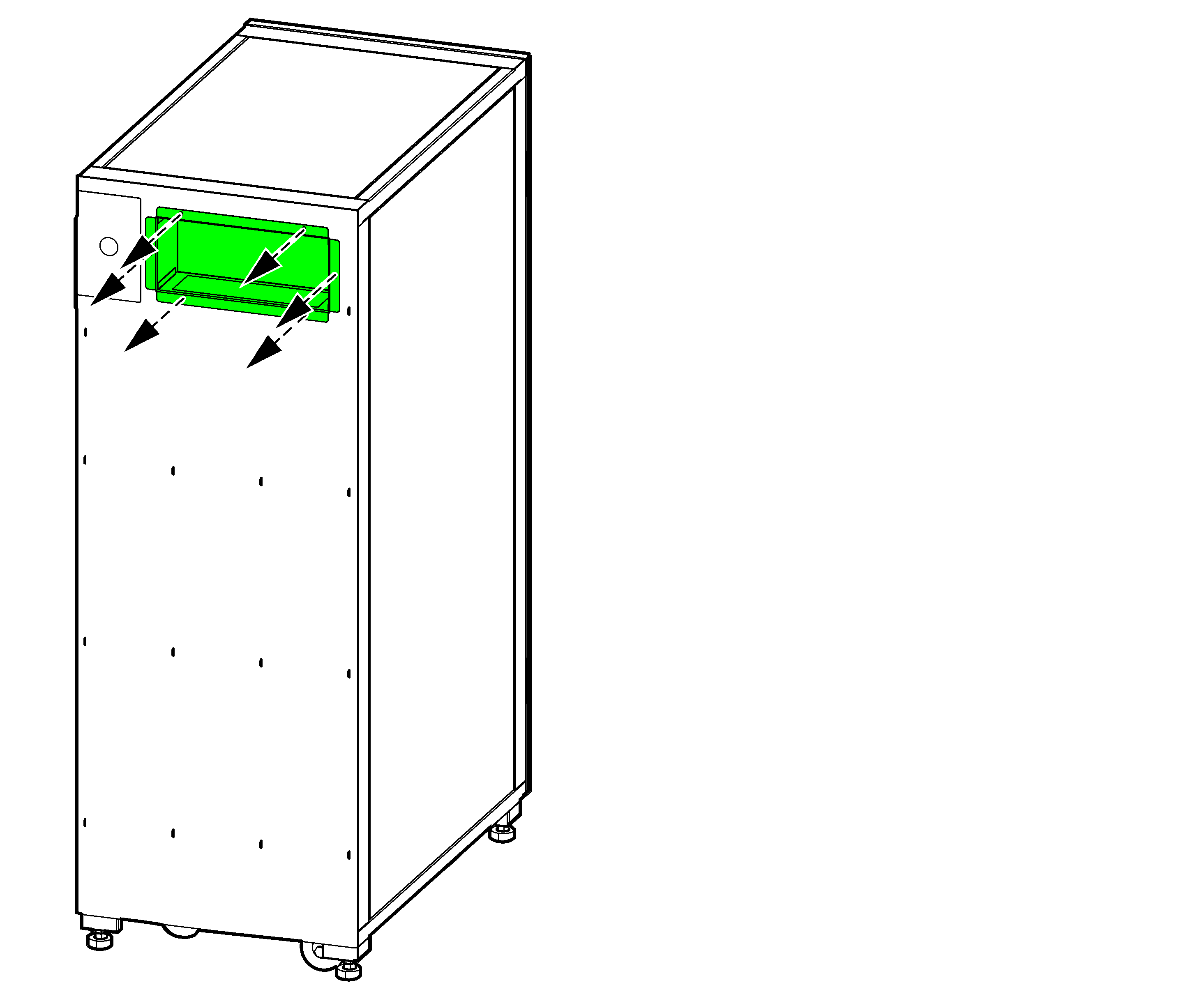

Remove the conduit box from the rear side of the modular
battery cabinet.
Rear View of the Modular Battery Cabinet
-
Rotate the conduit box and install.
Rear View of the Modular Battery Cabinet
- Remove the gland plate from the top or bottom of the conduit box and drill holes for cables/conduits. Reinstall conduits (if applicable) and reinstall the gland plate.
-
Remove the right side panel and the top cover.
Front View of the Modular Battery Cabinet
-
Route the power cables through the conduit box and connect
to the busbars.
-
If more than one modular battery cabinet is part of the
installation, connect the battery cables between the modular battery
cabinets.
- Reinstall the right side panel and the top cover.
