990-91497C-001

Introduction

Overview of Configurations

NOTE: The bypass inductor cabinet must be used with a UPS in single mains systems only.
NOTE: Depending on your chosen configuration, the backfeed breaker BF2 (marked with * in the illustration) can be preinstalled in the UPS, delivered as an optional backfeed kit GVXOPT001 to be installed in the UPS, or installed upstream of the UPS in the switchgear.

Installation Kits Shipped inside the Frame

Installation Kit 0H-9658

Part Used in Number of Units

Angle for right side of the rear anchoring bracket 870- 66649

Mount the Rear Anchoring Brackets

1

M8 x 25 hexagonal torx with washer

3

Rear anchoring angle 0M-816922

1

Top baying cover 0M-95514

Position the Cabinets

1

M6 x 16 torx screw with washer

13

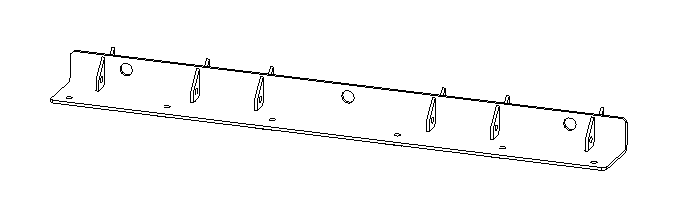

Front anchoring angle 0M-816915

Final Installation Steps

1

M8 x 20 hexagonal torx with washer

6

Installation Kit 0H-1911

Part Used in Number of Units

Flexible busbar for L3 bypass connection 0M-95767

Save for the field service representative. They will be used for busbars connection and will be installed by Schneider Electric during assembly service.

1

Flexible busbar for L2 bypass connection 0M-95769

1

Flexible busbar for L1 bypass connection 0M-95768

1

Flexible busbar for L3-1 input connection 0M-95772

1

Flexible busbar for L2-1 input connection 0M-95776

1

Flexible busbar for L1-3 input connection 0M-95773

1

Flexible busbar for L1-1 input connection 0M-95774

1

Flexible busbar for L3-2 input connection 0M-95770

1

Flexible busbar for L2-2 input connection 0M-95775

1

Flexible busbar for L1-2 input connection 0M-95771

1

Ground interconnection busbar 880-63551

Save for the field service representative. They will be used for busbars connection and will be installed by Schneider Electric during assembly service.

1

Ground interconnection busbar 880-63552

1

Insulator support 850-10211

1

Insulator busbar shroud 850-10213

3

Insulator busbar shroud 850-10214

1

Insulator busbar shroud 850-10215

3

Insulator support 850-4763

1

Insulator support 850-4764

1

Insulator support 850-4767

1

M6 nut with washer 803-5022

18

M10 x 55 hexagonal bolt with washer 803-9782

64

Edge gasket 850-87860

1

M10 nut with washer 803-1005

Save for the field service representative. They will be used for busbars connection and will be installed by Schneider Electric during assembly service.

72

M10 x 40 hexagonal torx with washer 803-8589

16

M6 x 35 hexagonal bolt 803-6440

8

M6 conical washer 21234606

8

Insulation separator 850-10263

6

Insulation support 850-10247

2

Insulation support 850-10248

2

Bracket 870-67379

2

Bracket 870-67380

2

M8 X 25 Hexagonal torx with washer

8

Self lock cable tie TME09622

25
