Dimensions

Enclosed Power Distribution Blocks Approximate Dimensions

NSYEBAD11611, NSYEBAD11614

NSYEBAD12611, NSYEBAP12611, NSYEBCD12611, NSYEBCP12611, NSYEBAD12614, NSYEBAP12614, NSYEBCD12614, NSYEBCP12614

NSYEBAD13618, NSYEBAP13618, NSYEBCD13618, NSYEBCP13618, NSYEBAD25622, NSYEBAP25622, NSYEBCD25622, NSYEBCP25622

NSYEBAP27622, NSYEBAP27628, NSYEBCP27628

Power Block Mounting Hole Diameter Measurements in. (mm)

Catalog Number	A1	A2	A3	B	C	D	E	F	G	H	J
One-pole
LBA161101	0.85 (21.46)	1.48 (37.59)	2.12 (53.72)	2.29 (58.1)	1.62 (41.20)	0.38 (9.7)	0.64 (16.2)	0.18 (4.5)	1.93 (49.1)	0.20 (5.0)	0.201 (5.11)
LBA161104	0.85 (21.46)	1.48 (37.59)	2.12 (53.72)	2.29 (58.1)	1.62 (41.20)	0.38 (9.7)	0.64 (16.2)	0.18 (4.5)	1.93 (49.1)	0.20 (5.0)	0.201 (5.11)
LBA162101	1.02 (25.9)	1.84 (46.7)	2.56 (65.0)	3.37 (83.1)	3.00 (76.2)	0.44 (11.2)	0.79 (20.0)	0.42 (10.5)	2.25 (57.2)	0.20 (5.0)	0.205 (5.21)
LBA162104
LBC162101
LBC162104
LBA163101	2.17 (55.1)	4.24 (107.7)	5.64 (143.3)	5.0 (127.0)	3.92 (99.6)	1.11 (28.2)	1.71 (43.4)	1.07 (27.2)	3.38 (85.7)	0.14 (3.4)	0.22 (5.6)
LBA163106
LBA163206
LBC163106
LBC163206
LBA164101	2.25 (56.7)	4.12 (105.0)	6.00 (152.0)	4.75 (121.0)	3.16 (60.2)	1.12 (28.5)	1.88 (47.7)	0.31 (7.9)	4.16 (106.0)	0.53 (13.0)	0.200 (5.08)
LBA164108	2.25 (56.7)	4.12 (105.0)	6.00 (152.0)	4.75 (121.0)	3.16 (60.2)	1.12 (28.5)	1.88 (47.7)	0.31 (7.9)	4.16 (106.0)	0.53 (13.0)	0.200 (5.08)
LBA165202	2.88 (73.2)	5.59 (142.0)	8.25 (209.6)	5.50 (140.0)	3.92 (99.6)	1.41 (35.7)	2.69 (68.2)	0.38 (9.5)	4.75 (121.0)	0.14 (3.4)	0.265 (6.73)
LBA1652021
LBA165106
LBA165112
LBA165212
LBC165208
LBC165212
Two-pole
LBA261104	0.85 (21.46)	1.48 (37.59)	2.12 (53.72)	2.29 (58.1)	1.62 (41.20)	0.38 (9.7)	0.64 (16.2)	0.18 (4.5)	1.93 (49.1)	0.20 (5.0)	0.201 (5.11)
LBA262101	1.02 (25.9)	1.84 (46.7)	2.56 (65.0)	3.37 (83.1)	3.00 (76.2)	0.44 (11.2)	0.79 (20.0)	0.42 (10.5)	2.25 (57.2)	0.20 (5.0)	0.205 (5.21)
LBA262104
LBC262104
LBA263101	2.17 (55.1)	4.24 (107.7)	5.64 (143.3)	5.0 (127.0)	3.92 (99.6)	1.11 (28.2)	1.71 (43.4)	1.07 (27.2)	3.38 (85.7)	0.14 (3.4)	0.22 (5.6)
LBA263106
LBA263206
LBC263106
LBC263206
LBA264108	2.25 (56.7)	4.12 (105.0)	6.00 (152.0)	4.75 (121.0)	3.16 (60.2)	1.12 (28.5)	1.88 (47.7)	0.31 (7.9)	4.16 (106.0)	0.53 (13.0)	0.200 (5.08)
LBA265202	2.88 (73.2)	5.59 (142.0)	8.25 (209.6)	5.50 (140.0)	3.92 (99.6)	1.41 (35.7)	2.69 (68.2)	0.38 (9.5)	4.75 (121.0)	0.14 (3.4)	0.265 (6.73)
LBA2652021
LBA265106
LBA265112
LBA265212
Three-pole
LBA361101	0.85 (21.46)	1.48 (37.59)	2.12 (53.72)	2.29 (58.1)	1.62 (41.20)	0.38 (9.7)	0.64 (16.2)	0.18 (4.5)	1.93 (49.1)	0.20 (5.0)	0.201 (5.11)
LBA361104	0.85 (21.46)	1.48 (37.59)	2.12 (53.72)	2.29 (58.1)	1.62 (41.20)	0.38 (9.7)	0.64 (16.2)	0.18 (4.5)	1.93 (49.1)	0.20 (5.0)	0.201 (5.11)
LBA362101	1.02 (25.9)	1.84 (46.7)	2.56 (65.0)	3.37 (83.1)	3.00 (76.2)	0.44 (11.2)	0.79 (20.0)	0.42 (10.5)	2.25 (57.2)	0.20 (5.0)	0.205 (5.21)
LBA362104
LBC362101
LBC362104
LBA362106	2.17 (55.1)	4.24 (107.7)	5.64 (143.3)	5.0 (127.0)	3.92 (99.6)	1.11 (28.2)	1.71 (43.4)	1.07 (27.2)	3.38 (85.7)	0.14 (3.4)	0.22 (5.6)
LBA363101
LBA363106
LBA363206
LBC363106
LBC363206
LBA364101	2.25 (56.7)	4.12 (105.0)	6.00 (152.0)	4.75 (121.0)	3.16 (60.2)	1.12 (28.5)	1.88 (47.7)	0.31 (7.9)	4.16 (106.0)	0.53 (13.0)	0.200 (5.08)
LBA364108	2.25 (56.7)	4.12 (105.0)	6.00 (152.0)	4.75 (121.0)	3.16 (60.2)	1.12 (28.5)	1.88 (47.7)	0.31 (7.9)	4.16 (106.0)	0.53 (13.0)	0.200 (5.08)
LBA365202	2.88 (73.2)	5.59 (142.0)	8.25 (209.6)	5.50 (140.0)	3.92 (99.6)	1.41 (35.7)	2.69 (68.2)	0.38 (9.5)	4.75 (121.0)	0.14 (3.4)	0.265 (6.73)
LBA3652021
LBA365106
LBA365112
LBA365212
LBC365208
LBC365212

30 A, 250 V 9080FB Fuseholders

60 A, 250 V 9080FB Fuseholders

100 A, 250 V 9080FB Fuseholders

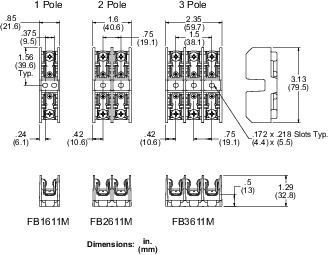

30 A, 600 V 9080FB Fuseholders

60 A, 600 V 9080FB Fuseholders
