9080 LBA Power Distribution Blocks

115–175 A Cu, 90–135 A Al

9080LBA161101

9080LBA161104

9080LBA162101L

9080LBA162104L

Features:

Maximum voltage rating 600
Service Class C
Lugs suitable for use with 75°C conductors
Tin-plated high conductive lug material, Al
High impact thermoplastic base material
Temperature rating of -40 to +125°C (-40 to +257°F)
Flammability rating of UL94V-0

9080LBA Linergy Power Distribution Blocks: 115–175 A Cu, 90–135 A Al

Cat. No.		Current Rating		SCCR		Wire Range Limited to Wire Class*		Tightening Torque: lb-in (N•m)		Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
Cat. No.		Cu	Al	With Circuit Brkrs	With Fuses	Main	Branch	Main	Branch	Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
One-pole Blocks
Miniature	9080LBA161101	115 A	90 A	*	*	(1) 14–2 AWG (2.5–35 mm²)	(1) 14–2 AWG (2.5–35 mm²)	3–2 AWG (35 mm²): 50 (5.6)	3–2 AWG (35 mm²): 50 (5.6)	9080LB11	1.62 x 2.29 x 0.85 in. (41.20 x 58.1 x 21.46 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)	6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)	8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)	14–10 AWG (2.5–6 mm²): 35 (4.0)
	9080LBA161104	115 A	90 A	*	*	(1) 14–2 AWG (2.5–35 mm²)	(4) 18–10 AWG (1.0–6 mm²)	3–2 AWG (35 mm²): 50 (5.6)	18–10 AWG (1.0–6 mm²): 7 (0.8)	9080LB11	1.62 x 2.29 x 0.85 in. (41.20 x 58.1 x 21.46 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
Standard	9080LBA162101L	175 A	135 A	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(1) 14–2/0 AWG (2.5–70 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	6–2/0 AWG (16–70 mm²): 120 (13.5)	9080LB21L	3.00 x 3.27 x 1.02 (76.2 x 83.1 x 25.9)
								8 AWG (10 mm²): 40 (4.5)	8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)	14–10 AWG (2.5–6 mm²): 35 (4.0)
	9080LBA162104L	175 A	135 A	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(4) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5–16 mm²): 35 (4.0)	9080LB21L	3.00 x 3.27 x 1.02 (76.2 x 83.1 x 25.9)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
Two-pole Blocks
Miniature	9080LBA261104	115 A	90 A	*	*	(1) 14–2 AWG (2.5–35 mm²)	(4) 18–10 AWG (1.0–6 mm²)	3–2 AWG (35 mm²): 50 (5.6)	18–10 AWG (1.0–6 mm²): 7 (0.8)	9080LB12	1.62 x 2.29 x 1.48 in. (41.20 x 58.1 x 37.59 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
Standard	9080LBA262101L	175 A	135 A	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(1) 14–2/0 AWG (2.5–70 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	6–2/0 AWG (16–70 mm²): 120 (13.5)	9080LB21L (x2)	3.00 x 3.27 x 1.84 (76.2 x 83.1 x 46.7)
								8 AWG (10 mm²): 40 (4.5)	8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)	14–10 AWG (2.5–6 mm²): 35 (4.0)
	9080LBA262104L	175 A	135 A	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(4) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5–16 mm²): 35 (4.0)	9080LB21L (x2)	3.00 x 3.27 x 1.84 (76.2 x 83.1 x 46.7)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
Three-pole Blocks
Miniature	9080LBA361101	115 A	90 A	*	*	(1) 14–2 AWG (2.5–35 mm²)	(1) 14–2 AWG (2.5–35 mm²)	3–2 AWG (35 mm²): 50 (5.6)	3–2 AWG (35 mm²): 50 (5.6)	9080LB13	1.62 x 2.29 x 2.12 in. (41.20 x 58.1 x 53.72 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)	6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)	8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)	14–10 AWG (2.5–6 mm²): 35 (4.0)
	9080LBA361104	115 A	90 A	*	*	(1) 14–2 AWG (2.5–35 mm²)	(4) 18–10 AWG (1.0–6 mm²)	3–2 AWG (35 mm²): 50 (5.6)	18–10 AWG (1.0–6 mm²): 7 (0.8)	9080LB13	1.62 x 2.29 x 2.12 in. (41.20 x 58.1 x 53.72 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
Standard	9080LBA362101L	175 A	135 A	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(1) 14–2/0 AWG (2.5–70 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	6–2/0 AWG (16–70 mm²): 120 (13.5)	9080LB23L	3.00 x 3.27 x 2.56 in. (76.2 x 83.1 x 65.0 mm)
								8 AWG (10 mm²): 40 (4.5)	8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)	14–10 AWG (2.5–6 mm²): 35 (4.0)
	9080LBA362104L	175 A	135 A	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(4) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5–16 mm²): 35 (4.0)	9080LB23L	3.00 x 3.27 x 2.56 in. (76.2 x 83.1 x 65.0 mm)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)

Listed

CSA Compliant

RoHS Compliant

CE Marked

310–350 A Cu, 250–270 A Al

9080LBA163101L

9080LBA163106L

9080LBA363206L

Features:

Maximum voltage rating 600
Service Class C
Lugs suitable for use with 75°C conductors
Tin-plated high conductive lug material, Al
High impact thermoplastic base material
Temperature rating of -40 to +125°C (-40 to +257°F)
Flammability rating of UL94V-0

9080LBA Linergy Power Distribution Blocks: 310–350 A Cu, 250–270 A Al

Cat. No.	Current Rating		SCCR		Wire Range Limited to Wire Class*		Tightening Torque: lb-in (N•m)		Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
Cat. No.	Cu	Al	With Circuit Brkrs	With Fuses	Main	Branch	Main	Branch	Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
One-pole Blocks
9080LBA163101L	310 A	250 A	*	*	(1) #6–350 MCM (16–185 mm²)	(1) #6–350 MCM (16–185 mm²)	#6–350 MCM (16–150 mm²): 275 (31.0)	#6–350 MCM (16–150 mm²): 275 (31.0)	9080LB31L	3.92 x 5.00 x 2.17 (99.6 x 127.0 x 55.1)
9080LBA163106L	335 A	270 A	*	*	(1) #6–400 MCM (16–202.7 mm²)	(6) 14–2 AWG (2.5–35 mm²)	#6–400 MCM (16–185 mm²): 275 (31.0)	3–2 AWG (35 mm²): 50 (5.6)	9080LB31L	3.92 x 5.00 x 2.17 (99.6 x 127.0 x 55.1)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBA163206L	350 A	270 A	*	*	(2) #14–2/0 AWG (2.5–70 mm²)	(6) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5–16 mm²): 35 (4.0)	9080LB31L	3.92 x 5.00 x 2.17 (99.6 x 127.0 x 55.1)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)
Two-pole Blocks
9080LBA263101L	310 A	250 A	*	*	(1) #6–350 MCM (16–185 mm²)	(1) #6–350 MCM (16–185 mm²)	#6–350 MCM (16–150 mm²): 275 (31.0)	#6–350 MCM (16–150 mm²): 275 (31.0)	9080LB31L (x2)	3.92 x 5.00 x 4.24 in. ( 99.6 x 127.0 x 107.7 mm)
9080LBA263106L	335 A	270 A	*	*	(1) #6–400 MCM (16–202.7 mm²)	(6) 14–2 AWG (2.5–35 mm²)	#6–400 MCM (16–185 mm²): 275 (31.0)	3–2 AWG (35 mm²): 50 (5.6)	9080LB31L (x2)	3.92 x 5.00 x 4.24 in. ( 99.6 x 127.0 x 107.7 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBA263206L	350 A	270 A	*	*	(2) #14–2/0 AWG (2.5–70 mm²)	(6) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5–16 mm²): 35 (4.0)	9080LB31L (x2)	3.92 x 5.00 x 4.24 in. ( 99.6 x 127.0 x 107.7 mm)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)
Three-pole Blocks
9080LBA363101L	310 A	250 A	*	*	(1) #6–350 MCM (16–185 mm²)	(1) #6–350 MCM (16–185 mm²)	#6–350 MCM (16–150 mm²): 275 (31.0)	#6–350 MCM (16–150 mm²): 275 (31.0)	9080LB33L	3.92 x 5.00 x 5.64 in. (99.6 x 127.0 x 143.3 mm)
9080LBA363106L	335 A	270 A	*	*	(1) #6–400 MCM (16–202.7 mm²)	(6) 14–2 AWG (2.5–35 mm²)	#6–400 MCM (16–185 mm²): 275 (31.0)	3–2 AWG (35 mm²): 50 (5.6)	9080LB33L	3.92 x 5.00 x 5.64 in. (99.6 x 127.0 x 143.3 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBA363206L	350 A	270 A	*	*	(2) #14–2/0 AWG (2.5–70 mm²)	(6) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5–16 mm²): 35 (4.0)	9080LB33L	3.92 x 5.00 x 5.64 in. (99.6 x 127.0 x 143.3 mm)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)

Listed

CSA Compliant

RoHS Compliant

CE Marked

335–420 A Cu, 270–340 A Al

Features:

Maximum voltage rating 600
Service Class C
Lugs suitable for use with 75°C conductors
Tin-plated high conductive lug material, Al
High impact thermoplastic base material
Temperature rating of -40 to +125°C (-40 to +257°F)
Flammability rating of UL94V-0

9080LBA Linergy Power Distribution Blocks: 335–420 A Cu, 270–340 A Al

Cat. No.	Current Rating		SCCR		Wire Range Limited to Wire Class*		Tightening Torque: lb-in (N•m)		Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
Cat. No.	Cu	Al	With Circuit Brkrs	With Fuses	Main	Branch	Main	Branch	Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
One-pole Blocks
9080LBA164101L	420 A	340 A	*	*	#2-600 MCM (35–300 mm²)	#2-600 MCM (35–300 mm²)	#2-600 MCM (35-300 mm²): 375 (42.4)	#2-600 MCM (35-300 mm²): 375 (42.4)	9080LB31L	3.92 x 5.00 x 2.17 in. (99.6 x 127.0 x 55.1 mm)
9080LBA164108L	420 A	340 A	*	*	#2-600 MCM (35–300 mm²)	(8) 14–2 AWG (2.5–35 mm²)	#2-600 MCM (35-300 mm²): 375 (42.4)	2 AWG (35 mm²): 50 (5.6)	9080LB31L	3.92 x 5.00 x 2.17 in. (99.6 x 127.0 x 55.1 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBA165106L	380 A	310 A	*	*	(1) #4–500 MCM (25–240 mm²)	(6) #14–2/0 AWG (2.5–70 mm²)	#4–500 MCM (25-240 mm²): 375 (42.3)	6–2/0 AWG (16–70 mm²): 120 (13.5)	9080LB51L	3.92 x 5.50 x 2.88 in. (99.6 x 193.7 x 73.2 mm)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBA165112L	380 A	310 A	*	*	(1) #4–500 MCM (25–240 mm²)	(12) 14–2 AWG (2.5–35 mm²)	#4–500 MCM (25-240 mm²):375 (42.3)	2 AWG (35 mm²): 50 (5.6)	9080LB51L	3.92 x 5.50 x 2.88 in. (99.6 x 193.7 x 73.2 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
Two-pole Blocks
9080LBA264108L	420 A	340 A	*	*	#2-600 MCM (35–300 mm²)	(8) 14–2 AWG (2.5–35 mm²)	#2-600 MCM (35-300 mm²): 375 (42.4)	2 AWG (35 mm²): 50 (5.6)	9080LB31L (x2)	3.92 x 5.00 x 4.24 in. (99.6 x 127.0 x 107.7 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBA265106L	380 A	310 A	*	*	(1) #4–500 MCM (25–240 mm²)	(6) #14–2/0 AWG (2.5–70 mm²)	#4–500 MCM (25-240 mm²):375 (42.3)	6–2/0 AWG (16–70 mm²): 120 (13.5)	9080LB52L	3.92 x 5.50 x 5.59 in. (99.6 x 193.7 x 142 mm)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBA265112L	380 A	310 A	*	*	(1) #4–500 MCM (25–240 mm²)	(12) 14–2 AWG (2.5–35 mm²)	#4–500 MCM (25-240 mm²):375 (42.3)	2 AWG (35 mm²): 50 (5.6)	9080LB52L	3.92 x 5.50 x 5.59 in. (99.6 x 193.7 x 142 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
Three-pole Blocks
9080LBA364101L	420 A	340 A	*	–	#2-600 MCM (35–300 mm²)	#2-600 MCM (35–300 mm²)	#2-600 MCM (35-300 mm²): 375 (42.4)	#2-600 MCM (35-300 mm²): 375 (42.4)	9080LB33L	3.92 x 5.00 x 5.64 in. (99.6 x 127.0 x 143.3 mm)
9080LBA364108L	420 A	340 A	*	*	#2-600 MCM (35–300 mm²)	(8) 14–2 AWG (2.5–35 mm²)	#2-600 MCM (35-300 mm²): 375 (42.4)	2 AWG (35 mm²): 50 (5.6)	9080LB33L	3.92 x 5.00 x 5.64 in. (99.6 x 127.0 x 143.3 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBA365106L	380 A	310 A	*	*	(1) #4–500 MCM (25–240 mm²)	(6) #14–2/0 AWG (2.5–70 mm²)	#4–500 MCM (25-240 mm²):375 (42.3)	6–2/0 AWG (16–70 mm²): 120 (13.5)	9080LB53L	3.92 x 5.50 x 8.25 in. (99.6 x 193.7 x 209.6 mm)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBA365112L	380 A	310 A	*	*	(1) #4–500 MCM (25–240 mm²)	(12) 14–2 AWG (2.5–35 mm²)	#4–500 MCM (25-240 mm²):375 (42.3)	2 AWG (35 mm²): 50 (5.6)	9080LB53L	3.92 x 5.50 x 8.25 in. (99.6 x 193.7 x 209.6 mm)
								6–4 AWG (16–25 mm²): 45 (5.1)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5–6 mm²): 35 (4.0)

RoHS Compliant

CE Marked

620–760 A Cu, 500–620 A Al

Features:

Maximum voltage rating 600
Service Class C
Lugs suitable for use with 75°C conductors
Tin-plated high conductive lug material, Al
High impact thermoplastic base material
Temperature rating of -40 to +125°C (-40 to +257°F)
Flammability rating of UL94V-0

9080LBA Linergy Power Distribution Blocks: 620–760 A Cu, 500–620 A Al

Cat. No.	Current Rating		SCCR		Wire Range Limited to Wire Class*		Tightening Torque: lb-in (N•m)		Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
Cat. No.	Cu	Al	With Circuit Brkrs	With Fuses	Main	Branch	Main	Branch	Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
One-pole Blocks
9080LBA165202L	620 A	500 A	*	*	(2) #4–350 MCM (25-185 mm²)	(2) #4–350 MCM (25-185 mm²)	#4–350 MCM (25–185 mm²): 275 (31.0)	#4–350 MCM (25–185 mm²): 275 (31.0)	9080LB51L	3.92 x 5.50 x 2.88 (99.6 x 193.7 x 73.2)
9080LBA1652021L	760 A	620 A	*	*	(2) #4–500 MCM (25–240 mm²)	(2) #4–500 MCM (25–240 mm²)	#4–500 MCM (25–240 mm²): 375 (42.3)	#4–500 MCM (25–240 mm²): 375 (42.3)	9080LB51L	3.92 x 5.50 x 2.88 (99.6 x 193.7 x 73.2)
9080LBA165208L	760 A	620 A	*	*	(2) #4–500 MCM (25–240 mm²)	(8) 14–2/0 AWG (2.5-70 mm²)	#4–500 MCM (25–240 mm²): 375 (42.3)	6–2/0 AWG (16–70 mm²): 120 (13.5)	9080LB51L	3.92 x 5.50 x 2.88 (99.6 x 193.7 x 73.2)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5-6 mm²): 35 (4.0)
9080LBA165212L	620 A	500 A	*	*	(2) #4–500 MCM (25-240 mm²)	(12) 14–4 AWG (2.5–25 mm²)	#4–500 MCM (25–240 mm²): 375 (42.3)	14–4 AWG (2.5-16 mm²): 35 (4.0)	9080LB51L	3.92 x 5.50 x 2.88 (99.6 x 193.7 x 73.2)
Two-pole Blocks
9080LBA265202L	760 A	620 A	*	*	(2) #4–350 MCM (25-185 mm²)	(2) #4–350 MCM (25-185 mm²)	#4–350 MCM (25–185 mm²): 275 (31.0)	#4–350 MCM (25–185 mm²): 275 (31.0)	9080LB52L	3.92 x 5.50 x 5.59 (99.6 x 193.7 x 142)
9080LBA2652021L	760 A	620 A	*	*	(2) #4–500 MCM (25–240 mm²)	(2) #4–500 MCM (25–240 mm²)	#4–500 MCM (25–240 mm²): 375 (42.3)	#4–500 MCM (25–240 mm²): 375 (42.3)	9080LB52L	3.92 x 5.50 x 5.59 (99.6 x 193.7 x 142)
9080LBA265208L	760 A	620 A	*	*	(2) #4–500 MCM (25–240 mm²)	(8) 14–2/0 AWG (2.5-70 mm²)	#4–500 MCM (25–240 mm²): 375 (42.3)	6–2/0 AWG (16–70 mm²): 120 (13.5)	9080LB52L	3.92 x 5.50 x 5.5 (99.6 x 193.7 x 142)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5-6 mm²): 35 (4.0)
9080LBA265212L	760 A	620 A	*	*	(2) #4–500 MCM (25–240 mm²)	(12) 14–4 AWG (2.5–25 mm²)	#4–500 MCM (25–240 mm²): 375 (42.3)	14–4 AWG (2.5-16 mm²): 35 (4.0)	9080LB52L	3.92 x 5.50 x 5.59 (99.6 x 193.7 x 142)
Three-pole Blocks
9080LBA365202L	760 A	620 A	*	*	(2) #4–350 MCM (25-185 mm²)	(2) #4–350 MCM (25-185 mm²)	#4–350 MCM (25–185 mm²): 275 (31.0)	#4–350 MCM (25–185 mm²): 275 (31.0)	9080LB53L	3.92 x 5.50 x 8.25 (99.6 x 193.7 x 209.6)
9080LBA3652021L	760 A	620 A	*	*	(2) #4–500 MCM (25–240 mm²)	(2) #4–500 MCM (25–240 mm²)	#4–500 MCM (25–240 mm²): 375 (42.3)	#4–500 MCM (25–240 mm²): 375 (42.3)	9080LB53L	3.92 x 5.50 x 8.25 (99.6 x 193.7 x 209.6)
9080LBA365208L	760 A	620 A	*	*	(2) #4–500 MCM (25–240 mm²)	(8) 14–2/0 AWG (2.5-70 mm²)	#4–500 MCM (25–240 mm²): 375 (42.3)	6–2/0 AWG (16–70 mm²): 120 (13.5)	9080LB53L	3.92 x 5.50 x 8.25 (99.6 x 193.7 x 209.6)
								8 AWG (10 mm²): 40 (4.5)
								14–10 AWG (2.5-6 mm²): 35 (4.0)
9080LBA365212L	760 A	620 A	*	*	(2) #4–500 MCM (25–240 mm²)	(12) 14–4 AWG (2.5–25 mm²)	#4–500 MCM (25–240 mm²): 375 (42.3)	14–4 AWG (2.5-16 mm²): 35 (4.0)	9080LB53L	3.92 x 5.50 x 8.25 (99.6 x 193.7 x 209.6)

Listed

RoHS Compliant

CE Marked

9080LBA and 9080LBC Power Distribution Blocks

150–255 A Cu, 135 A Al

Features:

Maximum voltage rating 600
Service Class C
Lugs suitable for use with 75°C conductors
Tin-plated high conductive lug material, Al and Cu
High impact thermoplastic base material
Temperature rating of -40 to +125°C (-40 to +257°F)
Flammability rating of UL94V-0

9080LBA and 9080LBC Linergy Power Distribution Blocks Copper Wire Only or Aluminum/Copper Wire: 150–255 A Cu, 135 A Al

Cat. No.	Current Rating		SCCR		Wire Range Limited to Wire Class*		Tightening Torque: lb-in (N•m)		Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
Cat. No.	Cu	Al	With Circuit Brkrs	With Fuses	Main	Branch	Main	Branch	Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
One-pole Blocks
9080LBC162101L	150 A	–	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(1) 14–2/0 AWG (2.5–70 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	6–2/0 AWG (16–70 mm²): 120 (13.5)	9080LB21L	3.00 x 3.27 x 1.02 in. (6.2 x 83.1 x 25.9 mm)
							8 AWG (10 mm²): 40 (4.5)	8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)	14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBC162104L	175 A	–	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(4) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5–16 mm²): 35 (4.0)	9080LB21L	3.00 x 3.27 x 1.02 in. (6.2 x 83.1 x 25.9 mm)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)
Two-pole Blocks
9080LBC262104L	175 A	–	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(4) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5–16 mm²): 35 (4.0)	9080LB21L (x2)	3.00 x 3.27 x 1.84 in. (6.2 x 83.1 x 46.7 mm)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)
Three-pole Blocks
9080LBA362106L	175 A	135 A	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(6) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5–16 mm²): 35 (4.0)	9080LB33L	3.92 x 5.00 x 5.64 in. (99.6 x 127.0 x 143.3 mm).
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBC362101L	150 A	–	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(1) 14–2/0 AWG (2.5–70 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	6–2/0 AWG (16–70 mm²): 120 (13.5)	9080LB23L	3.00 x 3.27 x 2.56 in. (76.2 x 83.1 x 65.0 mm)
							8 AWG (10 mm²): 40 (4.5)	8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)	14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBC362104L	175 A	–	*	*	(1) 14–2/0 AWG (2.5–70 mm²)	(4) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5–16 mm²): 35 (4.0)	9080LB23L	3.00 x 3.27 x 2.56 in. (76.2 x 83.1 x 65.0 mm)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²) 35 (4.0)

RoHS Compliant

CE Marked

350–760 A Cu

Features:

Maximum voltage rating 600
Service Class C
Lugs suitable for use with 75°C conductors
High impact thermoplastic base material
Temperature rating of -40 to +125°C (-40 to +257°F)
Flammability rating of UL94V-0

9080LBA and 9080LBC Linergy Power Distribution Blocks Copper Wire Only or Aluminum/Copper Wire: 150–255 A Cu, 135 A Al

Cat. No.	Current Rating Cu	SCCR		Wire Range Limited to Wire Class*		Tightening Torque: lb-in (N•m)		Lug Material	Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
Cat. No.	Current Rating Cu	With Circuit Brkrs	With Fuses	Main	Branch	Main	Branch	Lug Material	Snap-on Plastic Covers	Block Dimensions (D) x (H) x (W)
One-pole Blocks
9080LBC163106L	380 A	*	*	(1) #4–500 MCM (25–240 mm²)	(6) 14–2 AWG (2.5–35 mm²)	#6–500 MCM (16-240 mm²): 375 (42.3)	2 AWG (35 mm²): 50 (5.6)	Tin-plated high conductive Cu	9080LB31L	3.92 x 5.00 x 2.17 (99.6 x 127.0 x 55.1)
							6–4 AWG (16–25 mm²): 45 (5.1)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBC163206L	350 A	*	*	(2) 14–2/0 AWG (2.5–70 mm²)	(6) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5-16 mm²): 35 (4.0)	Tin-plated High Conductive Cu	9080LB31L	3.92 x 5.00 x 2.17 (99.6 x 127.0 x 55.1)
						8 AWG (10 mm²): 40 (4.5)
						14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBC165208L	760 A	*	*	(2) #4–500 MCM (25–240 mm²)	(8) 14–2/0 AWG (2.5–70 mm²)	#4–500 MCM (25-240 mm²): 375 (42.3)	6–2/0 AWG (16–70 mm²): 120 (13.5)	Tin-plated High Conductive Cu	9080LB51L	3.92 x 5.50 x 2.88 (99.6 x 193.7 x 73.2)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBC165212L	760 A	*	*	(2) #4–500 MCM (25–240 mm²)	(12) 14–2 AWG (2.5–35 mm²)	#4–500 MCM (25-240 mm²): 375 (42.3)	2 AWG (35 mm²): 50 (5.6)	Tin-plated High Conductive Cu	9080LB51L	3.92 x 5.50 x 2.88 (99.6 x 193.7 x 73.2)
							6–4 AWG (16–25 mm²): 45 (5.1)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)
Two-pole Blocks
9080LBC263106L	350 A	*	*	#4–500 MCM (25–240 mm²)	(6) 14–2 AWG (2.5–35 mm²)	#6–500 MCM (16-240 mm²): 375 (42.3)	2 AWG (35 mm²): 50 (5.6)	Tin-plated High Conductive Cu	9080LB31L (x2)	3.92 x 5.00 x 4.24 (99.6 x 127.0 x 107.7)
							6–4 AWG (16–25 mm²): 45 (5.1)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBC263206L	760 A	*	*	(2) 14–2/0 AWG (2.5–70 mm²)	(6) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5-16 mm²): 35 (4.0)	Tin-plated High Conductive Cu	9080LB31L (x2)	3.92 x 5.00 x 4.24 (99.6 x 127.0 x 107.7)
						8 AWG (10 mm²): 40 (4.5)
						14–10 AWG (2.5–6 mm²): 35 (4.0)
Three-pole Blocks
9080LBC363106L	380 A	*	*	(1) #4–500 MCM (25–240 mm²)	(6) 14–2 AWG (2.5–35 mm²)	#6–500 MCM (16-240 mm²): 375 (42.3)	2 AWG (35 mm²): 50 (5.6)	Tin-plated High Conductive Al	9080LB33L	3.92 x 5.00 x 5.64 (99.6 x 127.0 x 143.3)
							6–4 AWG (16–25 mm²): 45 (5.1)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBC363206L	350 A	*	*	(2) 14–2/0 AWG (2.5–70 mm²)	(6) 14–4 AWG (2.5–25 mm²)	6–2/0 AWG (16–70 mm²): 120 (13.5)	14–4 AWG (2.5-16 mm²): 35 (4.0)	Tin-plated High Conductive Cu	9080LB33L	3.92 x 5.00 x 5.64 (99.6 x 127.0 x 143.3)
						8 AWG (10 mm²): 40 (4.5)
						14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBC365208L	760 A	*	*	(2) #4–500 MCM (25–240 mm²)	(8) 14–2/0 AWG (2.5–70 mm²)	#4–500 MCM (25-240 mm²): 375 (42.3)	6–2/0 AWG (16–70 mm²): 120 (13.5)	Tin-plated High Conductive Cu	9080LB53L	3.92 x 5.50 x 8.25 (99.6 x 193.7 x 209.6)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)
9080LBC365212L	760 A	*	*	(2) #4–500 MCM (25–240 mm²)	(12) 14–2 AWG (2.5–35 mm²)	#4–500 MCM (25-240 mm²): 375 (42.3)	2 AWG (35 mm²): 50 (5.6)	Tin-plated High Conductive Cu	9080LB53L	3.92 x 5.50 x 8.25 (99.6 x 193.7 x 209.6)
							6–4 AWG (16–25 mm²): 45 (5.1)
							8 AWG (10 mm²): 40 (4.5)
							14–10 AWG (2.5–6 mm²): 35 (4.0)

RoHS Compliant

CE Marked

9080FB Linergy Fuseholders

Class H and R

DIN 3 (35 mm) Track Adapter

Features:

14–10 AWG (2.5-4 mm²)
Lugs suitable for use with 75°C conductors
Solid or stranded copper wire type
Pressure wire connector lug termination
Copper alloy tin-plated clip material
25 (2.8) tightening torque lb-in (N•m)
Flammability rating of UL94V-0

9080FB Linergy Fuseholders (Class H and R)–30 A Rated

Cat. No.	Max Voltage Rating	Base Material	Temperature Rating	Full Size (Diameter x Length)	AIC Rating in accordance with UL512	Block Dimensions (D) x (H) x (W)	DIN 3 (35 mm) Track Adapter Cat. No.
One-pole Blocks–Class H Fuses

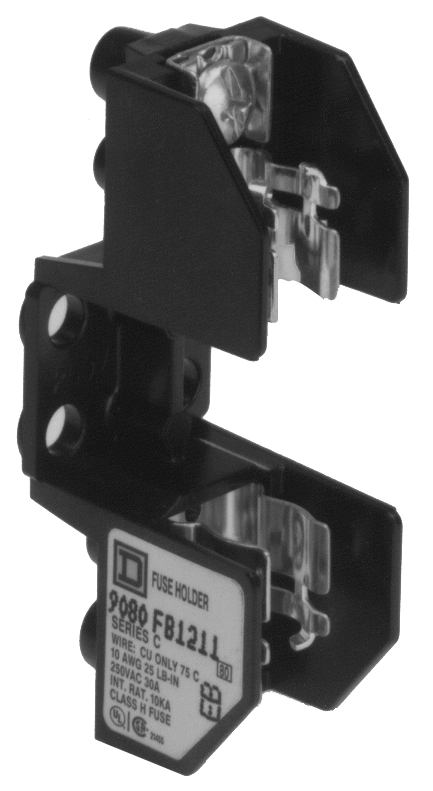

9080FB1211	250	High Impact Thermoplastic	-40 to +125°C (-40 to +257°F)	9/16 x 2 in.	10,000	1.38 x 3.00 x 1.12 in. (35.1 x 76.2 x 28.4 mm)	9080FBDIN3
One-pole Blocks–Class R Fuses
9080FB1211R	250	High Impact Thermoplastic	-40 to +125°C (-40 to +257°F)	9/16 x 2 in.	200,000	1.38 x 3.00 x 1.12 in. (35.1 x 76.2 x 28.4 mm)	9080FBDIN3
Two-pole Blocks–Class H Fuses
9080FB2211	250	High Impact Thermoplastic	-40 to +125°C (-40 to +257°F)	9/16 x 2 in.	10,000	1.38 x 3.00 x 1.91 in. (35.1 x 76.2 x 48.5 mm)	9080FBDIN3
9080FB2611	600	General Purpose Phenolic	-40 to +150°C (-40 to +302°F)	13/16 x 5 in.	10,000	1.69 x 6.25 x 2.94 in. (42.9 x 159.0 x 74.7 mm)	–
Two-pole Blocks–Class R Fuses
9080FB2211R	250	High Impact Thermoplastic	-40 to +125°C (-40 to +257°F)	9/16 x 2 in.	200,000	1.38 x 3.00 x 1.91 in. (35.1 x 76.2 x 48.5 mm)	9080FBDIN3
Three-pole Blocks–Class H Fuses
9080FB3211	250	High Impact Thermoplastic	-40 to +125°C (-40 to +257°F)	9/16 x 2 in.	10,000	1.38 x 3.00 x 2.95 in. (35.1 x 76.2 x 74.9 mm)	9080FBDIN3
9080FB3611	600	General Purpose Phenolic	-40 to +150°C (-40 to +302°F)	13/16 x 5 in.	10,000	1.69 x 6.25 x 4.25 in. (42.9 x 159.0 x 108.0 mm)	–
Three-pole Blocks–Class R Fuses
9080FB3211R	250	High Impact Thermoplastic	-40 to +125°C (-40 to +257°F)	9/16 x 2 in.	200,000	1.38 x 3.00 x 2.95 in. (35.1 x 76.2 x 74.9 mm)	9080FBDIN3
9080FB3611R	600	General Purpose Phenolic	-40 to +150°C (-40 to +302°F)	13/16 x 5 in.	200,000	1.69 x 6.25 x 4.25 in (42.9 x 159.0 x 108.0 mm)	–

File E40747
Guide IZLT

File 70361
Class 6228–01

RoHS Compliant

CE Marked

Class M and CC

9080FB1611M

9080FB1611CC

DIN 3 (35 mm) Track Adapter

Features:

600 maximum voltage rating
14–10 AWG (2.5-4 mm²)
Lugs suitable for use with 75°C conductors
Solid or stranded copper wire type
Pressure wire connector lug termination
Copper alloy tin-plated clip material
Standard clip type
High impact thermoplastic base material
25 (2.8) tightening torque lb-in (N•m)
-40 to +125°C (-40 to +257°F) temperature rating
Flammability rating of UL94V-0

9080FB Linergy Fuseholders (Class M and CC)–30 A Rated

Cat. No.	Full Size (Diameter x Length)	AIC Rating in accordance with UL512	Block Dimensions (D) x (H) x (W)	DIN 3 (35 mm) Track Adapter Cat. No.
One-pole Blocks–Class M Fuses
9080FB1611M	13/32 x 1 1/2 in.	10,000	1.29 x 3.13 x 0.85 in. (32.8 x 79.5 x 21.6 mm)	9080FBDIN3
One-pole Blocks–Class CC Fuses
9080FB1611CC	13/32 x 1 1/2 in.	200,000	1.29 x 3.13 x 0.85 in. (32.8 x 79.5 x 21.6 mm)	9080FBDIN3
Two-pole Blocks–Class M Fuses
9080FB2611M	13/32 x 1 1/2 in.	10,000	1.29 x 3.13 x 1.60 in. (32.8 x 79.5 x 40.6 mm)	9080FBDIN3
Two-pole Blocks–Class CC Fuses
9080FB2611CC	13/32 x 1 1/2 in.	200,000	1.29 x 3.13 x 1.60 in. (32.8 x 79.5 x 40.6 mm)	9080FBDIN3
Three-pole Blocks–Class M Fuses
9080FB3611M	13/32 x 1 1/2 in.	10,000	1.29 x 3.13 x 2.35 in (32.8 x 79.5 x 59.7 mm)	9080FBDIN3
Three-pole Blocks–Class CC Fuses
9080FB3611CC	13/32 x 1 1/2 in.	200,000	1.29 x 3.13 x 2.35 in (32.8 x 79.5 x 59.7 mm)	9080FBDIN3

File E40747
Guide IZLT

File 70360
Class 6225–01

RoHS Compliant

CE Marked

Class R and J

9080FB1221R

9080FB3621R

9080FB3621J

Features:

14–10 AWG (2.5-25 mm²)
Lugs suitable for use with 75°C conductors
Solid or stranded, copper or aluminum wire type
Box lug connector lug termination
Copper alloy tin-plated clip material
Reinforced clip type
High impact thermoplastic base material
200,000 AIC rating in accordance with UL512
Flammability rating of UL94V-0

9080FB Linergy Fuseholders (Class R and J)–30 A Rated

Cat. No.	Max Voltage Rating	Tightening Torque lb-in (N•m)	Temperature Rating	Full Size (Diameter x Length)	Block Dimensions (D) x (H) x (W)
One-pole Blocks–Class R Fuses
9080FB1221R	250	3–2 AWG (25–35 mm²): 50 (5.6)	-40 to +125°C (-40 to +257°F)	13/16 x 3 in.	2.01 x 4.83 x 1.48 in. (51.1 x 123.0 x 37.7 mm)
		6–4 AWG (16–25 mm²): 45 (5.1)
		8 AWG (10 mm²): 40 (4.5)
		14–10 AWG (2.5–6 mm²): 35 (4.0)
Two-pole Blocks–Class R Fuses
9080FB2221R	250	3–2 AWG (25–35 mm²): 50 (5.6)	-40 to +125°C (-40 to +257°F)	13/16 x 3 in.	2.01 x 4.83 x 2.86 in. (51.1 x 123.0 x 72.7 mm)
		6–4 AWG (16–25 mm²): 45 (5.1)
		8 AWG (10 mm²): 40 (4.5)
		14–10 AWG (2.5–6 mm²): 35 (4.0)
Three-pole Blocks–Class R Fuses
9080FB3621R	600	3–2 AWG (25–35 mm²): 50 (5.6)	-40 to +150°C (-40 to +302°F)	1 1/16 x 5 1/2 in.	2.19 x 6.75 x 5.08 in. (55.6 x 171.4 x 129.0 mm)
		6–4 AWG (16–25 mm²): 45 (5.1)
		8 AWG (10 mm²): 40 (4.5)
		14–10 AWG (2.5–6 mm²): 35 (4.0)
Three-pole Blocks–Class J Fuses
9080FB3621J	600	3–2 AWG (25–35 mm²): 50 (5.6)	-40 to +125°C (-40 to +257°F)	1 1/16 x 2 3/8 in.	2.09 x 4.07 x 4.72 in. (53.0 x 103.0 x 120.0 mm)
		6–4 AWG (16–25 mm²): 45 (5.1)
		8 AWG (10 mm²): 40 (4.5)
		14–10 AWG (2.5–6 mm²): 35 (4.0)

File E40747
Guide IZLT

File 70360
Class 6225–01

RoHS Compliant

CE Marked

Class H and R

9080FB3631

9080FB1231R

9080FB3631R

Features:

Current rating 100
6–2/0 AWG (16–70 mm²)
Lugs suitable for use with 75°C conductors
Solid or stranded, copper or aluminum wire type
Box lug connector lug termination
Reinforced clip type
General purpose phenolic base material
120 (13.6) tightening torque lb-in (N•m)
-40 to +150°C (-40 to +302°F)
Flammability rating of UL94V-0

9080FB Linergy Fuseholders (Class H and R)–100 A Rated

Cat. No.	Max Voltage Rating	Clip Material	Full Size (Diameter x Length)	AIC Rating in accordance with UL512	Block Dimensions (D) x (H) x (W)
One-pole Blocks–Class R Fuses
9080FB1231R	250	One piece aluminum w/ copper spring tin-plated	1 x 5 7/8 in.	20,000	2.44 x 6.12 x 1.93 in. (62.0 x 155.5 x 49.0 mm)
Three-pole Blocks–Class H Fuses
9080FB3631	600	One piece aluminum w/ stainless steel spring	1 x 7 7/8 in.	10,000	2.60 x 8.12 x 5.73 in. (66.0 x 206.2 x 145.5 mm)
Three-pole Blocks–Class R Fuses
9080FB3631R	600	One piece aluminum w/ copper spring tin-plated	1 x 7 7/8 in.	20,000	2.60 x 8.12 x 5.73 in. (66.0 x 206.2 x 145.5 mm)

File E40747
Guide IZLT

File 70360
Class 6225–01

RoHS Compliant

CE Marked
