Technical Data

Input Power Factor

UPS rating 10 kVA 15 kVA 20 kVA 30 kVA 40 kVA
25% load

0.9653

0.9538

0.9666

0.9732

0.9799

50% load

0.9924

0.9896

0.9944

0.9938

0.9966

75% load

0.9973

0.9966

0.9982

0.9978

0.9992

100% load

0.9989

0.9981

0.9994

0.9992

0.9996

Efficiency

Normal Mode

UPS rating 10 kVA 15 kVA 20 kVA 30 kVA 40 kVA
25% load

92.3

92.73

93.31

93.68

94.23

50% load

93.39

94.05

94.13

94.11

94.37

75% load

92.82

93.91

93.7

93.53

93.75

100% load

92.21

93.82

93.26

92.95

93.03

ECO mode

UPS rating 10 kVA 15 kVA 20 kVA 30 kVA 40 kVA
25% load

94.65

95.19

95.92

96.05

96.85

50% load

96.82

96.99

97.45

97.40

97.91

75% load

97.24

97.37

97.67

97.62

98.08

100% load

97.63

97.73

97.90

98.00

98.21

Battery operation

UPS rating 10 kVA 15 kVA 20 kVA 30 kVA 40 kVA
25% load

91.69

91.61

92.97

93.57

93.61

50% load

93.43

93.54

93.97

94.29

94.28

75% load

93.18

93.67

93.71

93.92

93.93

100% load

92.84

93.73

94.42

93.57

93.34

Derating Due to Load Power Factor

From 0.7 leading to 0.7 lagging without derating.
From 0.5 leading to 0.5 lagging with derating

Batteries

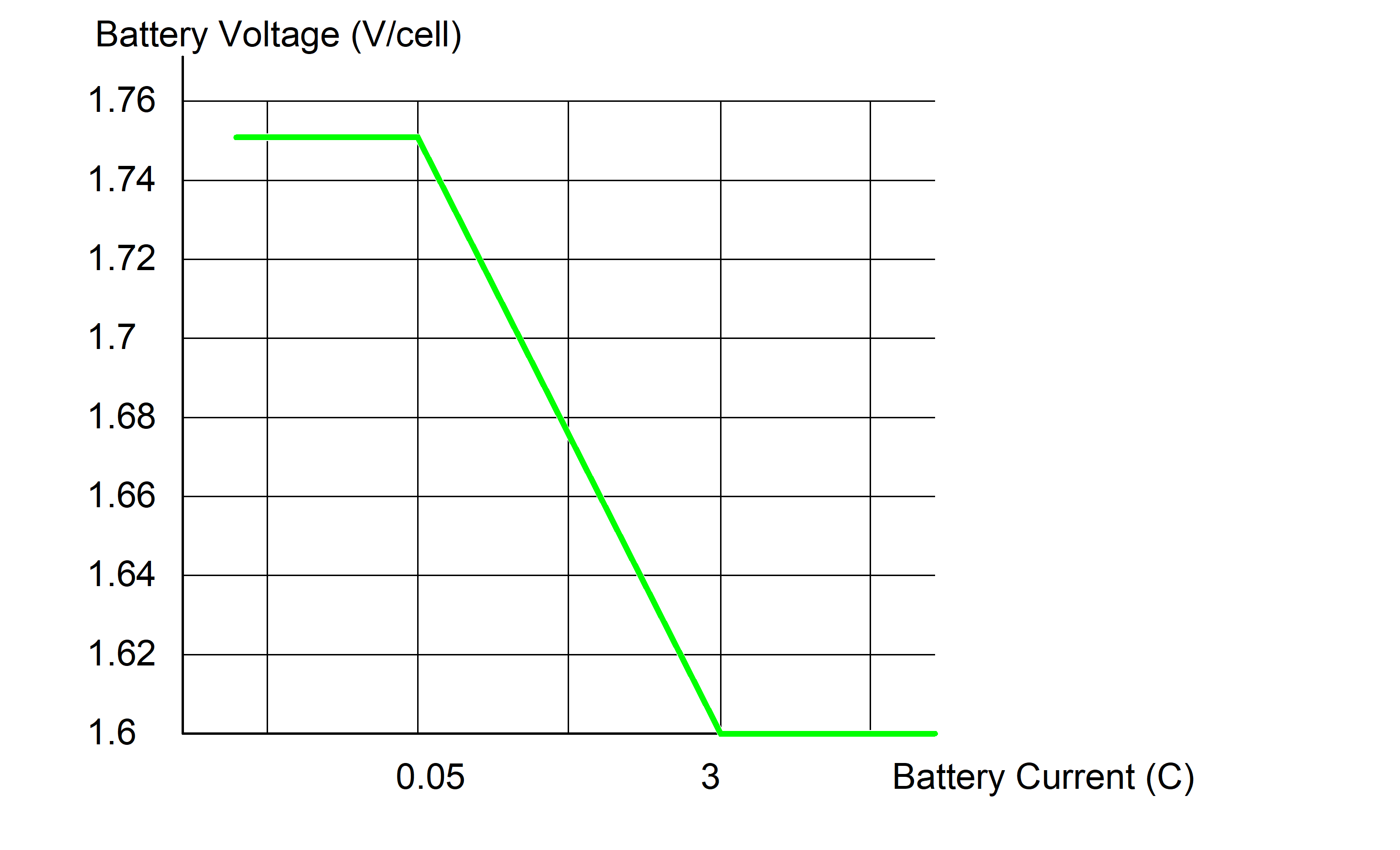

End of Discharge Voltage

Compliance

Safety

UL 1778:2014 5th Edition, Uninterruptible Power Systems. CSA C22.2 No. 107.3-14 + GI1, 3rd Edition, Uninterruptible Power Systems

EMC/EMI/RFI

IEC 62040-2: 2005-10, 2nd edition Uninterruptible Power Systems (UPS) - Part 2: Electromagnetic compatibility (EMC) requirements

FCC Part15 Subpart B / ANSI C63.4 2014

Performance

IEC 62040-3: 2011-03, 2nd edition Uninterruptible Power Systems (UPS) - Part 3: Method of specifying the performance and test requirements

Environmental

IEC 62040-4: 2013-04, 1st edition Uninterruptible Power Systems (UPS) - Part 4: Environmental aspects – Requirements and reporting

Markings

CTUVus

Transportation

ISTA 2B

Communication and Management

  • User interface with status LEDs and display

  • RS232

  • RS485

  • Network management card

  • Dry contacts

  • USB
