QGH1336303-05

Keypad operation EM6438H

Press a key in the direction you want to go. The display shows the next parameter as per navigation. Press OK to enter a parameter setup.

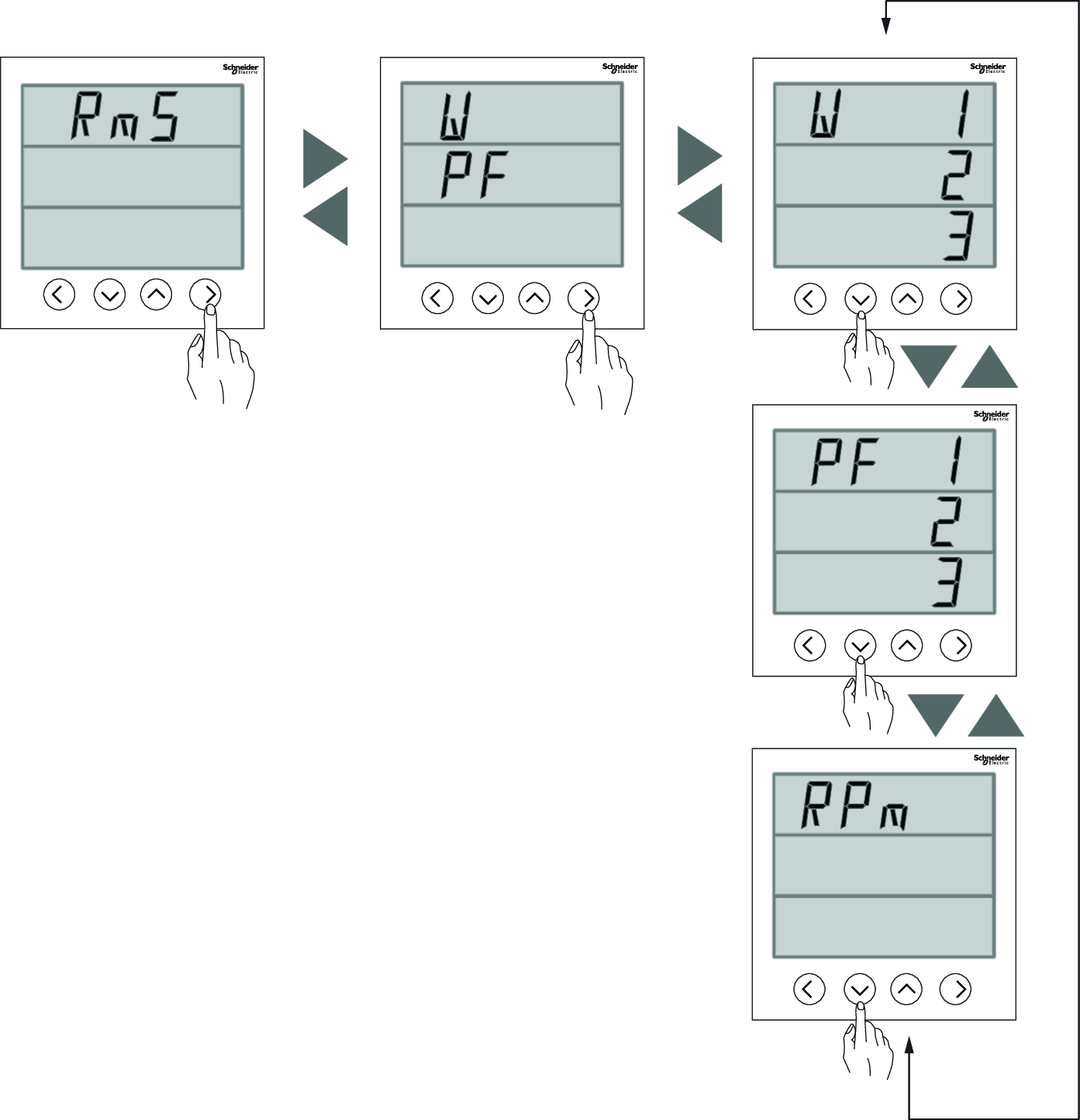

The following steps explain how to navigate from the RMS page to the RPM page.

  1. From the RMS page, press right button. The display shows W PF.

  2. From W PF, press right button. The display shows W 123.

  3. Press down button, the display shows PF 123.

  4. Press down button, the display shows RPM.

NOTE: Use right button to go forward to the sub-parameter page and use left button to go backward to the main parameter pages. Use up button and down button to scroll up and down through the display pages.
