Signal Connections
AUX Switch Signal
Terminal | Function | |
---|---|---|
J14-1 | Maintenance bypass breaker (MBB) AUX switch | |
J14-2 | Signal ground (GND) | |
J14-3 | Unit output breaker (UOB) AUX switch | |
J14-4 | Signal ground (GND) | |

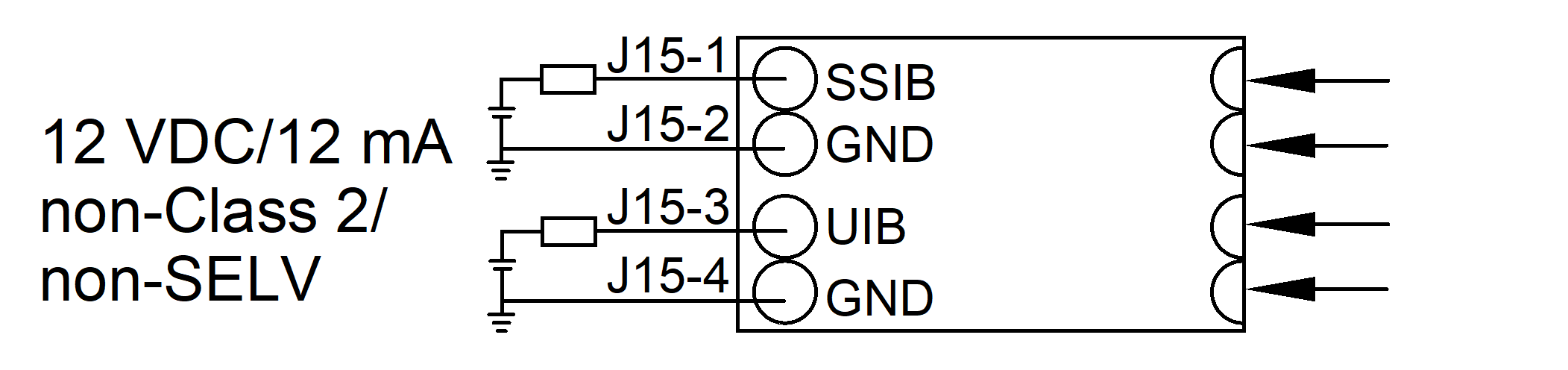

J15-1 | Static switch input breaker (SSIB) AUX switch | |
J15-2 | Signal ground (GND) | |
J15-3 | Unit input breaker (UIB) AUX switch | |
J15-4 | Signal ground (GND) |
Backfeed Signal
Backfeed 1: Backfeed on bypass.
Backfeed 2: Backfeed on input.
EPO Signal
Maintenance Bypass Breaker (MBB) Signal
Battery Signal
NOTICE |
---|
risk of equipment damage
The battery breaker contact drive J3, J4-1, and J4-2 can
provide a maximum of +24 VDC 250 mA to the undervoltage release coil
or shunt trip release coil. If this value is exceeded, it can damage
the UPS.
Failure to follow these instructions can result in equipment damage.
|
Terminal | Function | |
---|---|---|
J3-1 | Battery relay 1, normally closed (NC)* | |
J3-2 | Battery relay 1, signal ground (GND) | |
J3-3 | Battery relay 2, normally closed (NC)* | |
J3-4 | Battery relay 2, signal ground (GND) | |
J4-1 | Battery relay 3, normally closed (NC)* | |
J4-2 | Battery relay 3, signal ground (GND) | |
J4-3 | BB1 AUX switch | |
J4-4 | Signal ground (GND) | |
J5-1 | BB2 AUX switch | |
J5-2 | Signal ground (GND) | |
J5-3 | BB3 AUX switch | |
J5-4 | Signal ground (GND) |
Input Contact Signal
Terminal | Function | |
---|---|---|
J6-1 | Input contact 1, select function via display | |
J6-2 | Input contact 1, signal ground (GND) | |
J6-3 | Input contact 2, select function via display | |
J6-4 | Input contact 2, signal ground (GND) | |
J7-1 | Input contact 3, select function via display | |
J7-2 | Input contact 3, signal ground (GND) | |
J7-3 | Input contact 4, select function via display | |
J7-4 | Input contact 4, signal ground (GND) | |
J8-1 | Input contact 5, select function via display | |
J8-2 | Input contact 5, signal ground (GND) | |
J8-3 | Input contact 6, select function via display | |
J8-4 | Input contact 6, signal ground (GND) |
Output Relay Signal
Terminal | Function | |
---|---|---|
J9-1 | Output relay 1, normally open (NO) | |
J9-2 | Output relay 1, common | |
J9-3 | Output relay 2, normally open (NO) | |
J9-4 | Output relay 2, common | |
J10-1 | Output relay 3, normally open (NO) | |
J10-2 | Output relay 3, common | |
J10-3 | Output relay 4, normally open (NO) | |
J10-4 | Output relay 4, common | |
J11-1 | Output relay 5, normally open (NO) | |
J11-2 | Output relay 5, common | |
J11-3 | Output relay 6, normally open (NO) | |
J11-4 | Output relay 6, common |
