990-5909C-001

Overview of Installation Kits

Installation Kit 0M-100265 for 10-80 kW Maintenance Bypass Cabinet

Part Used in Number of units
0W49284 signal cable Connect the Signal Cables. 1
0W49283 signal cable 1
0W99053 UPS PE cable Connect the Power Cables in a 10-80 kW Top Cable Entry System or Connect the Power Cables in a Bottom Cable Entry System. 1
0W99055 UPS output cables 1
0W99056 UPS input/UPS bypass cables 1
0W99054 UPS neutral cable 1
M8 nut with washer 10
M8 x 25 mm bolt with washer 10
Cable ties 10

Installation Kit 0H-1717

Only for installation with UPS for internal batteries.

Part Used in Number of units
Conduit box
870-31573
Install the Conduit Box 1
Rear plate
870-31574
1
UPS input/UPS bypass cables 0W12758 1
UPS output cables 0W12761 1
M4 x 10 mm screw with washer
803-0482A
4
M8 nut with washer 3
M8 x 25 mm bolt with washer 3

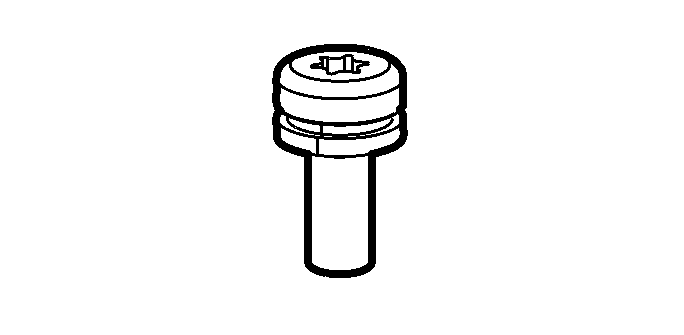

M6 x 16 mm screw with washer 9
M6 nut with washer 9

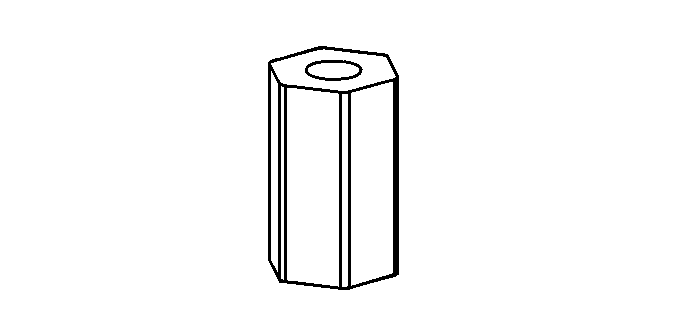

Support for side panel
870–97885
Prepare the Maintenance Bypass Cabinet and the UPS for Cables 10

Installation Kit 0M-100247 for 100-150 kW Maintenance Bypass Cabinet

Part Used in Number of units
0W49195 UPS input cables (for dual mains) Connect the Power Cables in a 100-150 kW Top Cable Entry System. 1
M8 nut with washer 6
M8 x 25 mm bolt with washer 6
Cable ties 10

Installation Kit 0M-100250 for 100-150 kW Maintenance Bypass Cabinet

Part Used in Number of units
0W49194 UPS DC cables Connect the Power Cables in a 100-150 kW Top Cable Entry System 1
M8 nut with washer 6
M8 x 25 mm bolt with washer 6
Cable ties 10

Installation Kit 0M-100264 for 100-150 kW Maintenance Bypass Cabinet

Part Used in Number of units
0W49284 signal cable Connect the Signal Cables. 1
0W49283 signal cable 1
0W99057 UPS PE cable Connect the Power Cables in a 100-150 kW Top Cable Entry System, or Connect the Power Cables in a Bottom Cable Entry System. 1
0W12375 UPS output cables 1
0W99058 UPS input/UPS bypass cables 1
0W99052 UPS neutral cable 1
M8 nut with washer 11
M8 x 25 mm bolt with washer 11
Cable ties 10

Optional Kirk Key Kit GVSOPT004

Part Used in Number of units
Support plate
870–30673

The optional kirk key kit must be installed by a Schneider Electric field service representative. Contact Schneider Electric.

2
Flathead screw
810–0008
8
Push-button
540–0543
1
Top support plate
870–30735
1
Electromechanical key interlock (SKRU)
531–0007
1
Mechanical key interlock
531–0007
2
Label
885–96431
1
M6 nut with washer
803–5022
2
0W12675 signal cable 1
0W49239 signal cable 1
