Procedure for Finding the Firmware Version of a MicroLogic Active Control Unit
Follow this procedure to find the firmware version of a MicroLogic Active control unit:
| Step | Action |
|---|---|
|
1 |

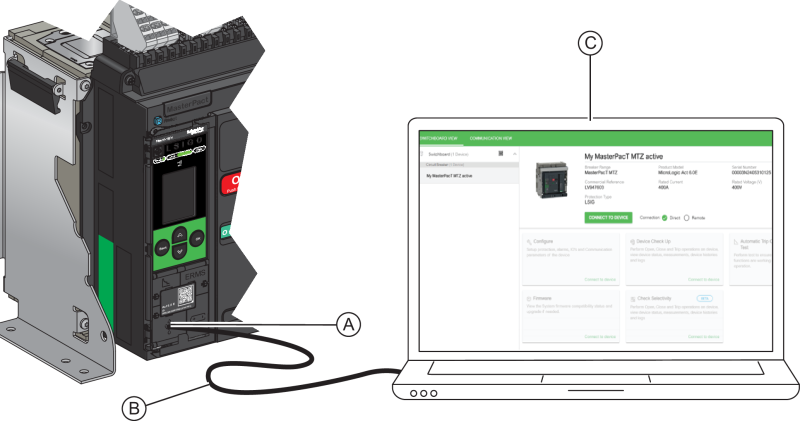

Connect a PC running EcoStruxure Power Commission software to the MicroLogic Active control unit.
A Cable plug connected to the USB-C port of MicroLogic Active control unit B USB-A to USB-C port cable C PC running EcoStruxure Power Commission software |
|
2 |
Launch EcoStruxure Power Commission software. |
|
3 |

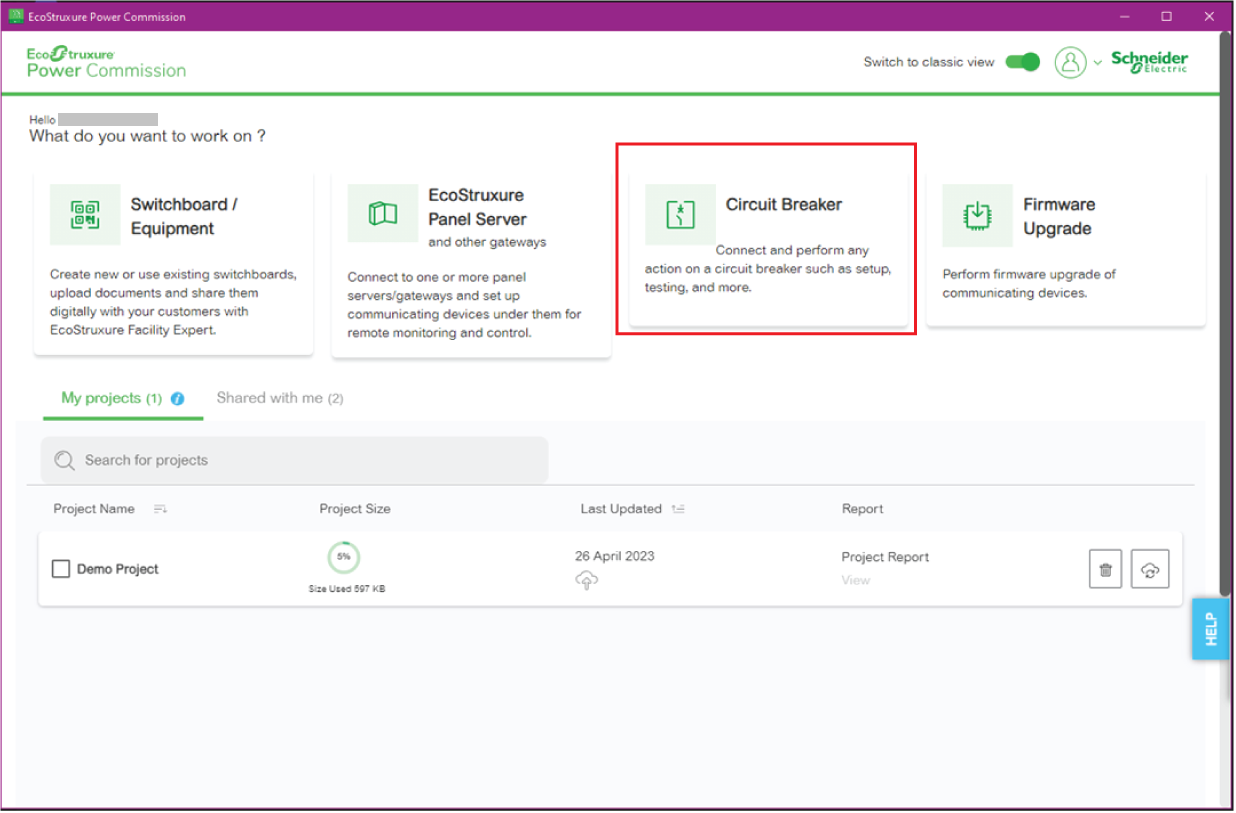

From the EcoStruxure Power Commission home page, click the Circuit Breaker section.
|
|
4 |
Click CONNECT on the displayed pop-up screen, to add the device to the switchboard and connect to it. Result: A window displays to indicate that device connection is in progress. It disappears automatically when the device is connected. |
|
5 |
Enter the account details when prompted. |
|
6 |

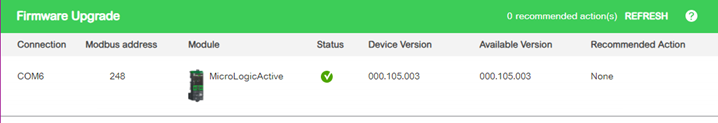

Click Firmware. The firmware version of the MicroLogic Active control unit is displayed.
|
