Procedure for Finding the Firmware Version of a MicroLogic Trip Unit or Control Unit

Follow this procedure to find the firmware version of a MicroLogic trip unit or control unit:
Step Action
1 Connect the PC running EcoStruxure Power Commission software to the MicroLogic trip unit or control unit.
2

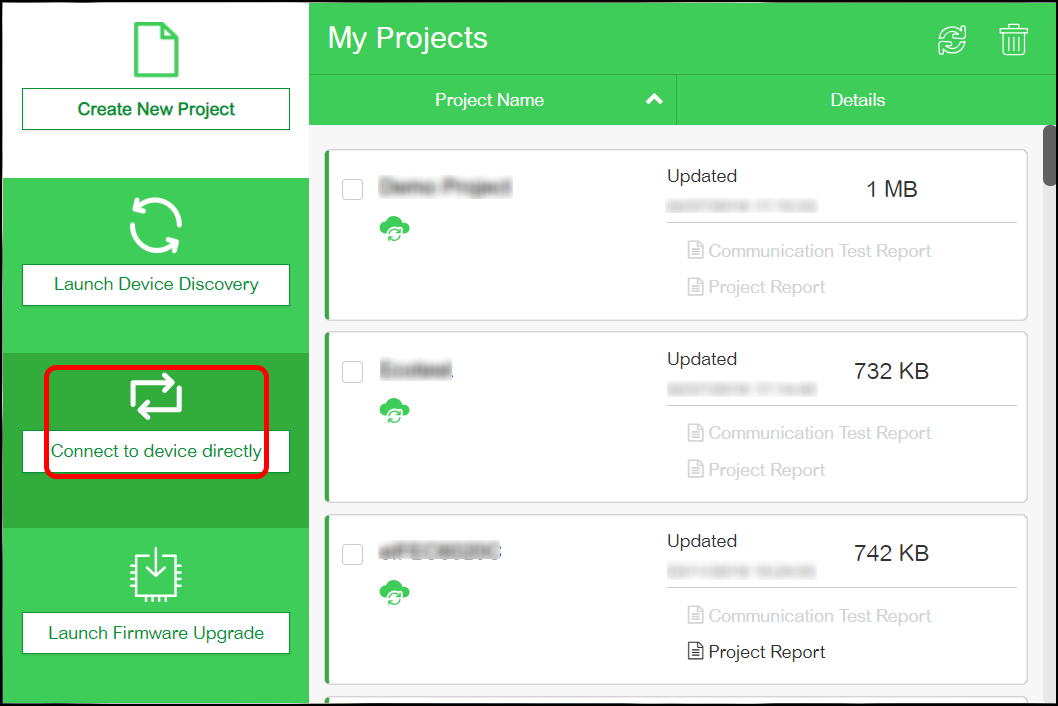

Click Connect to device directly.

3

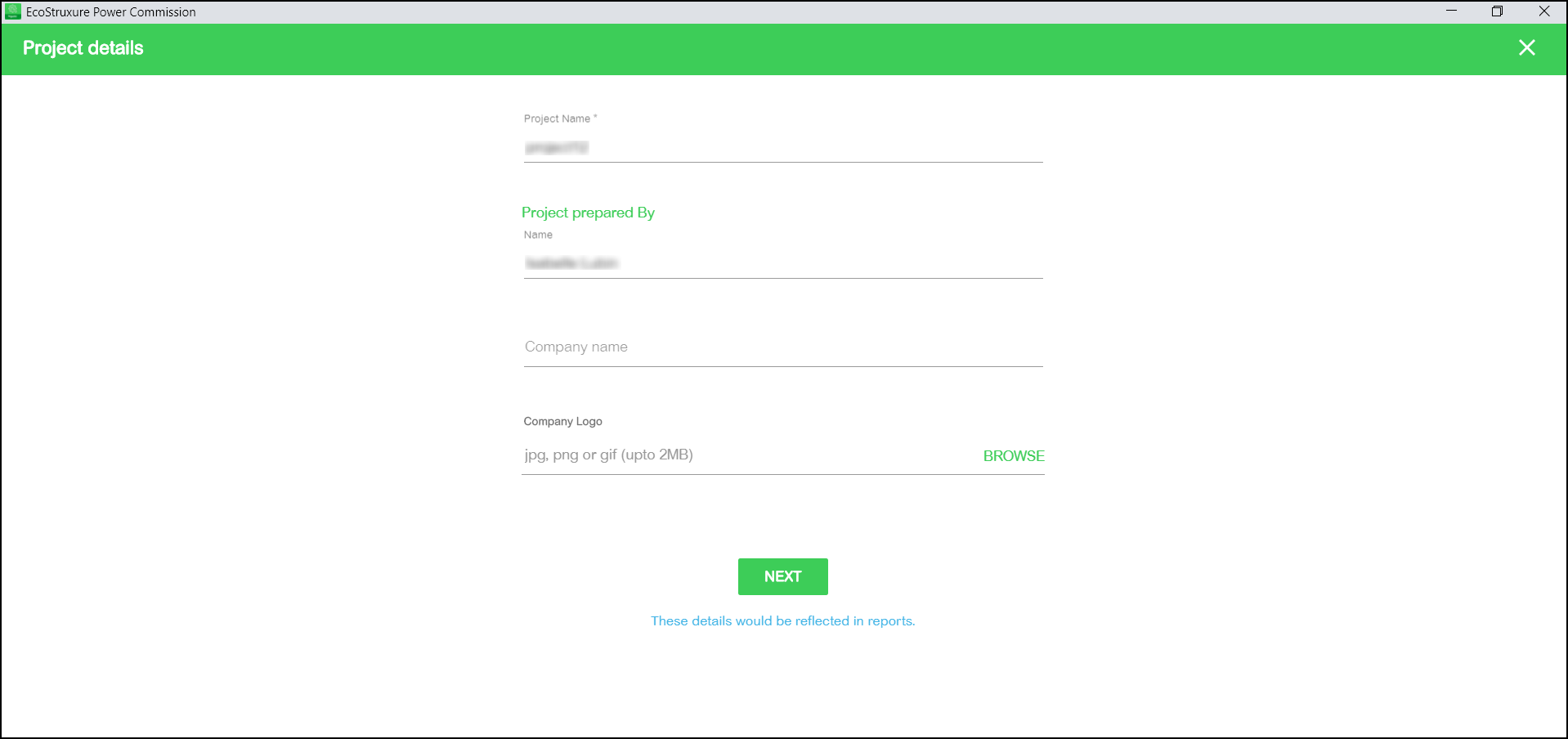

Fill in the project details and click NEXT.

4

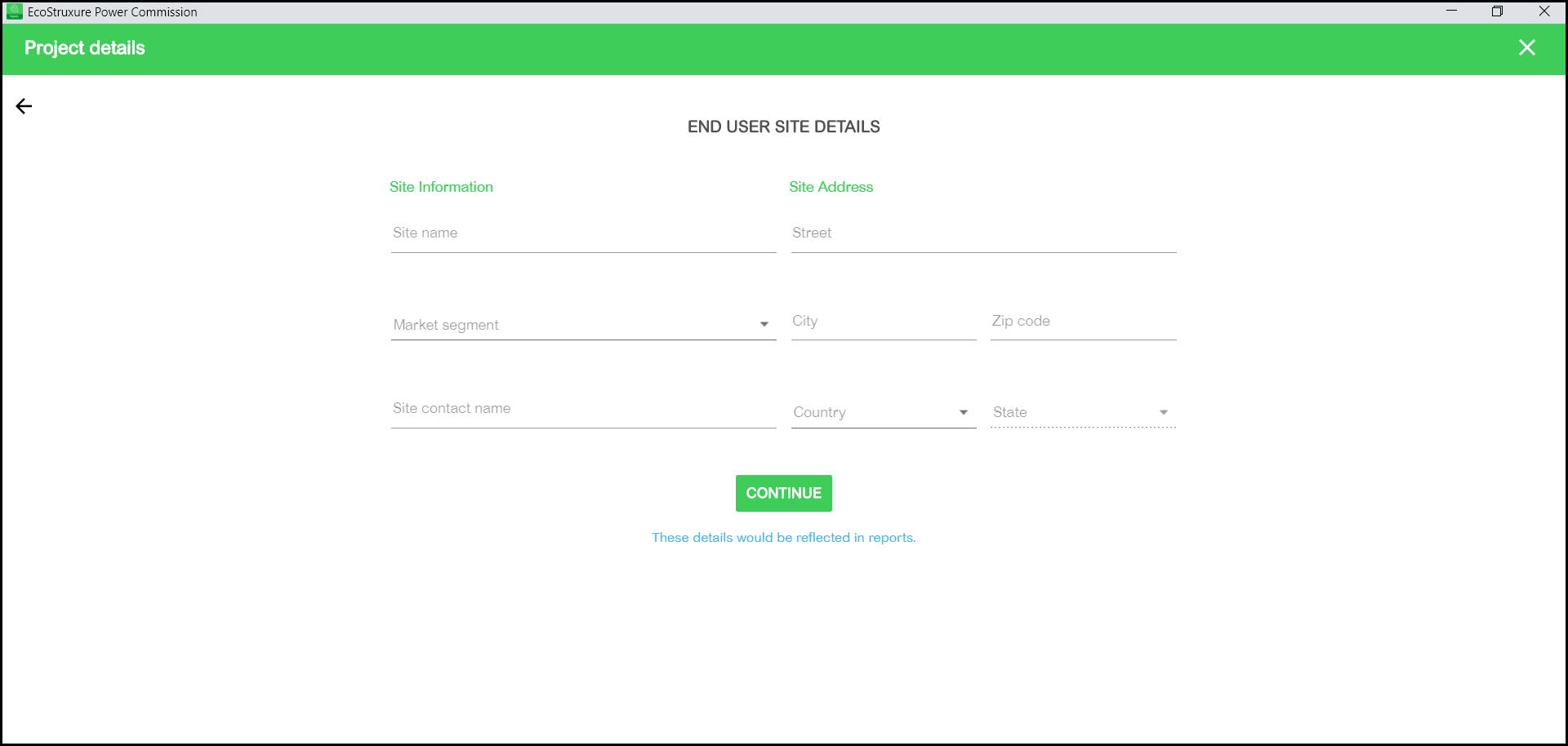

Fill in the end user site details and click CONTINUE.

The device is displayed.

5

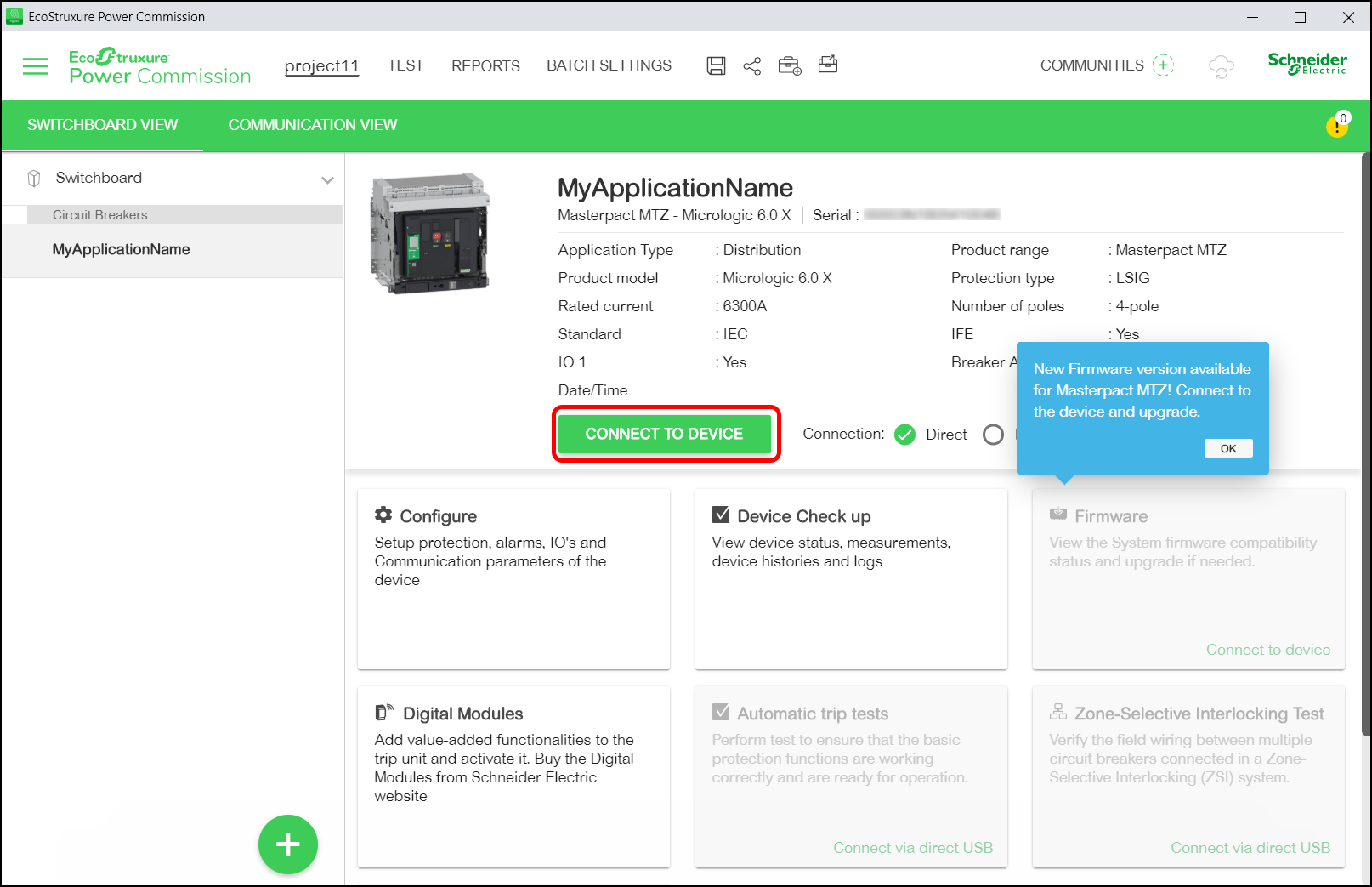

If a new MicroLogic X firmware version is available, a blue pop-up message is displayed to invite the user to update the firmware. Click CONNECT TO DEVICE.

6

Click Firmware.

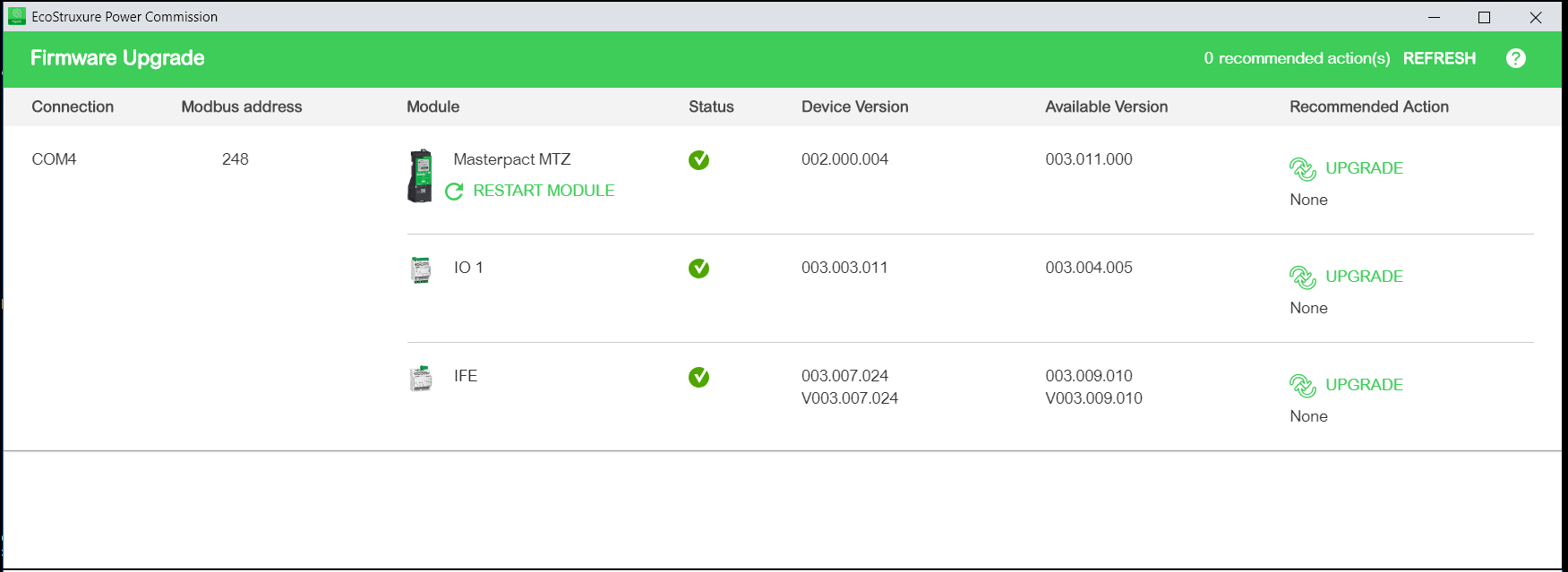

The firmware versions of the devices in the IMU are displayed.
