Configuring the IP Address of the TeSys island

Perform the below steps to configure the IP address of the TeSys island:

Step

Action

1

Double-click the CPU in the DTM Browser window.

Result: The device configuration window is displayed on the screen.

2

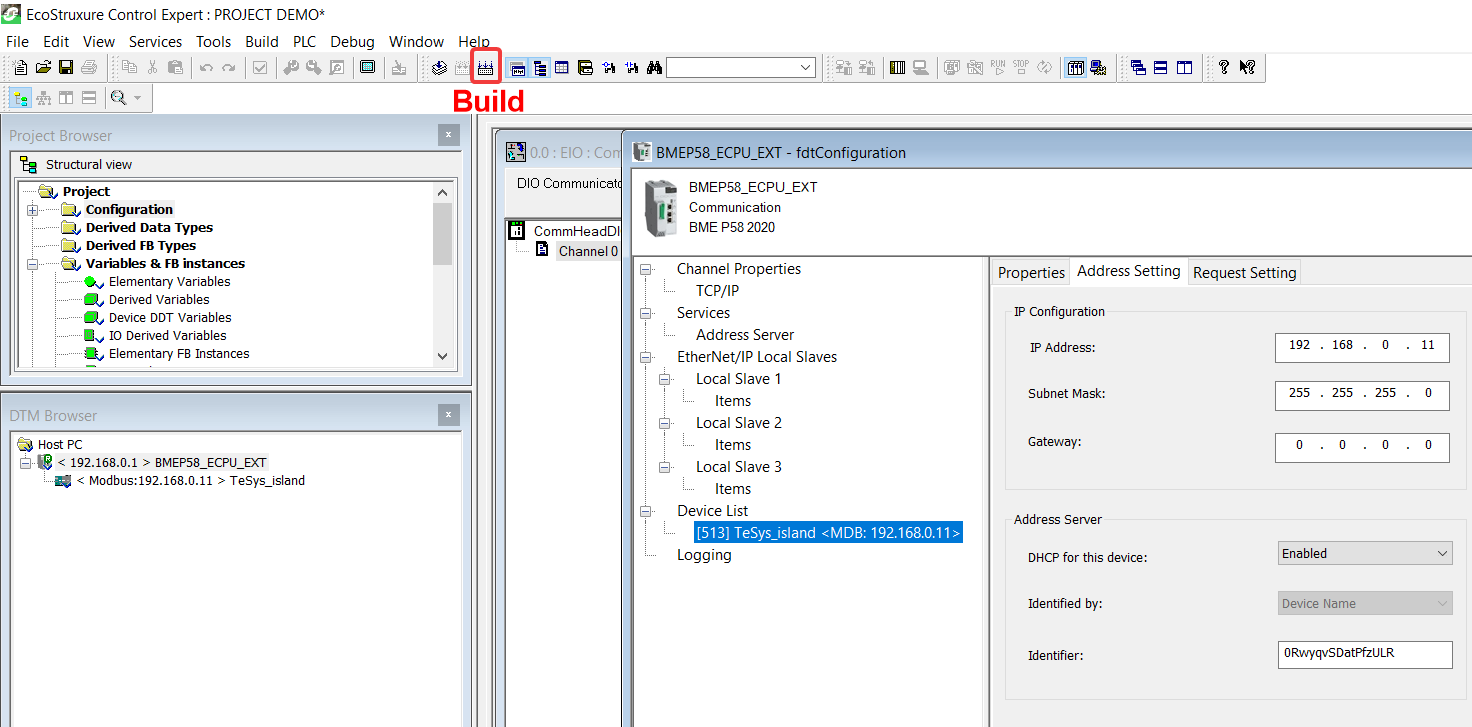

Select TeSys island device > Address Setting menu, and configure the IP address of the TeSys island.

3

Click Apply.

4

Click the Build icon () on the toolbar.
