Section 10—P-Frame Cradles and Cradle Accessories

P-Frame Circuit Breaker and Cradle Design


Drawout Circuit Breaker
A—Terminal Cover B—Lifting Tabs C—Extension Rail Handle D—Padlock Provision E—Position Indicator F—Crank Insertion Opening G—Stop Release Button H—Crank Storage Space	Cradle
	NOTE: See Cradle Catalog Numbers for cradle catalog numbers.

P-Frame Drawout Mechanism

The drawout assembly mechanism allows the circuit breaker to be racked in four positions (connected, test, disconnected, or withdrawn), as shown in the figure below.

Connected Position	Test Position	Disconnected Position	Withdrawn Position

NOTE: For UL/CSA Listed devices, the clusters are mounted on the circuit breaker and the stabs are on the cradle. For IEC devices, the clusters are mounted on the cradle and the stabs are mounted on the circuit breaker.

P-Frame Drawout Connectors

Front-Connected Flat (FCF)	Rear-Connected “T” Vertical (RCTV)	Rear-Connected “T” Horizontal (RCTH)

P-Frame Cradle Accessories

P-Frame Cradle Position Switches

Three optional cradle position switches are available for the cradle:

Cradle position switches (CE) to indicate the connected position
Cradle position switches (CD) to indicate the disconnected position. This position is indicated when the required clearance for isolation of the power and auxiliary circuits is reached.
Cradle position switches (CT) to indicate the test position. In this position, the power circuits are disconnected and the auxiliary circuits are connected.

Cradle Position Switches

Switch Type		CE	CD	CT	Cat. No.		CE	CD	CT	Cat. No.
Maximum Push-In Switches		3	2	1	Cat. No.		3	2	1	Cat. No.
Breaking Capacity at a Power Factor (pf) of 0.3	Standard: 10 mA / 24 V Min. Load				S33170	Low-Level: 1 mA / 4 V Min. Load*				S33171
	240 Vac	8 A				24-48 Vac	5 A
	380 Vac	8 A				240 Vac	5 A
	480 Vac	8 A				380 Vac	5 A
	600-690 Vac	6 A				24-48 Vdc	2.5 A
	24-48 Vdc	2.5 A				125 Vdc	0.8 A
	125 Vdc	0.8 A				250 Vdc	0.3 A
	250 Vdc	0.3 A

P-Frame Cradle Locking and Interlocking

Disconnected Position Locking

The circuit breaker can be locked in the disconnected position by key interlock (optional, catalog number S33772) or padlock (standard). The key interlock is on the cradle and accessible with the door locked.

Kirk key interlocks are available for UL/CSA circuit breakers. Key is captive when circuit breaker is closed.
Locking in all positions (disconnected, test, and connected) is possible. Factory standard setting is locking in disconnected position.

Door Interlock

The door interlock (catalog number S33786) prevents the compartment door from being opened when the circuit breaker is in the connected or test position. If the circuit breaker is put into the connected position with the door open, the door can be closed without disconnecting the circuit breaker. For greater protection, this interlock can be used in conjunction with the open door racking interlock.

P-Frame Open Door Racking Interlock

The racking interlock (catalog number S33788) prevents racking in the circuit breaker when the door is open. (Insertion of the circuit breaker racking crank is not possible when the compartment door is open.)

Cradle Rejection Kits

The cradle rejection feature (optional, catalog number S33767) ensures that only the properly designated circuit breaker or switch is matched with the selected cradle assembly.

P-Frame Cradle Miscellaneous Accessories

Shutter and Shutter Lock

The shutters automatically block access to the main disconnects when the circuit breaker is in the disconnected, test, or fully withdrawn position. The shutter lock is used to prevent connection of the circuit breaker or to lock the shutters in the closed position.

The optional shutter assembly (catalog number S48933) consists of shutter and padlock provision.

Door Escutcheon (CDP)

The door escutcheon (catalog number S33857) provides a frame and seal for the circuit breaker.

Transparent Cover for Door Escutcheon (CCP) (P-Frame Only)

The door escutcheon cover (catalog number S33859) is hinge-mounted and is designed to be installed on the door escutcheon for the P-frame drawout circuit breaker.

P-Frame Cradle Wiring Diagrams

Terminal Layout for Push-In Connector Installation

Connector			Recommended Wire Size
E1–E2			22 AWG (0.3 mm²) MIN shielded pair cable or twisted pair copper wires
E3–E6, Q1, Q2, Q3			22 AWG (0.3 mm²) shielded twisted pairs with drain (Belden 8723 or equal)³
Z1–Z5			22 AWG (0.3 mm²)
V1, V2, V3, Vn			22–16 AWG (0.3–1.5 mm²)
T			22 AWG (0.3 mm²) stranded shielded cable
OF, SD, SDE			18–16 AWG (0.8–1.5 mm²)
MN, MX			18–14 AWG (0.8–2.5 mm²)
F			Size per aux 24 Vdc power supply

Terminal Layout for Push-In Connector Installation

A	CD2	CD1		C	OF3	OF2	OF1		D	CE3	CE2	CE1	CT1
	824	814			34	24	14			334	324	314	914
	822	812			32	22	12			332	322	312	912
	821	811			31	21	11			331	321	311	911

B	Com		UC1		UC2		UC3	UC4	CAF2	CAF1	SDE	MN/MX	SD	CAO2	CAO1
	E5	E6	Z5	M1	M2	M3	F2+	V3	544	534	84	DC/C12	94	524	514
	E3	E4	Z3	Z4	T3	T4	VN	V2	542	532	82	C13	92	522	512
	E1	E2	Z1	Z2	T1	T2	F1–	V1	541	531	81	D1/C11	91	521	511

Function	Connector	Description	Trip Unit Type
Function	Connector	Description	Basic	A	P	H	Connector	Description
Auxiliary Contacts	OF	Open/Closed circuit breaker or switch position contacts	—	X	X	X	Com: E1-E6	Communication
Rotary Handle Contacts	CAO	Early break contact	—	X	X	X	UC1: Z	Zone-selective Interlocking
Rotary Handle Contacts	CAF	Early make contact						Z1 = ZSI OUT signal
Cradle Contacts	CD	Disconnected position contacts						Z2 = ZSI OUT
	CE	Connected position contacts						Z3 = ZSI IN signal
	CT	Test position contacts						Z4 = ZSI IN short time
Remote Operation	SDE	Electrical fault alarm contact						Z5 = ZSI IN ground fault
	SD	Alarm contact	—	X	X	X	UC1: M1	Modified differential ground fault (MDGF)
	MN	Undervoltage trip device	—	X	X	X	UC2: T	External neutral
	MX1*	Shunt trip	—	X	X	X	UC2: M	Modified differential ground fault (MDGF)
			—	X	X	X	UC3: F	24 Vdc external power supply (F1 -, F2 +)
			—	—	X	X	UC3: Vn	External neutral plug
			—	—	X	X	UC4	External phase voltage sensing

Wiring Diagrams for Auxiliary Connections

Power	Trip Unit	Remote Operation

		NOTE: All diagrams show circuit breaker in tripped position.
A–Do not remove factory-installed jumpers between Z3, Z4 and Z5 unless ZSI is connected. B–Do not remove factory-installed jumper between T1 and T2 unless neutral CT is connected. Do not install jumper between T3 and T4. C–For proper wiring of neutral CT, refer to Instruction Bulletin 48041-082-03 shipped with it. D–24 Vdc power supply for trip unit must be separate and isolated from 24 Vdc power supply for communication modules. E–For proper wiring of the FDM, refer to user guide 5100512864A-02.
Auxiliary Contacts		Cell Switches

Wiring Diagrams for the COM Option

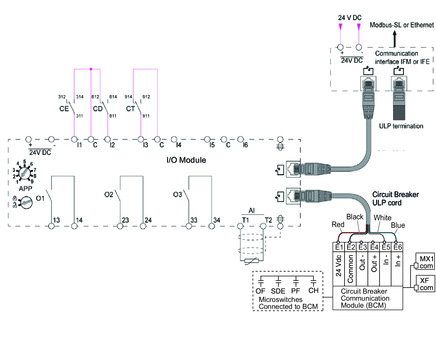

Wiring of the I/O Modules

Wiring of the COM Option (Modbus BCM ULP and CCM Modules)

Communication Components and FDM121 Connections

Connections

PowerPacT and ComPacT circuit breakers are connected to the ULP devices (FDM121 display, IFM, IFE or IO module) via the circuit breaker ULP cord.

Cord is available in three lengths: 0.98 ft. (0.35 m), 4.3 ft. (1.3 m) and 9.8 ft. (3 m).
Lengths up to 32.9 ft. (10 m) are possible using extensions.

A. Modbus Network
B. Ethernet Network
C. Circuit Breaker ULP Cord
D. FDM Display
E. ULP Termination
F. ULP Cable
