Indication Contacts
Introduction
The indication contacts provides remote information about the circuit breaker status. The position of the indication contact inside the case, determines its function. When an indication contact is present, a green flag is displayed on the front of the circuit breaker. The indication contacts provide the following information remotely:
|
Position of indication contact |
Information provided |
|---|---|
|
OF slot |
Open/close circuit breaker status |
|
SD slot |
Trip indication |
For more information about installation, consult the instruction sheet on the Schneider Electric website: EAV91204 OF/SD Indication Contacts - Instruction Sheet

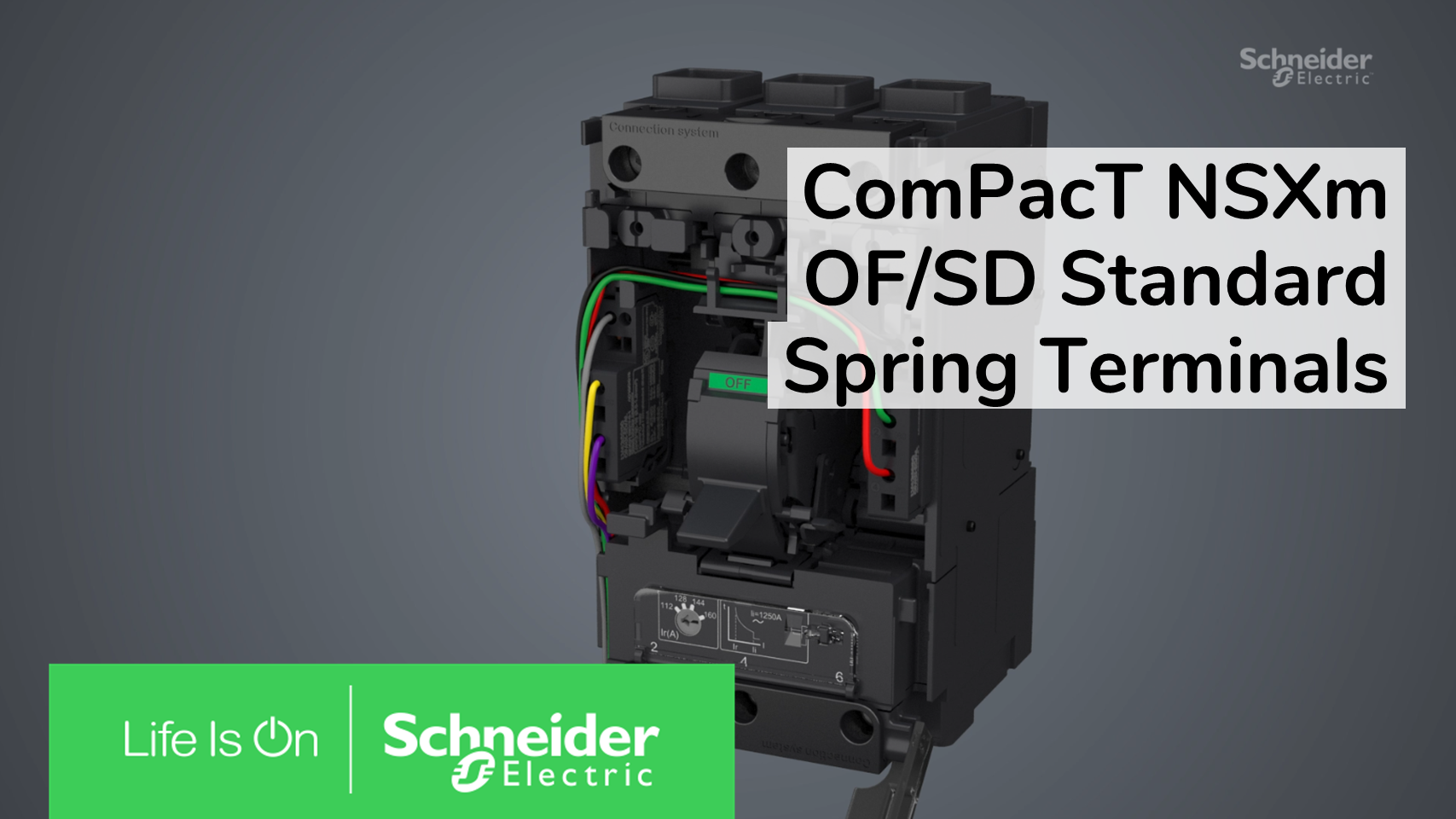

Indication Contacts Installation Demonstration Video
To access a demonstration video about the installation of indication contacts in a ComPacT NSXm circuit breaker, click the following link: https://youtu.be/2agHMEtGFhk, copy and paste the link to your Web browser, or scan the QR code.
 |
 |
Characteristics
The contacts used for indication contacts are common point changeover contacts.
 |
C(1) Common NC(2) Normally closed contact. The NC contact is normally closed when the circuit breaker is in the O (OFF) position. NO(4) Normally open contact. The NO contact is normally open when the circuit breaker is in the O (OFF) position. |
|
Name |
Definition |
|---|---|
|
OF open / close indication contact |
The OF contact indicates the state of the circuit breaker, (I (ON) or O (OFF)/Trip). Changeover
|
|
SD trip indication contact |
The SD contact indicates that the circuit breaker has tripped due to:
Changeover
|
