Tot INTG
Applicable for METSEPM1125HCL1LVD / METSEPM1125HCL5LDD

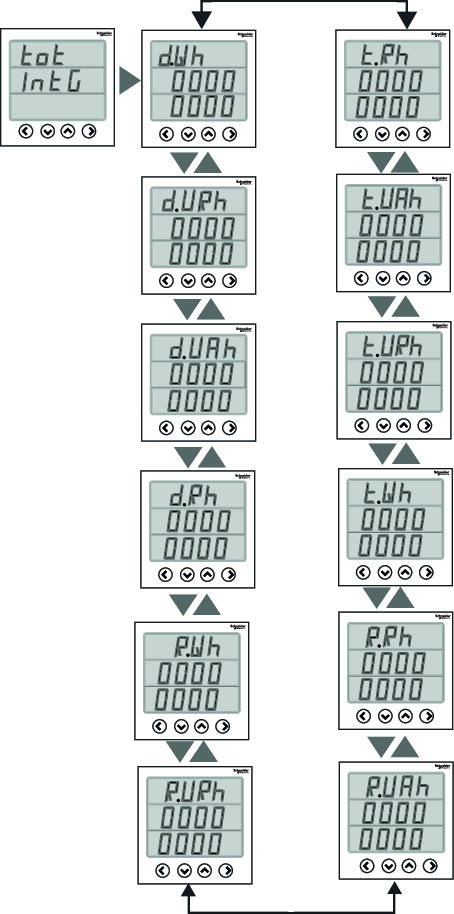

To view tot INTG parameters:
- From the Home page, use Up or Down button to navigate to Tot INTG.
- Press OK.
- Press the Up or Down button to navigate to the next Tot INTG parameter.
- Press Left button to exit.
|
Name on display |
Description |
|---|---|
|
d. wh |
Displays the delivered active energy |
|
d. VRh |
Displays the delivered reactive energy |
|
d. VAh |
Displays the delivered apparent energy |
|
d. Rh |
Displays the delivered run hours, for example hhhhhh:mm NOTE: Run Hours are displayed with 6 digit Hours and 2 digit Minutes.
|
|
R. wh |
Displays the received active energy |
|
R. VRh |
Display the received reactive energy |
|
R. VAh |
Displays the received apparent energy |
|
R. Rh |
Displays the received run hours, for example hhhhhh:mm NOTE: Run Hours are displayed with 6 digit Hours and 2 digit Minutes.
|
|
t. wh |
Display the total active energy |
|
t. VRh |
Displays the total reactive energy |
|
t. VAh |
Displays the total apparent energy |
|
t. Rh |
Displays the total run hours, for example hhhhhh:mm NOTE: Run Hours are displayed with 6 digit Hours and 2 digit Minutes.
|
