Specifications - Galaxy VXL 380/400/415 V

Specifications for 500 kW UPS

	Voltage (V)	380	400	415
Input	Connections	4-wire (L1, L2, L3, N, PE)*
	Input voltage range (V)	At 100% load: 323-437	At 100% load: 340-460	At 100% load: 353-478
	Frequency range (Hz)	40-70
	Nominal input current (A)	785	746	719
	Maximum input current (A)	951	931	898
	Input current limitation (A)	951	931	898
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icc = 100 kA
	Total harmonic distortion (THDI)	<3% at full linear load (symmetrical)
	Input power factor	>0.99 at load >25% >0.95 at load >15%
	Protection	Built-in backfeed relay and fuses
	Ramp-in	Programmable and adaptive: 1-300 seconds
Bypass	Connections	4-wire (L1, L2, L3, N, PE)
	Bypass voltage range (V)	342-418	360-440	374-457
	Frequency (Hz)	50 or 60
	Frequency range (Hz)	±1, ±3, ±10 (user selectable)
	Nominal bypass current (A)	768	729	703
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	I²t thyristor value (A²s)	14.6 x 10^6
	Input fuse (A²s)	No
	Backfeed protection	Upstream installation of breaker with shunt trip connected to the UPS
Output	Connections*	4-wire (L1, L2, L3, N, PE)
	Output voltage regulation	Symmetrical load ± 1% Asymmetrical load ± 3%
	Overload capacity	Normal operation: 150% for 1 minute, 125% for 10 minutes, (112% continuous) Battery operation: 110% for 1 minute Bypass operation: 150% for 1 minute, 125% for 10 minutes, 110% continuous (in forced bypass operation or requested bypass operation)
	Output power factor	1
	Nominal output current (A)	760	722	696
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	Inverter output short circuit capabilities	Varies with time. See graph and table values in Inverter Short Circuit Capabilities (Bypass not Available).
	Output short circuit current (inverter) (A)*	1730	1650	1580
	Output frequency (Hz)	50/60 Hz bypass synchronized; 50/60 Hz ±0.1% free running
	Synchronized slew rate (Hz/sec)	Programmable to 0.25, 0.5, 1, 2, 4, 6
	Total harmonic distortion (THDU)	<1% for 100% resistive load <5% for non-linear load
	Output voltage compensation	Programmable to 0%, ±1%, ±2%, ±3%
	Output performance classification (according to IEC/ EN62040-3)	VFI SS 11
	Load crest factor	3
	Load power factor	From 0.5 leading to 0.5 lagging without any derating
Battery	Charging power in % of output power	0-75% load: 40% 75-100% load: 40% to 15% 100% load: 15%	At 0-80% load: 40% At 80-100% load: 40% to 20% At 100% load: 20%
	Maximum charging power (kW) (at 100% load)	75	100	100
	Maximum charging power (kW) (at 0% load)	200	200	200
	Number of battery blocks	40-48
	Nominal battery voltage (VDC)	480 for 40 battery blocks 576 for 48 battery blocks
	Nominal float voltage (VDC)	545 for 40 battery blocks 654 for 48 battery blocks
	Maximum boost voltage (VDC)	571 for 40 battery blocks 685 for 48 battery blocks
	Maximum charge current (A)	420
	Temperature compensation (per cell)	-3.3mV/°C/cell for T ≥ 25 °C, 0mV/°C/cell for T < 25 °C
	End of discharge voltage (full load) (VDC)	384-461
	End of discharge voltage (no load) (VDC)	420-504
	Battery current at full load and nominal battery voltage (A)	1083
	Battery current at full load and minimum battery voltage (A)	1354
	Ripple current	< 5% C20 (5 min backup time)
	Battery test	Manual/automatic (selectable)
	Maximum short circuit rating	100 kA

NOTE: Battery specifications are based on VRLA batteries.

Specifications for 600 kW UPS

NOTE: 600 kW rating is only available for GVXL600K600HS.

	Voltage (V)	380	400	415
Input	Connections	4-wire (L1, L2, L3, N, PE)*
	Input voltage range (V)	At 100% load: 323-437	At 100% load: 340-460	At 100% load: 353-478
	Frequency range (Hz)	40-70
	Nominal input current (A)	942	895	863
	Maximum input current (A)	1189	1163	1122
	Input current limitation (A)	1189	1163	1122
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icc = 100 kA
	Total harmonic distortion (THDI)	<3% at full linear load (symmetrical)
	Input power factor	>0.99 at load >25% >0.95 at load >15%
	Protection	Built-in backfeed relay and fuses
	Ramp-in	Programmable and adaptive: 1-300 seconds
Bypass	Connections	4-wire (L1, L2, L3, N, PE)
	Bypass voltage range (V)	342-418	360-440	374-457
	Frequency (Hz)	50 or 60
	Frequency range (Hz)	±1, ±3, ±10 (user selectable)
	Nominal bypass current (A)	921	875	844
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	I²t thyristor value (A²s)	14.6 x 10^6
	Input fuse (A²s)	No
	Backfeed protection	Upstream installation of breaker with shunt trip connected to the UPS
Output	Connections*	4-wire (L1, L2, L3, N, PE)
	Output voltage regulation	Symmetrical load ± 1% Asymmetrical load ± 3%
	Overload capacity	Normal operation: 150% for 1 minute, 125% for 10 minutes, (112% continuous) Battery operation: 110% for 1 minute Bypass operation: 150% for 1 minute, 125% for 10 minutes, 110% continuous (in forced bypass operation or requested bypass operation)
	Output power factor	1
	Nominal output current (A)	912	867	835
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	Inverter output short circuit capabilities	Varies with time. See graph and table values in Inverter Short Circuit Capabilities (Bypass not Available).
	Output short circuit current (inverter) (A)*	2160	2060	1970
	Output frequency (Hz)	50/60 Hz bypass synchronized; 50/60 Hz ±0.1% free running
	Synchronized slew rate (Hz/sec)	Programmable to 0.25, 0.5, 1, 2, 4, 6
	Total harmonic distortion (THDU)	<1% for 100% resistive load <5% for non-linear load
	Output voltage compensation	Programmable to 0%, ±1%, ±2%, ±3%
	Output performance classification (according to IEC/ EN62040-3)	VFI SS 11
	Load crest factor	3
	Load power factor	From 0.5 leading to 0.5 lagging without any derating
Battery	Charging power in % of output power	0-75% load: 40% 75-100% load: 40% to 15% 100% load: 15%	At 0-80% load: 40% At 80-100% load: 40% to 20% At 100% load: 20%
	Maximum charging power (kW) (at 100% load)	90	120	120
	Maximum charging power (kW) (at 0% load)	240	240	240
	Number of battery blocks	40-48
	Nominal battery voltage (VDC)	480 for 40 battery blocks 576 for 48 battery blocks
	Nominal float voltage (VDC)	545 for 40 battery blocks 654 for 48 battery blocks
	Maximum boost voltage (VDC)	571 for 40 battery blocks 685 for 48 battery blocks
	Maximum charge current (A)	525
	Temperature compensation (per cell)	-3.3mV/°C/cell for T ≥ 25 °C, 0mV/°C/cell for T < 25 °C
	End of discharge voltage (full load) (VDC)	384-461
	End of discharge voltage (no load) (VDC)	420-504
	Battery current at full load and nominal battery voltage (A)	1300
	Battery current at full load and minimum battery voltage (A)	1625
	Ripple current	< 5% C20 (5 min backup time)
	Battery test	Manual/automatic (selectable)
	Maximum short circuit rating	100 kA

NOTE: Battery specifications are based on VRLA batteries.

Specifications for 625 kW UPS

	Voltage (V)	380	400	415
Input	Connections	4-wire (L1, L2, L3, N, PE)*
	Input voltage range (V)	At 100% load: 323-437	At 100% load: 340-460	At 100% load: 353-478
	Frequency range (Hz)	40-70
	Nominal input current (A)	981	932	899
	Maximum input current (A)	1189	1163	1122
	Input current limitation (A)	1189	1163	1122
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icc = 100 kA
	Total harmonic distortion (THDI)	<3% at full linear load (symmetrical)
	Input power factor	>0.99 at load >25% >0.95 at load >15%
	Protection	Built-in backfeed relay and fuses
	Ramp-in	Programmable and adaptive: 1-300 seconds
Bypass	Connections	4-wire (L1, L2, L3, N, PE)
	Bypass voltage range (V)	342-418	360-440	374-457
	Frequency (Hz)	50 or 60
	Frequency range (Hz)	±1, ±3, ±10 (user selectable)
	Nominal bypass current (A)	960	912	879
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	I²t thyristor value (A²s)	14.6 x 10^6
	Input fuse (A²s)	No
	Backfeed protection	Upstream installation of breaker with shunt trip connected to the UPS
Output	Connections*	4-wire (L1, L2, L3, N, PE)
	Output voltage regulation	Symmetrical load ± 1% Asymmetrical load ± 3%
	Overload capacity	Normal operation: 150% for 1 minute, 125% for 10 minutes, (112% continuous) Battery operation: 110% for 1 minute Bypass operation: 150% for 1 minute, 125% for 10 minutes, 110% continuous (in forced bypass operation or requested bypass operation)
	Output power factor	1
	Nominal output current (A)	950	903	870
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	Inverter output short circuit capabilities	Varies with time. See graph and table values in Inverter Short Circuit Capabilities (Bypass not Available).
	Output short circuit current (inverter) (A)*	2160	2060	1970
	Output frequency (Hz)	50/60 Hz bypass synchronized; 50/60 Hz ±0.1% free running
	Synchronized slew rate (Hz/sec)	Programmable to 0.25, 0.5, 1, 2, 4, 6
	Total harmonic distortion (THDU)	<1% for 100% resistive load <5% for non-linear load
	Output voltage compensation	Programmable to 0%, ±1%, ±2%, ±3%
	Output performance classification (according to IEC/ EN62040-3)	VFI SS 11
	Load crest factor	3
	Load power factor	From 0.5 leading to 0.5 lagging without any derating
Battery	Charging power in % of output power	0-75% load: 40% 75-100% load: 40% to 15% 100% load: 15%	At 0-80% load: 40% At 80-100% load: 40% to 20% At 100% load: 20%
	Maximum charging power (kW) (at 100% load)	94	125	125
	Maximum charging power (kW) (at 0% load)	250	250	250
	Number of battery blocks	40-48
	Nominal battery voltage (VDC)	480 for 40 battery blocks 576 for 48 battery blocks
	Nominal float voltage (VDC)	545 for 40 battery blocks 654 for 48 battery blocks
	Maximum boost voltage (VDC)	571 for 40 battery blocks 685 for 48 battery blocks
	Maximum charge current (A)	525
	Temperature compensation (per cell)	-3.3mV/°C/cell for T ≥ 25 °C, 0mV/°C/cell for T < 25 °C
	End of discharge voltage (full load) (VDC)	384-461
	End of discharge voltage (no load) (VDC)	420-504
	Battery current at full load and nominal battery voltage (A)	1354
	Battery current at full load and minimum battery voltage (A)	1692
	Ripple current	< 5% C20 (5 min backup time)
	Battery test	Manual/automatic (selectable)
	Maximum short circuit rating	100 kA

NOTE: Battery specifications are based on VRLA batteries.

Specifications for 750 kW UPS

	Voltage (V)	380	400	415
Input	Connections	4-wire (L1, L2, L3, N, PE)*
	Input voltage range (V)	At 100% load: 323-437	At 100% load: 340-460	At 100% load: 353-478
	Frequency range (Hz)	40-70
	Nominal input current (A)	1178	1119	1078
	Maximum input current (A)	1426	1396	1347
	Input current limitation (A)	1426	1396	1347
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icc = 100 kA
	Total harmonic distortion (THDI)	<3% at full linear load (symmetrical)
	Input power factor	>0.99 at load >25% >0.95 at load >15%
	Protection	Built-in backfeed relay and fuses
	Ramp-in	Programmable and adaptive: 1-300 seconds
Bypass	Connections	4-wire (L1, L2, L3, N, PE)
	Bypass voltage range (V)	342-418	360-440	374-457
	Frequency (Hz)	50 or 60
	Frequency range (Hz)	±1, ±3, ±10 (user selectable)
	Nominal bypass current (A)	1152	1094	1054
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	I²t thyristor value (A²s)	14.6 x 10^6
	Input fuse (A²s)	No
	Backfeed protection	Upstream installation of breaker with shunt trip connected to the UPS
Output	Connections*	4-wire (L1, L2, L3, N, PE)
	Output voltage regulation	Symmetrical load ± 1% Asymmetrical load ± 3%
	Overload capacity	Normal operation: 150% for 1 minute, 125% for 10 minutes, (112% continuous) Battery operation: 110% for 1 minute Bypass operation: 150% for 1 minute, 125% for 10 minutes, 110% continuous (in forced bypass operation or requested bypass operation)
	Output power factor	1
	Nominal output current (A)	1140	1083	1044
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	Inverter output short circuit capabilities	Varies with time. See graph and table values in Inverter Short Circuit Capabilities (Bypass not Available).
	Output short circuit current (inverter) (A)*	2590	2470	2360
	Output frequency (Hz)	50/60 Hz bypass synchronized; 50/60 Hz ±0.1% free running
	Synchronized slew rate (Hz/sec)	Programmable to 0.25, 0.5, 1, 2, 4, 6
	Total harmonic distortion (THDU)	<1% for 100% resistive load <5% for non-linear load
	Output voltage compensation	Programmable to 0%, ±1%, ±2%, ±3%
	Load crest factor	3
	Load power factor	From 0.5 leading to 0.5 lagging without any derating
Battery	Charging power in % of output power	0-75% load: 40% 75-100% load: 40% to 15% 100% load: 15%	At 0-80% load: 40% At 80-100% load: 40% to 20% At 100% load: 20%
	Maximum charging power (kW) (at 100% load)	113	150	150
	Maximum charging power (kW) (at 0% load)	300	300	300
	Number of battery blocks	40-48
	Nominal battery voltage (VDC)	480 for 40 battery blocks 576 for 48 battery blocks
	Nominal float voltage (VDC)	545 for 40 battery blocks 654 for 48 battery blocks
	Maximum boost voltage (VDC)	571 for 40 battery blocks 685 for 48 battery blocks
	Maximum charge current (A)	630
	Temperature compensation (per cell)	-3.3mV/°C/cell for T ≥ 25 °C, 0mV/°C/cell for T < 25 °C
	End of discharge voltage (full load) (VDC)	384-461
	End of discharge voltage (no load) (VDC)	420-504
	Battery current at full load and nominal battery voltage (A)	1625
	Battery current at full load and minimum battery voltage (A)	2031
	Ripple current	< 5% C20 (5 min backup time)
	Battery test	Manual/automatic (selectable)
	Maximum short circuit rating	100 kA

NOTE: Battery specifications are based on VRLA batteries.

Specifications for 875 kW UPS

	Voltage (V)	380	400	415
Input	Connections	4-wire (L1, L2, L3, N, PE)*
	Input voltage range (V)	At 100% load: 323-437	At 100% load: 340-460	At 100% load: 353-478
	Frequency range (Hz)	40-70
	Nominal input current (A)	1374	1305	1258
	Maximum input current (A)	1664	1628	1571
	Input current limitation (A)	1664	1628	1571
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icc = 100 kA
	Total harmonic distortion (THDI)	<3% at full linear load (symmetrical)
	Input power factor	>0.99 at load >25% >0.95 at load >15%
	Protection	Built-in backfeed relay and fuses
	Ramp-in	Programmable and adaptive: 1-300 seconds
Bypass	Connections	4-wire (L1, L2, L3, N, PE)
	Bypass voltage range (V)	342-418	360-440	374-457
	Frequency (Hz)	50 or 60
	Frequency range (Hz)	±1, ±3, ±10 (user selectable)
	Nominal bypass current (A)	1343	1276	1230
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	I²t thyristor value (A²s)	14.6 x 10^6
	Input fuse (A²s)	No
	Backfeed protection	Upstream installation of breaker with shunt trip connected to the UPS
Output	Connections*	4-wire (L1, L2, L3, N, PE)
	Output voltage regulation	Symmetrical load ± 1% Asymmetrical load ± 3%
	Overload capacity	Normal operation: 150% for 1 minute, 125% for 10 minutes, (112% continuous) Battery operation: 110% for 1 minute Bypass operation: 150% for 1 minute, 125% for 10 minutes, 110% continuous (in forced bypass operation or requested bypass operation)
	Output power factor	1
	Nominal output current (A)	1330	1263	1218
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	Inverter output short circuit capabilities	Varies with time. See graph and table values in Inverter Short Circuit Capabilities (Bypass not Available).
	Output short circuit current (inverter) (A)*	3020	2880	2750
	Output frequency (Hz)	50/60 Hz bypass synchronized; 50/60 Hz ±0.1% free running
	Synchronized slew rate (Hz/sec)	Programmable to 0.25, 0.5, 1, 2, 4, 6
	Total harmonic distortion (THDU)	<1% for 100% resistive load <5% for non-linear load
	Output voltage compensation	Programmable to 0%, ±1%, ±2%, ±3%
	Load crest factor	3
	Load power factor	From 0.5 leading to 0.5 lagging without any derating
Battery	Charging power in % of output power	0-75% load: 40% 75-100% load: 40% to 15% 100% load: 15%	At 0-80% load: 40% At 80-100% load: 40% to 20% At 100% load: 20%
	Maximum charging power (kW) (at 100% load)	131	175	175
	Maximum charging power (kW) (at 0% load)	350	350	350
	Number of battery blocks	40-48
	Nominal battery voltage (VDC)	480 for 40 battery blocks 576 for 48 battery blocks
	Nominal float voltage (VDC)	545 for 40 battery blocks 654 for 48 battery blocks
	Maximum boost voltage (VDC)	571 for 40 battery blocks 685 for 48 battery blocks
	Maximum charge current (A)	735
	Temperature compensation (per cell)	-3.3mV/°C/cell for T ≥ 25 °C, 0mV/°C/cell for T < 25 °C
	End of discharge voltage (full load) (VDC)	384-461
	End of discharge voltage (no load) (VDC)	420-504
	Battery current at full load and nominal battery voltage (A)	1895
	Battery current at full load and minimum battery voltage (A)	2369
	Ripple current	< 5% C20 (5 min backup time)
	Battery test	Manual/automatic (selectable)
	Maximum short circuit rating	100 kA

NOTE: Battery specifications are based on VRLA batteries.

Specifications for 1000 kW UPS

	Voltage (V)	380	400	415
Input	Connections	4-wire (L1, L2, L3, N, PE)*
	Input voltage range (V)	At 100% load: 323-437	At 100% load: 340-460	At 100% load: 353-478
	Frequency range (Hz)	40-70
	Nominal input current (A)	1570	1492	1438
	Maximum input current (A)	1902	1861	1796
	Input current limitation (A)	1902	1861	1796
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icc = 100 kA
	Total harmonic distortion (THDI)	<3% at full linear load (symmetrical)
	Input power factor	>0.99 at load >25% >0.95 at load >15%
	Protection	Built-in backfeed relay and fuses
	Ramp-in	Programmable and adaptive: 1-300 seconds
Bypass	Connections	4-wire (L1, L2, L3, N, PE)
	Bypass voltage range (V)	342-418	360-440	374-457
	Frequency (Hz)	50 or 60
	Frequency range (Hz)	±1, ±3, ±10 (user selectable)
	Nominal bypass current (A)	1535	1458	1406
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	I²t thyristor value (A²s)	14.6 x 10^6
	Input fuse (A²s)	No
	Backfeed protection	Upstream installation of breaker with shunt trip connected to the UPS
Output	Connections*	4-wire (L1, L2, L3, N, PE)
	Output voltage regulation	Symmetrical load ± 1% Asymmetrical load ± 3%
	Overload capacity	Normal operation: 150% for 1 minute, 125% for 10 minutes, (112% continuous) Battery operation: 110% for 1 minute Bypass operation: 150% for 1 minute, 125% for 10 minutes, 110% continuous (in forced bypass operation or requested bypass operation)
	Output power factor	1
	Nominal output current (A)	1520	1444	1392
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	Inverter output short circuit capabilities	Varies with time. See graph and table values in Inverter Short Circuit Capabilities (Bypass not Available).
	Output short circuit current (inverter) (A)*	3460	3290	3150
	Output frequency (Hz)	50/60 Hz bypass synchronized; 50/60 Hz ±0.1% free running
	Synchronized slew rate (Hz/sec)	Programmable to 0.25, 0.5, 1, 2, 4, 6
	Total harmonic distortion (THDU)	<1% for 100% resistive load <5% for non-linear load
	Output voltage compensation	Programmable to 0%, ±1%, ±2%, ±3%
	Load crest factor	3
	Load power factor	From 0.5 leading to 0.5 lagging without any derating
Battery	Charging power in % of output power	0-75% load: 40% 75-100% load: 40% to 15% 100% load: 15%	At 0-80% load: 40% At 80-100% load: 40% to 20% At 100% load: 20%
	Maximum charging power (kW) (at 100% load)	150	200	200
	Maximum charging power (kW) (at 0% load)	400	400	400
	Number of battery blocks	40-48
	Nominal battery voltage (VDC)	480 for 40 battery blocks 576 for 48 battery blocks
	Nominal float voltage (VDC)	545 for 40 battery blocks 654 for 48 battery blocks
	Maximum boost voltage (VDC)	571 for 40 battery blocks 685 for 48 battery blocks
	Maximum charge current (A)	840
	Temperature compensation (per cell)	-3.3mV/°C/cell for T ≥ 25 °C, 0mV/°C/cell for T < 25 °C
	End of discharge voltage (full load) (VDC)	384-461
	End of discharge voltage (no load) (VDC)	420-504
	Battery current at full load and nominal battery voltage (A)	2166
	Battery current at full load and minimum battery voltage (A)	2708
	Ripple current	< 5% C20 (5 min backup time)
	Battery test	Manual/automatic (selectable)
	Maximum short circuit rating	100 kA

NOTE: Battery specifications are based on VRLA batteries.

Specifications for 1125 kW UPS

	Voltage (V)	380	400	415
Input	Connections	4-wire (L1, L2, L3, N, PE)*
	Input voltage range (V)	At 100% load: 323-437	At 100% load: 340-460	At 100% load: 353-478
	Frequency range (Hz)	40-70
	Nominal input current (A)	1766	1678	1617
	Maximum input current (A)	2139	2094	2020
	Input current limitation (A)	2139	2094	2020
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icc = 100 kA
	Total harmonic distortion (THDI)	<3% at full linear load (symmetrical)
	Input power factor	>0.99 at load >25% >0.95 at load >15%
	Protection	Built-in backfeed relay and fuses
	Ramp-in	Programmable and adaptive: 1-300 seconds
Bypass	Connections	4-wire (L1, L2, L3, N, PE)
	Bypass voltage range (V)	342-418	360-440	374-457
	Frequency (Hz)	50 or 60
	Frequency range (Hz)	±1, ±3, ±10 (user selectable)
	Nominal bypass current (A)	1727	1641	1581
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	I²t thyristor value (A²s)	14.6 x 10^6
	Input fuse (A²s)	No
	Backfeed protection	Upstream installation of breaker with shunt trip connected to the UPS
Output	Connections*	4-wire (L1, L2, L3, N, PE)
	Output voltage regulation	Symmetrical load ± 1% Asymmetrical load ± 3%
	Overload capacity	Normal operation: 150% for 1 minute, 125% for 10 minutes, (112% continuous) Battery operation: 110% for 1 minute Bypass operation: 150% for 1 minute, 125% for 10 minutes, 110% continuous (in forced bypass operation or requested bypass operation)
	Output power factor	1
	Nominal output current (A)	1710	1624	1566
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	Inverter output short circuit capabilities	Varies with time. See graph and table values in Inverter Short Circuit Capabilities (Bypass not Available).
	Output short circuit current (inverter) (A)*	3890	3700	3540
	Output frequency (Hz)	50/60 Hz bypass synchronized; 50/60 Hz ±0.1% free running
	Synchronized slew rate (Hz/sec)	Programmable to 0.25, 0.5, 1, 2, 4, 6
	Total harmonic distortion (THDU)	<1% for 100% resistive load <5% for non-linear load
	Output voltage compensation	Programmable to 0%, ±1%, ±2%, ±3%
	Load crest factor	3
	Load power factor	From 0.5 leading to 0.5 lagging without any derating
Battery	Charging power in % of output power	0-75% load: 40% 75-100% load: 40% to 15% 100% load: 15%	At 0-80% load: 40% At 80-100% load: 40% to 20% At 100% load: 20%
	Maximum charging power (kW) (at 100% load)	169	225	225
	Maximum charging power (kW) (at 0% load)	450	450	450
	Number of battery blocks	40-48
	Nominal battery voltage (VDC)	480 for 40 battery blocks 576 for 48 battery blocks
	Nominal float voltage (VDC)	545 for 40 battery blocks 654 for 48 battery blocks
	Maximum boost voltage (VDC)	571 for 40 battery blocks 685 for 48 battery blocks
	Maximum charge current (A)	945
	Temperature compensation (per cell)	-3.3mV/°C/cell for T ≥ 25 °C, 0mV/°C/cell for T < 25 °C
	End of discharge voltage (full load) (VDC)	384-461
	End of discharge voltage (no load) (VDC)	420-504
	Battery current at full load and nominal battery voltage (A)	2437
	Battery current at full load and minimum battery voltage (A)	3046
	Ripple current	< 5% C20 (5 min backup time)
	Battery test	Manual/automatic (selectable)
	Maximum short circuit rating	100 kA

NOTE: Battery specifications are based on VRLA batteries.

Specifications for 1250 kW UPS

	Voltage (V)	380	400	415
Input	Connections	4-wire (L1, L2, L3, N, PE)*
	Input voltage range (V)	At 100% load: 323-437	At 100% load: 340-460	At 100% load: 353-478
	Frequency range (Hz)	40-70
	Nominal input current (A)	1962	1864	1797
	Maximum input current (A)	2377	2326	2244
	Input current limitation (A)	2377	2326	2244
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icc = 100 kA
	Total harmonic distortion (THDI)	<3% at full linear load (symmetrical)
	Input power factor	>0.99 at load >25% >0.95 at load >15%
	Protection	Built-in backfeed relay and fuses
	Ramp-in	Programmable and adaptive: 1-300 seconds
Bypass	Connections	4-wire (L1, L2, L3, N, PE)
	Bypass voltage range (V)	342-418	360-440	374-457
	Frequency (Hz)	50 or 60
	Frequency range (Hz)	±1, ±3, ±10 (user selectable)
	Nominal bypass current (A)	1919	1823	1757
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	I²t thyristor value (A²s)	14.6 x 10^6
	Input fuse (A²s)	No
	Backfeed protection	Upstream installation of breaker with shunt trip connected to the UPS
Output	Connections*	4-wire (L1, L2, L3, N, PE)
	Output voltage regulation	Symmetrical load ± 1% Asymmetrical load ± 3%
	Overload capacity	Normal operation: 150% for 1 minute, 125% for 10 minutes, (112% continuous) Battery operation: 110% for 1 minute Bypass operation: 150% for 1 minute, 125% for 10 minutes, 110% continuous (in forced bypass operation or requested bypass operation)
	Output power factor	1
	Nominal output current (A)	1900	1805	1740
	Minimum short circuit rating	Dependent on upstream protection. See Upstream and Downstream Protection for 380/400/415 V (IEC) for details.
	Maximum short circuit rating	Icw = 100 kA
	Inverter output short circuit capabilities	Varies with time. See graph and table values in Inverter Short Circuit Capabilities (Bypass not Available).
	Output short circuit current (inverter) (A)*	4320	4110	3930
	Output frequency (Hz)	50/60 Hz bypass synchronized; 50/60 Hz ±0.1% free running
	Synchronized slew rate (Hz/sec)	Programmable to 0.25, 0.5, 1, 2, 4, 6
	Total harmonic distortion (THDU)	<1% for 100% resistive load <5% for non-linear load
	Output voltage compensation	Programmable to 0%, ±1%, ±2%, ±3%
	Output performance classification (according to IEC/ EN62040-3)	VFI SS 11
	Load crest factor	3
	Load power factor	From 0.5 leading to 0.5 lagging without any derating
Battery	Charging power in % of output power	0-75% load: 40% 75-100% load: 40% to 15% 100% load: 15%	At 0-80% load: 40% At 80-100% load: 40% to 20% At 100% load: 20%
	Maximum charging power (kW) (at 100% load)	188	250	250
	Maximum charging power (kW) (at 0% load)	500	500	500
	Number of battery blocks	40-48
	Nominal battery voltage (VDC)	480 for 40 battery blocks 576 for 48 battery blocks
	Nominal float voltage (VDC)	545 for 40 battery blocks 654 for 48 battery blocks
	Maximum boost voltage (VDC)	571 for 40 battery blocks 685 for 48 battery blocks
	Maximum charge current (A)	1050
	Temperature compensation (per cell)	-3.3mV/°C/cell for T ≥ 25 °C, 0mV/°C/cell for T < 25 °C
	End of discharge voltage (full load) (VDC)	384-461
	End of discharge voltage (no load) (VDC)	420-504
	Battery current at full load and nominal battery voltage (A)	2708
	Battery current at full load and minimum battery voltage (A)	3384
	Ripple current	< 5% C20 (5 min backup time)
	Battery test	Manual/automatic (selectable)
	Maximum short circuit rating	100 kA

NOTE: Battery specifications are based on VRLA batteries.

Upstream and Downstream Protection for 380/400/415 V (IEC)

DANGER
Hazard of electric shock, explosion, or arc flash Circuit breakers must have instantaneous trip time of maximum 60 ms. Circuit breakers must have instantaneous override values set according to the table below. Circuit breakers must be installed for input (unit input disconnect device UIB) and bypass (static switch input disconnect device SSIB). For parallel system with three or more UPSs: Circuit breakers must be installed for the output (unit output disconnect device UOB) of each UPS. The unit output disconnect device (UOB) is sized as the static switch input disconnect device (SSIB). Live Swap is not supported for >100kA_bf installations where current limiting disconnect devices are used to protect the UPS. Failure to follow these instructions will result in death or serious injury.

DANGER

Hazard of electric shock, explosion, or arc flash

Circuit breakers must have instantaneous trip time of maximum 60 ms.
Circuit breakers must have instantaneous override values set according to the table below.
Circuit breakers must be installed for input (unit input disconnect device UIB) and bypass (static switch input disconnect device SSIB).
For parallel system with three or more UPSs: Circuit breakers must be installed for the output (unit output disconnect device UOB) of each UPS. The unit output disconnect device (UOB) is sized as the static switch input disconnect device (SSIB).
Live Swap is not supported for >100kA_bf installations where current limiting disconnect devices are used to protect the UPS.

Failure to follow these instructions will result in death or serious injury.

Schneider Electric reserves the right to remove the Live Swap label from the product front if the conditions are not met.

NOTE: For local directives which require 4-pole circuit breakers: If neutral conductor is expected to carry a high current, due to line-neutral non-linear load, the circuit breaker must be rated according to expected neutral current.

NOTE: For local directives which require 4-pole circuit breakers: Refer to the earthing diagrams for details about neutral connection.

The bypass/output breakers are sized based on the nominal current +12%. This is to accommodate either low grid voltage or deviation in length between parallel UPSs. The battery breakers are sized based on end-of-discharge voltage which has been defined as 384 VDC.

Upstream Protection for 380/400/415 V (IEC) and Minimum Prospective Phase-To-Earth Short Circuit at the UPS Input/Bypass Terminals

DANGER
Hazard of electric shock, explosion, or arc flash The upstream overcurrent protective device (and its settings) must be sized to ensure a disconnecting time within 0.07 seconds in case of a short circuit between the input/bypass phase and the UPS enclosure. Failure to follow these instructions will result in death or serious injury.

Compliance is assured with the recommended breaker (and its settings) from the table below.

Recommended Upstream Protection for 380/400/415 V (IEC)

NOTE: Isd, Tr, I2t, and Ii must be set on the breakers during start-up.

UPS rating	500 kW
	Input			Bypass/Output			Battery
Voltage (V)	380	400	415	380	400	415	380-415
Breaker type Breaker type	MTZ2 10 H2 3P or 4P D/O or F +MIC 5.0X+_+			MTZ2 10 H2 3P or 4P D/O or F +MIC 5.0X+_+			MasterPacT NW20HDC-D MicroLogic 1.0 DC (48652+65273)
In	1000	1000	1000	1000	1000	1000	2000
Ir	951	931	898	861	817	788	–
Isd	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	–
Tr at 6 Ir	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	–
I2t	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	–
Ii (In)	2-15	2-15	2-15	2-15	2-15	2-15	2500

UPS rating	600 kW
	Input			Bypass/Output			Battery
Voltage (V)	380	400	415	380	400	415	380-415
Breaker type Breaker type	MTZ2 12 H2 3P or 4P D/O or F +MIC 5.0X+_+			MTZ2 12 H2 3P or 4P D/O or F +MIC 5.0X+_+	MTZ2 10 H2 3P or 4P D/O or F +MIC 5.0X+_+		MasterPacT NW20HDC-D MicroLogic 1.0 DC (48652+65273)
In	1250	1250	1250	1250	1000	1000	2000
Ir	1189	1163	1122	1032	980	946	–
Isd	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	–
Tr at 6 Ir	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	–
I2t	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	–
Ii (In)	2-15	2-15	2-15	2-15	2-15	2-15	2500

UPS rating	625 kW
	Input			Bypass/Output			Battery
Voltage (V)	380	400	415	380	400	415	380-415
Breaker type Breaker type	MTZ2 12 H2 3P or 4P D/O or F +MIC 5.0X+_+			MTZ2 12 H2 3P or 4P D/O or F +MIC 5.0X+_+		MTZ2 10 H2 3P or 4P D/O or F +MIC 5.0X+_+	MasterPacT NW20HDC-D MicroLogic 1.0 DC (48652+65273)
In	1250	1250	1250	1250	1250	1000	2000
Ir	1189	1163	1122	1076	1022	985	–
Isd	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	–
Tr at 6 Ir	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	–
I2t	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	–
Ii (In)	2-15	2-15	2-15	2-15	2-15	2-15	2500

UPS rating	750 kW
	Input			Bypass/Output			Battery
Voltage (V)	380	400	415	380	400	415	380-415
Breaker type Breaker type	MTZ2 16 H2 3P or 4P D/O or F +MIC 5.0X+_+			MTZ2 16 H2 3P or 4P D/O or F +MIC 5.0X+_+	MTZ2 12 H2 3P or 4P D/O or F +MIC 5.0X+_+		MasterPacT NW20HDC-D MicroLogic 1.0 DC (48652+65273)
In	1600	1600	1600	1600	1250	1250	2000
Ir	1426	1396	1347	1291	1226	1181	–
Isd	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	–
Tr	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	–
I2t	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	–
Ii (In)	2-15	2-15	2-15	2-15	2-15	2-15	2500

UPS rating	875 kW
	Input			Bypass/Output			Battery
Voltage (V)	380	400	415	380	400	415	380-415
Breaker type Breaker type	MTZ2 16 H2 3P or 4P D/O or F +MIC 5.0X+_+			MTZ2 16 H2 3P or 4P D/O or F +MIC 5.0X+_+			MasterPacT NW40HDC-D MicroLogic 1.0 DC (48655+65274)
In	1600	1600	1600	1600	1600	1600	4000
Ir	1600	1600	1571	1505	1430	1378	–
Isd	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	–
Tr	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	–
I2t	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	–
Ii (In)	2-15	2-15	2-15	2-15	2-15	2-15	5000

UPS rating	1000 kW
	Input			Bypass/Output			Battery
Voltage (V)	380	400	415	380	400	415	380-415
Breaker type Breaker type	MTZ2 20 H2 3P or 4P D/O or F +MIC 5.0X+_+			MTZ2 20 H2 3P or 4P D/O or F +MIC 5.0X+_+		MTZ2 16 H2 3P or 4P D/O or F +MIC 5.0X+_+	MasterPacT NW40HDC-D MicroLogic 1.0 DC (48655+65274)
In	2000	2000	2000	2000	2000	1600	4000
Ir	1902	1861	1796	1720	1633	1575	–
Isd	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	–
Tr	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	–
I2t	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	–
Ii (In)	2-15	2-15	2-15	2-15	2-15	2-15	5000

UPS rating	1125 kW
	Input			Bypass/Output			Battery
Voltage (V)	380	400	415	380	400	415	380-415
Breaker type Breaker type	MTZ2 25 H2 3P or 4P D/O or F +MIC 5.0X+_+		MTZ2 20 H2 3P or 4P D/O or F +MIC 5.0X+_+	MTZ2 20 H2 3P or 4P D/O or F +MIC 5.0X+_+			MasterPacT NW40HDC-D MicroLogic 1.0 DC (48655+65274)
In	2500	2500	2000	2000	2000	2000	4000
Ir	2139	2094	2000	1935	1838	1771	–
Isd	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	–
Tr	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	–
I2t	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	–
Ii (In)	2-15	2-15	2-15	2-15	2-15	2-15	5000

UPS rating	1250 kW
	Input			Bypass/Output			Battery
Voltage (V)	380	400	415	380	400	415	380-415
Breaker type Breaker type	MTZ2 25 H2 3P or 4P D/O or F +MIC 5.0X+_+			MTZ2 25 H2 3P or 4P D/O or F +MIC 5.0X+_+		MTZ2 20 H2 3P or 4P D/O or F +MIC 5.0X+_+	MasterPacT NW40HDC-D MicroLogic 1.0 DC (48655+65274)
In	2500	2500	2500	2500	2500	2000	4000
Ir	2377	2326	2244	2150	2042	1968	–
Isd	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	1.5-10	–
Tr	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	0.5-24	–
I2t	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	ON or OFF	–
Ii (In)	2-15	2-15	2-15	2-15	2-15	2-15	5000

Recommended Downstream Protection for Distribution Breakers for 380/400/415 V (IEC)

NOTE: The recommended downstream protection for distribution circuit breakers is sized for protection of the SCRs in the static bypass switch and for coordination with the unit input disconnect device (UIB)/static switch input disconnect device (SSIB) when external backfeed protection is used.

UPS rating	500-1250 kW
Voltage (V)	380-415
Breaker type Breaker type	NSX500
Trip module type	Micrologic
In/trip module rating (A)	≤500

Recommended Cable Sizes for 380/400/415 V (IEC)

DANGER
hazard of electric shock, explosion, or arc flash All wiring must comply with all applicable national and/or electrical codes. The maximum allowable cable size is 300 mm². Shrink sleeves must be fitted over the cable lug crimped zone and must overlap with the cable insulation on all power cables. Failure to follow these instructions will result in death or serious injury.

The maximum number of cable connections per busbar:

6 on input/output/bypass busbars
8 on DC+/DC- busbars
12 on N busbars
18 on PE busbars

NOTE: Overcurrent protection is to be provided by others.

Cable sizes in this manual are based on the minimum requirements in table B.52.3 and table B.52.5 of IEC 60364-5-52 with the following assertions:

90 °C conductors
An ambient temperature of 30 °C
Use of copper or aluminum conductors
Installation method F
For input/bypass/output cables: Single layer on a perforated cable tray; For DC cables, see Guidance for Organizing Battery Cables.

PE cable size is based on table 54.2 of IEC 60364-5-54.

If the ambient temperature is greater than 30 °C, larger conductors are to be selected in accordance with the correction factors of the IEC.

The DC cables are sized for the kW rating at end of discharge voltage and not the upstream breaker in accordance with IEC 60364 433.3 Omission of devices for protection against overload.

NOTE: Recommended cable sizes and maximum allowable cable size may vary for the auxiliary products. Not all auxiliary products support aluminum cables. Refer to the installation manual provided with the auxiliary product.

NOTE: The DC cable sizes given here are recommendations – Always follow the specific instructions in the battery solution documentation for DC cable sizes and DC PE cable sizes and ensure that the DC cable sizes match the battery breaker rating.

Copper

UPS rating	500 kW			600 kW			625 kW			750 kW
Voltage (V)	380	400	415	380	400	415	380	400	415	380	400	415
Input phases (mm²)	2x240	2x240	2x185	3x185/2x300	3x185/2x300	3x185/2x300	3x185/2x300	3x185/2x300	3x185/2x300	3x240	3x240	3x240
Input PE (mm²)	1x240	1x240	1x185	2x185/1x300	2x185/1x300	2x185/1x300	2x185/1x300	2x185/1x300	2x185/1x300	2x240	2x240	2x240
Bypass/output phases (mm²)	2x240	2x185	2x185	2x300	2x240	2x240	3x185/2x300	2x300	2x240	3x240	3x240	3x185
Bypass PE/output PE (mm²)	1x240	1x185	1x185	1x300	1x240	1x240	2x185/1x300	1x300	1x240	2x240	2x240	2x185
Neutral (mm²)	2x240	2x185	2x185	2x300	2x240	2x240	3x185/2x300	2x300	2x240	3x240	3x240	3x185
DC+/DC- (mm²)	3x150	3x150	3x150	3x240	3x240	3x240	3x240	3x240	3x240	4x240	4x240	4x240
DC PE (mm²)	2x150	2x150	2x150	2x240	2x240	2x240	2x240	2x240	2x240	2x240	2x240	2x240

Copper

UPS rating	875 kW			1000 kW			1125 kW			1250 kW
Voltage (V)	380	400	415	380	400	415	380	400	415	380	400	415
Input phases (mm²)	4x240/3x300	4x240/3x300	4x185/3x300	5x185/4x300	5x185/4x240	4x240	5x240/4x300	5x240/4x300	5x240/4x300	6x240/5x300	6x240/5x300	5x240
Input PE (mm²)	2x240/2x300	2x240/2x300	2x185/2x300	3x185/2x300	3x185/2x240	2x240	3x240/2x300	3x240/2x300	3x240/2x300	3x240/3x300	3x240/3x300	3x240
Bypass/output phases (mm²)	4x185/3x300	4x185/3x300	4x185/3x300	4x240	4x240/3x300	4x240/3x300	4x300	4x300	4x240	4x300	4x300	4x300
Bypass PE/output PE (mm²)	2x185/2x300	2x185/2x300	2x185/2x300	2x240	2x240/2x300	2x240/2x300	2x300	2x300	2x240	2x300	2x300	2x300
Neutral (mm²)	4x185/3x300	4x185/3x300	4x185/3x300	4x240	4x240/3x300	4x240/3x300	4x300	4x300	4x240	4x300	4x300	4x300
DC+/DC- (mm²)	5x240/4x300	5x240/4x300	5x240/4x300	5x240	5x240	5x240	6x240/5x300	6x240/5x300	6x240/5x300	7x240/6x300	7x240/6x300	7x240/6x300
DC PE (mm²)	2x240/2x300	2x240/2x300	2x240/2x300	3x240	3x240	3x240	3x240/3x300	3x240/3x300	3x240/3x300	4x240/3x300	4x240/3x300	4x240/3x300

Aluminum

UPS rating	500 kW			600 kW			625 kW
Voltage (V)	380	400	415	380	400	415	380	400	415
Input phases (mm²)	3x240/2x300	3x240/2x300	3x240	4x185/3x240	4x185/3x300	3x240	4x185/3x240	4x185/3x300	3x240
Input PE (mm²)	2x240/1x300	2x240/1x300	2x240	2x185/2x240	2x185/2x300	2x240	2x185/2x240	2x185/2x300	2x240
Bypass/output phases (mm²)	3x185	3x185/2x300	3x150/2x300	3x240	3x240	3x240	4x185	3x240	3x240
Bypass PE/output PE (mm²)	2x185	2x185/1x300	2x150/1x300	2x240	2x240	2x240	2x185	2x240	2x240
Neutral (mm²)	3x185	3x185/2x300	3x150/2x300	3x240	3x240	3x240	4x185	3x240	3x240
DC+/DC- (mm²)	3x240	3x240	3x240	4x240	4x240	4x240	4x240	2x240	4x240
DC PE (mm²)	2x240	2x240	2x240	2x240	2x240	2x240	2x240	2x240	2x240

Aluminum

UPS rating	750 kW			875 kW			1000 kW
Voltage (V)	380	400	415	380	400	415	380	400	415
Input phases (mm²)	4x240	4x240	4x240	5x240/4x300	5x240/4x300	5x240/4x300	6x240/5x300	6x240/5x300	5x240
Input PE (mm²)	2x240	2x240	2x240	3x240/2x300	3x240/2x300	3x240/2x300	3x240/3x300	3x240/3x300	3x240
Bypass/output phases (mm²)	4x240	4x240	4x240/3x300	4x300	4x300	4x240	4x300	4x300	4x300
Bypass PE/output PE (mm²)	2x240	2x240	2x240/2x300	2x300	2x300	2x240	2x300	2x300	2x300
Neutral (mm²)	4x240	4x240	4x240/3x300	4x300	4x300	4x240	4x300	4x300	4x300
DC+/DC- (mm²)	5x240/4x300	5x240/4x300	5x240/4x300	6x240/5x300	6x240/5x300	6x240/5x300	7x240/6x300	7x240/6x300	7x240/6x300
DC PE (mm²)	3x240/2x300	3x240/2x300	3x240/2x300	3x240/3x300	3x240/3x300	3x240/3x300	4x240/3x300	4x240/3x300	4x240/3x300

NOTE: Aluminum cables are not supported for 1125 kW and 1250 kW.

Load Sharing in Bypass Operation in a Parallel System

NOTICE
Risk of equipment damage To ensure correct load sharing in bypass operation in a parallel system, the following recommendations apply: The bypass cables must be the same length for all UPSs. The output cables must be the same length for all UPSs. The input cables must be the same length for all UPSs in a single mains system. Cable formation recommendations must be followed. The reactance of busbar layout in the bypass/input and output switchgear must be the same for all UPSs. If the above recommendations are not followed the result can be uneven load sharing in bypass and overload of individual UPSs. Failure to follow these instructions can result in equipment damage.

NOTICE

Risk of equipment damage

To ensure correct load sharing in bypass operation in a parallel system, the following recommendations apply:

The bypass cables must be the same length for all UPSs.
The output cables must be the same length for all UPSs.
The input cables must be the same length for all UPSs in a single mains system.
Cable formation recommendations must be followed.
The reactance of busbar layout in the bypass/input and output switchgear must be the same for all UPSs.

If the above recommendations are not followed the result can be uneven load sharing in bypass and overload of individual UPSs.

Failure to follow these instructions can result in equipment damage.

The impedance of the bypass paths need to be controlled in a parallel UPS system. When operating in bypass mode, the parallel load sharing is determined by the total impedance of the bypass path comprising cables, switchgear, static bypass switch, and cable formation.

Parallel System – Dual Mains

Recommended Bolt and Lug Sizes for 380/400/415 V (IEC)

Cable size mm²	Bolt size	Cable lug type
16	M10 x 40 mm	TLK 16-10
25	M10 x 40 mm	TLK 25-10
35	M10 x 40 mm	TLK 35-10
50	M10 x 40 mm	TLK 50-10
70	M10 x 40 mm	TLK 70-10
95	M10 x 40 mm	TLK 95-10
120	M10 x 40 mm	TLK 120-10
150	M10 x 40 mm	TLK 150-10
185	M10 x 40 mm	TLK 185-10
240	M10 x 40 mm	TLK 240-10
300	M10 x 40 mm	TLK 300-12

Inverter Short Circuit Capabilities (Bypass not Available)

IK1 – Short Circuit between a Phase and Neutral

IK1 400 V

S [kVA]	10 ms		20 ms		30 ms		50 ms
	I[A]	I²t [A²t]	I[A]	I²t [A²t]	I[A]	I²t [A²t]	I[A]	I²t [A²t]
500	1650	27 020	1650	54 030	1650	81 040	1630	135 810
600/625	2060	42 210	2060	84 410	2060	126 620	2040	212 200
750	2470	60 780	2470	121 550	2470	182 320	2450	305 570
875	2880	82 720	2880	165 440	2880	248 160	2860	415 910
1000	3290	108 050	3290	216 090	3290	324 130	3260	543 230
1125	3700	136 740	3700	273 480	3700	410 220	3670	687 530
1250	4110	168 820	4110	337 630	4110	506 450	4080	848 800

IK1 400 V

S [kVA]	100 ms		1 s		5 s
	I[A]	I²t [A²t]	I[A]	I²t [A²t]	I[A]	I²t [A²t]
500	1480	256 940	890	1 032 660	750	3 719 150
600/625	1840	401 460	1110	1 613 530	930	5 811 170
750	2210	578 100	1330	2 323 470	1120	8 368 080
875	2580	786 850	1550	3 162 500	1300	11 389 890
1000	2950	1 027 730	1770	4 130 620	1490	14 876 590
1125	3320	1 300 710	1990	5 227 810	1670	18 828 180
1250	3680	1 605 820	2210	6 454 090	1860	23 244 660

IK2 – Short Circuit between Two Phases

IK2 400 V

S [kVA]	10 ms		20 ms		30 ms		50 ms
	I[A]	I²t [A²t]	I[A]	I²t [A²t]	I[A]	I²t [A²t]	I[A]	I²t [A²t]
500	1650	27 020	1650	54 030	1650	81 040	1650	133 800
600/625	2060	42 210	2060	84 410	2060	126 620	2060	209 060
750	2470	60 780	2470	121 550	2470	182 320	2470	301 040
875	2880	82 720	2880	165 440	2880	248 160	2890	409 740
1000	3290	108 050	3290	216 090	3290	324 130	3300	535 170
1125	3700	136 740	3700	273 480	3700	410 220	3710	677 330
1250	4110	168 820	4110	337 630	4110	506 450	4120	836 210

IK2 400 V

S [kVA]	100 ms		1 s		5 s
	I[A]	I²t [A²t]	I[A]	I²t [A²t]	I[A]	I²t [A²t]
500	1490	260 620	890	1 034 590	750	3 720 410
600/625	1860	407 220	1110	1 616 540	930	5 813 140
750	2230	586 400	1330	2 327 820	1120	8 370 920
875	2600	798 150	1550	3 168 420	1300	11 393 750
1000	2970	1 042 480	1770	4 138 340	1490	14 881 630
1125	3340	1 319 380	1990	5 237 590	1670	18 834 560
1250	3710	1 628 870	2210	6 466 160	1860	23 252 540

IK3 – Short Circuit between Three Phases

IK3 400 V

S [kVA]	10 ms		20 ms		30 ms		50 ms
	I[A]	I²t [A²t]	I[A]	I²t [A²t]	I[A]	I²t [A²t]	I[A]	I²t [A²t]
500	1470	21 390	1470	42 780	1470	64 170	1460	105 880
600/625	1830	33 420	1830	66 840	1830	100 260	1820	165 430
750	2200	48 130	2200	96 250	2200	144 380	2190	238 220
875	2560	65 510	2560	131 010	2560	196 510	2550	324 240
1000	2930	85 560	2930	171 110	2930	256 670	2920	423 500
1125	3300	108 280	3300	216 560	3300	324 840	3280	535 990
1250	3660	133 680	3660	267 360	3660	401 040	3640	661 720

IK3 400 V

S [kVA]	100 ms		1 s		5 s
	I[A]	I²t [A²t]	I[A]	I²t [A²t]	I[A]	I²t [A²t]
500	1310	205 060	890	947 860	750	3 633 680
600/625	1640	320 400	1110	1 481 020	930	5 677 620
750	1970	461 380	1330	2 132 670	1120	8 175 770
875	2300	627 980	1550	2 902 800	1300	11 128 130
1000	2620	820 220	1770	3 791 410	1490	14 534 700
1125	2950	1 038 090	1990	4 798 500	1670	18 395 470
1250	3280	1 281 600	2210	5 924 070	1860	22 710 460

Leakage Current

The earth leakage current is the leakage current which flows through the protective earth conductor to ground. The earth leakage current is measured in the earth/ground cable and is always present.

The leakage current at start-up is higher than the continuous leakage current during operation.

For a 380/400/415 V 1250 kW UPS system 4-wire installation at 100% load:

The start-up leakage current can be up to 3 A.
The continuous maximum leakage current is 350 mA with 200 Hz filter on.

Torque Specifications

Bolt size	Torque
M6	5 Nm
M8	17.5 Nm
M10	30 Nm
M12	50 Nm

Requirements for a Third Party Battery Solution

Battery breaker boxes from Schneider Electric are recommended for the battery interface. Please contact Schneider Electric for more information.

Third Party Battery Breaker Requirements

DANGER
Hazard of electric shock, explosion, or arc flash All selected battery breakers must be equipped with instantaneous trip functionality with an undervoltage release coil or a shunt trip release coil. Trip delay must be set to zero on all battery breakers. Failure to follow these instructions will result in death or serious injury.

NOTE: There are more factors to consider when selecting a battery breaker than the requirements listed below. Please contact Schneider Electric for more information.

Design Requirements for Battery Breaker

Battery breaker rated DC voltage > Normal battery voltage	The normal voltage of the battery configuration is defined as the highest nominal occurring battery voltage. This can be equivalent to the float voltage which may be defined as number of battery blocks x number of cells x cell float voltage.
Battery breaker rated DC current > Rated discharge battery current	This current is controlled by the UPS and must include maximum discharge current. This will typically be the current at the end of discharge (minimum operation DC voltage or in overload condition or a combination).
DC landings	Two DC landings for DC cables (DC+ and DC-) are required.
AUX switches for monitoring	One AUX switch must be installed in each battery breaker and connected to the UPS. The UPS can monitor up to four battery breakers.
Short-circuit breaking capability	The short-circuit breaking capability must be higher than the short-circuit DC current of the (largest) battery configuration.
Minimum trip current	The minimum short-circuit current to trip the battery breaker must match the (smallest) battery configuration, to make the breaker trip in case of a short circuit, up to the end of its life time.

Guidance for Organizing Battery Cables

NOTE: For 3rd party batteries, use only high rate batteries for UPS applications.

NOTE: When the battery bank is placed remotely, the organizing of the cables is important to reduce voltage drop and inductance. The distance between the battery bank and the UPS must not exceed 200 m (656 ft). Contact Schneider Electric for installations with a longer distance.

NOTE: To minimize the risk of electromagnetic radiation, it is highly recommended to follow the below guidance and to use grounded metallic tray supports.

Cable Length
<30 m	Not recommended	Acceptable	Recommended	Recommended
31–75 m	Not recommended	Not recommended	Acceptable	Recommended
76–150 m	Not recommended	Not recommended	Acceptable	Recommended
151–200 m	Not recommended	Not recommended	Not recommended	Recommended

Environment

	Operating	Storage
Temperature	0 °C to 40 °C without load derating. 40 °C to 50 °C when derated to 75% power.	-25 °C to 55 °C for systems without batteries.
Relative humidity	5-90% non-condensing	0-95% non-condensing
Elevation	Designed for operation in 0-3000 m elevation. Derating required from 1000-3000 m with forced air cooling: 0 to 1000 m: 1.000 1000 to 1500 m: 0.975 1500 to 2000 m: 0.950 2000 to 2500 m: 0.925 2500 to 3000 m: 0.900
Audible noise one meter from unit	69 dB at 70% load 78 dB at 100% load NOTE: The noise level can be higher during charging/battery operation. Use appropriate hearing protection per local regulations.
Protection class	IP20
Color	RAL 9003, gloss level 85%

Compliance

Safety	IEC 62040-1: 2017, Edition 2.0, Uninterruptible Power Systems (UPS) - Part 1: Safety requirements
EMC/EMI/RFI	IEC 62040-2: 2016, 3rd edition Uninterruptible Power Systems (UPS) - Part 2: Electromagnetic compatibility (EMC) requirements C3 IEC 62040-2: 2005, 2nd edition Uninterruptible Power Systems (UPS) - Part 2: Electromagnetic compatibility (EMC) requirements C3
Performance	Performance in accordance with: IEC 62040-3: 2021-04, 3rd edition Uninterruptible Power Systems (UPS) - Part 3: Method of specifying the performance and test requirements. Output performance classification (according to IEC 62040-3, Clause 5.3.4): VFI SS 11
Transportation	IEC 60721-4-2 Level 2M2
Earthing system	TN, TNC, TN-S, TNC-S, TT*
Overvoltage category	OVC III
Protective class	I
Pollution degree	2

UPS Weights and Dimensions

Scalable UPS Models

UPS rating	Weight kg	Height mm	Width mm	Depth mm
500 kW	851	1970	1200	1000
625 kW	904	1970	1200	1000
750 kW	957	1970	1200	1000
875 kW	1010	1970	1200	1000
1000 kW	1063	1970	1200	1000
1125 kW	1116	1970	1200	1000
1250 kW	1169	1970	1200	1000

Non-Scalable UPS Models

UPS rating	Weight kg	Height mm	Width mm	Depth mm
600 kW	904	1970	1200	1000

Power Module Weights and Dimensions

Commercial reference	Weight kg	Height mm	Width mm	Depth mm
GVPM125KH	54	130	560	740

Clearance

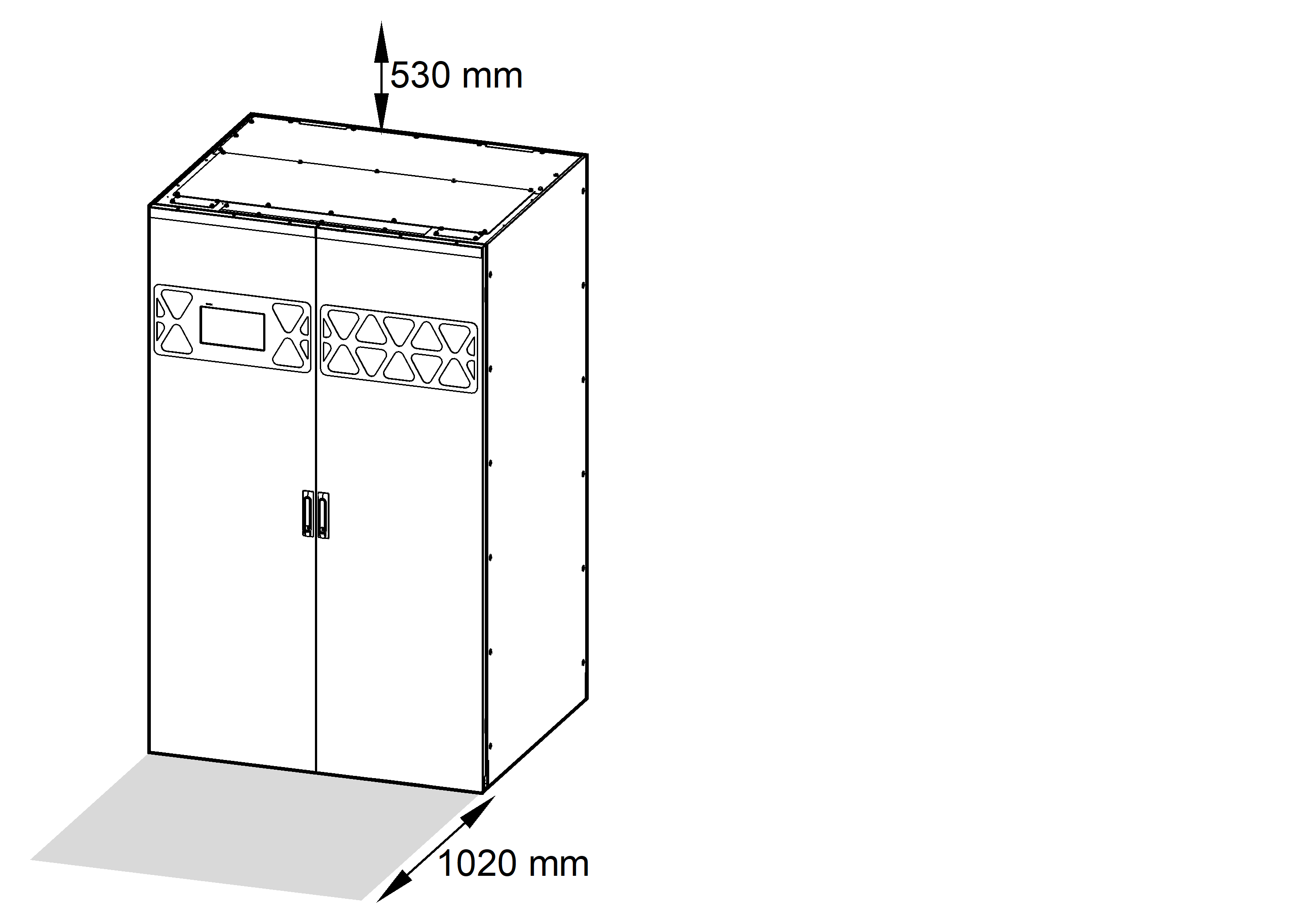

NOTE: Clearance dimensions are published for airflow and service access only. Consult with the local safety codes and standards for additional requirements in your local area.
