JYT97577–01

Appendix B - Installation Schematics

Safety Packages - Installation Schematics

GDE8239900—MMS I-Line Enable Module (240, 480, and 600 VAC)

NVE4858900—ERMS I-Line Enable Module (240 and 480 VAC)

PHA6993000—ERM2 I-Line Enable Module (240 and 480 VAC)

PHA6993200—ERM2 I-Line Enable Module (600 VAC)

Communication Packages - Installation Schematics

NVE4859200—IFM I-Line Enable Module (240 and 480 VAC)

PHA6993500—IFM I-Line Enable Module (600 VAC)

JYT1888601—U-PaS I-Line Enable Module (240, 480, and 600 VAC)

Metering Packages - Installation Schematics

QGH1510300—PM Meter I-Line Enable Module (3P4W)

QGH3063400—PM Meter I-Line Enable Module (3P3W)

QGH3063500—PM Meter I-Line Enable Module (1P2W)

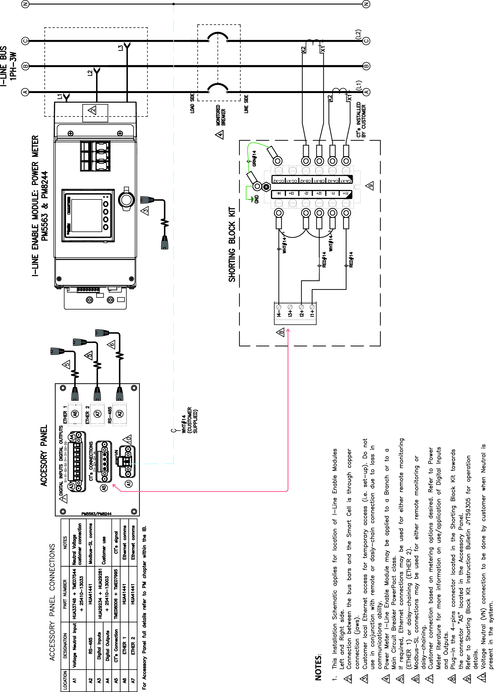

QGH3063800—PM Meter I-Line Enable Module (1P3W)

QR Code is a registered trademark of DENSO WAVE INCORPORATED in Japan and other countries.
