PowerPacT™ H-, J-, and L-Frame Circuit Breakers 0611CT1001 – Catalog

0611CT1001 R09/24

Trip Curves

PowerPacT H- and J-Frame Thermal-Magnetic Trip Circuit Breakers

H-Frame 15–35 A (HD, HG, HJ, and HL) Thermal-Magnetic Trip

H-Frame 40–60 A (HD, HG, HJ, and HL) Thermal-Magnetic Trip

H-Frame 70–100 A (HD, HG, HJ, and HL) Thermal-Magnetic Trip

H-Frame 110–150 A (HD, HG, HJ, and HL) Thermal-Magnetic Trip

HG and HL 30 A 500 Vdc Thermal-Magnetic Trip

HG and HL 50 A 500 Vdc Thermal-Magnetic Trip

HG and HL 370 A 500 Vdc Thermal-Magnetic Trip

J-Frame 150–250 A (JD, JG, JJ, JL, and JR) Thermal-Magnetic Trip

J-Frame 100 A (JG) 500 Vdc Thermal-Magnetic 500 Trip

J-Frame 125 A (JG) 500 Vdc Thermal-Magnetic Trip

J-Frame 150 A (JG) 500 Vdc Thermal-Magnetic Trip

J-Frame 175 A (JG) 500 Vdc Thermal-Magnetic Trip

J-Frame 200 A (JG) 500 Vdc Thermal-Magnetic Trip

J-Frame 225 A (JG) 500 Vdc Thermal-Magnetic Trip

J-Frame 250 A (JG) 500 Vdc Thermal-Magnetic Trip

L-Frame 300–450 A (LG and LL) 500 Vdc Thermal-Magnetic Trip

L-Frame 500–800 A (LG and LL) 500 Vdc Thermal-Magnetic Trip

L-Frame 900–1200 A (LG and LL) 500 Vdc Thermal-Magnetic Trip

H-Frame 150 A Typical Peak Let-Through Curves

H-Frame 150 A Typical I²t Let-Through Curves

J-Frame 250 A Typical Peak Let-Through Curves

J-Frame 250 A Typical I²t Let-Through Curves

H- and J-Frame Motor Circuit Protector

H- and J-Frame Motor Circuit Protector

H-Frame UL Listed Current-Limiting Circuit Breaker

H-Frame UL Listed Current-Limiting Circuit Breaker

J-Frame UL Listed Current -Limiting Circuit Breaker

J-Frame UL Listed Current-Limiting Circuit Breaker

Ground Fault Module GFM150HD Trip Curve

Ground Fault Module GFM250JD Trip Curve

Earth Leakage Module Trip Curve

PowerPacT H- and J-Frame Thermal-Magnetic Trip MCP Instantaneous Trip Points

M71 Instantaneous Trip Points

	I_m Setting	Automatic Setting (A)		Manual Adjustment (A)
	I_m Setting	1	2	6x	8x	9x	10x	11x	12x	13x
Motor Type	NEMA	A, B, C, D	B, E	(FLA) x (I_Im)
Motor Type	IEC	N	H	(FLA) x (I_Im)
FLA	1.5	12	16.5	9	12	13.5	15	16.5	18	19.5
	3	24	33	18	24	27	30	33	36	39
	6	48	66	36	48	54	60	66	72	78
	8	64	88	48	64	72	80	88	96	104
	11	88	121	66	88	99	110	121	132	143
	14	112	154	84	112	126	140	154	168	182
	17	136	187	102	136	153	170	187	204	221
	20	160	220	120	160	180	200	220	240	260
	25	200	275	150	200	225	250	275	300	325
Dampening for motor in-rush (% FLA)		1300%	1700%	1300%	—

M72 Instantaneous Trip Points

	I^m Setting	Automatic Setting (A)*		Manual Adjustment (A)1
	I^m Setting	1	2	6x	8x	9x	10x	11x	12x	13x
Motor Type	NEMA	A, B, C, D	B, E	(FLA) x (I_m)
Motor Type	IEC	N	H	(FLA) x (I_m)
FLA	14	112	154	84	112	126	140	154	168	182
	17	136	187	102	136	153	170	187	204	221
	21	168	231	126	168	189	210	231	252	273
	24	192	264	144	192	216	240	264	288	312
	27	216	297	162	216	243	270	297	324	351
	29	232	319	174	232	261	290	319	348	377
	32	256	352	192	256	288	320	352	384	416
	36	288	396	216	288	324	360	396	432	468
	42	336	462	252	336	378	420	462	504	546
Dampening for motor in-rush (% FLA)		1300%	1700%	1300%	—

M73 Instantaneous Trip Points

	I^m Setting	Automatic Setting (A)*		Manual Adjustment (A)1
	I^m Setting	1	2	6x	8x	9x	10x	11x	12x	13x
Motor Type	NEMA	A, B, C, D	B, E	(FLA) x (I_m)
Motor Type	IEC	N	H	(FLA) x (I_m)
FLA	30	240	330	180	240	270	300	330	360	390
	35	280	385	210	280	315	350	385	420	455
	41	328	451	246	328	369	410	451	492	533
	46	368	506	276	368	414	460	506	552	598
	51	408	561	306	408	459	510	561	612	663
	56	448	616	336	448	504	560	616	672	728
	63	504	693	378	504	567	630	693	756	819
	71	568	781	426	568	639	710	781	852	923
	80	640	880	480	640	720	800	880	960	1040
Dampening for motor in-rush (% FLA)		1300%	1700%	1300%	—

M74 Instantaneous Trip Points

	I_m Setting	Automatic Setting (A)*		Manual Adjustment (A)1
	I_m Setting	1	2	6x	8x	9x	10x	11x	12x	13x
Motor Type	NEMA	A, B, C, D	B, E	(FLA) x (I_m)
Motor Type	IEC	N	H	(FLA) x (I_m)
FLA	58	464	638	348	464	522	580	638	696	754
	71	568	781	426	568	639	710	781	852	923
	79	632	869	474	632	711	790	869	948	1027
	86	688	946	516	688	774	860	946	1032	1118
	91	728	1001	546	728	819	910	1001	1092	1183
	97	776	1067	582	776	873	970	1067	1164	1261
	110	880	1210	660	880	990	1100	1210	1320	1430
	119	952	1309	714	952	1071	1190	1309	1428	1547
	130	1040	1430	780	1040	1170	1300	1430	1560	1690
Dampening for motor in-rush (% FLA)		1300%	1700%	1300%	—

M75 Instantaneous Trip Points

	Im Setting	Automatic Setting (A)*		Manual Adjustment (A)± 5% of nominal amperage shown above.*
	Im Setting	1	2	6x	8x	9x	10x	11x	12x	13x
Motor Type	NEMA	A, B, C, D	B, E	(FLA) x (Im)
Motor Type	IEC	N	H	(FLA) x (Im)
FLA	114	912	1254	684	912	1026	1140	1254	1368	1482
	137	1096	1507	822	1096	1233	1370	1507	1644	1781
	145	1160	1595	870	1160	1305	1450	1595	1740	1885
	155	1240	1705	930	1240	1395	1550	1705	1860	2015
	163	1304	1793	978	1304	1467	1630	1793	1956	2119
	172	1376	1892	1032	1376	1548	1720	1892	2064	2236
	181	1448	1991	1086	1448	1629	1810	1991	2172	2353
	210	1680	2310	1260	1680	1890	2100	2310	2500*	2500*
	217	1736	2387	1302	1736	1953	2170	2387	2500*	2500*
Dampening for motor in-rush (% FLA)		1100–1300%	1100–1700%	1100–1300%	—

PowerPacT H-Frame Electronic Trip Circuit Breakers— 60/100/150 A Frame

MicroLogic 3.2 Electronic Trip Unit Long Time Trip Curve

MicroLogic 3.2S Electronic Trip Unit Long Time / Short Time Trip Curve

MicroLogic 3.2/3.2S/5.2A/5.2E/6.2A/6.2E Electronic Trip Unit Instantaneous Trip Curve

MicroLogic 5.2A/5.2E/6.2A/6.2E Electronic Trip Unit Long Time Trip Curve

MicroLogic 5.2A/5.2E/6.2A/6.2E Electronic Trip Unit Short Time Trip Curve

MicroLogic 6.2A/6.2E Electronic Trip Unit Ground Fault Trip Curve

MicroLogic 6.2A/6.2E Electronic Trip Unit Ground Fault Trip Curve

MicroLogic 2.2 M Electronic Trip Unit Overload Trip Curve

PowerPacT J-Frame Electronic Trip Circuit Breakers—250 A Frame

MicroLogic 3.2 and 3.2-W Electronic Trip Unit Long-Time Trip Curve

MicroLogic 3.2S and 3.2S-W Electronic Trip Unit Long Time / Short Time Trip Curve

MicroLogic 3.2, 3.2-W, 3.2S, 3.2S-W, 5.2A, 5.2A-W, 5.2E, 5.2E-W, 6.2A, 6.2A-W, 6.2E, and 6.2E-W Electronic Trip Curve Instantaneous Trip Curve

MicroLogic 5.2A, 5.2A-W, 5.2E, 5.2E-W, 6.2A, 6.2A-W, 6.2E, and 6.2E-W Electronic Trip Unit Long Time Trip Curve

MicroLogic 5.2A, 5.2A-W, 5.2E, 5.2E-W, 6.2A, 6.2A-W, 6.2E, and 6.2E-W Electronic Trip Unit Short Time Trip Curve

MicroLogic 6.2A, 6.2A-W, 6.2E, and 6.2E-W Electronic Trip Unit Ground Fault Trip Curve

MicroLogic 2.2 M Electronic Trip Unit Overload Trip Curve

PowerPacT L-Frame Electronic Trip Circuit Breakers— 250/400/600 A Frame

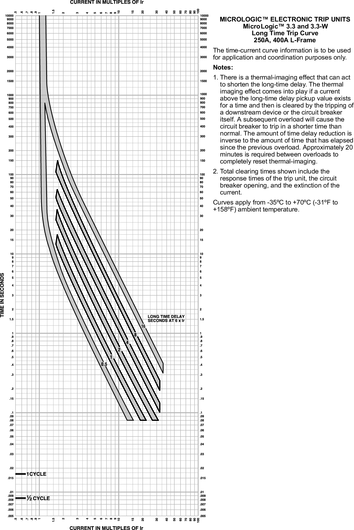

MicroLogic 3.3 and 3.3-W Electronic Trip Unit Long Time Trip Curve

MicroLogic 3.3S and 3.3S-W Electronic Trip Unit Long Time/Short Time Trip Curve

MicroLogic 3.3, 3.3-W, 3.3S, and 3.3S-W Electronic Trip Unit Instantaneous Trip Curve

MicroLogic 3.3, 3.3-W, 3.3S, 3.3S-W, 5.3A, 5.3A-W, 5.3E, 5.3E-W, 6.3A, 6.3A-W, 6.3E, and 6.3E-W Electronic Trip Unit Instantaneous Trip Curve

MicroLogic 5.3A, 5.3A-W, 5.3E, 5.3E-W, 6.3A, 6.3A-W, 6.3E, and 6.3E-W Electronic Trip Unit Long Time Trip Curve

MicroLogic 5.3, 5.3A-W, 5.3E, 5.3E-W, 6.3A, 6.3A-W, 6.3E, and 6.3E-W Electronic Trip Unit Short Time Trip Curve

MicroLogic 1.3 M Electronic Trip Unit Instantaneous Trip Curve

MicroLogic 2.3 M Electronic Trip Unit Overload Trip Curve

MicroLogic 3.3 and 3.3W Electronic Trip Unit Long Time Trip Curve

MicroLogic 3.3S and 3.3S-W Electronic Trip Unit Long Time/Short Time Trip Curve

MicroLogic 3.3, 3.3-W, 3.3S, 3.3S-W, 5.3A, 5.3A-W, 5.3E, 5.3E-W, 6.3A, 6.3A-W, 6.3E, and 6.3E-W Electronic Trip Unit Instantaneous Trip Curve

MicroLogic 5.3A, 5.3A-W, 5.3E, 5.3E-W, 6.3A, 6.3A-W, 6.3E, and 6.3E-W Electronic Trip Unit Long Time Trip Curve

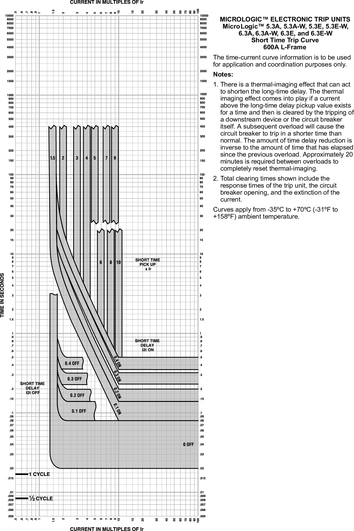

MicroLogic 5.3A, 5.3A-W, 5.3E, 5.3E-W, 6.3A, 6.3A-W, 6.3E, and 6.3E-W Electronic Trip Unit Short Time Trip Curve

MicroLogic 6.3A, 6.3A-W, 6.3E, and 6.3E-W Ground-Fault Trip Curve

MicroLogic 1.3 M Electronic Trip Unit Instantaneous Trip Curve

L-Frame 600 A Typical Peak Let-Through Curves

L-Frame 600 A Typical I²t Let-Through Curves

L-Frame UL Listed Current-Limiting Circuit Breaker

L-Frame UL Listed Current-Limiting Circuit Breaker

L-Frame Circuit Breaker Reflex Tripping
