Storage of Hardware and Chemical Components

You must ensure that the material storage area meets the following requirements:

It must be stable and level.
It must be protected against extreme temperature, water penetration, and dampness.
It must be protected against fire, dust, water, direct sunlight, and welding sparks.
It must not serve as a gangway or be used to assemble other equipment.

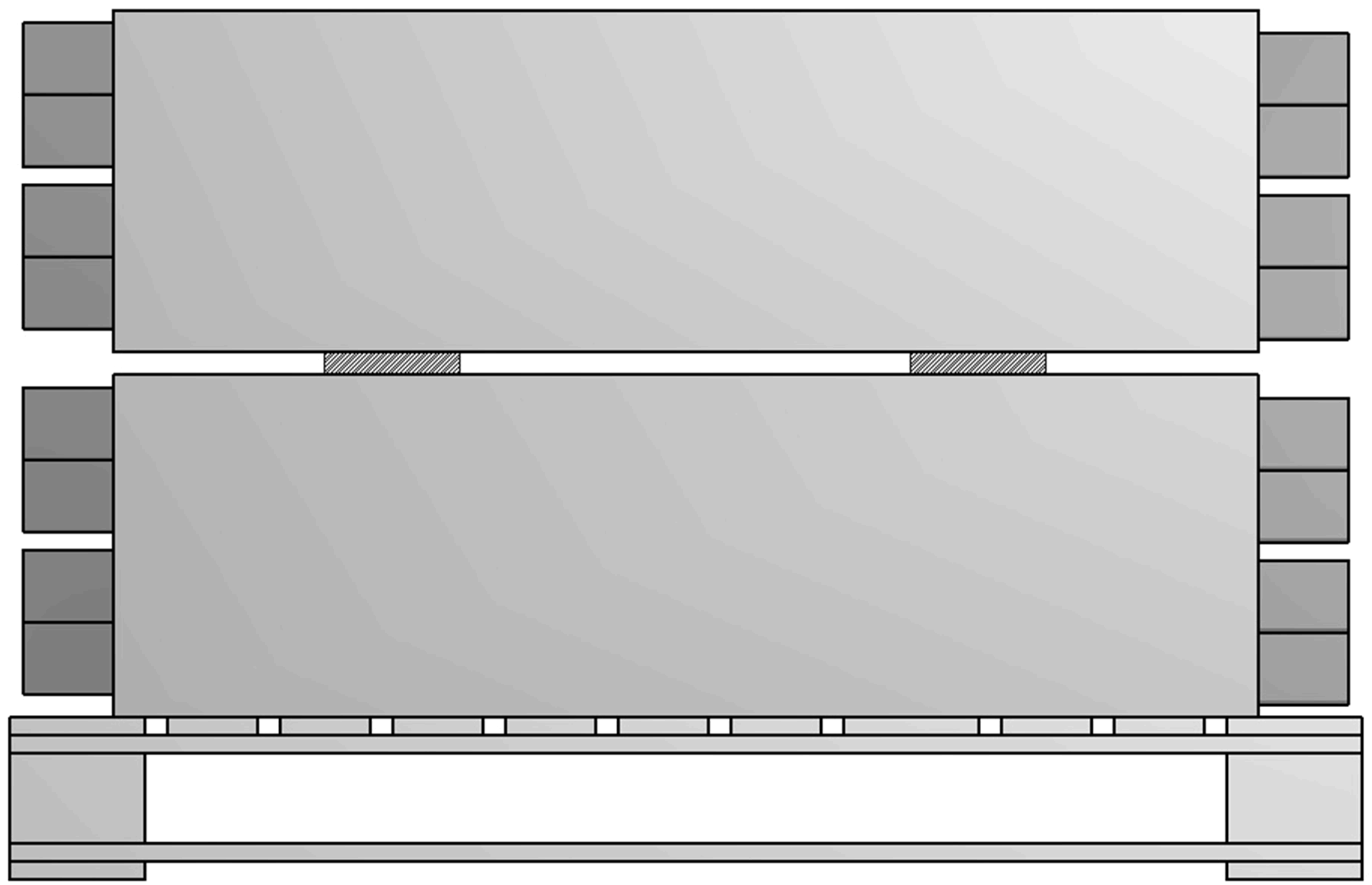

Stacking (top) and storage (bottom) of elements

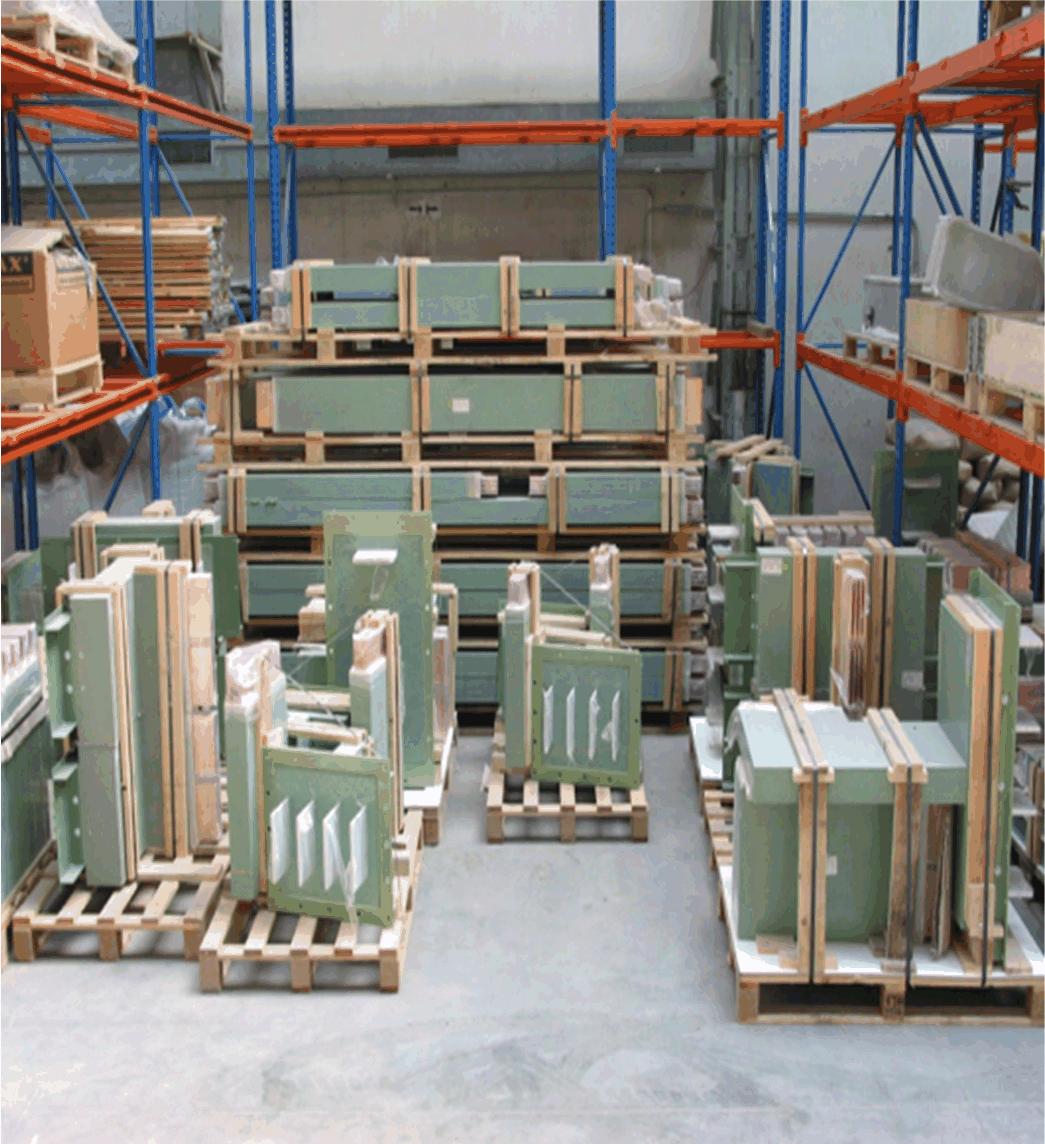

Storage of equipment

It is recommended to store the material in the original transport packing.
Up to 2 pallets of straight elements can be stacked on top of each other.
The elements of the double system (aluminium conductor with more than 2500 A and copper conductor with more than 3200 A) are better stored flat on top of each other
Secure elements with a strap retainer.
Other elements like end-feed units, form parts, boxes, frames, cable connections and so on, should not be stacked.

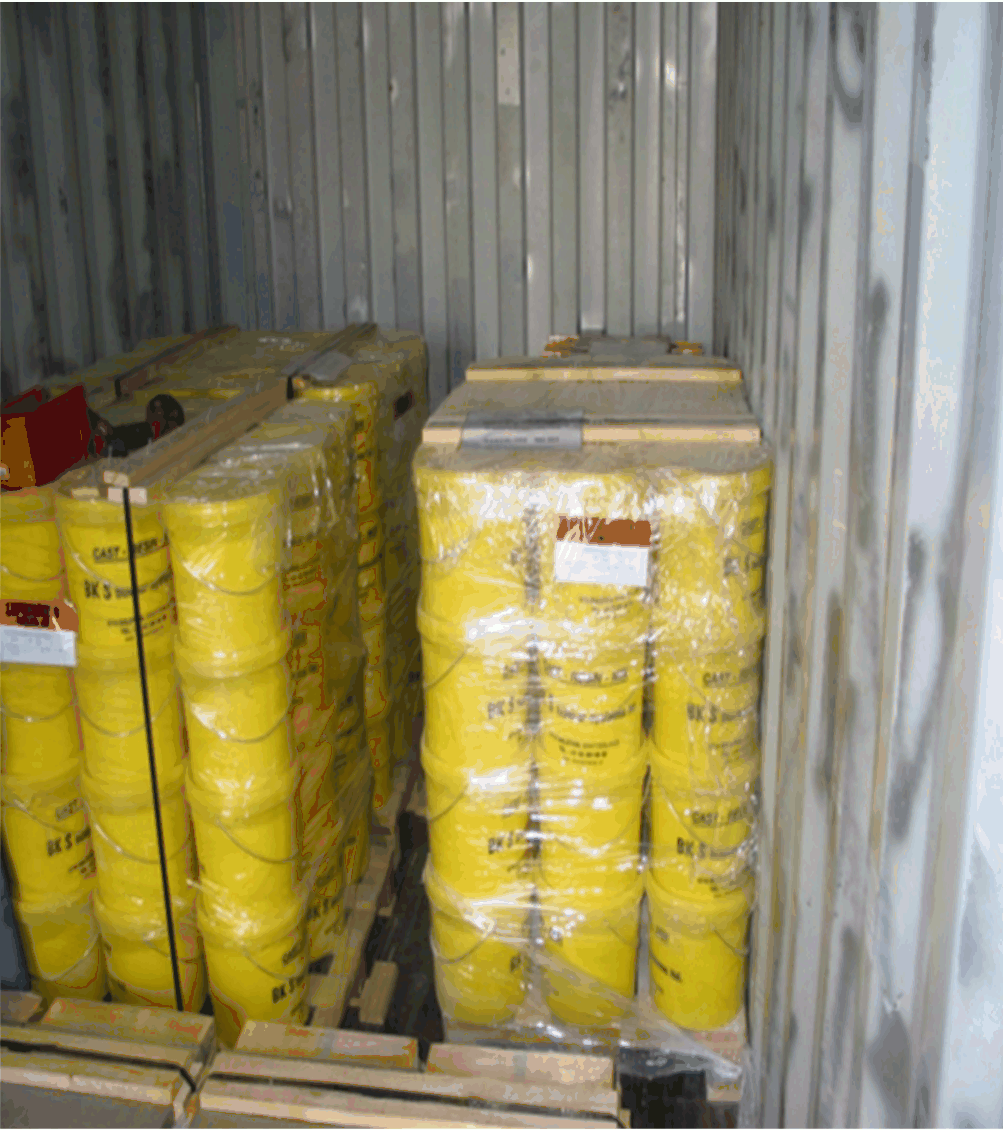

Storage of chemicals

The cast resin, hardener, and demoulding agent must not be stored below 5 °C, or above 35 °C.
