Equipment and Tools
Overview
This chapter lists the necessary tools, equipment, and supplies that you must have available before you can begin the installation of the Canalis KR.
Lifting and Handling Tools
 |

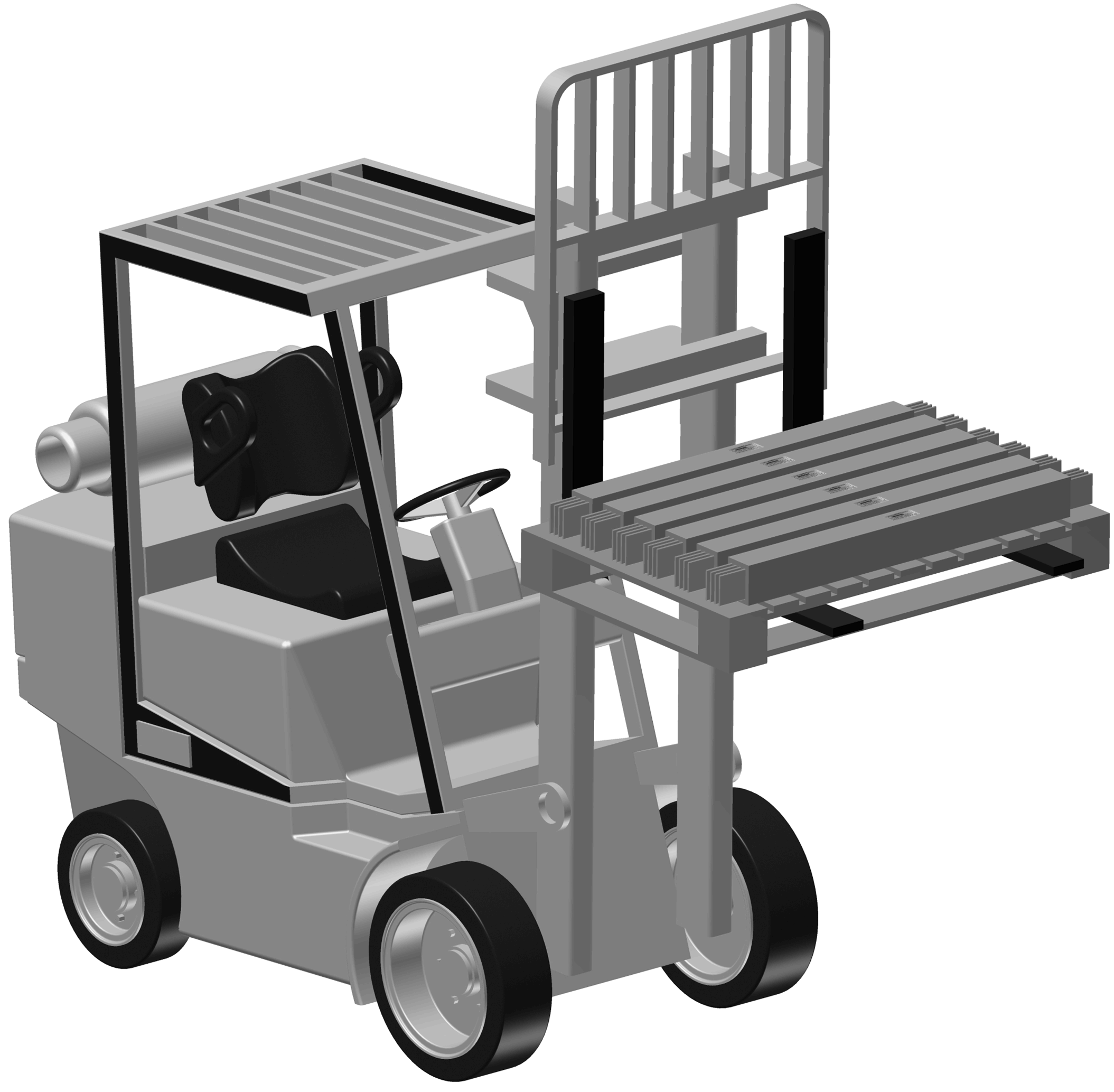

Crane or forklift truck with minimum fork length of 2 m, capable of lifting 4.5 tons (minimum) |
 |

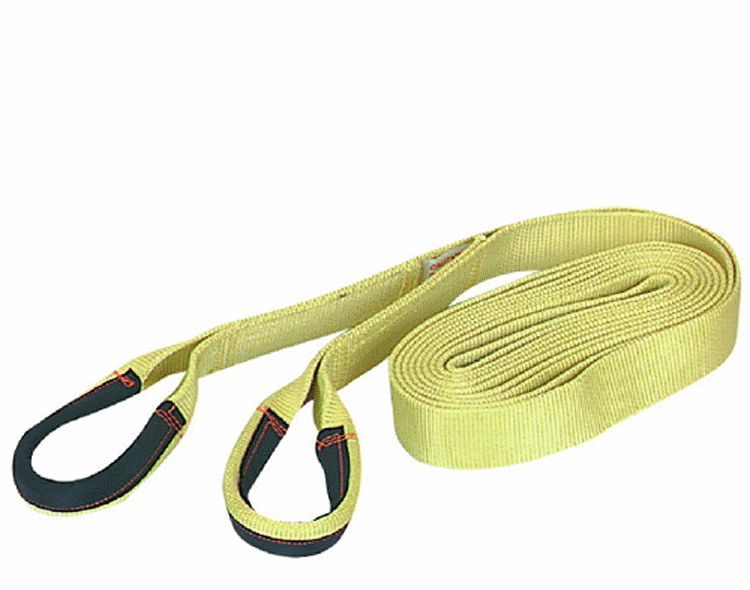

Two slings for handling the elements |
Equipment for Mounting and Installing Supports
 |

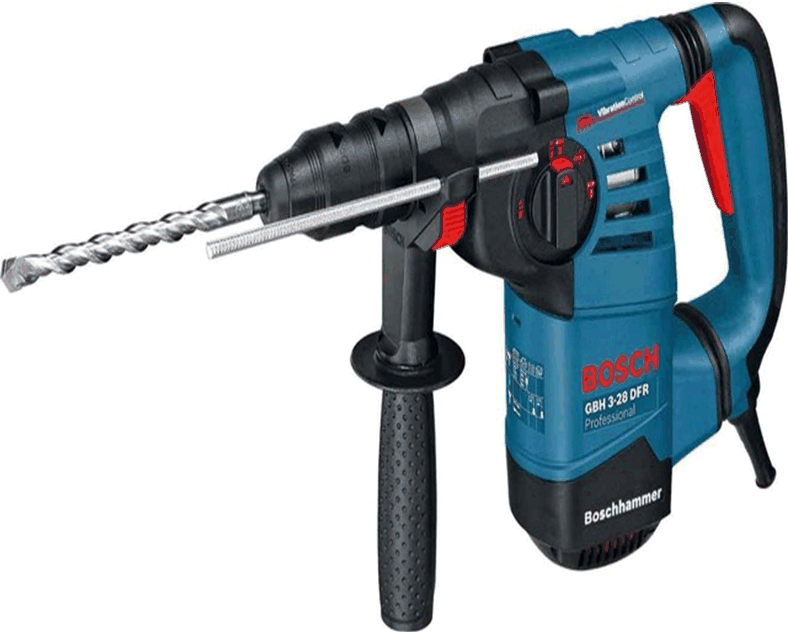

Drilling machine capable of drilling through concrete |
 |

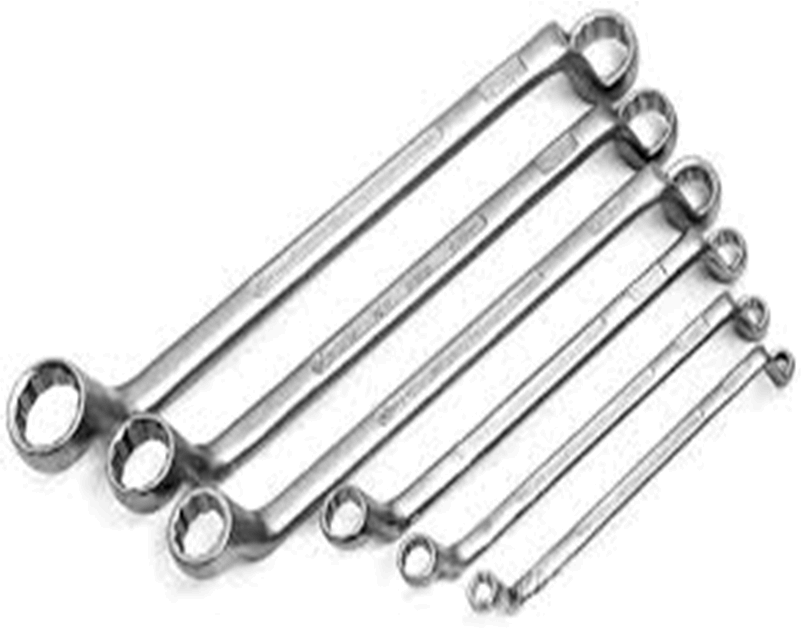

Set of flat or ring spanners (10...22 mm) |
 |

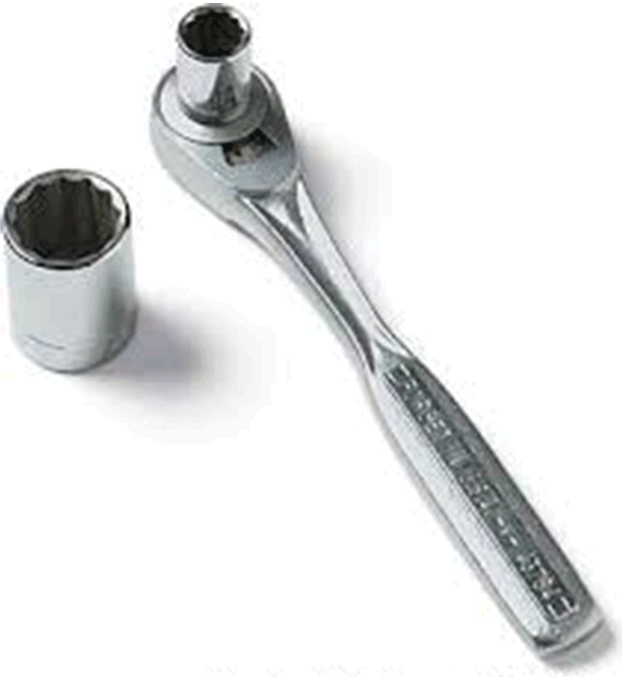

Socket wrench with sockets (10...22 mm) |
 |

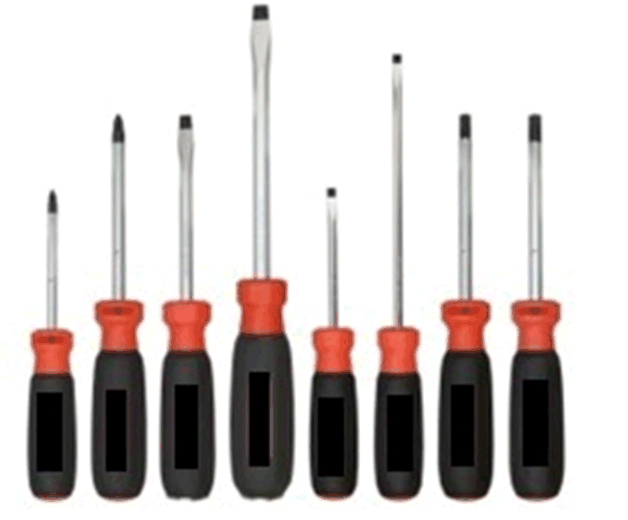

Set of screwdrivers |
 |

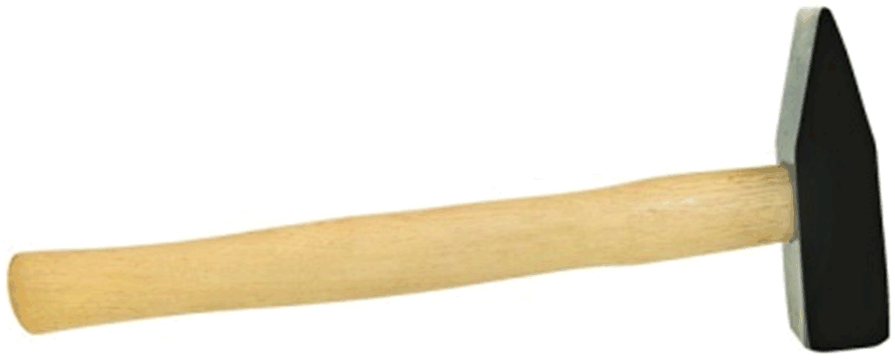

Metal hammer |
 |
Measuring tape (metric) |
 |

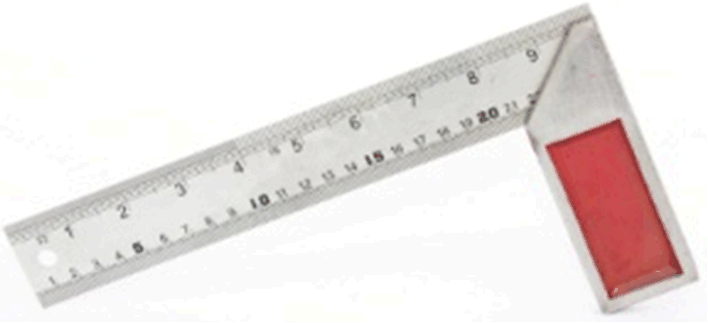

Carpenters square |
 |

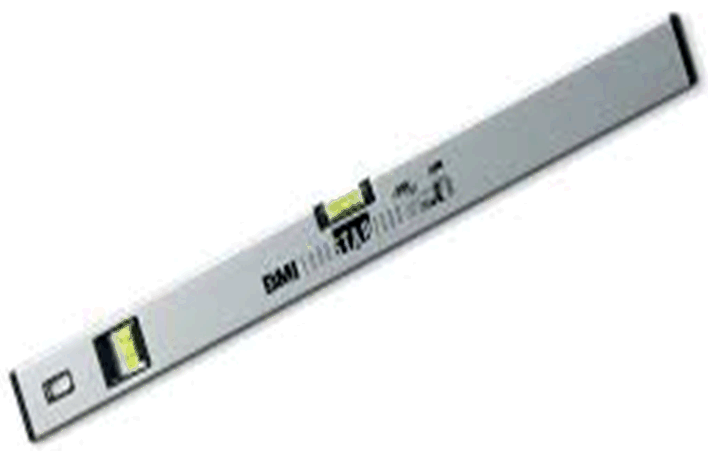

Levelling instrument (spirit level) |
Equipment for Establishing and Testing Electrical Connections
 |

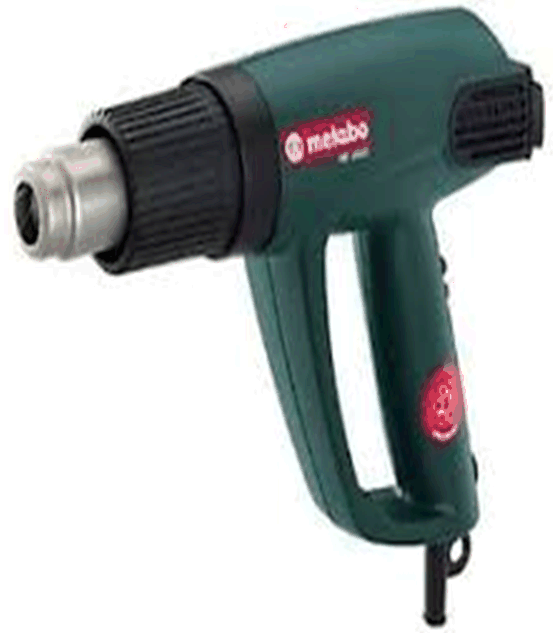

Industrial hot air blower gun |
 |

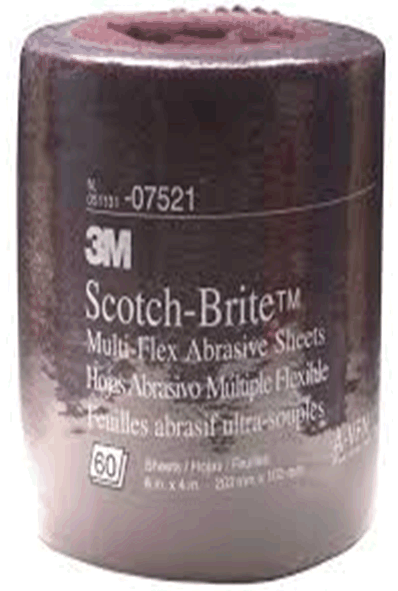

Nylon cleaning pads (Scotch Brite red or similar) |
 |

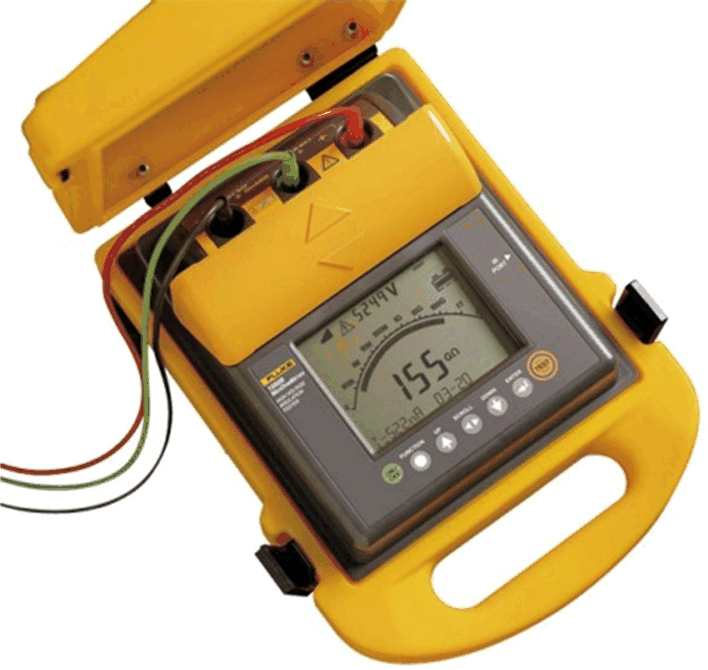

Insulation tester (Megohmmeter (1000 V)) |
 |

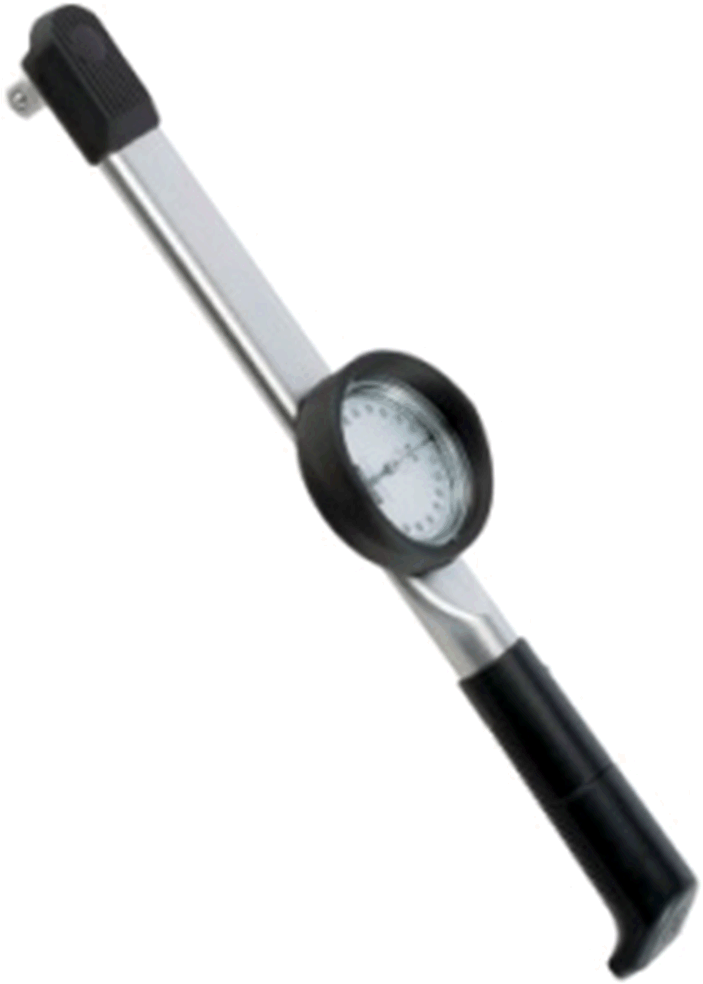

Torque wrench (10...22 mm) |
Equipment for Casting
 |

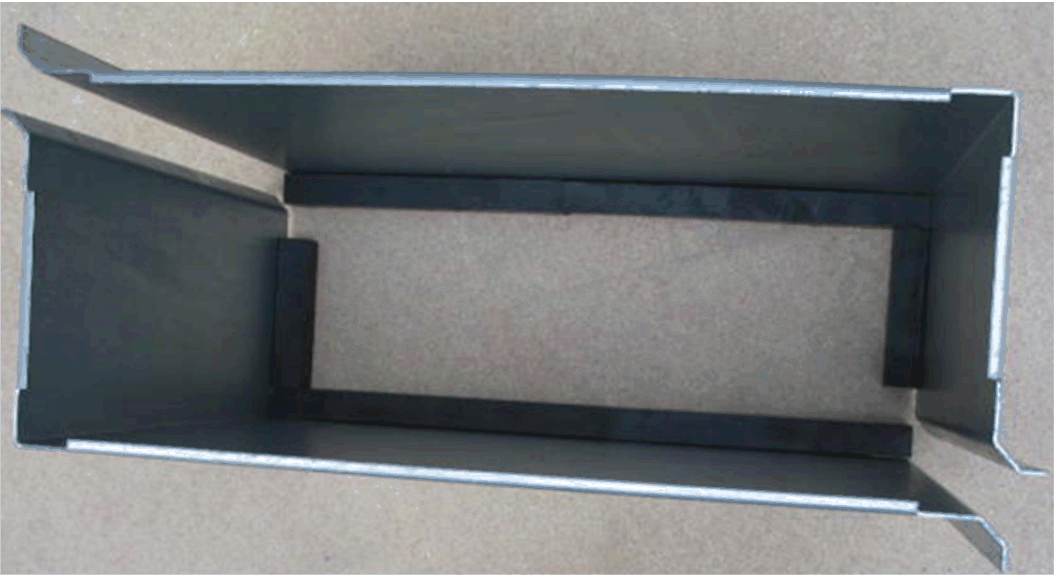

Moulds (Supplied with Canalis KR) |
 |

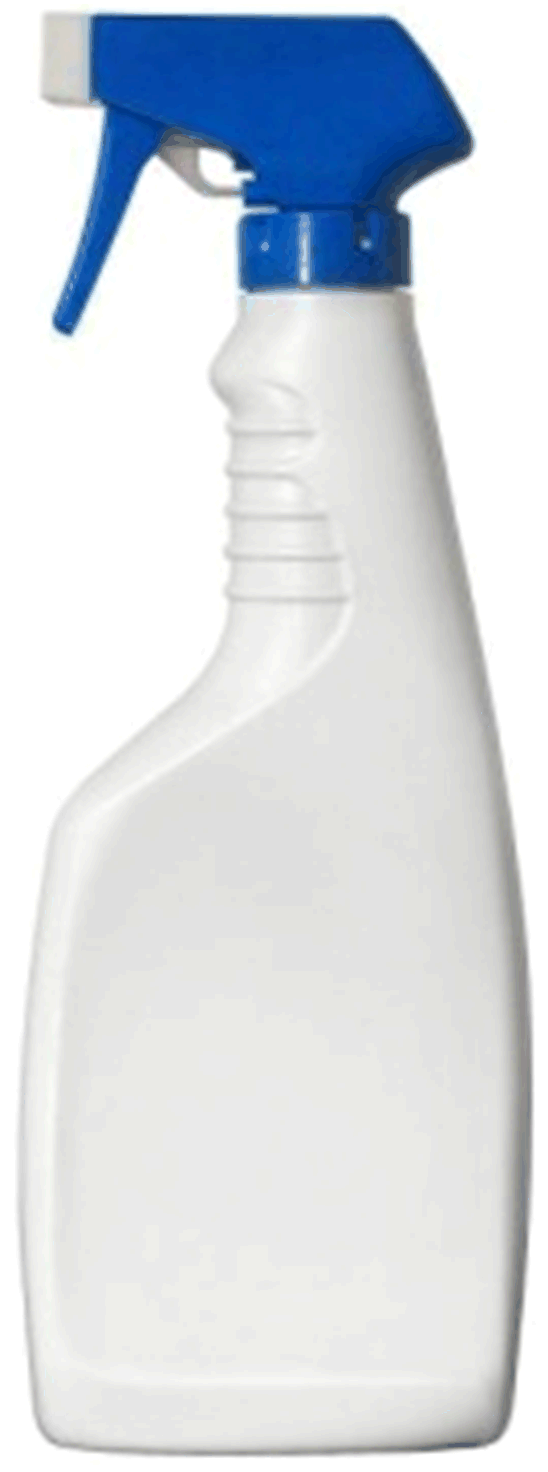

Spray bottle for demoulding agent |
 |

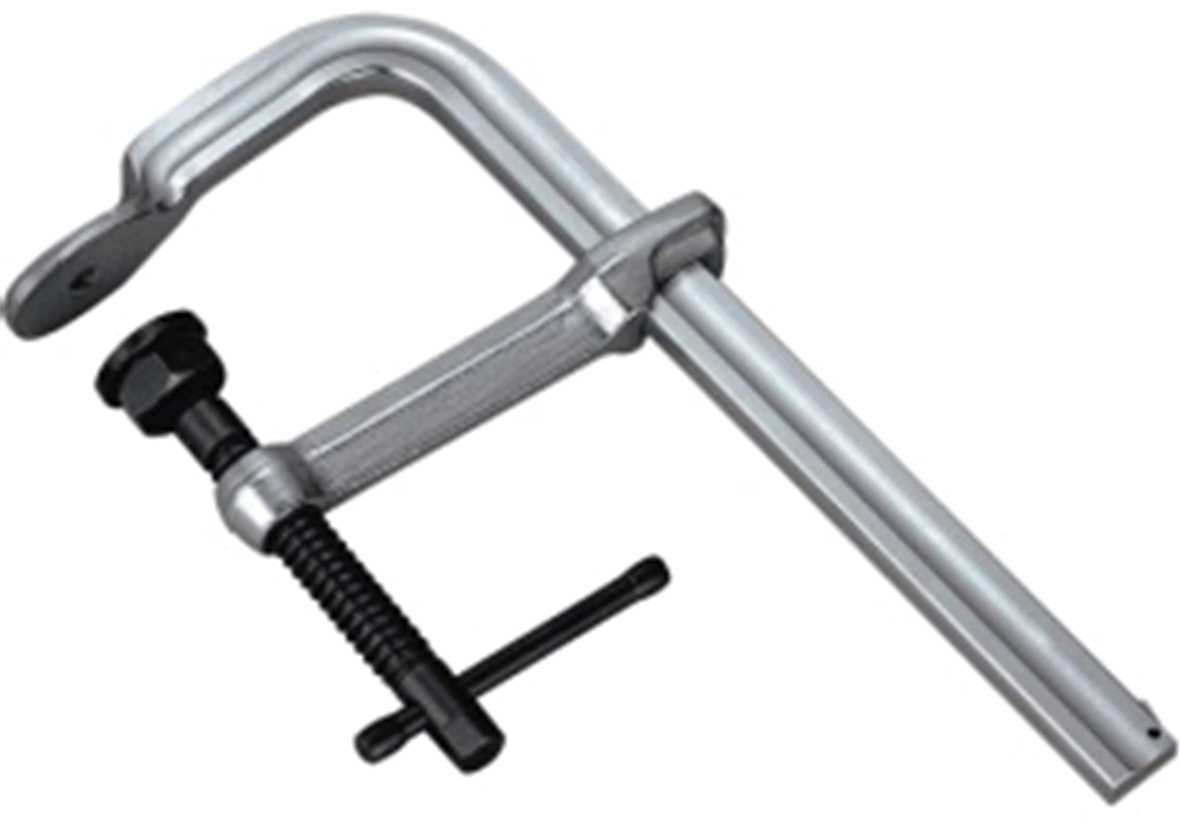

Clamping tools |
 |

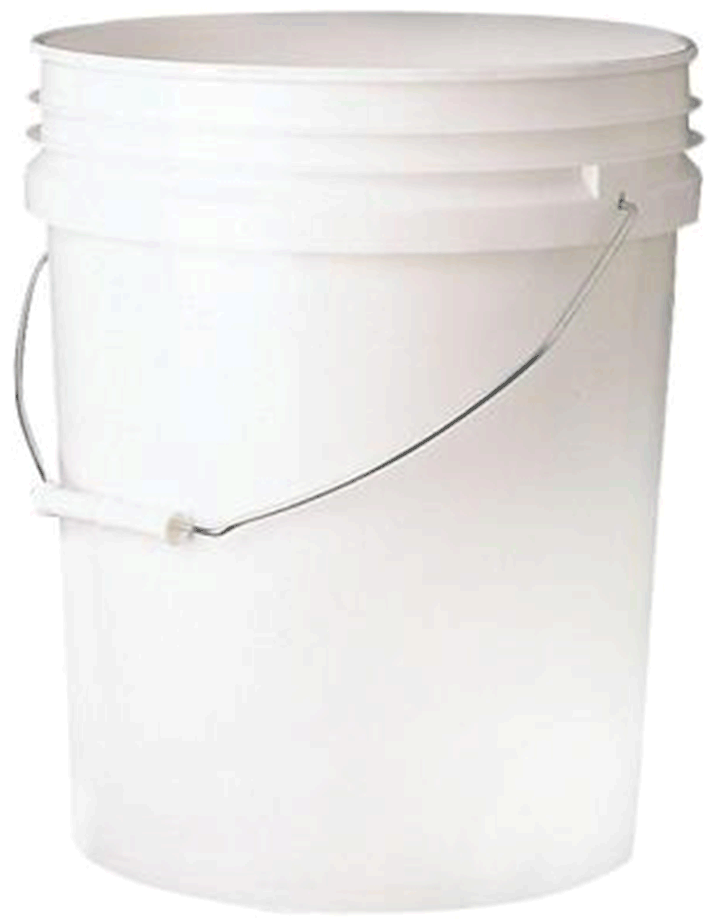

Empty bucket (10 litres) |
 |

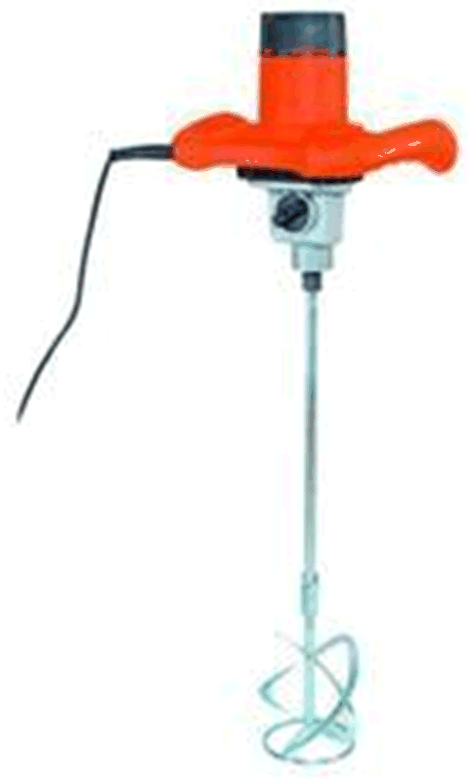

Industrial mixer (rated 750 W or above) |
 |

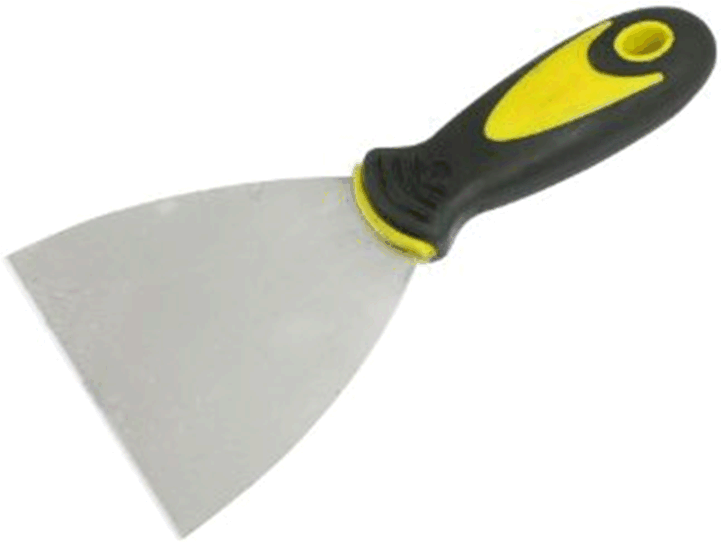

Spatula |
 |

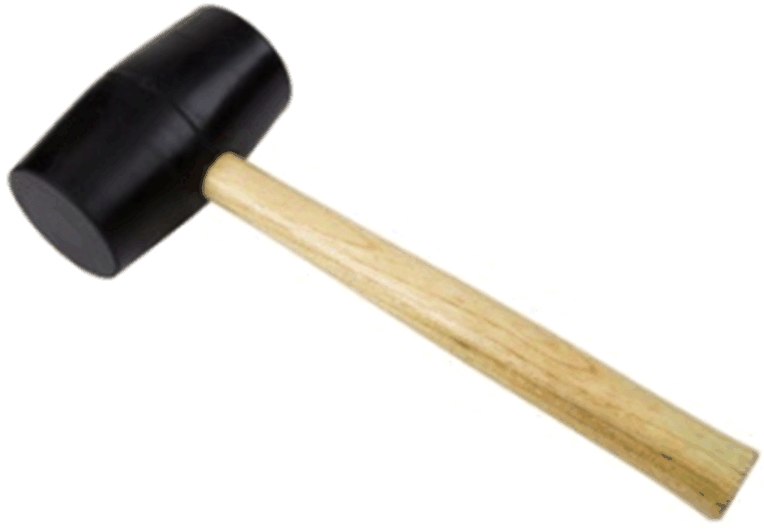

Rubber hammer |
 |

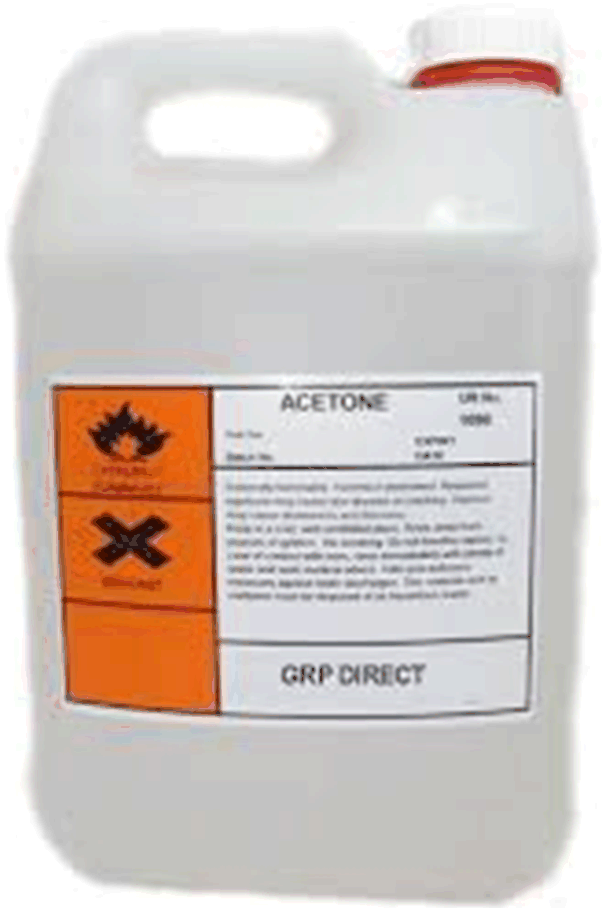

Cleaning agent |
 |

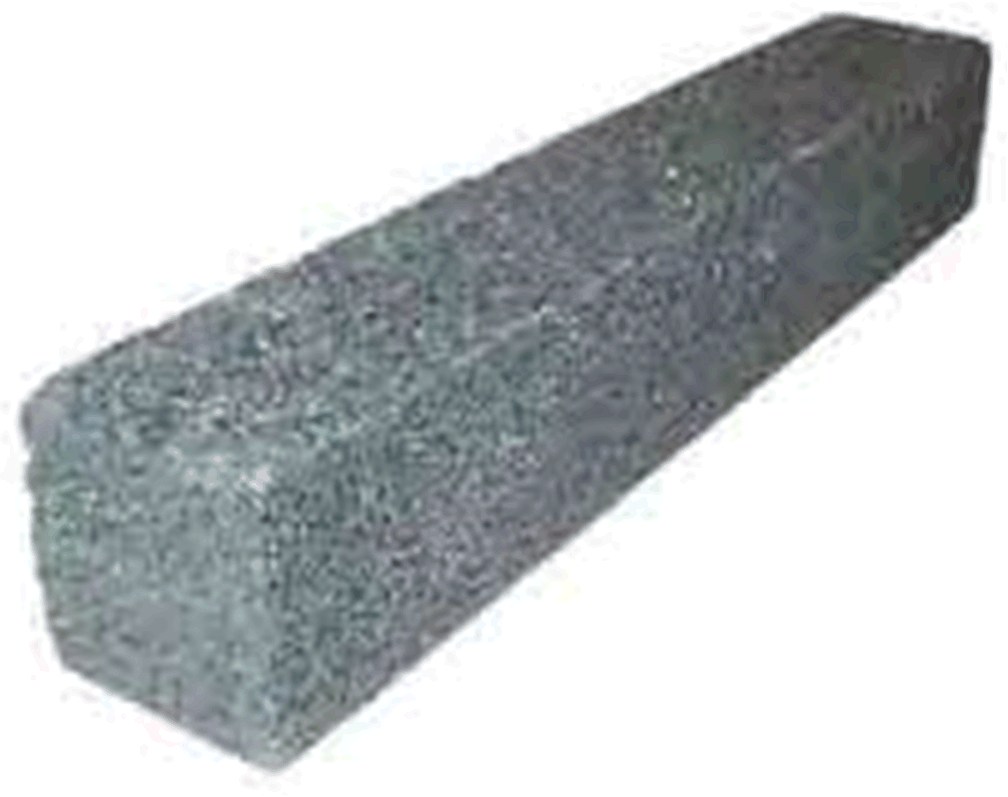

Grinding stone |
Chemicals and Casting Equipment Supplied with Canalis KR
Mineral filler, resin, and hardener
|
Materials |
Minimum quantity supplied |
Catalogue number |
|---|---|---|
|
Mineral filler |
1 bucket of 12 kg sand |
KRB0000MF1 |
|
Resin and Hardener |
One box of resin (component A) 1.9 kg One box of hardener (component B) 0.6 kg |
KRB0000RH1 |
Quantity of casting moulds
|
Rating of the trunking (A) |
Quantity |
Number of junctions |
|
|---|---|---|---|
| KRA | KRC | ||
|
0800 to 5000 |
1000 to 6300 |
One mould |
4 1 |
|
1 The minimum quantity of moulds per line is 4, in order to be able to mould all junctions of short runs at the same time. |
|||
Quantity of resin per junction
|
Rating of the trunking (A) |
Number of conductors |
Quantity of resin and hardener (Fraction of the box of resin/hardener) |
Quantity of mineral filler (Fraction of the bucket of sand) |
|
|---|---|---|---|---|
| KRA | KRC | |||
|
0800 |
1000 |
3 or 4 5 |
0.70 0.70 |
0.70 0.70 |
|
1000 |
1350 |
3 or 4 5 |
0.80 0.90 |
0.80 0.90 |
|
1250 |
1600 |
3 or 4 5 |
0.80 1.00 |
0.80 1.00 |
|
1600 |
2000 |
3 or 4 5 |
1.00 1.20 |
1.00 1.20 |
|
2000 |
2500 |
3 or 4 5 |
1.20 1.40 |
1.20 1.40 |
|
2500 |
3200 |
3 or 4 5 |
1.30 1.50 |
1.30 1.50 |
|
3200 |
4000 |
3 or 4 5 |
2.00 2.20 |
2.00 2.20 |
|
4000 |
5000 |
3 or 4 5 |
2.10 2.30 |
2.10 2.30 |
|
5000 |
6300 |
3 or 4 5 |
2.30 2.70 |
2.30 2.70 |
Preparing the mixture:
-
Proportions of the components in the mixture: 1 box of resin + 1 box of hardener + 1 bucket of mineral filler (or the equivalent ratio).
-
The quantity of resin mix needed for one junction depends on the size of the busway, as shown in the table above.
-
Example: Quantity to order for 1 line of KRC1600 3L+N with 9 junctions and 1 line of KRC2500 3L+N with 20 junctions: Resin + hardener: 0.8 x 9 + 1.2 x 20 = 31.2 -> 32; Mineral filler: 0.8 x 9 + 1.2 x 20 = 31.2 -> 32.
-
The quantity proposed takes into account that all junctions may not be cast using the same batch of mixture and that some of it may have to be discarded.
Amount of demoulding agent for connections:
|
Rating of the trunking (A) |
Connections |
Quantity of demoulding agent (Cat.no: KRB0000DA1) |
|
|---|---|---|---|
| KRA | KRC | ||
|
0800 to 1250 |
1000 to 1600 |
1 to 20 |
1 box |
|
1600 to 2500 |
2000 to 3200 |
1 to 15 |
1 box |
|
3200 to 5000 |
4000 to 6300 |
1 to 10 |
1 box |
