Non reset energy page
NOTE: Applicable for EM1250H and
EM1220H.
The parameters are available through communication and display in Maintain and cannot be reset. The values will overflow automatically when they reach maximum value.
To view Non Reset parameters:
- From the Home page, use Up or Down button to navigate to Maintain.
- Press OK.
- Press the Up or Down button to navigate to the Non Reset Energy page.
- Press OK.
- Press the Up or Down button to navigate to the next Non Reset Energy parameter.
- Press Left button to exit.

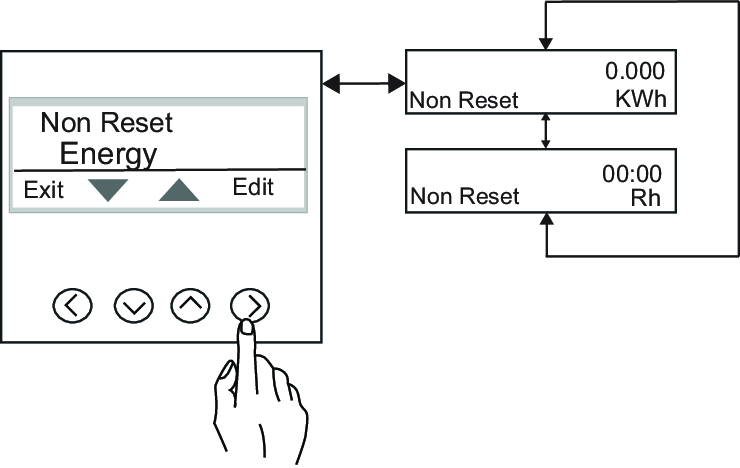

The navigation of Non Reset Energy parameters:
EM1250H
|
Name on display |
Description |
|---|---|
|
KWh |
Active energy |
|
KVARh |
Reactive energy |
|
KVAh |
Apparent energy |
|
Rh |
Run hours |
EM1220H
|
Name on display |
Description |
|---|---|
|
KWh |
Active energy |
|
Rh |
Run hours |
The status of Non Reset Energy with the commands
| Command | Non Reset Energy |
|
Reset sub systems |
No clear (update with Accumulated energy) |
|
Initialization |
No clear (update with Accumulated energy) |
|
Reset all accumulated energies |
No clear (update with Accumulated energy) |
