Grounding the meter using the socket base ground contacts

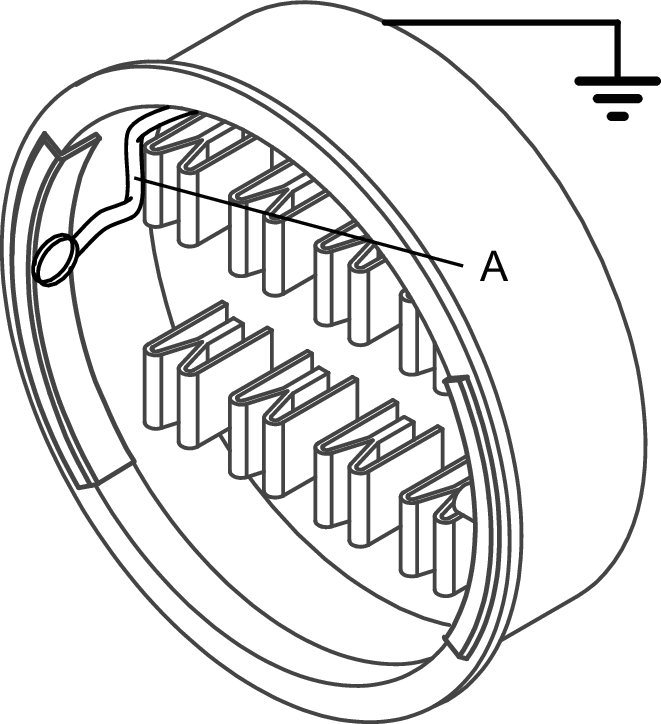

Use 3.31 mm2 (12 AWG) wire (A) to connect the socket base ground to earth ground.
  1. Inspect and clean the ground contacts (C) on the front of the socket base. Remove any paint, oxidation or other surface coating or contaminants that prevents proper electrical connection to meter’s ground contacts (B).
  2. Make sure that the meter ground contacts (B) are aligned with the socket base ground contacts (C) so they connect properly when the meter is mounted.
