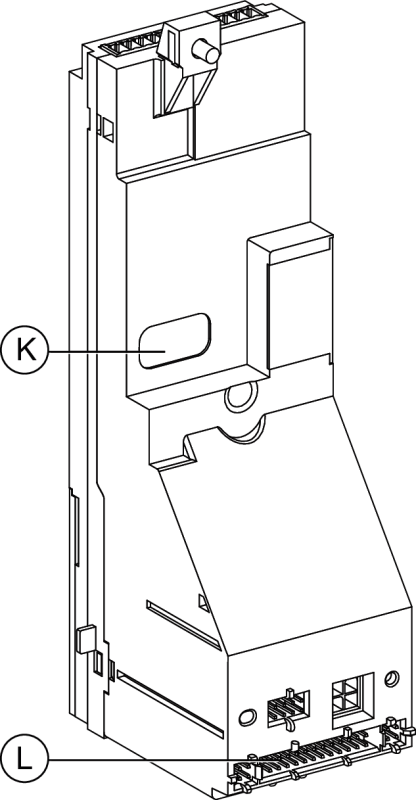

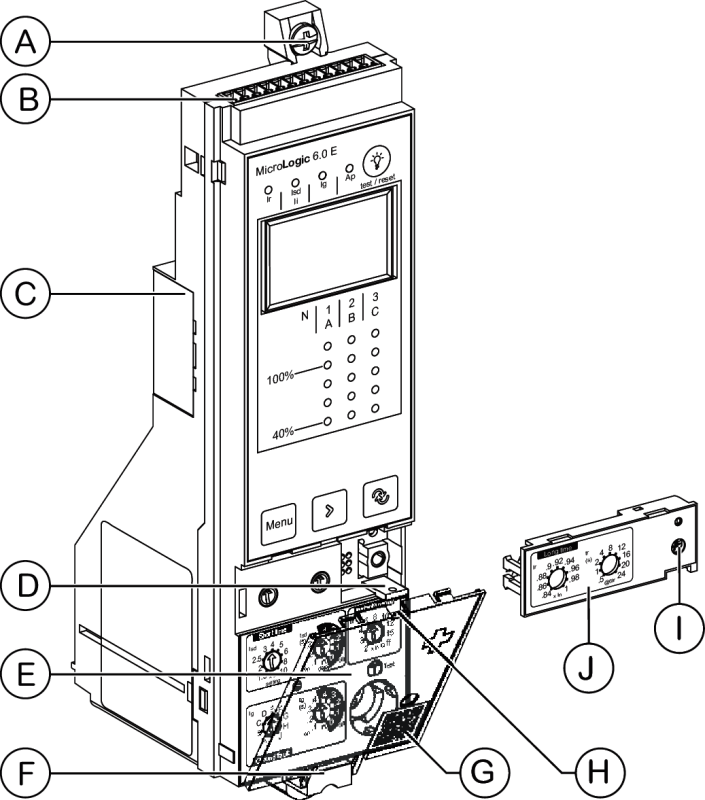

Description

  1. Top fastener

  2. Terminal block for external connections

  3. Battery compartment

  4. Lead-seal fixture for protective cover

  5. Protective cover

  6. Bottom fastener

  7. QR code on protective cover, to access product information

  8. Cover opening point

  9. Screw for long-time rating plug

  10. Long-time rating plug

  11. Infrared link with communication interface

  12. Connection with circuit breaker

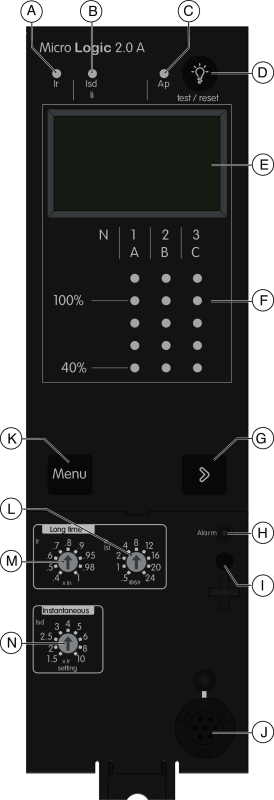

MicroLogic 2.0 A Trip Unit

  1. Long-time trip cause indication LED

  2. Instantaneous trip cause indication LED

  3. Auto-protection trip cause indication LED

  4. Fault-trip reset and battery test button

  5. Digital display

  6. Three-phase bargraph and ammeter

  7. Menu scroll button

  8. LED indicating an overload

  9. Screw for long-time rating plug

  10. Test connector

  11. Menu selection button

  12. Long-time time delay tr

  13. Long-time current setting Ir

  14. Instantaneous pickup Isd



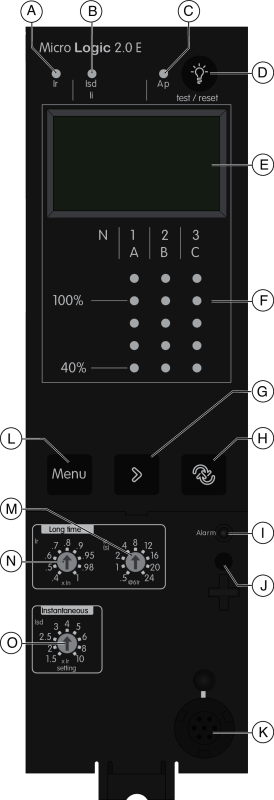

MicroLogic 2.0 E Trip Unit

  1. Long-time trip cause indication LED

  2. Instantaneous trip cause indication LED

  3. Auto-protection trip cause indication LED

  4. Fault-trip reset and battery test button

  5. Digital display

  6. Three-phase bargraph and ammeter

  7. Menu scroll button

  8. Quick View navigation button

  9. LED indicating an overload

  10. Screw for long-time rating plug

  11. Test connector

  12. Menu selection button

  13. Long-time time delay tr

  14. Long-time current setting Ir

  15. Instantaneous pickup Isd

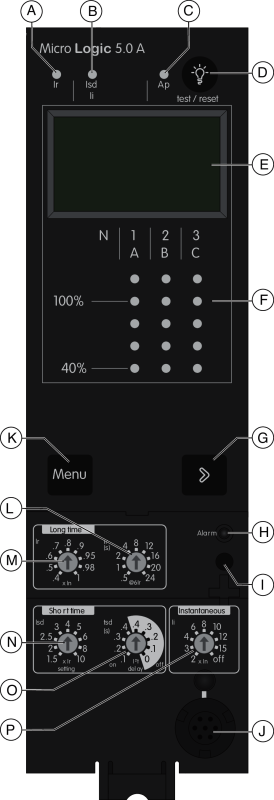

MicroLogic 5.0 A Trip Unit

  1. Long-time trip cause indication LED

  2. Short-time or instantaneous trip cause indication LED

  3. Auto-protection trip cause indication LED

  4. Fault-trip reset and battery test button

  5. Digital display

  6. Three-phase bargraph and ammeter

  7. Menu scroll button

  8. LED indicating an overload

  9. Screw for long-time rating plug

  10. Test connector

  11. Menu selection button

  12. Long-time time delay tr

  13. Long-time current setting Ir

  14. Short-time pickup Isd

  15. Short-time time delay tsd

  16. Instantaneous pickup Ii

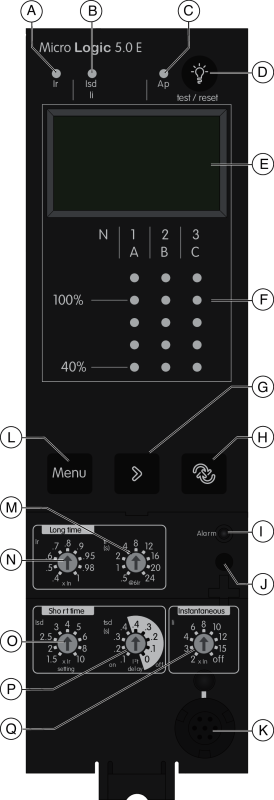

MicroLogic 5.0 E Trip Unit

  1. Long-time trip cause indication LED

  2. Short-time or instantaneous trip cause indication LED

  3. Auto-protection trip cause indication LED

  4. Fault-trip reset and battery test button

  5. Digital display

  6. Three-phase bargraph and ammeter

  7. Menu scroll button

  8. Quick View navigation button

  9. LED indicating an overload

  10. Screw for long-time rating plug

  11. Test connector

  12. Menu selection button

  13. Long-time time delay tr

  14. Long-time current setting Ir

  15. Short-time pickup Isd

  16. Short-time time delay tsd

  17. Instantaneous pickup Ii

MicroLogic 6.0 A Trip Unit

  1. Long-time trip cause indication LED

  2. Short-time or instantaneous trip cause indication LED

  3. Ground-fault trip cause indication LED

  4. Auto-protection trip cause indication LED

  5. Fault-trip reset and battery test button

  6. Digital display

  7. Three-phase bargraph and ammeter

  8. Menu scroll button

  9. LED indicating an overload

  10. Screw for long-time rating plug

  11. Test button for ground-fault and earth-leakage protection

  12. Test connector

  13. Menu selection button

  14. Long-time time delay tr

  15. Long-time current setting Ir

  16. Short-time pickup Isd

  17. Short-time time delay tsd

  18. Instantaneous pickup Ii

  19. Ground-fault pickup Ig

  20. Ground-fault time delay tg

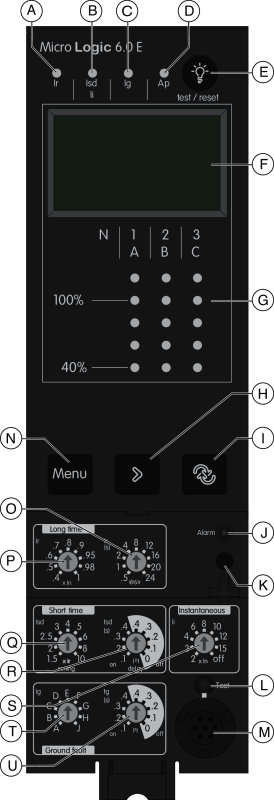

MicroLogic 6.0 E Trip Unit

  1. Long-time trip cause indication LED

  2. Short-time or instantaneous trip cause indication LED

  3. Ground-fault trip cause indication LED

  4. Auto-protection trip cause indication LED

  5. Fault-trip reset and battery test button

  6. Digital display

  7. Three-phase bargraph and ammeter

  8. Menu scroll button

  9. Quick View navigation button

  10. LED indicating an overload

  11. Screw for long-time rating plug

  12. Test button for ground-fault and earth-leakage protection

  13. Test connector

  14. Menu selection button

  15. Long-time time delay tr

  16. Long-time current setting Ir

  17. Short-time pickup Isd

  18. Short-time time delay tsd

  19. Instantaneous pickup Ii

  20. Ground-fault pickup Ig

  21. Ground-fault time delay tg

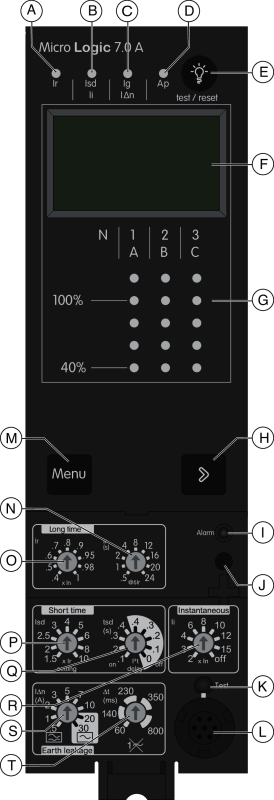

MicroLogic 7.0 A Trip Unit

  1. Long-time trip cause indication LED

  2. Short-time or instantaneous trip cause indication LED

  3. Earth-leakage trip cause indication LED

  4. Auto-protection trip cause indication LED

  5. Fault-trip reset and battery test button

  6. Digital display

  7. Three-phase bargraph and ammeter

  8. Menu scroll button

  9. LED indicating an overload

  10. Screw for long-time rating plug

  11. Test button for ground-fault and earth-leakage protection

  12. Test connector

  13. Menu selection button

  14. Long-time time delay tr

  15. Long-time current setting Ir

  16. Short-time pickup Isd

  17. Short-time time delay tsd

  18. Instantaneous pickup Ii

  19. Earth-leakage pickup I∆n

  20. Earth-leakage time delay ∆t
