Measurements
Measurement and Display Possibilities
MicroLogic A trip unit measures instantaneous currents and stores the maximum values in maximeters.
MicroLogic E trip unit measures the same values as the MicroLogic A trip unit, plus voltage, power and energy values.
MicroLogic A/E trip unit measurements can be displayed on:
-
The screen of the trip unit (refer to the detailed topic for MicroLogic A trip unit, refer to the detailed topic for MicroLogic E trip unit)
-
An optional FDM121 front display module
-
A PC via the Modbus communication (COM) option (refer to the detailed topic).
The following table indicates MicroLogic A/E trip unit measurement and display possibilities.
Measurements |
MicroLogic A |
MicroLogic E |
Displayed on: |
||
---|---|---|---|---|---|
MicroLogic |
FDM121 |
COM |
|||
Instantaneous currents I1, I2, I3, IN, Ig, IΔn |
✔ |
✔ |
✔ |
✔ |
✔ |
Current maximeters I1max, I2max, I3max, INmax, Igmax, IΔnmax |
✔ |
✔ |
✔ |
✔ |
✔ |
Demand current I1, I2, I3, IN |
– |
✔ |
✔ |
✔ |
✔ |
Demand current maximeters (peak demand) I1 max, I2 max, I3 max, IN max |
– |
✔ |
– |
✔ |
✔ |
Phase-to-phase voltages V12, V23, V31 (3-wire and 4-wire systems) |
– |
✔ |
✔ |
✔ |
✔ |
Phase-to-neutral voltages V1N, V2N, V3N (4-wire systems) |
– |
✔ |
✔ |
✔ |
✔ |
Average voltage Vavg |
– |
✔ |
– |
✔ |
✔ |
Voltage unbalance Vunbal |
– |
✔ |
– |
✔ |
✔ |
Instantaneous powers P, Q, S |
– |
✔ |
✔ |
✔ |
✔ |
Power maximeters Pmax, Qmax, Smax |
– |
✔ |
– |
✔ |
✔ |
Demand active power P |
– |
✔ |
✔ |
✔ |
✔ |
Demand apparent power S |
– |
✔ |
– |
✔ |
✔ |
Demand power maximeter (peak demand) Pmax |
– |
✔ |
– |
✔ |
✔ |
Instantaneous power factor PF |
– |
✔ |
✔ |
✔ |
✔ |
Active energy Ep |
– |
✔ |
✔ |
✔ |
✔ |
Reactive and apparent energy Eq, Es |
– |
✔ |
– |
✔ |
✔ |
If no information is displayed on the screen, refer to MicroLogic Display.
-
The instantaneous currents I1, I2, I3 are also displayed by LEDs on the MicroLogic front face.
-
The display of the neutral current (IN) is available with MicroLogic E trip unit when the parameter Type of network has been set to 4-wire 4ct (44).
-
For 3-pole circuit breakers used on 4-wire systems (3 phases + neutral), terminal VN on the MicroLogic trip unit must always be connected to the neutral. If this is not done, the phase-to-neutral voltage measurements can be erroneous.
Measurement Definitions
Measurement | Definition |
---|---|
Instantaneous current |
The rms value of the instantaneous time current. |
Neutral current |
Available with a four-pole circuit breaker or three-pole circuit breaker with external neutral sensor. |
Current maximeter |
Maximum value of the instantaneous time current (refreshed every 500 ms) since MicroLogic installation or last reset. |
Demand current |
Mean of all instantaneous time current values over a given user-adjustable time interval (for example, 10 minutes). For more information, refer to Calculating Demand Values. |
Voltage |
The rms value of the voltage. |
Average voltage |
Average of the 3 phase-to-phase voltages V12, V23 and V31: |
Voltage unbalance |

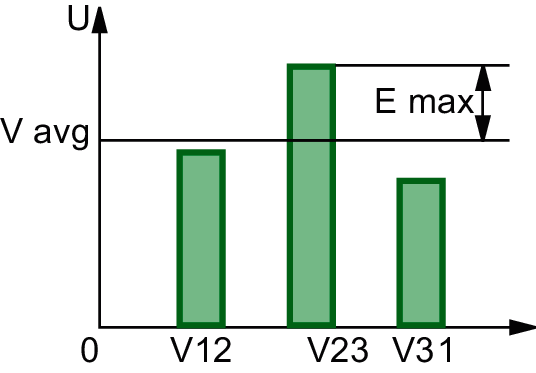

Voltage unbalance on the most unbalanced phase, displayed as a percentage of Vavg. MicroLogic Etrip unit measures the maximum difference between the instantaneous time voltage of each phase and Vavg, and calculates the voltage unbalance: |
Instantaneous power |
P: total active power Q: total reactive power S: total apparent power P, Q and S are rms instantaneous values. |
Power maximeter |
Maximum value of the instantaneous time power (refreshed every 1 s) since MicroLogic installation or last reset. |
Demand power |
Mean of all instantaneous time power values over a given user-adjustable time interval (for example, 10 min). For more information, refer to Calculating Demand Values. |
Instantaneous power factor PF |
PF = P / S |
Total energy |
Ep: total active energy Eq: total reactive energy Es: total apparent energy |
