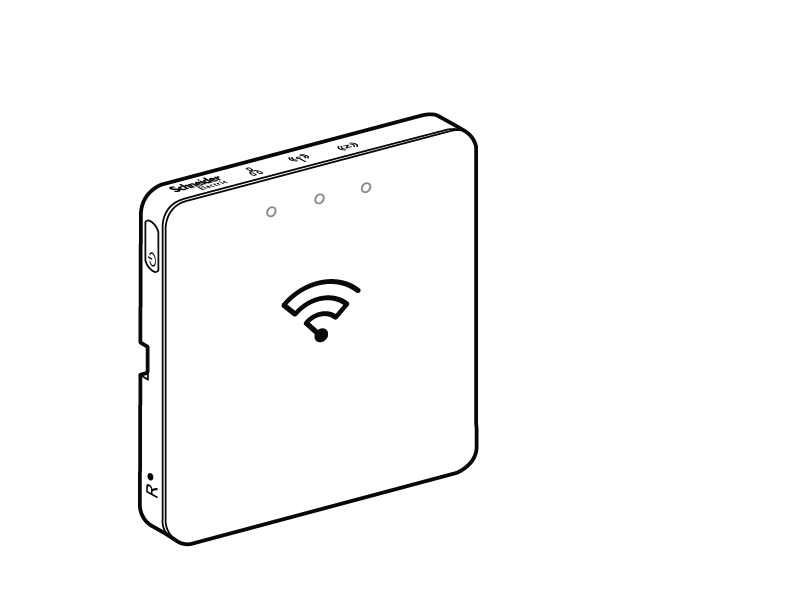

A short animation is provided in this topic to understand
(See A) Locate the Ethernet port on the Hub.
Connect an Ethernet cable between the Hub and the router to suit the installation method used for the hub:
(See B) Wall mount using two
(See C) Table mount using optional
You must add the hub to the app before you can add devices to control them.
To do this, first download and install the app on your mobile phone
(see Downloading the app) and register a user account. You
can then add the hub and optionally connect the hub to the network router by Wi-Fi.
