MasterPacT NT/NW Universal Power Circuit Breakers – Catalog PDF
0613CT0001

MasterPacT NW Dimensional Drawings

MasterPacT NT Enclosure Information

Minimum Enclosure Information

Number of Poles

Circuit Breaker Rating

Circuit Breaker Enclosure Dimensions

Ventilation Area

(H x W x D)

Top

Bottom

in.

mm

in.2

mm2

in.2

3

800 to 1600 A (N, H, L1)

18.25 x 13 x 9.5

463.5 x 330.2 x 241.3

9

5806

9

800 to 1600 A (L)

62.25 x 23 x 14.75

1581.2 x 584.2 x 374.7

16.5

10645

16.5

4

800 to 1600 A (N, H, L1)

18.25 x 15.8 x 9.5

463.5 x 401.3 x 241.3

9

5806

9

800 to 1600 A (L)

62.25 x 25.76 x 14.75

1581.2 x 654.2 x 374.7

16.5

10645

16.5

MasterPacT NW UL/ANSI Three-Pole Drawout Circuit Breakers

800–3000 A and 4000 A (H1, H2, H3) Master Drawing

800–2000 A Rear-Connected "T" Vertical (RCTV)

800–2000 A Rear-Connected "T" Horizontal (RCTH)



800–2000 A Front-Connected Flat (FCF)

800–3000 A Front-Connected "T" (FCT)

2500–3000 A Rear-Connected "T" Horizontal (RCTH)

2000 A L1 and 3200 A Rear-Connected Offset Vertical (RCOV)

2500–3000 A Rear-Connected "T" Vertical (RCTV)

3200 A L1 and 4000–6000 A Master Drawing

3200 A L1 and 4000–5000 A Rear-Connected "T" Vertical (RCTV)

3200 A L1 and 4000–5000 A Rear-Connected "T" Horizontal (RCTH)

3200 A L1 and 4000 A Front-Connected Flat (FCF)

3200 A L1 and 4000–5000 A Front-Connected "T" (FCT)

6000 A Rear-Connected "T" Vertical (RCTV)

Drawout Cradle Mounting

800–3000 A and 3200 A (H1, H2, H3) Door Cutout

3200 A L1 and 4000–6000 A Door Cutout

Door Escutcheon Hole Pattern

MasterPacT NW Drawout Cradle Mounting

800–3000 A, 3200 A and 4000 A (W-Frame) Master Drawing

800–2000 A Rear-Connected "T" Vertical (RCTV)

800–2000 A Rear-Connected "T" Horizontal (RCTH)

800–2000 A Front-Connected Flat (FCF)

800–3000 A Front-Connected "T" (FCT)

2500–3000 A Rear-Connected Vertical "T" Horizontal (RCTV)

2500–3000 A Rear-Connected "T" Horizontal (RCTH)

2000 A L1 and 3200 A Rear-Connected Offset Vertical (RCOV)

4000 A (W-Frame) Rear-Connected Offset Vertical (RCOV)

4000–6000 A Master Drawing

4000–5000 A Rear-Connected "T" Vertical (RCTV)

4000–5000 A Rear-Connected "T" Horizontal (RCTH)

6000 A Rear-Connected "T" Vertical (RCTV)

800–3200 A and 4000 A (W-Frame) Circuit Breaker Door Cutout

4000–6000 A Door Cutout

Door Escutcheon Hole Pattern

MasterPacT NW UL/ANSI Three-Pole Fixed Circuit Breakers

800–3000 A, 3200 A and 4000 A (W-Frame) Master Drawing

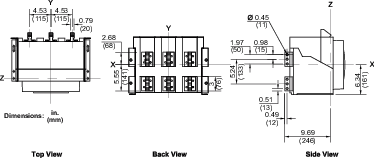

800–2000 A Rear-Connected "T" Vertical (RCTV)

800–2000 A Rear-Connected "T" Horizontal (RCTH)

800–2000 A Front-Connected Flat (FCF)

800–3000 A Front-Connected "T" (FCT)

2500–3000 A Rear-Connected Vertical "T" Horizontal (RCTV)

2500–3000 A Rear-Connected "T" Horizontal (RCTH)

2000 A L1 and 3200 A Rear-Connected Offset Vertical (RCOV)

4000 A (W-Frame) Rear-Connected Offset Vertical (RCOV)g

4000–6000 A Master Drawing

4000–5000 A Rear-Connected "T" Vertical (RCTV)

4000–5000 A Rear-Connected "T" Horizontal (RCTH)

6000 A Rear-Connected "T" Vertical (RCTV)

800–3200 A and 4000 A (W-Frame) Circuit Breaker Door Cutout

4000–6000 A Door Cutout

MasterPacT NW UL/ANSI Four-Pole Drawout Circuit Breakers

800–3000 A and 3200 A Master Drawing

800–2000 A Rear-Connected "T" Vertical (RCTV)

800–2000 A Rear-Connected "T" Horizontal (RCTH)

800–2000 A Front-Connected Flat (FCF)

800–3000 A Front-Connected "T" (FCT)

2500–3000 A Rear-Connected "T" Vertical (RCTV)

2500–3000 A Rear-Connected "T" Horizontal (RCTH)

2000 A L1 and 3200 A Rear-Connected Offset Vertical (RCOV)

3200 A L1 and 4000–6000 A Master Drawing

3200 A L1 and 4000–5000 A Rear-Connected "T" Vertical (RCTV)

3200 A L1 and 4000–5000 A Rear-Connected "T" Horizontal (RCTH)

3200 A L1 and 4000 A Front-Connected Flat (FCF)

3200 A L1 and 4000–5000 A Front-Connected "T" (FCT)

6000 A Rear-Connected "T" Vertical (RCTV)

MasterPacT NW Neutral Current Transformers

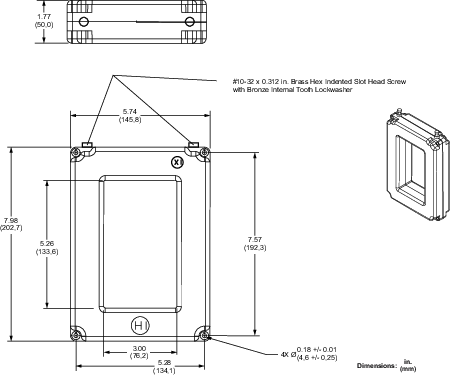

Neutral Current Transformer 100–1600 A, 2000–4000 A

Neutral Current Transformer 2000–4000 A

Double Neutral Current Transformer 2000–6300 A

MDGF/SGR Current Transformer

MasterPacT NW IEC Three-Pole Drawout Circuit Breakers

800–3200 A Rear-Connected "T" Vertical (RCTV)

800–3200 A Rear-Connected "T" Horizontal (RCTH)

800–3200 A Front-Connected Flat (FCF)

4000 A Rear-Connected "T" Vertical (RCTV)

4000 A Rear-Connected "T" Horizontal (RCTH)

5000 A Rear-Connected "T" Vertical (RCTV)

5000 A Rear-Connected "T" Horizontal (RCTH)

6300 A Rear-Connected "T" Vertical (RCTV)

MasterPacT NW IEC Three-Pole Fixed Circuit Breakers

800–3200 A Rear-Connected "T" Vertical (RCTV)

800–3200 A Rear-Connected "T" Horizontal (RCTH)

800–3200 A Front-Connected Flat (FCF)

4000 A Rear-Connected "T" Vertical (RCTV)

4000 A Rear-Connected "T" Horizontal (RCTH)

5000 A Rear-Connected "T" Vertical (RCTV)

5000 A Rear-Connected "T" Horizontal (RCTH)

6300 A Rear-Connected "T" Vertical (RCTV)

MasterPacT NW IEC Four-Pole Drawout Circuit Breakers

800–3200 A Rear-Connected "T" Vertical (RCTV)

800–3200 A Rear-Connected "T" Horizontal (RCTH)

800–3200 A Front-Connected Flat (FCF)

4000 A Rear-Connected "T" Vertical (RCTV)

4000 A Rear-Connected "T" Horizontal (RCTH)

5000 A Rear-Connected “T” Vertical (RCTV)

5000 A Rear-Connected “T” Horizontal (RCTH)

6300 A Rear-Connected “T” Vertical (RCTV)

MasterPacT NW IEC Four-Pole Fixed Circuit Breakers

800–3200 A Rear-Connected "T" Vertical (RCTV)

800–3200 A Rear-Connected "T" Horizontal (RCTH)

800–3200 A Front-Connected Flat (FCF)

4000 A Rear-Connected "T" Vertical (RCTV)

4000 A Rear-Connected "T" Horizontal (RCTH)

5000 A Rear-Connected “T” Vertical (RCTV)

5000 A Rear-Connected “T” Horizontal (RCTH)

6300 Rear-Connected “T” Vertical (RCTV)
