Dashboard Navigation

Overview

The Home Page of the Local Web Dashboard (LWD) provides a quick navigation panel to access key configuration and control options for your Flex Server. From Home Page, users can Access Network Configuration, Server Management, User Configuration, and Equipment Controls.

The home screen offers panels for:

Network Settings: Ethernet, Wi-Fi, and SIM configuration
Hardware Info: MAC Address, Serial Number, and SPIN Version
Control Screen: Manage and sync equipment with cloud data

Network Configuration

Ethernet Configuration: Manage static IP, DNS, router IP, and protocol type.

Static IP flow

Field	Description	Example
IP	Static IP address	192.168.0.150
DNS	DNS server address	8.8.8.8
Router IP	Default gateway/router address	192.168.0.1
Protocol	Set to Static for manual network settings	Static

DHCP flow

Field	Description	Example
Protocol	Set to DHCP for automatic IP configuration	DHCP

NOTE: In DHCP mode, no other fields are required. The IP, DNS, and Router IP will be auto assigned.

Wi-Fi Configuration: Configure SSID, password, router IP, DNS, and protocol (DHCP/static).

NOTE: Wi-Fi Access: Accessing LWD over Wi-Fi is not recommended. Customers should create a separate VLAN (Wi-Fi) dedicated to the IoT server to ensure secure and reliable access.

Static IP flow

Field	Description	Example
SSID	Wireless network name	Office_WiFi_01
Password	Wi-Fi Password	securewifi2024
Router IP	Default gateway for Wi-Fi network	192.168.43.1
DNS	DNS server address	8.8.4.4
Protocol	Set to Static for manual network settings	Static
Password Status	Toggle to enable/disable password authentication	True

DHCP flow

Field	Description	Example
SSID	Wireless network name	Guest_Network
Password	Wi-Fi password (if Password Status is True)	welcome123
Protocol	Set to DHCP for automatic IP settings	DHCP

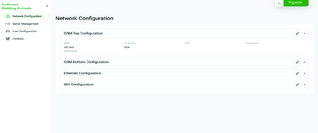

GSM Top / GSM Bottom Configuration: Set APN, Username, Password, PIN, and View activation status for cellular connectivity.

Field	Description
APN	Access Point Name for network connectivity
Username	SIM username (if provided by network)
Password	SIM password (if provided by network)
PIN	SIM PIN (if applicable)

Server Management/Hardware Details

The Hardware Details section provides essential information about the device's network interface, onboard compute module, and installed SIM card.

NOTE: The fields listed below are read-only and cannot be modified locally.

Field	Description
MAC Address	Displays unique hardware address of the device’s network interface.
Serial Number	Displays unique identifier assigned to the hardware by the manufacturer.
SPIN Version	Displays version number of the SPIN software currently running on the device.
Compute Module Number	Displays identifier for the onboard compute module inside the device.
SIM Number	Displays unique number associated with the SIM card installed in the device.

NOTE: We do not recommend to use SIM with username, password and PIN, If SIM is not having these information, these can be skipped as information can be automatically configured via automatic APN script, take reference from the SIM configuration section.

Control Screen

The Controls section of the Local Web Dashboard (LWD) allows users to view and manage operational controls for equipment connected to the current Flex-Server.

Field	Description
Unit Preference	Select the preferred measurement system (Imperial/Metric).
Select Equipment Type	Choose the equipment type available under the current Flex-Server.
Equipment Name	Displays the name of the connected equipment.
ON/OFF Control	Shows the current operational status (ON/OFF Control) of the equipment.
Control Type	Displays the control method – typically Override.

Click the Edit icon() next to the Control Type to apply a temporary Override.

You can select one of the following durations for the override:

30 Minutes
1 Hour
2 Hours

The selected ON/OFF Control state will remain active for the chosen period, after which it will automatically return to its scheduled or default behaviour.

User can view list of equipment synced from the cloud.
User can verify equipment name, override duration and status.

NOTE:

Equipment names are read-only on the local dashboard and can only be edited from the cloud.
All control actions on the Local Web Dashboard (LWD) are automated.
Any configuration changes on the LWD require a rollout from the cloud, as the dashboard operates on the edge.
Only parameters with Actuation Type: True and Visibility: True will be displayed for the selected equipment on the LWD.
Only equipment under the current Flex-Server will be visible – no cross- Flex-Server equipment will appear on this dashboard.
