Status inputs are typically used for monitoring the status of external contacts or circuit breakers and multi-tariff applications.

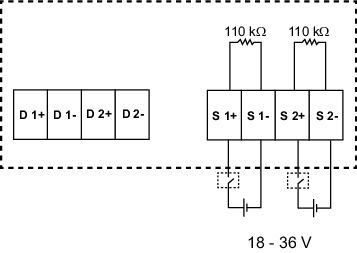

The meter’s status inputs require either an external voltage source or whetting voltage (provided in the meter) to detect the status input’s ON/OFF state. The meter detects an ON state if the external voltage appearing at the status input is within its operating range.
