Connection of the Service Interface to a MicroLogic Trip Unit

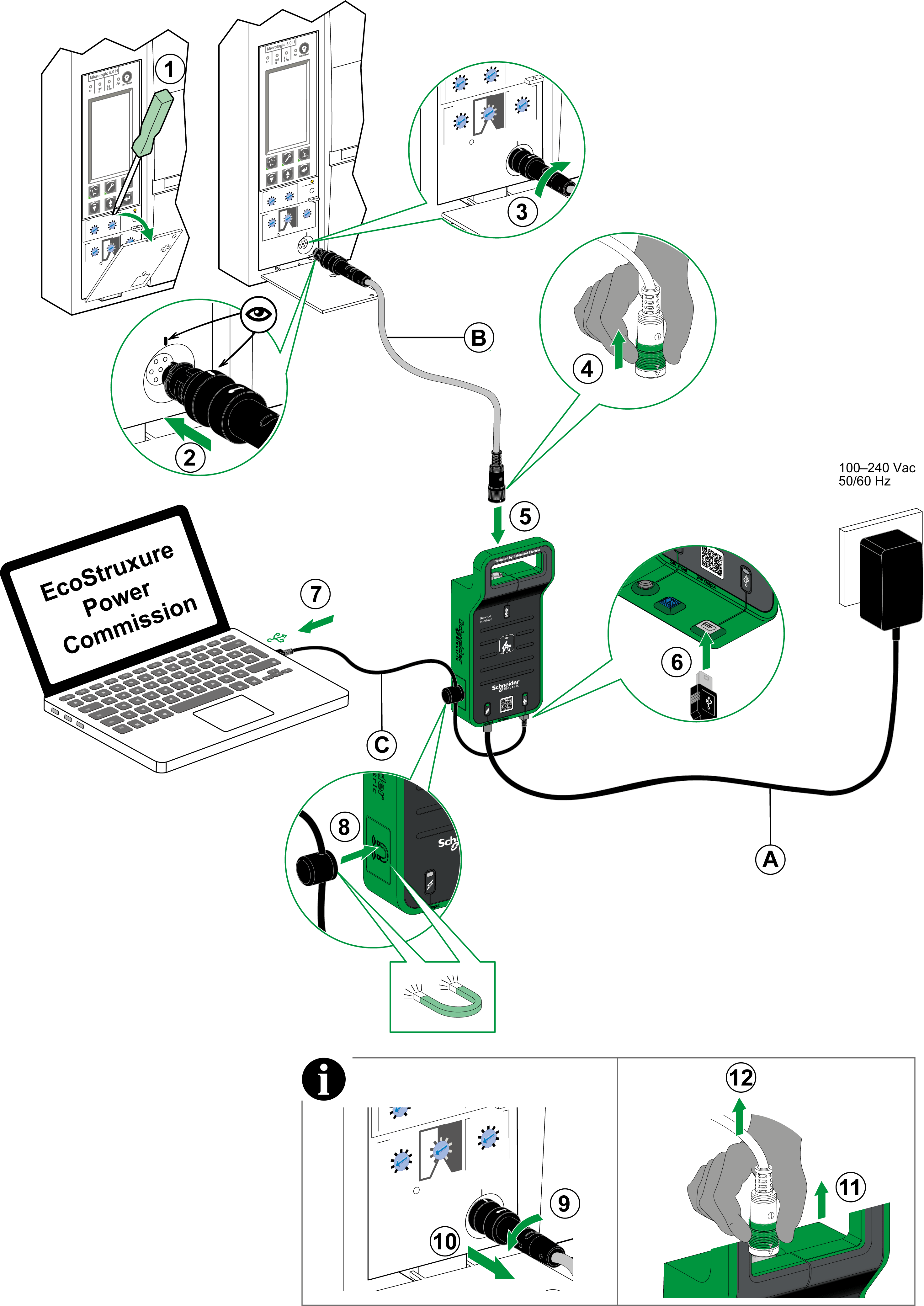

Connect the Service Interface to the MicroLogic trip unit test port using the cable LV485512SP.

  1. AC/DC power

  2. 7-pin cable for 630–6300 A ACB MCCB trip units

  3. USB cable with magnet
