Hardware Description

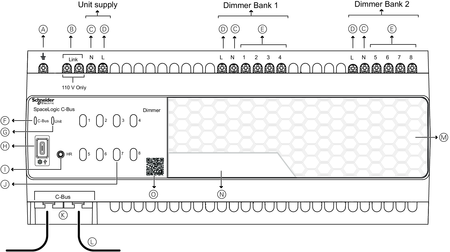

8 Channel Dimmer

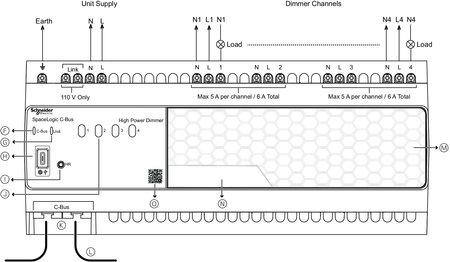

4 Channel Dimmer

A: Earth

B: Wire Link Terminal for 110 V

C: Neutral

D: Active Line

E: Load Connections

F: C-Bus Indicator

G: Unit Indicator

H: USB (Type-C) Connector

I : Hard Reset Button

J: Channel Button Indicators

K: C-Bus Connectors 2x RJ-45

L: C-Bus Network Cable.

M: Transparent Removable Cover

N: Space for Labelling

O: QR Code for Product Details and Serial Number

Phase Banks

The Dimmers have 2 separate dimming banks which require separate active and neutral connections.

The dimming banks can be connected to :

  • different phases to each other, and

  • can also be connected from different phases to the dimmer’s unit power supply. For details refer, 8 channel dimmer and wiring
