Analog output applications
For analog output operation, the meter takes an input value and scales it to the appropriate signal value to send out the physical analog output port.

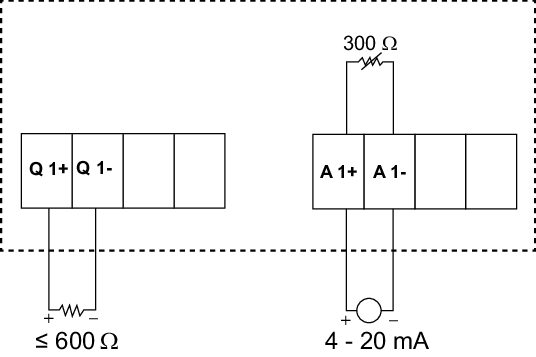

Wiring the analog output

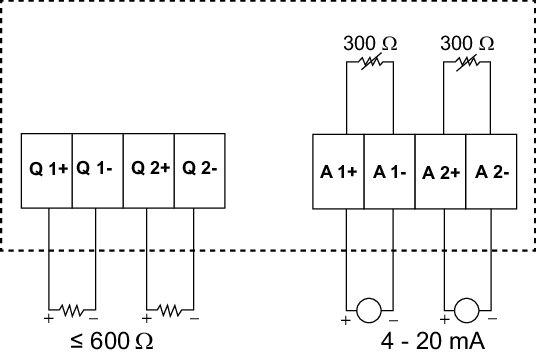

Wiring the dual analog output
You can configure the following analog outputs on your meter through communication only:
|
Parameters |
Description |
|---|---|
|
Current |
Current: Phase wise |
|
Current Average |
|
|
Current Unbalance: Phase wise |
|
|
Current Unbalance Worst |
|
|
Voltage |
Voltage L-L: Phase wise |
|
Voltage L-L Avg |
|
|
Voltage L-N: Phase wise |
|
|
Voltage L-N Avg |
|
|
Voltage Unbalance L-L: Phase wise |
|
|
Voltage Unbalance L-L Worst |
|
|
Voltage Unbalance L-N: Phase wise |
|
|
Voltage Unbalance L-N Worst |
|
|
Power |
Active Power: Phase wise |
|
Active Power Total |
|
|
Reactive Power: Phase wise |
|
|
Reactive Power Total |
|
|
Apparent Power: phase wise |
|
|
Apparent Power Total |
|
|
PF |
PF Total |
|
Frequency |
Frequency |
