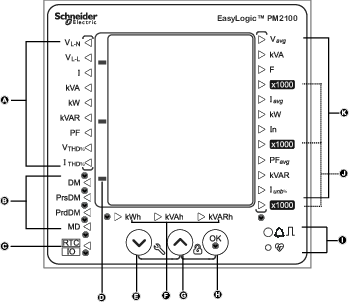

Display overview
The display lets you use the meter to perform various tasks
such as setting up the meter, displaying data screens, or performing
resets.
|
A |
Phase measurements |
VL-N, VL-L, I, kVA, kW, kVAR, PF, VTHD, ITHD |
|
B |
Demand measurements |
DM, PrsDM, PrdDM, MD |
|
C |
RTC (Amber) / IO (Green) |
|
|
D |
Negative indicator |
|
|
E |
Navigation key |
To navigate down |
|
F |
Energy readings |
Apparent energy, Active energy, and Reactive energy |
|
G |
Navigation key |
To navigate up |
|
H |
OK |
Enter key |
|
I |
Energy pulsing LED (Red) Heartbeat / communications LED (Green) |
|
|
J |
x 1000 indicator |
|
|
K |
System measurements |
Vavg, kVA, F, Iavg, kW, In, PFavg, kVAR, Iunb |
