Analog input applications
For analog input operation, the meter takes an analog input signal and provides the resulting scaled value. Analog inputs may show a value below zero scale if an open circuit is detected on the input port.
You can set the analog input’s mode for current sensing.

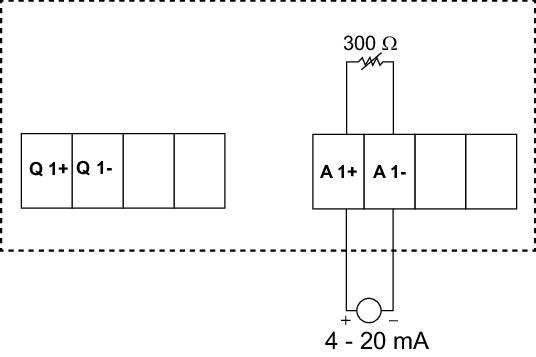

Wiring the analog input

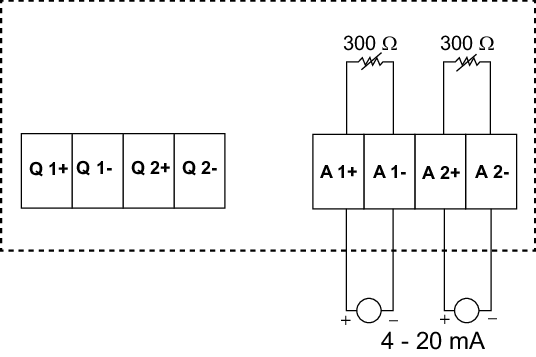

Wiring the dual analog inputs
You can configure the following analog inputs on your meter through communication only:
|
Code |
Unit |
Description |
|---|---|---|
|
0 |
– |
No units |
|
1 |
% |
Percentage |
|
2 |
ºC |
Degrees Celsius |
|
3 |
ºF |
Degrees Fahrenheit |
|
4 |
Deg |
Degrees Angular |
|
5 |
Hz |
Hertz |
|
6 |
A |
Amperes |
|
7 |
kA |
Kilo Amperes |
|
8 |
V |
Volts |
|
9 |
kV |
Kilo Volts |
|
10 |
MV |
Mega Volts |
|
11 |
W |
Watts |
|
12 |
kW |
Kilowatts |
|
13 |
MW |
Megawatts |
|
14 |
VAR |
Volt-Ampere Reactive |
|
15 |
kVAR |
Kilo Volt-Ampere Reactive |
|
16 |
MVAR |
Mega Volt-Ampere Reactive |
|
17 |
VA |
Volt-Amperes |
|
18 |
kVA |
Kilo Volt-Amperes |
|
19 |
MVA |
Mega Volt-Amperes |
|
20 |
WH |
Watt-Hour |
|
21 |
kWH |
Kilowatt-Hour |
|
22 |
MWH |
Megawatt-Hour |
|
23 |
VARH |
Reactive Volt-Ampere Hour |
|
24 |
kVARH |
Reactive Kilo Volt-Ampere Hour |
|
25 |
MVARH |
Reactive Mega Volt-Ampere Hour |
|
26 |
VAH |
Volt-Ampere Hours |
|
27 |
kVAH |
Kilo Volt-Ampere Hours |
|
28 |
MVAH |
Mega Volt-Ampere Hours |
|
29 |
Seconds |
Seconds |
|
30 |
Minutes |
Minutes |
|
31 |
Hours |
Hours |
|
32 |
Bytes (RAM) |
Bytes |
|
33 |
kBytes (RAM) |
Kilobytes |
|
34 |
$ |
Dollars |
|
35 |
gal |
Gallons |
|
36 |
gal/hr |
Gallons/hour |
|
37 |
gal/min |
Gallons/minute |
|
38 |
cfm |
Cubic feet/min |
|
39 |
PSI |
PSI |
|
40 |
BTU |
BTU |
|
41 |
L |
Liters |
|
42 |
ton-hours |
Ton-hours |
|
43 |
l/hr |
Liters/hour |
|
44 |
l/min |
Liters/min |
|
45 |
€ |
Euros |
|
46 |
ms |
Milliseconds |
|
47 |
m3 |
Cubic-meters |
|
48 |
m3/sec |
Cubic-meters/sec |
|
49 |
m3/min |
Cubic-meters/min |
|
50 |
m3/hr |
Cubic-meters/hour |
|
51 |
Pa |
Pascals |
|
52 |
Bars |
Bar |
|
53 |
RPM |
Revolutions/min |
|
55 |
BTU/hr |
BTU/hour |
|
56 |
PSIG |
Pounds/square inch gauge |
|
57 |
SCFM |
Standard cubic feet/min |
|
58 |
MCF |
Thousand cubic feet |
|
59 |
Therm |
Therm |
|
60 |
SCFH |
Standard cubic feet/hour |
|
61 |
PSIA |
Pounds/square inch absolute |
|
62 |
lbs |
Pounds |
|
63 |
kg |
Kilogram |
|
64 |
klbs |
Kilopounds |
|
65 |
lb/hr |
Pound/hour |
|
66 |
ton/hr |
Ton/hour |
|
67 |
kg/hr |
Kilogram/hour |
|
68 |
in. Hg |
Inch of Mercury |
|
69 |
kPa |
KiloPascals |
|
70 |
%RH |
Percentage of relative humidity |
|
71 |
MPH |
Miles per hour |
|
72 |
m/sec |
Meters/sec |
|
73 |
mV/cal/(cm²/min) |
MilliVolts/calorie/(square centimeters/min) |
|
74 |
in |
Inches |
|
75 |
mm |
Millimeter |
|
76 |
GWH |
GigaWatt-Hour |
|
77 |
GVARH |
Reactive Giga Volt-Ampere Hour |
|
78 |
GVAH |
Giga Volt-Ampere Hours |
|
79 |
AH |
Ampere-Hours |
|
80 |
kAH |
Kiloamp-Hours |
|
81 |
Therm/hr |
Therm/hour |
