Chassis NIII_Z_4: Check Disconnecting Contact Clusters

Safety Instructions

DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
  • Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E, CSA Z462, NOM 029-STPS, or local equivalent.
  • This equipment must only be installed and serviced by qualified electrical personnel.
  • Unless specified otherwise in the maintenance procedures, all operations (inspection, test, and preventive maintenance) must be carried out with the device, the chassis, and the auxiliary circuits de-energized.
  • Check that the device and the chassis are de-energized on the upstream and downstream terminals.
  • Always use a properly rated voltage sensing device to confirm that the device, the chassis, and the auxiliary circuits are de-energized.
  • Install safety barriers and display a danger sign.
  • During the tests, it is strictly forbidden for anyone to touch the device, the chassis, or the conductors while voltage is applied.
  • Before turning on power to this equipment, check that all connections are made with the correct tightening torque and the device is open (OFF position).
  • Before turning on power to this equipment, put all devices, doors, and covers back in place.
  • Before turning on power to this equipment, beware of potential hazards and carefully inspect the work area for tools and objects that may have been left inside the equipment.
Failure to follow these instructions will result in death or serious injury.
DANGER
HAZARD OF DEVICE FALLING
  • Be sure that lifting equipment has lifting capacity for the device being lifted.
  • Follow manufacturer’s instructions for use of lifting equipment.
  • Wear hard hat, safety shoes, and heavy gloves.
Failure to follow these instructions will result in death or serious injury.

Procedure Definition

Procedure characteristics

Description

Action

Visually check the disconnecting contact clusters and cluster supports.

Goal

  • Verify the smooth mechanical racking-in of the device.

  • Verify the smooth racking-out of the device (avoid pulling out the clusters during disconnection).

Frequency

Refer to Recommended Frequency for the Intermediate End-User Maintenance Program.

Special indications

Necessary tools

Related documents

  • MasterPacT MTZ1 - IEC Switch-Disconnectors and Circuit Breakers with MicroLogic X Control Unit - User Guide

  • MasterPacT MTZ2/MTZ3 - IEC Switch-Disconnectors and Circuit Breakers with MicroLogic X Control Unit - User Guide

Preliminary Conditions

The device must comply with the conditions specified below. Refer to the MasterPacT MTZ User Guides to find instructions for operating the device.

Device installation type

Position of poles

Mechanism

Device position in the chassis

Fixed

N/A

N/A

N/A

Drawout

Open

Discharged

Removed from chassis

Checking Disconnecting Contact Clusters

Step

Action

Corrective action

1

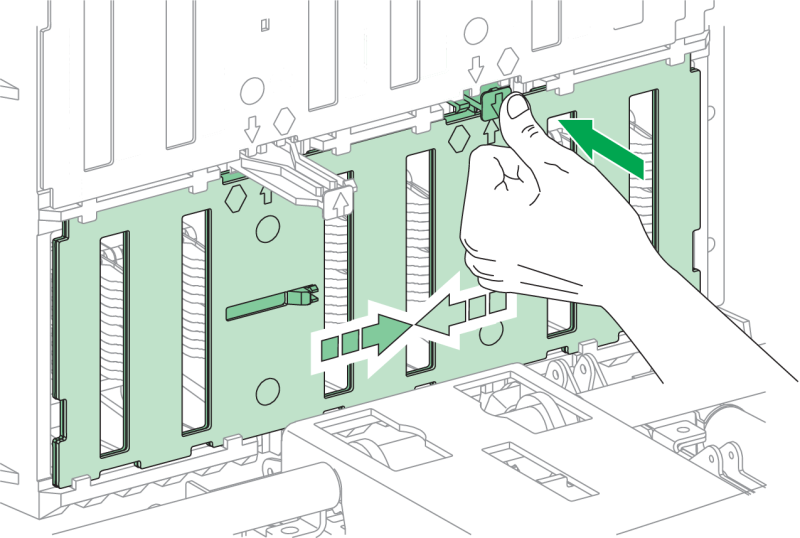

If present, remove the VIVC locking accessory for safety shutters (MasterPacT MTZ2/MTZ3).



2

Without removing the safety shutters, visually check the disconnecting contact clusters.

  • MasterPacT MTZ1

  • MasterPacT MTZ2 and MasterPacT MTZ2/MTZ3 (before 08/2022)

  • MasterPacT MTZ2/MTZ3 (after 08/2022)



3

Check that no copper is present on the surface of the clusters.

If copper is visible, contact your Schneider Electric Services representative.

4

Check if the disconnecting contact clusters are blackened.

If the disconnecting contact clusters are blackened, contact your Schneider Electric Services representative.

5

Check the state of the grease on disconnecting contact clusters.

If there is no grease or there is a change in color or texture of grease, contact your Schneider Electric Services representative.

6

Reinstall the optional VIVC locking accessory for safety shutters (MasterPacT MTZ2/MTZ3).
