Alarms & History Menu
Description
The menu contains the following menus:
|
Level 1 |
Level 2 |
Level 3 |
Function description |
|---|---|---|---|
|
|
|
|
Displays events of medium and high severity of Entry/Exit type, after the occurrence of the alarm and before the completion. The number n indicates the number of active or held alarms. Trips are not displayed. |
|
|
Displays the history of trips, with the date and time that the trip occurred. |
||
|
|
Displays the history of events of medium and high severity, with the date and time for the following type of events:
Trips are not displayed in this history. |

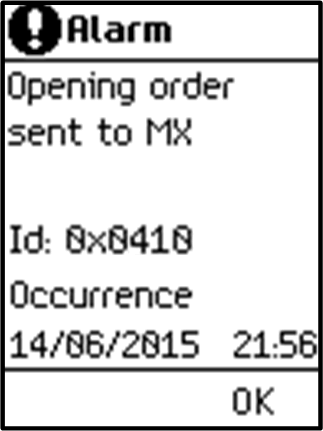

Alarms Screen
An alarm screen for an active alarm contains the following information:
Screen title: Alarm
Description: up to three lines of text describing the nature of the alarm (medium or high severity event).
Event code
Event status: Occurrence
The date and time that the alarm occurred.
Use the up and down arrows at the bottom of the screen to navigate between active alarm screens.

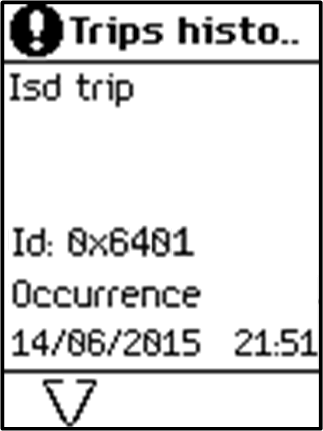

Trips History Screens
A trips history screen contains the following information:
Screen title: Trips history
Description: up to three lines of text describing the nature of the trip (high severity event).
Event code
Event status: Occurrence
The date and time that the event occurred.
Use the up and down arrows at the bottom of the screen to navigate between trips history screens.

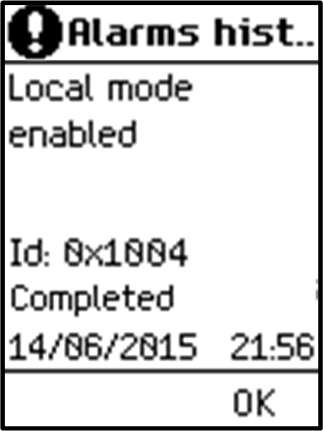

Alarms History Screens
An alarms history screen contains the following information:
Screen title: Alarms history
Description: up to three lines of text describing the nature of the alarm (medium or high severity event).
Event code
Event status:
-
Completed: for Entry/Exit type events.
-
Occurrence: for Pulse type events.
The date and time that the event completed or occurred.
Use the up and down arrows at the bottom of the screen to navigate between alarms history screens.
