Setting Wiser Multifunction Interface channel communication parameters
Adjust the channel communication parameters on a Wiser
Multifunction Interface to suit the make and model of thermostat(s)
connected to that channel.
- Select the multifunction interface in the app.
-

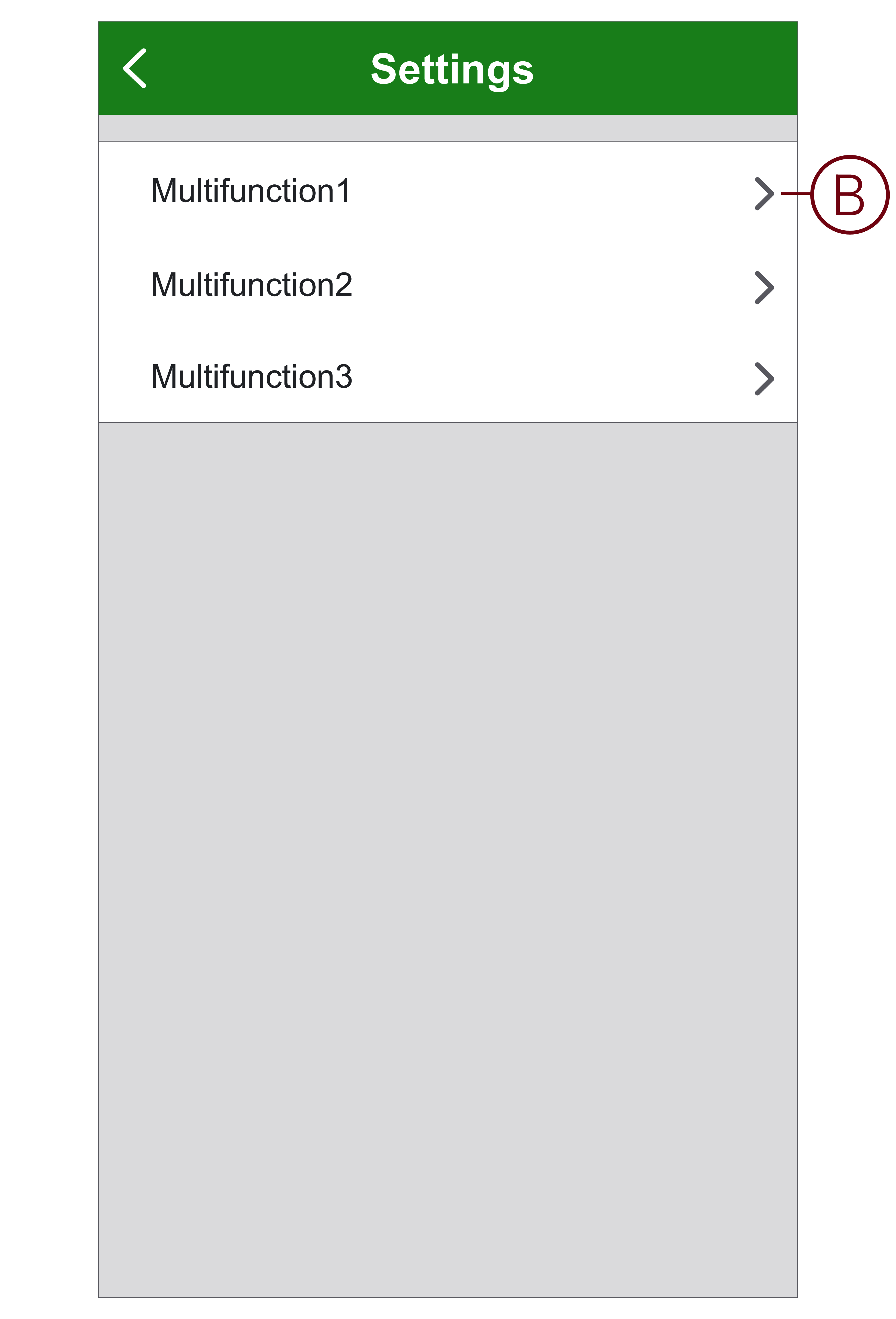

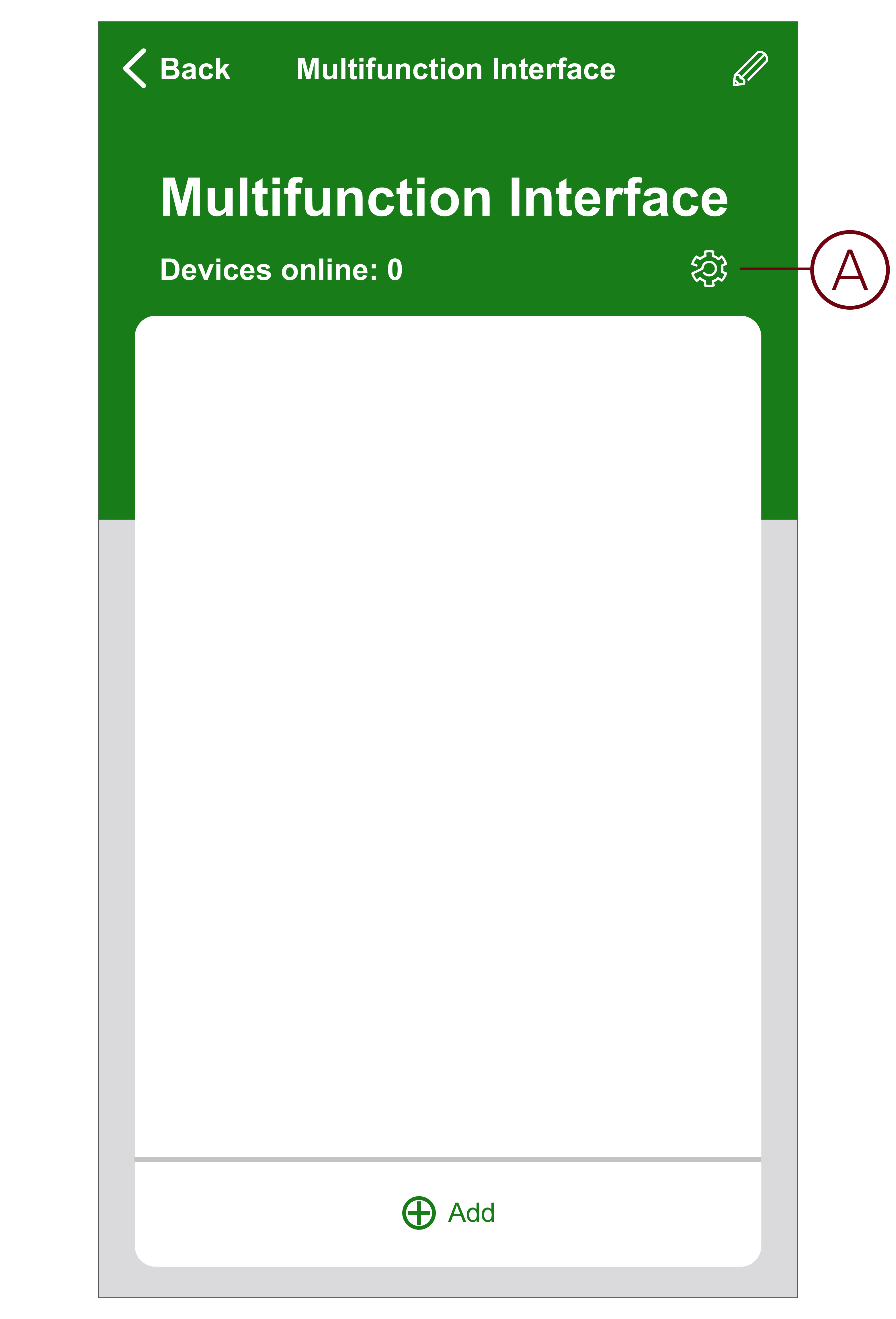

(See A, B) In the Multifunction Interface page, tap the
Settings icon (A) and then select the channel to which the thermostat
is connected (B).
(Channel Multifunction1 is selected for this example.)
-
Do one of the following:

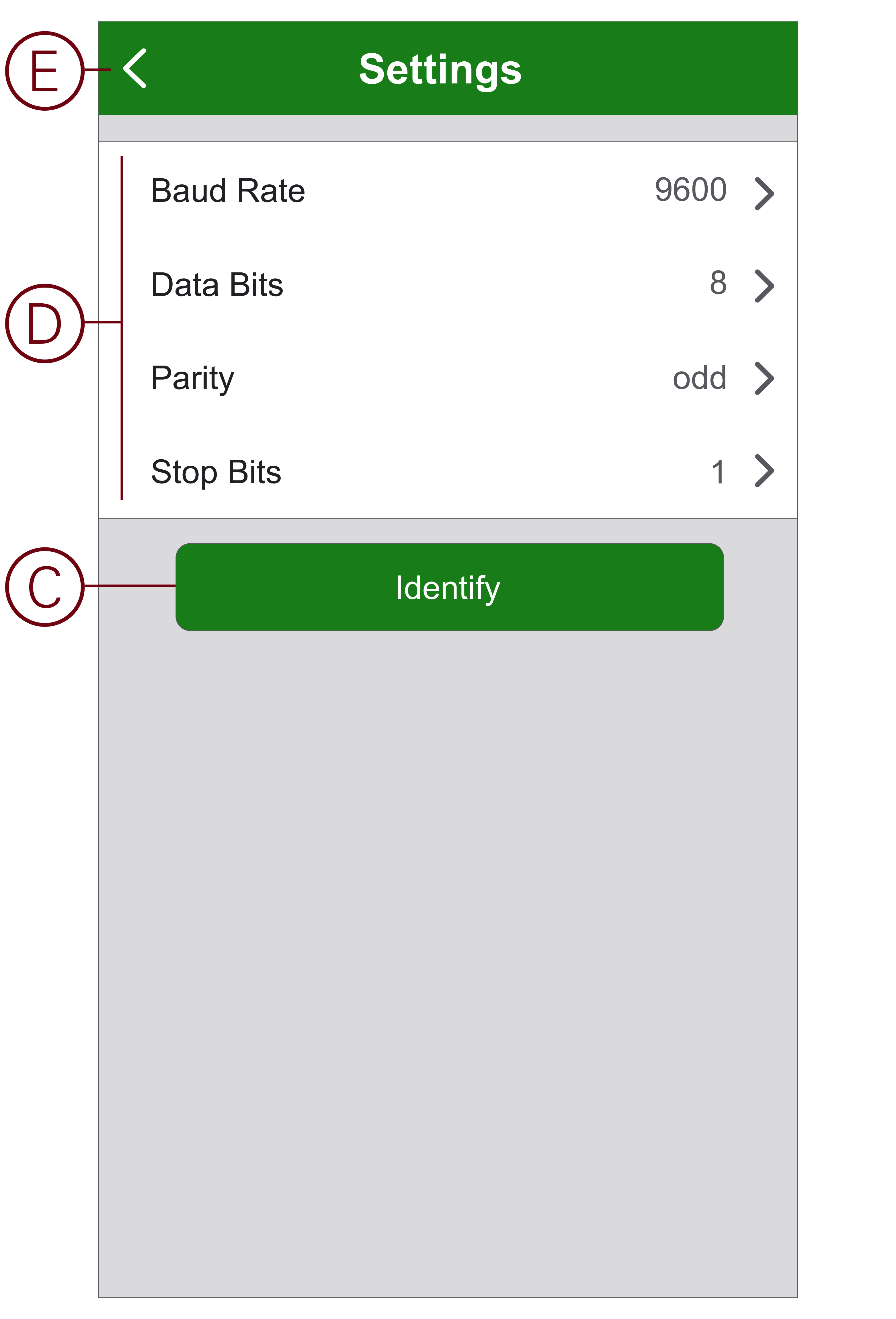

- (See C) Tap the Identify button to detect and set the required parameters automatically.
- (See D) Manually adjust the parameters to suit the thermostat.
TIP: Refer to Compatible thermostats for the Wiser Multifunction Interface to find the communication parameters for a specific thermostat make and model.
-
(See E) Tap the Back arrow < to
return to the Multifunction Interface page so that the thermostat
can be added.
