SIL Stop, Stop Category 0, Wiring Category 2 Configuration
NOTE: Safety Integrity Level according to standard IEC 61508. Wiring
Category 2 according to ISO 13849. Stop Category 0 according to EN/IEC
60204-1.

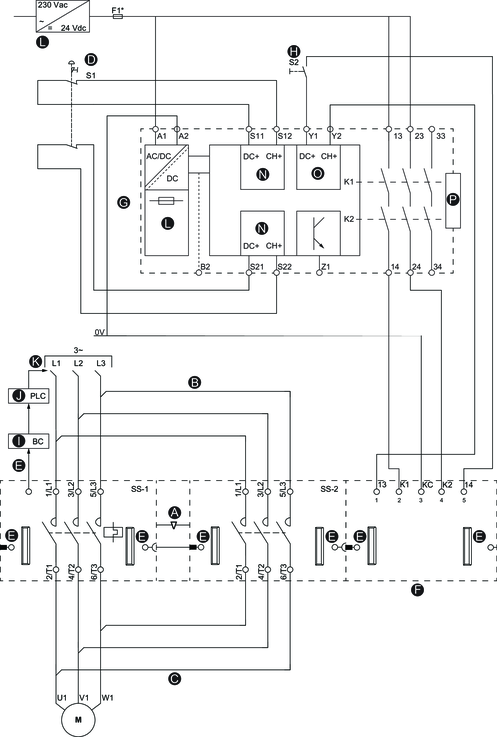

Example: Motor Two Directions - SIL Stop, W. Cat 1/2 — Stop Category 0, Wiring Category 2 Configuration (Indirect Monitoring)
Legend for Example: Motor Two Directions - SIL Stop, W. Cat 1/2 — Stop Category 0, Wiring Category 2 Configuration (Indirect Monitoring)
|
|
Mechanical interlock |
|
Bus coupler |
|
|
Parallel link |
|
PLC |
|
|
Reversing link |
|
Upstream circuit breaker |
|
|
Emergency stop push button (S1) |
|
Power supply |
|
|
Flat cable connector |
|
Input |
|
|
SIL interface module (SIM) |
|
Start |
|
|
Preventa XPS-UAF Module |
|
Extension |
|
|
Start button (S2) |
Example: Motor Two Directions - SIL Stop, W. Cat 1/2 — Stop Category 0, Wiring Category 2 Configuration (Direct Monitoring)
|
|
Mechanical interlock |
|
SIL interface module (SIM) |
|
|
Parallel link |
|
Safety Function PLC |
|
|
Reversing link |
|
Upstream circuit breaker |
|
|
Emergency stop push button (S1) |
|
Digital input |
|
|
Flat cable connector |
|
Digital output |
