MicroLogic 6.0P Trip Unit

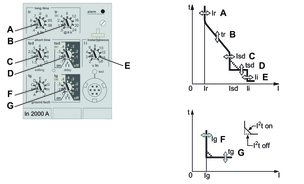

Set switches:

A—Long-time pickup (Ir)

B—Long-time delay (tr)

C—Short-time pickup (Isd)

D—Short-time delay (tsd)

E—Instantaneous pickup (Ii)

F—Ground-fault pickup (Ig)

G—Ground-fault delay (tg)

Fine-tune adjust using keypad and graphic display screen or the network system management software.

Set Pickup Levels
