Overview
TransferPacT Remote provides transfer solutions with input and output terminals.

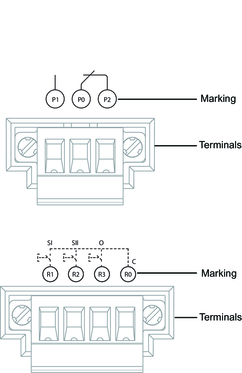

The details of the input and output terminals are shown below:
|
Terminals |
Marking |
Definition |
|---|---|---|
|
Product Availability |
P0 |
Common terminal for P1, P2 |
|
P1 |
Output signal, when either source voltage is in range and product is NOT in manual mode, NO terminal will close. |
|
|
P2 |
Output signal, when either source voltage is in range and product is NOT in manual mode, NC terminal will open. |
|
|
Remote Transfer |
R0 |
Common terminal for R1, R2, R3 |
|
R1 |
Passive input signal, remote transfer to position I when closed with R0 and last for at least 200 ms. |
|
|
R2 |
Passive input signal, remote transfer to position II when closed with R0 and last for at least 200 ms. |
|
|
R3 |
Passive input signal, remote transfer to position O when closed with R0 and last for at least 200 ms. |
For information on installation of input and output terminals, consult the instruction sheets on Schneider Electric website:
-
TransferPacT Active Automatic / Automatic / Remote 100–250 A: GEX2525501
-
TransferPacT Active Automatic / Automatic / Remote 320–630 A: GEX2525601
-
TransferPacT Active Automatic / Automatic / Remote 800 A: BQT1751501
