Position Indicator
TransferPacT Active Automatic / Automatic 32-100, 80-160, 100-250,
320-630, 800 A
TransferPacT Remote 160-250, 320-630,
800 A
|

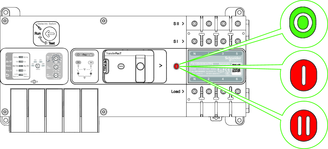

Position indicator |
Status |
|---|---|
|
OFF |
|
|
Source I is connected |
|
|
Source II is connected |
TransferPacT Active Automatic 800-1600 A
|

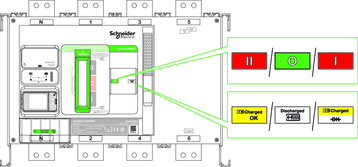

Position indicator |
Status |
|---|---|
|
Device is OFF, and open spring is charged. |
|
|
Device is OFF, and open spring is discharged. |
|
|
Source I is connected, and open spring is charged. |
|
|
Source I is connected, and open spring is discharged. |
|
|
Source II is connected, and open spring is charged. |
|
|
Source II is connected, and open spring is discharged. |
