LTMR Controllers

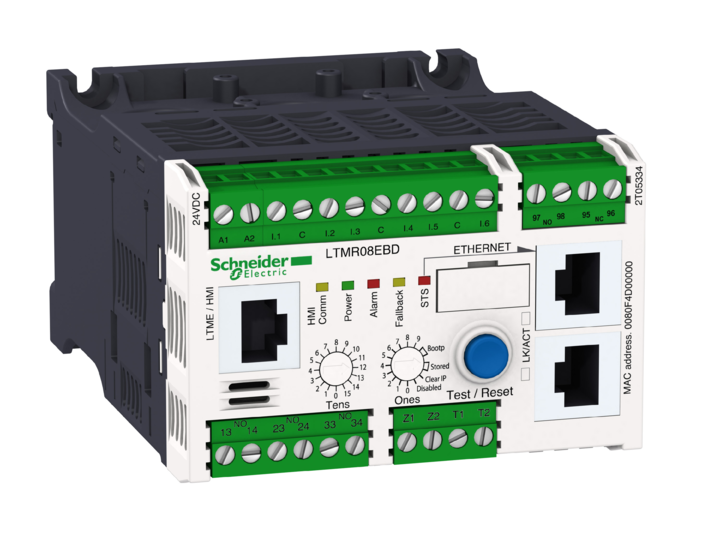

LTMR27EBD

The controller is the central component in the motor management system. It manages the basic functions such as:

Measurement of 3-phase current via integral current transformers from 0.4 to 100 A (up to 810 A by external current transformers)
Measurement of ground current internally or external ground sensors
Measurement of motor temperature
Inputs and outputs for the various motor control modes, detected fault management, and other functions

As standard, the controller manages the following:

Control modes

Overload mode
Independent mode
Reverser mode
Two-speed mode
Two-step mode
Custom mode

Inputs/Outputs

Six discrete logic inputs
Three relay logic outputs (1 N.O. contact each)
One relay output for detected fault signaling (1 N.O. + 1 N.C.) overload relay

Measurements

Connection for a thermistor probe
Connections for a ground sensor

LTMR Controllers

Setting Range (A)	Control Voltage	Current Range (A)	Catalog Number
Modbus™ Protocol
8	24 Vdc	0.4–8	LTMR08MBD
8	100–240 Vac	0.4–8	LTMR08MFM
27	24 Vdc	1.35–27	LTMR27MBD
27	100–240 Vac	1.35–27	LTMR27MFM
100	24 Vdc	5–100	LTMR100MBD
100	100–240 Vac	5–100	LTMR100MFM
Ethernet TCP/IP Communication (Protocols: Ethernet/IP and Modbus/TCP)
8	24 Vdc	0.4–8	LTMR08EBD
8	100–240 Vac	0.4–8	LTMR08EFM
27	24 Vdc	1.35–27	LTMR27EBD
27	100–240 Vac	1.35–27	LTMR27EFM
100	24 Vdc	5–100	LTMR100EBD
100	100–240 Vac	5–100	LTMR100EFM
CANopen Protocol
8	24 Vdc	0.4–8	LTMR08CBD
8	100–240 Vac	0.4–8	LTMR08CFM
27	24 Vdc	1.35–27	LTMR27CBD
27	100–240 Vac	1.35–27	LTMR27CFM
100	24 Vdc	5–100	LTMR100CBD
100	100–240 Vac	5–100	LTMR100CFM
DeviceNet™ Protocol
8	24 Vdc	0.4–8	LTMR08DBD
8	100–240 Vac	0.4–8	LTMR08DFM
27	24 Vdc	1.35–27	LTMR27DBD
27	100–240 Vac	1.35–27	LTMR27DFM
100	24 Vdc	5–100	LTMR100DBD
100	100–240 Vac	5–100	LTMR100DFM
Profibus DP Protocol
8	24 Vdc	0.4–8	LTMR08PBD
8	100–240 Vac	0.4–8	LTMR08PFM
27	24 Vdc	1.35–27	LTMR27PBD
27	100–240 Vac	1.35–27	LTMR27PFM
100	24 Vdc	5–100	LTMR100PBD
100	100–240 Vac	5–100	LTMR100PFM
