External Reset Mechanisms — Class 9066

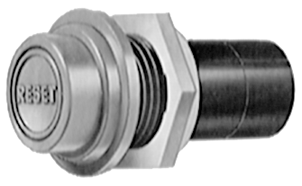

Type RA kits provide a convenient external means for resetting overload relays mounted in control enclosures of almost any depth. Designed for use on NEMA 1, 4, or 12 enclosures, they can be used with any Schneider Electric open type magnetic starter or Class 9065 overload relay. All kits are individually packaged for easy stocking and include complete installation instructions.

• A single mounting hole is required in the enclosure door.

• Each kit contains one or more threaded reset rods, grooved at intervals of 3/4 inch so they can be cut to the approximate length required without thread damage.

• Final adjustment can be made after installation by rotating a plunger and tightening the lock nut.

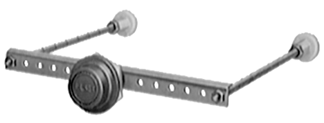

• Mechanisms with more than one reset rod include a steel cross bar with mounting holes located at 1/2 inch intervals, providing a choice of rod locations to suit any application.

• All steel parts are electrically isolated from the enclosure and the operator.

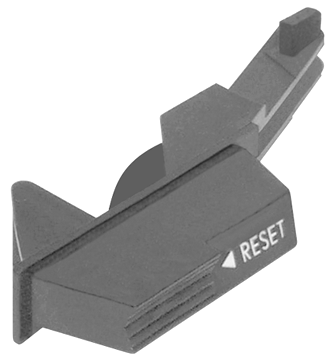

Type RB kits make it possible to field-install external reset mechanisms to Type S combination starters in NEMA 12 enclosures. They can also be used to replace external reset mechanisms on Type S combination starters in NEMA 1, 4, and 12 enclosures.
